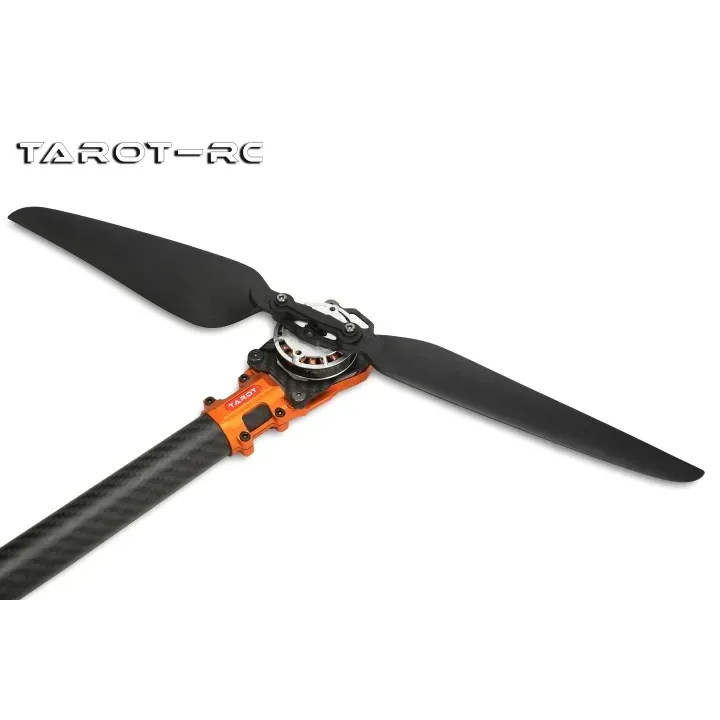

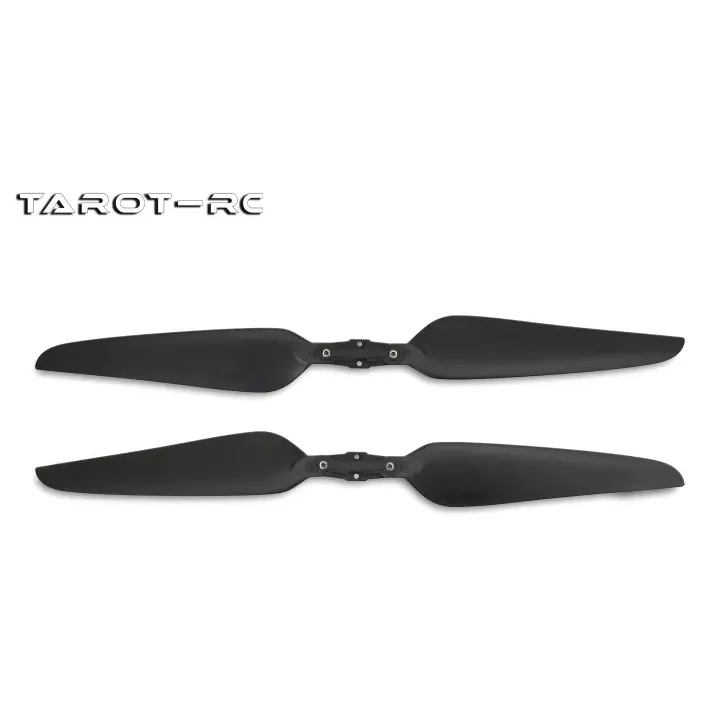

Tarot TL100D35 1455 14" Folding Propellers with Clamp Holders (CW+CCW)

A 14-inch folding propeller set from Tarot with both CW and CCW propellers and their clamp holders, for quadcopters, hexacopters and other multi-rotor UAVs. The holders fit motors with 12 mm symmetrical screw-hole centres and a Φ4 mm shaft, and the blades fold back for compact storage and transport.

Key features

• 14 x 5.5 inch blades, per the 1455 model code, on an optimised airfoil Tarot rates at over 10% efficiency gain
• High-strength engineered material for good flexibility, airfoil stability and extra power reserve
• Clamp holders fit all motors with 12 mm symmetrical screw-hole centres
• About 29.4 g per pair including the clamps
• Moulds made on MIKRON five-axis machining centres in Switzerland

Specifications

• Model: TL100D35
• Diameter: 14 in
• Pitch: 5.5 in
• Total span: 355 mm
• Motor shaft: Φ4 mm
• Motor screw-hole spacing: 12 mm, symmetrical
• Propeller mounting hole: Φ3 mm
• Blade thickness: 4.4 mm
• Weight: approx. 29.4 g per pair with clamps
• In the box: 1 × CW and 1 × CCW propeller with clamp holders

Order two sets for a quadcopter or three for a hexacopter. Check that the clamp screws are tight and both blades open fully before every flight.
