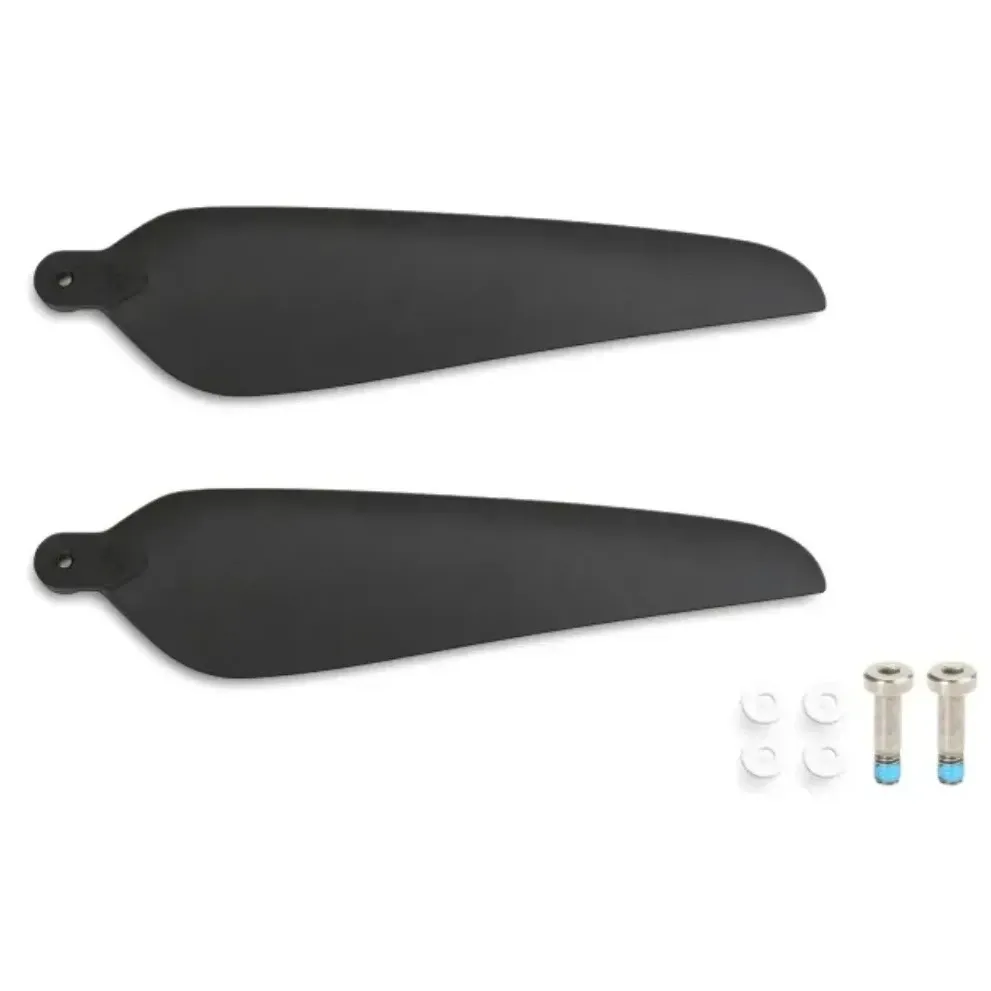

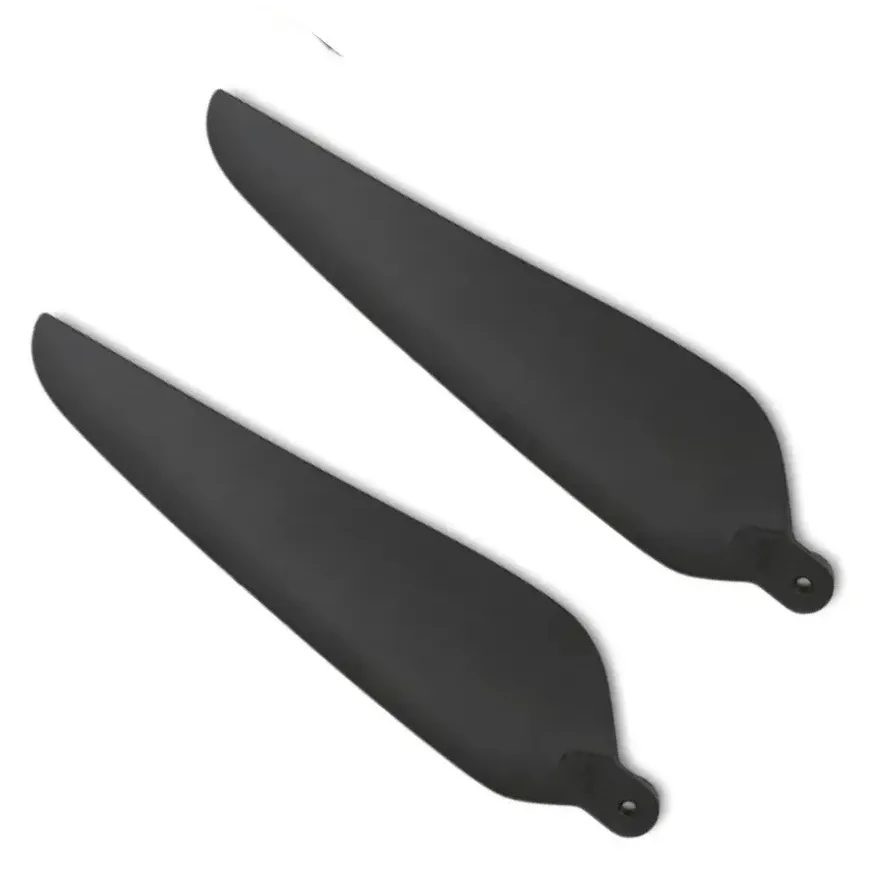

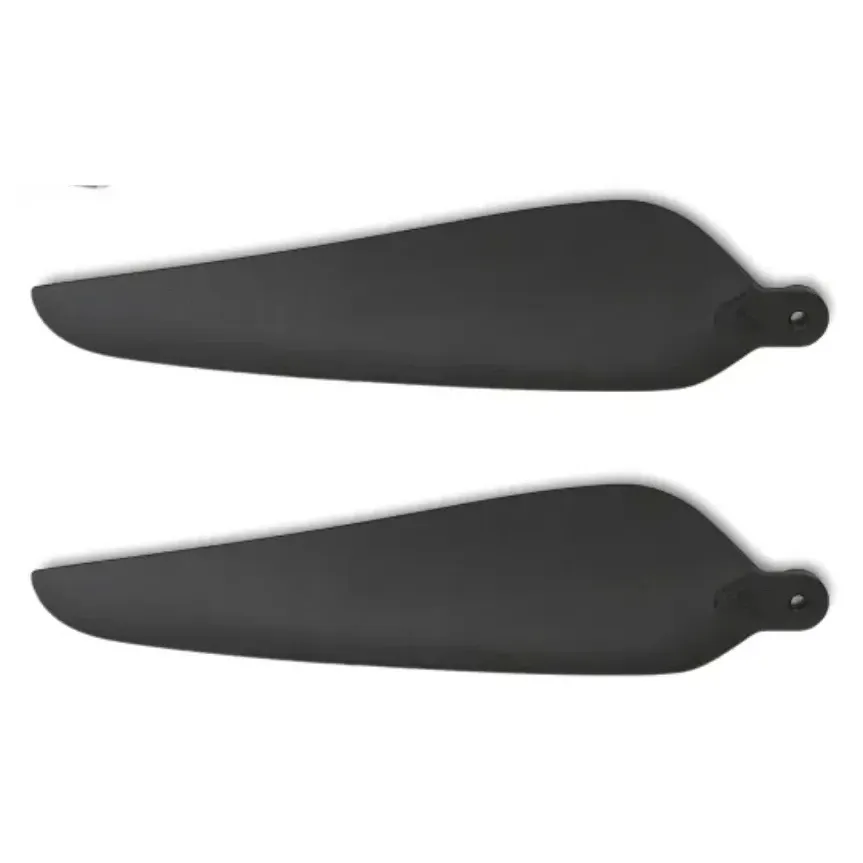

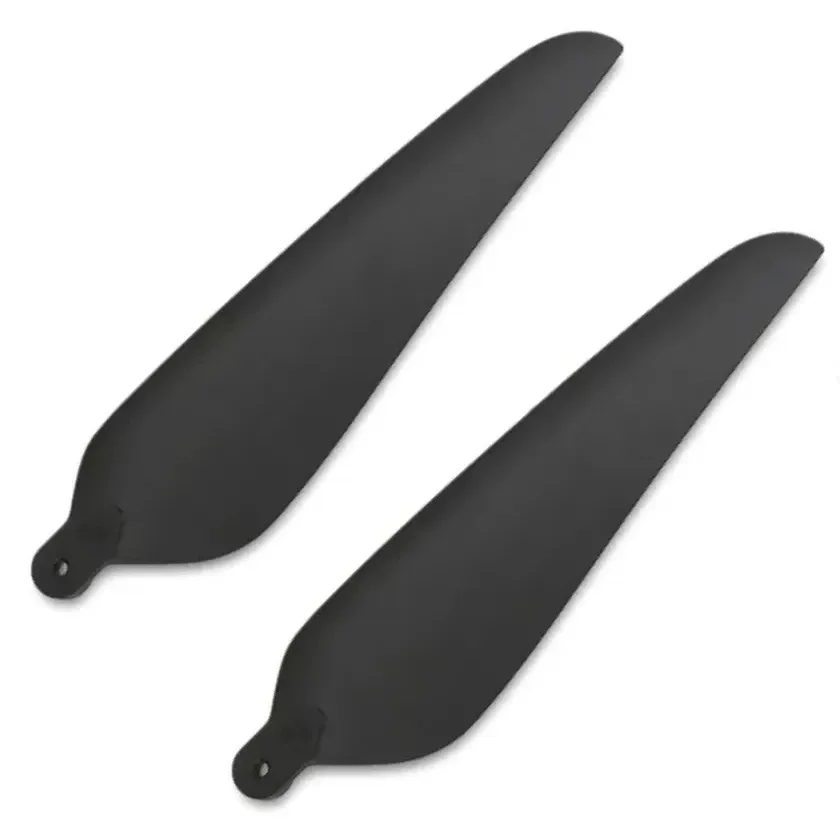

Tarot 1665 16x6.5 Single Folding Propeller (CW/CCW)

The Tarot 1665 is a 16 x 6.5 inch high-efficiency folding propeller for quad, hexa and octocopter UAVs, sold as a single propeller in clockwise (TL100D30) or counter-clockwise (TL100D31) rotation.

Key features

• 6.5 inch pitch, steeper than the 5.5 inch Tarot 1655 of the same diameter, so it loads the motor harder; check your motor's recommended prop and current draw before switching
• Optimised airfoil in high-strength engineering material; Tarot quotes more than 10% better efficiency and extra power reserve
• Blade moulds machined on a Swiss MIKRON 5-axis machining centre for consistent geometry
• About 12 g per blade
• Folding blades swing back when the motors stop, keeping the aircraft compact for transport

Specifications

• Diameter: 16 in
• Pitch: 6.5 in
• Blade length: 185 mm
• Weight: approx. 12 g per blade
• Centre hole: 3.0 mm
• Root thickness: 4.5 mm
• Rotation: CW (TL100D30) or CCW (TL100D31)

A quadcopter needs two CW and two CCW propellers, so order both rotations to match your motor layout. The folding prop holder is not included; confirm that your holder's blade slot takes the 4.5 mm root.
