T-Motor P80III Heavy-Lift Motor

The T-Motor P80III Pin KV120 is a heavy-lift brushless motor built for agricultural and plant-protection UAVs running large carbon propellers on high-cell-count power systems.

Key features

• Rated for 6S to 12S LiPo power, matching the wide voltage range agricultural spray drones run on.

• Handles a peak current of 70A and up to 3600W maximum power over a 180-second rating.

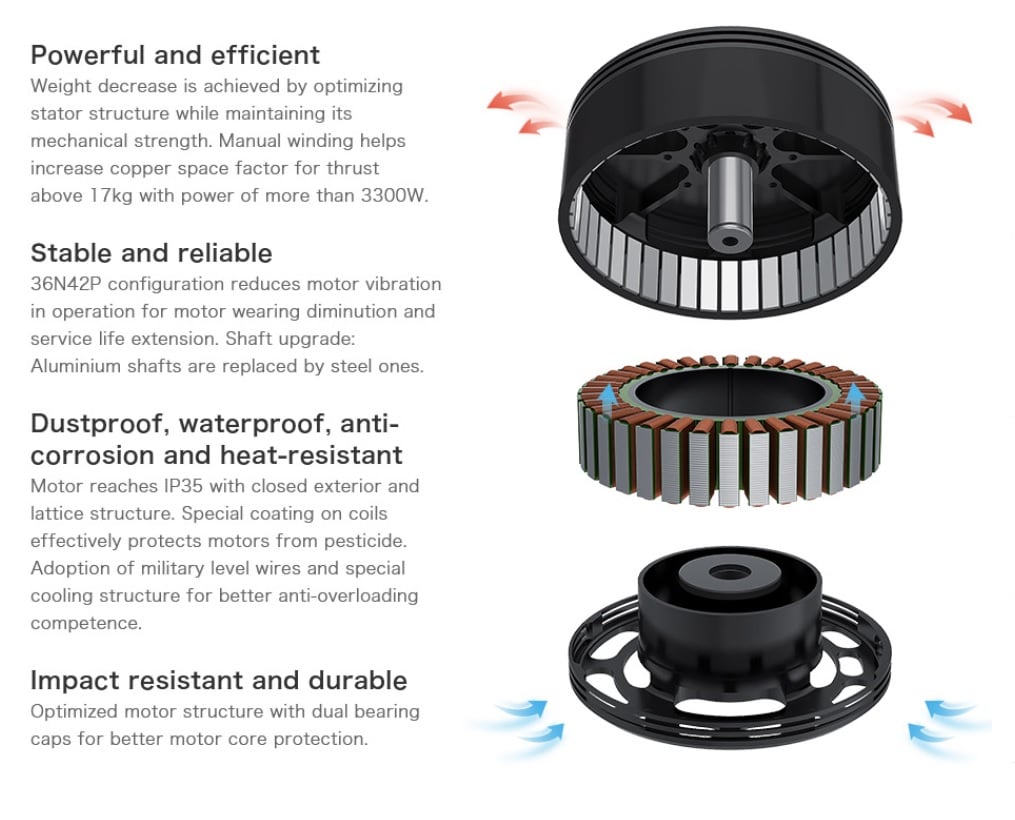

• 91.6mm diameter, 43mm tall stator housing with a 36N42P winding configuration for high torque at low RPM.

• 120KV winding suits the large propellers used on heavy-lift and agricultural airframes.

Specifications

• KV: 120KV (Pin) or 100KV (without pin)

• Weight: 649g (with leads)

• Motor size: Φ91.6 x 43mm

• Shaft diameter: 15 mm

• Input voltage: 6-12S LiPo

• Max current (180s): 70A

• Max power (180s): 3600W

• Stator configuration: 36N42P

• Lead wire: 14AWG silicone

Pair it with a large carbon propeller sized to the aircraft's payload, and confirm ESC current headroom against the motor's peak draw before flight.
