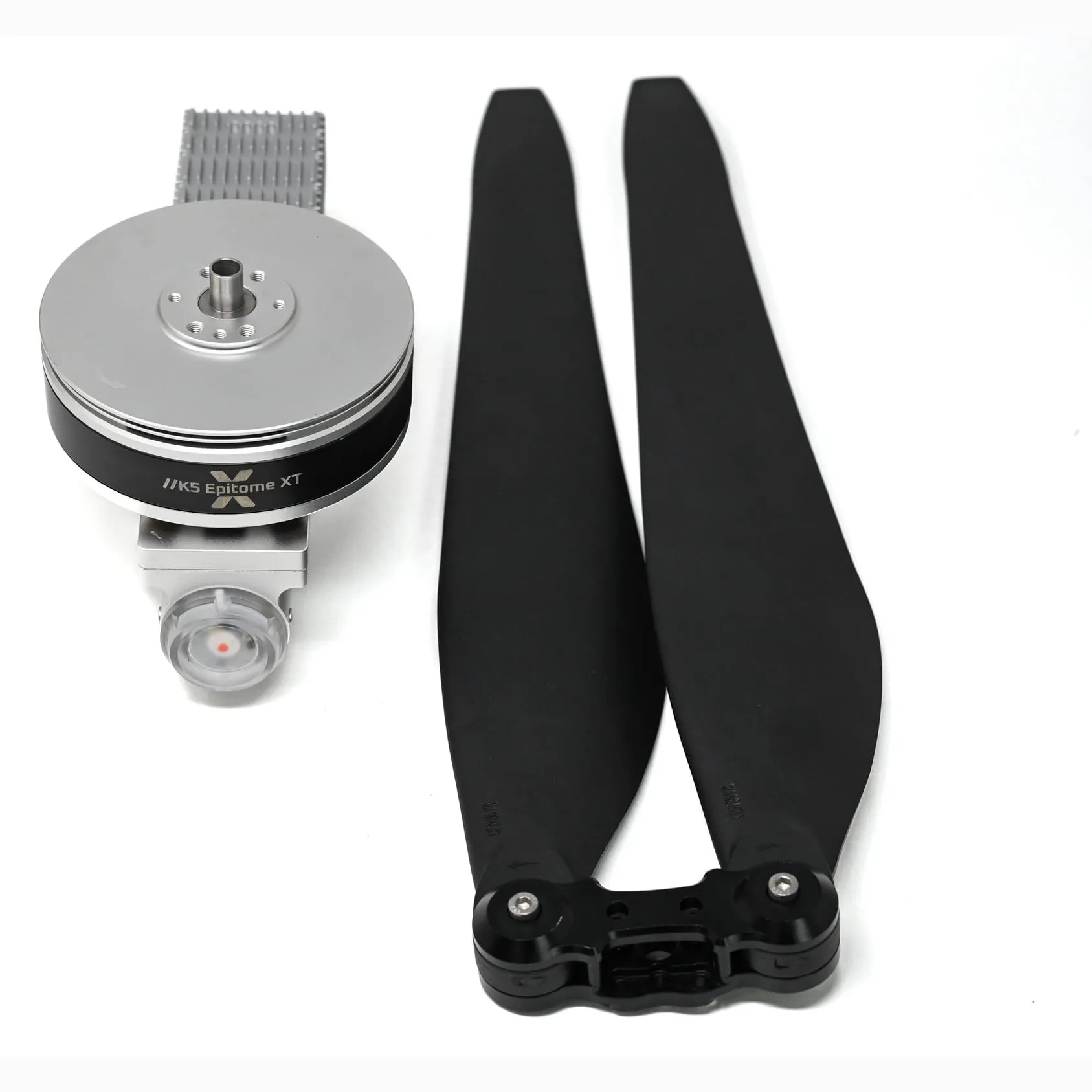

K5 Epitome XT 100KV Propulsion System

The K5 Epitome XT 100KV is a low-KV propulsion motor for agricultural spray drones and heavy-lift industrial multirotors, sold with an integrated aluminium mount and its own electronic speed controller. Built for 12S-14S packs swinging a 36-inch propeller, it favours torque over top speed. Available in CW and CCW rotation to match your airframe.

Key features

• 100KV winding produces up to 25 kg of thrust on 14S or 24 kg on 12S, matched to a 36x12 propeller
• Integrated aluminium mounting system with a built-in ESC, cutting one assembly step from an agricultural-drone build
• Motor body measures 110 x 50 mm; choose the 35, 40 or 45 mm tube mount that matches your frame's arm
• CW and CCW variants sold separately for building matched propulsion sets across a hex, octo or quad frame
• Complete propulsion unit weighs 1700 g, so factor it into total payload and thrust calculations

Specifications

• KV rating: 100 KV
• Max thrust: 25 kg (14S) / 24 kg (12S)
• Motor size: 110 x 50 mm
• Propeller size: 36 x 12 inch
• Weight: 1700 g
• Cell count: 12S-14S

Confirm your frame's arm-tube diameter against the 35/40/45 mm mount options, and size the ESC and wiring for continuous currents well above 40 A on heavy-lift agricultural duty.
