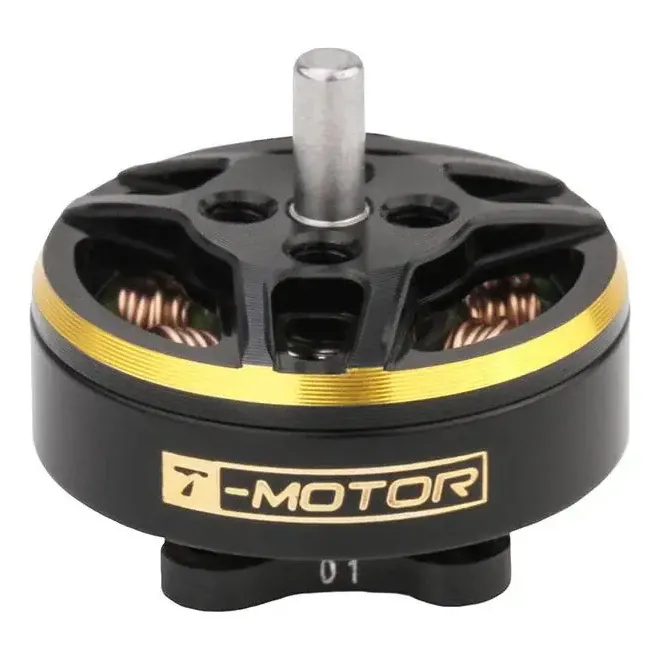

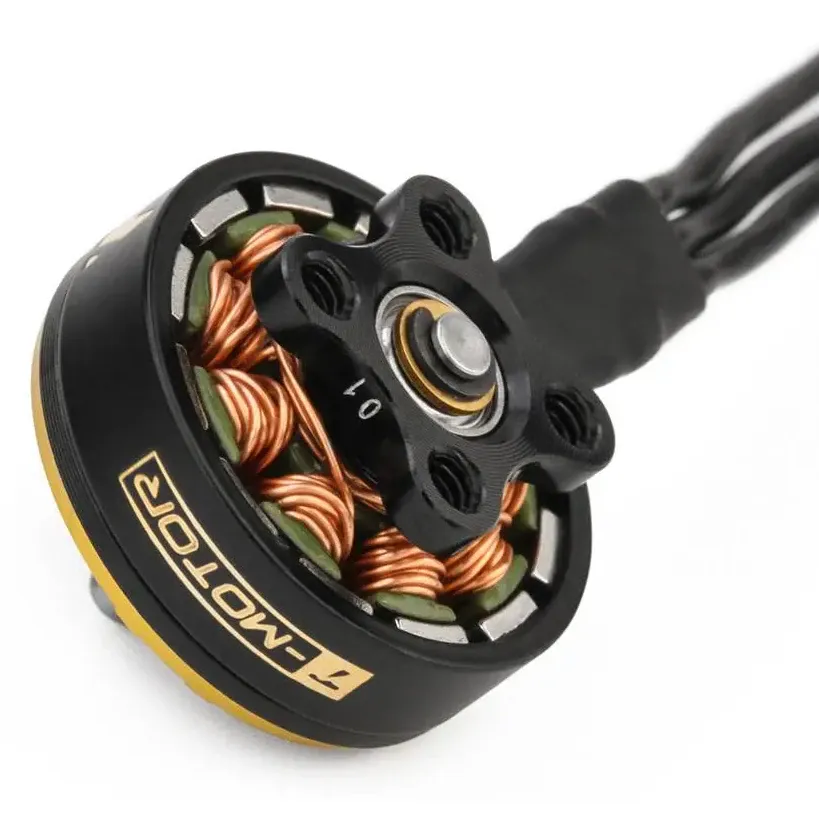

T-Motor F1303 5000KV Brushless Motor
₹1,799Incl. GST
SKU TM-F1303-5000KV
Stator Size: 1303KV: 5000 KVPack Size: 1Prop Mount: 2mm
Dispatched within 5–7 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor F1303 5000KV is a compact brushless motor built for 3-inch toothpick and lightweight micro FPV quads, tuned for quiet, efficient flight on 2S to 3S LiPo power without excessive current draw.
Key features
- Customised noise-reducing magnet keeps the motor quiet for indoor and close-proximity flying.
- 9N12P winding configuration gives smooth, linear power delivery as throttle changes.
- 2mm motor shaft matches standard 3-inch propeller hardware.
- 24AWG silicone leads, 85mm long, for straightforward ESC wiring.
- Draws just 0.32A at idle (4V bench test), leaving more current headroom for the ESC and video system.
Specifications
- KV: 5000KV
- Stator size: 1303
- Configuration: 9N12P
- Rated voltage: 2-3S LiPo
- Shaft diameter: 2mm
- Motor dimensions: Ø16.5 x 14.55mm
- Mounting pattern: 9x9mm (M2)
- Max power (60s): 87W
- Weight: 6.1 g including leads
Pair this motor with 2.5 to 3-inch bi-blade propellers and a lightweight AIO or 12–20A ESC stack on a 2S or 3S toothpick build.
| Stator Size | 1303 |
|---|---|
| Stator Diameter | 13mm |
| Stator Height | 3mm |
| KV | 5000 KV |
| Pack Size | 1 |
| Prop Mount | 2mm |
| Shaft | 2mm |
| Motor Mount | 9x9mm |
| Input Voltage | 2–3S |
| Weight | 6.1 g |
| Brand | T-Motor |
| Made in India | No |
