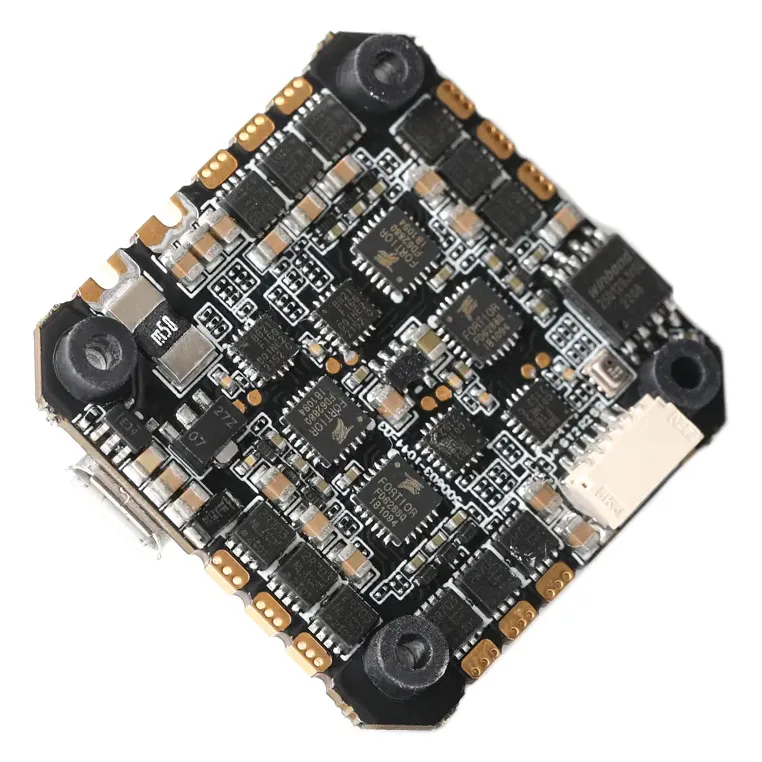

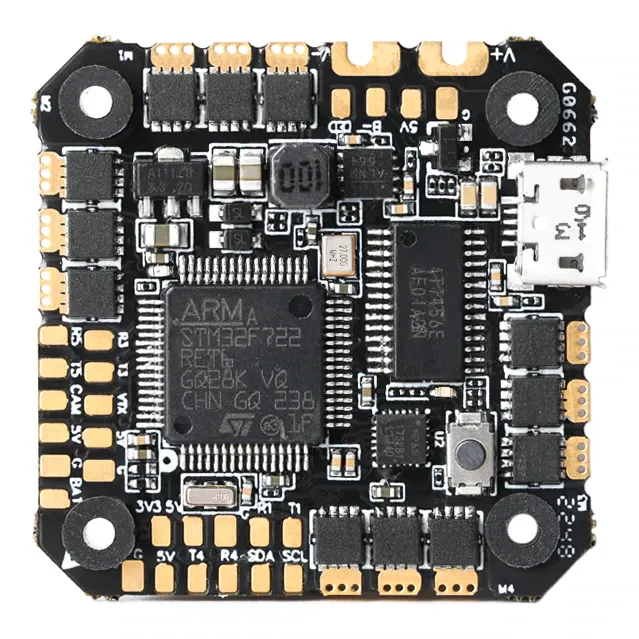

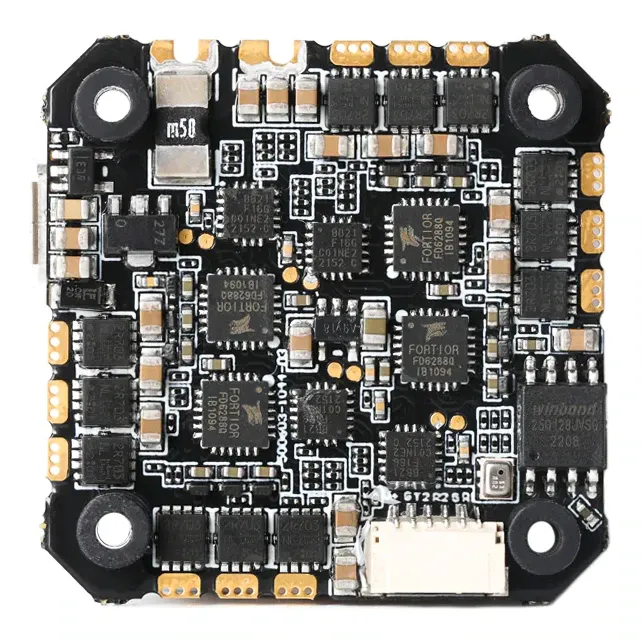

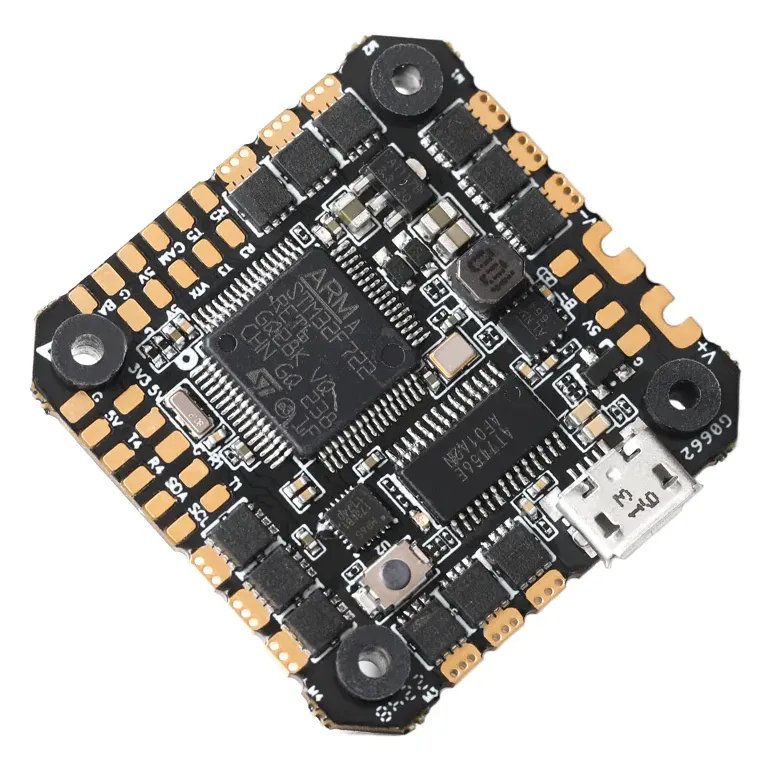

T-Motor F7 AIO FC — F722 + 45A 2-6S BLHeli_S ESC (25×25)

The T-Motor F7 45A AIO combines a high-performance STM32F722 flight controller with a robust 45A BLHeli_S ESC on a single board. Engineered to handle up to 6S LiPo power, this all-in-one unit is ideal for 3-inch to 5-inch toothpicks, heavy cinewhoops, and lightweight freestyle frames that require fast processing and reliable current delivery without the weight and height of a traditional twin-board stack.

Key features

• Integrated 45A continuous BLHeli_S 4-in-1 ESC for high-draw micro and mid-sized builds

• STM32F722 MCU provides ample processing overhead for high PID loop frequencies and advanced filtering

• Direct plug-and-play support for both HD digital video transmitters and traditional analogue VTX setups

• Compact whoop-style layout to maximise internal frame space

Specifications

• MCU: STM32F722

• Continuous Current: 45A

• Input Voltage: 2-6S LiPo

• ESC Firmware: BLHeli_S

• Supported FC Firmware: Betaflight

• Mounting Size: 25.5x25.5mm
