BetaFPV Matrix G4 3-in-1 HD AIO
₹6,399Incl. GST
SKU BFPV-MATRIX-G4-3IN1-HD
Integrated VTX: NoMounting Size: 25.5x25.5Integrated Receiver: YesESC Current: 12 A
Dispatched within 3–4 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

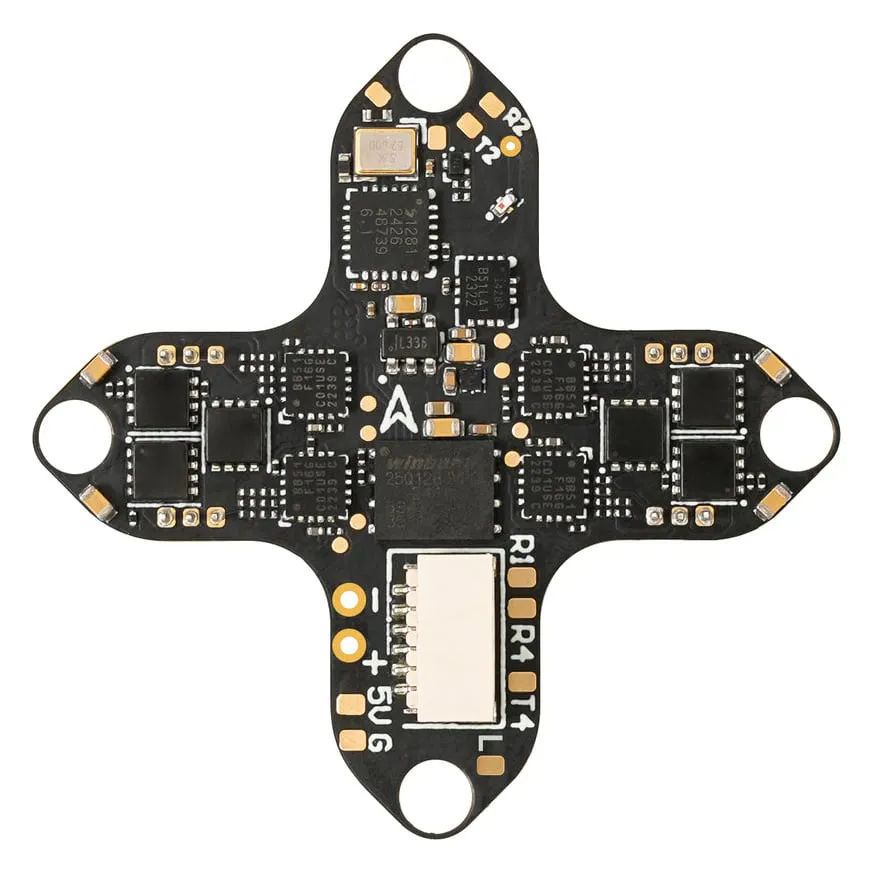

The BetaFPV Matrix G4 3-in-1 HD AIO is an integrated flight controller for 1S digital micro drones and whoops. It combines a flight controller, ESC and an onboard ELRS receiver on one board, cutting weight and wiring versus separate components, with plug-and-play support for Walksnail, HDZero or DJI O4 video systems.
Key features
- STM32G473 processor with an ICM42688P gyro and 16MB of blackbox memory for fast, well-tuned flight
- Integrated 12A-continuous / 18A-peak ESCs run Bluejay firmware
- A dedicated 5V step-up regulator keeps a DJI O4 unit powered reliably even from a single cell
- Onboard 2.4GHz ELRS receiver connects via UART, with the pads left free to disable it and wire in an external receiver instead
- 6-pin SH1.0 connector for the digital video system and an external USB-C port for configuration
Specifications
- Processor: STM32G473
- Gyro: ICM42688P
- ESC: 12A continuous / 18A peak, Bluejay firmware
- Receiver: Integrated 2.4GHz ELRS
- Blackbox: 16MB
- Board thickness: 1mm
- Input voltage: 1S only
- BEC: 5V 3A
- ESC protocols: DShot300, DShot600
- Motor plugs: JST1.25 3-pin
- Battery connector: BT2.0
- USB port: SH1.0 4-pin
- Mounting: 25.5 x 25.5 mm

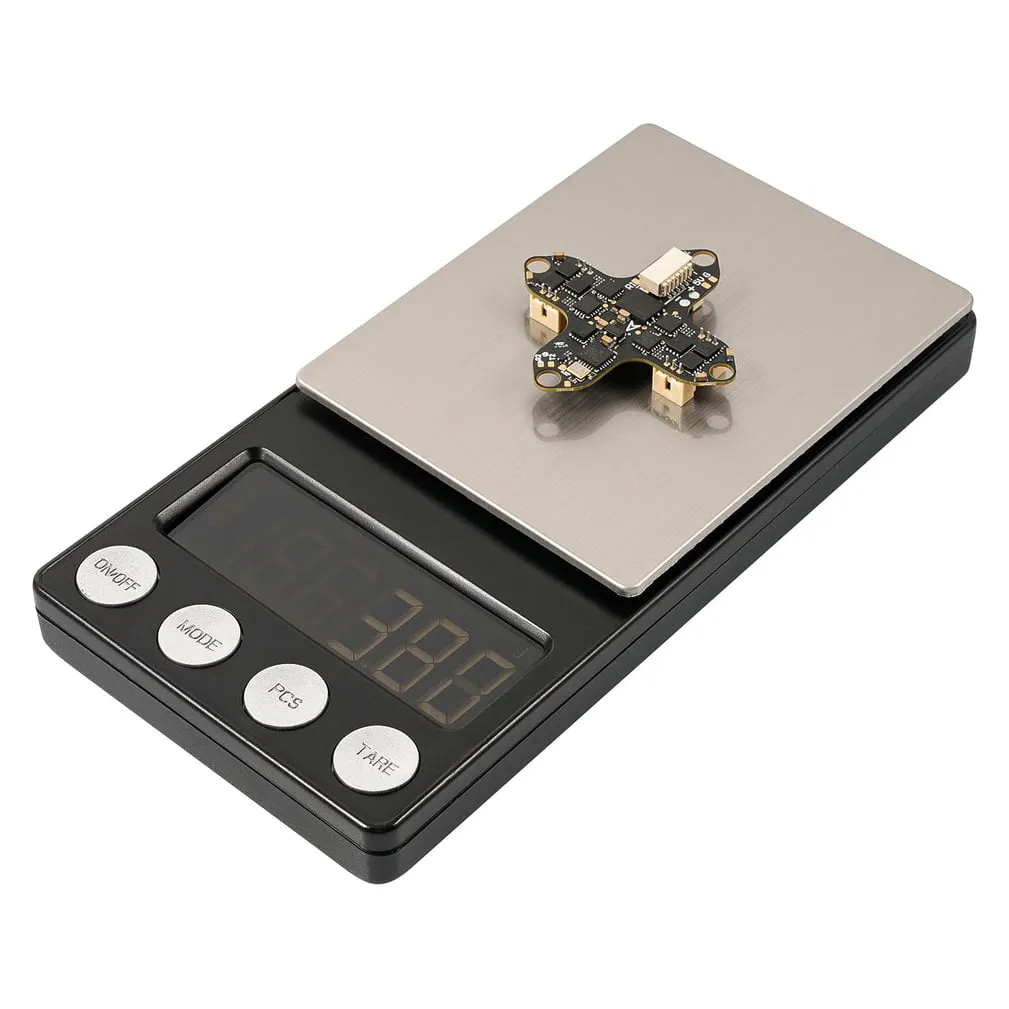

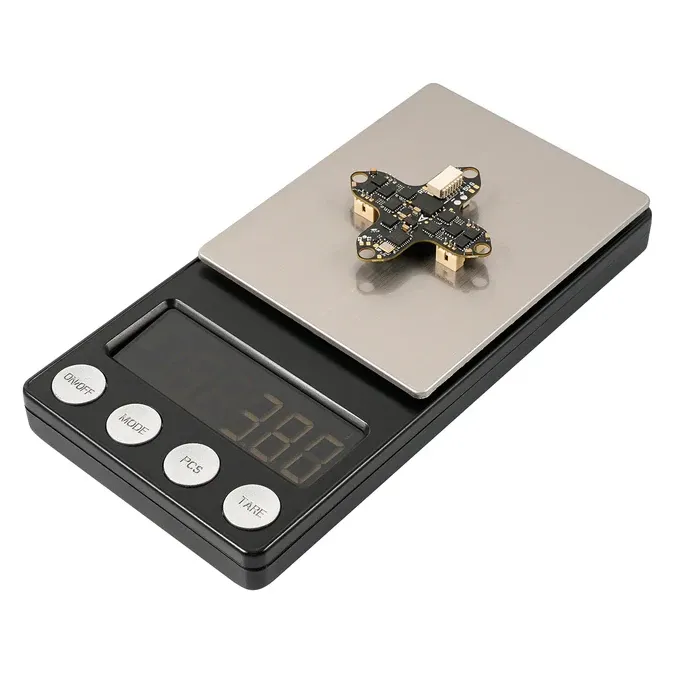

- Weight: 3.8 g (4.2 g with battery connector)
Built for 1S toothpicks and cinewhoops where every gram counts, letting you focus on clean routing rather than juggling three separate boards.
| Integrated VTX | No |
|---|---|
| Mounting Size | 25.5x25.5 |
| Integrated Receiver | Yes |
| ESC Current | 12 A |
| Input Voltage | 1S |
| Made in India | No |
| Brand | BetaFPV |
| FC Processor | G4 |
| Gyro | ICM42688P |
| ESC Firmware | Bluejay |
| Barometer | No |
| UARTs | 4 |
| Battery Connector | BT2.0 |
| Supported Firmware | Betaflight |
| RC Protocol | ELRS |
| Weight | 3.8 g |
