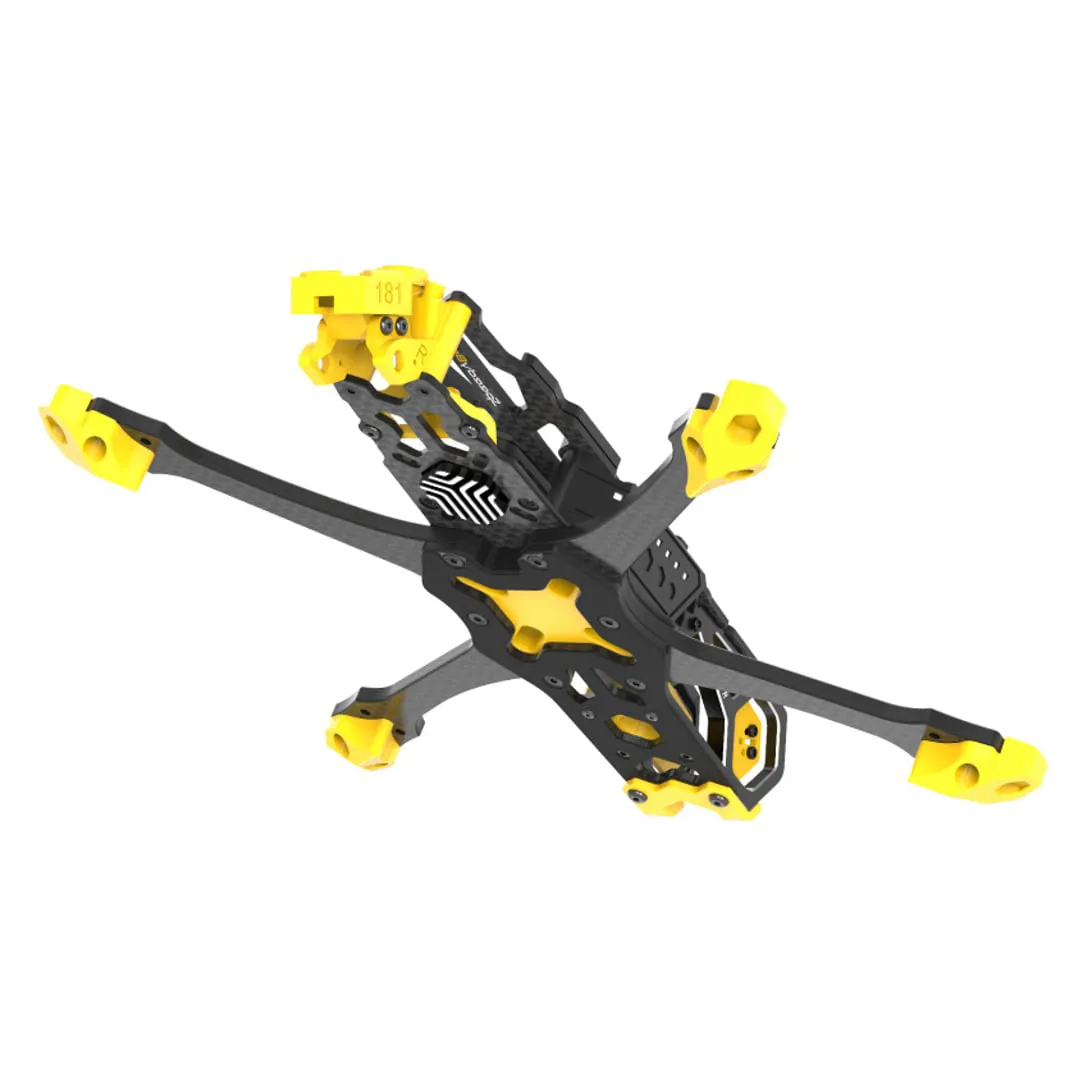

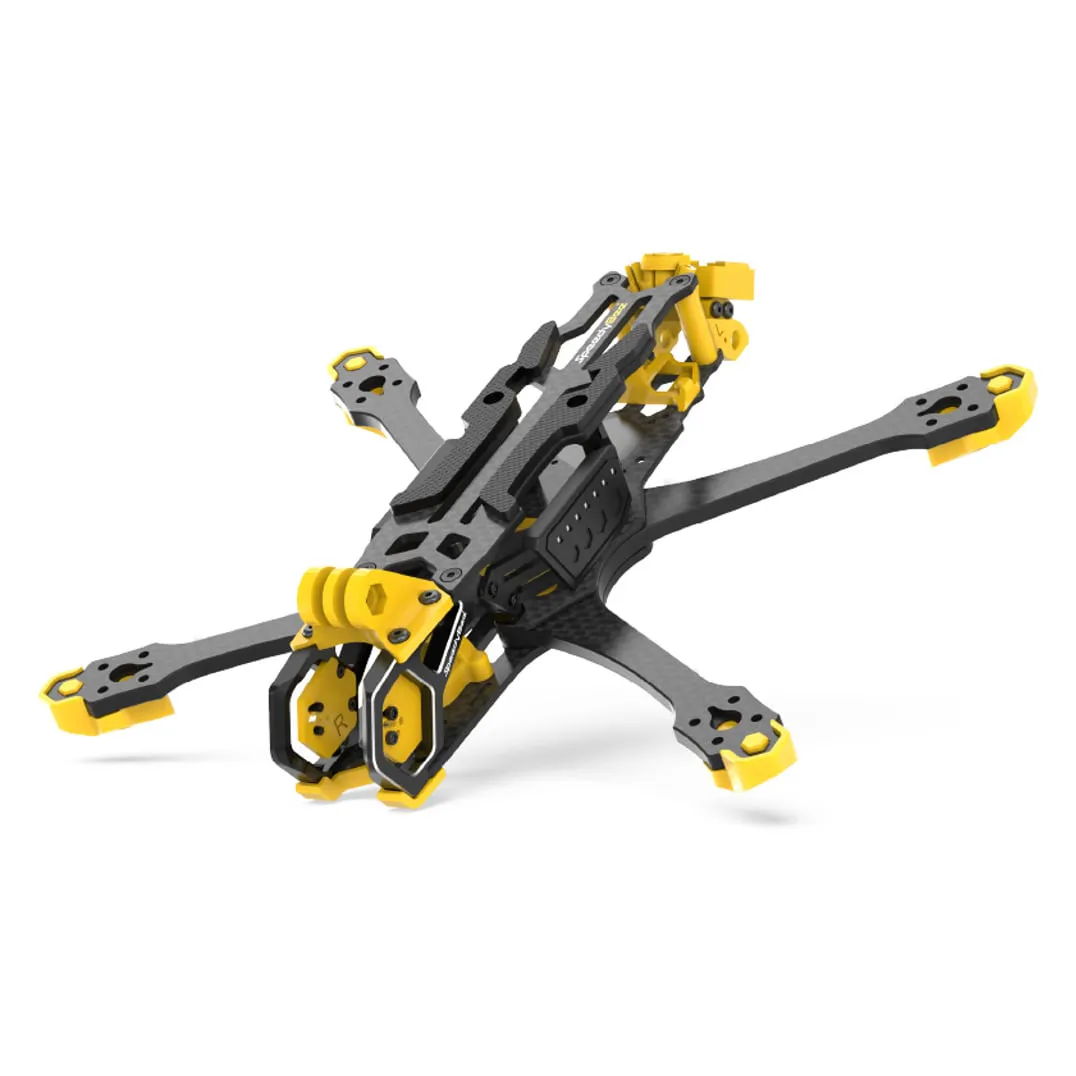

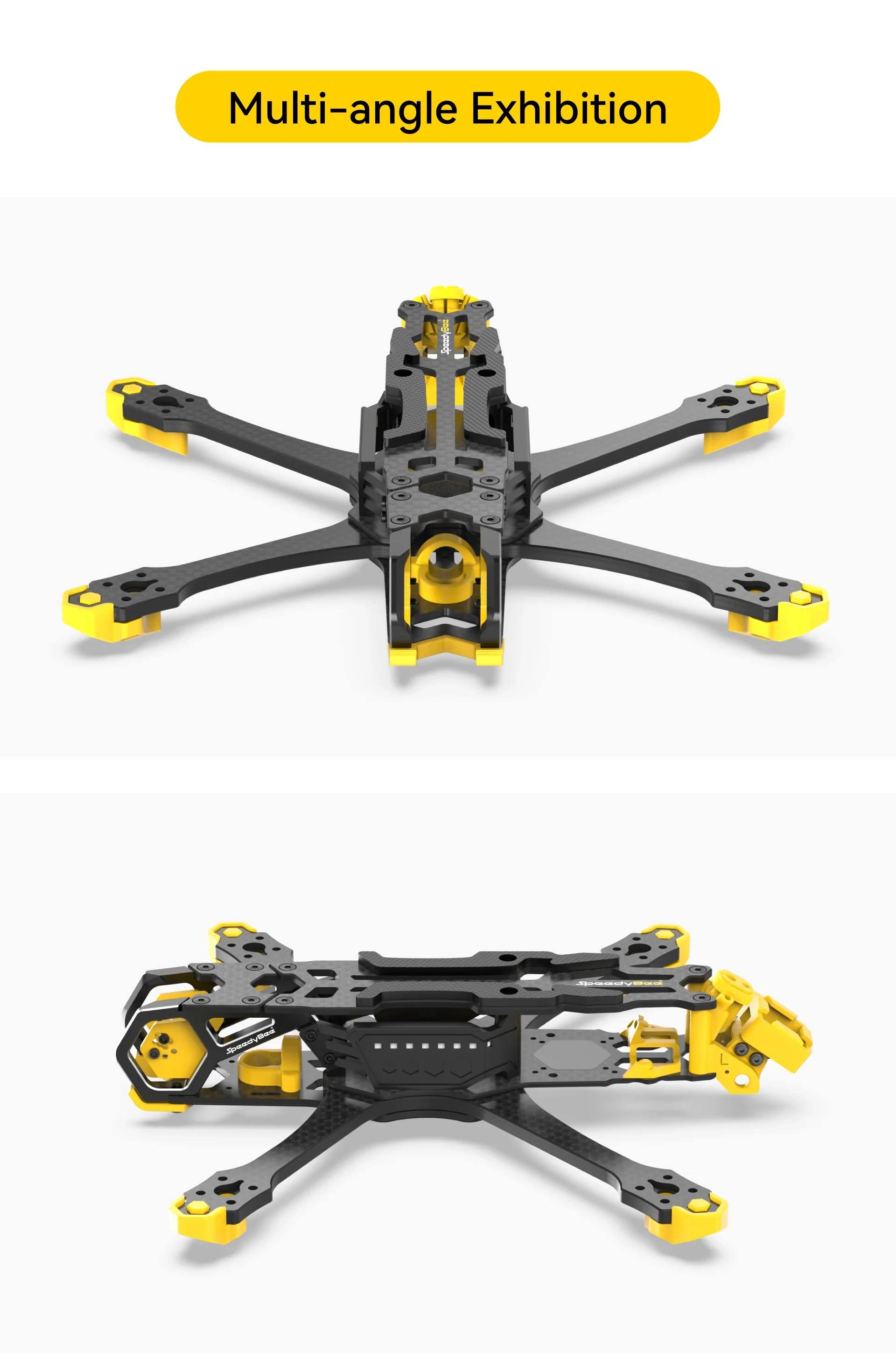

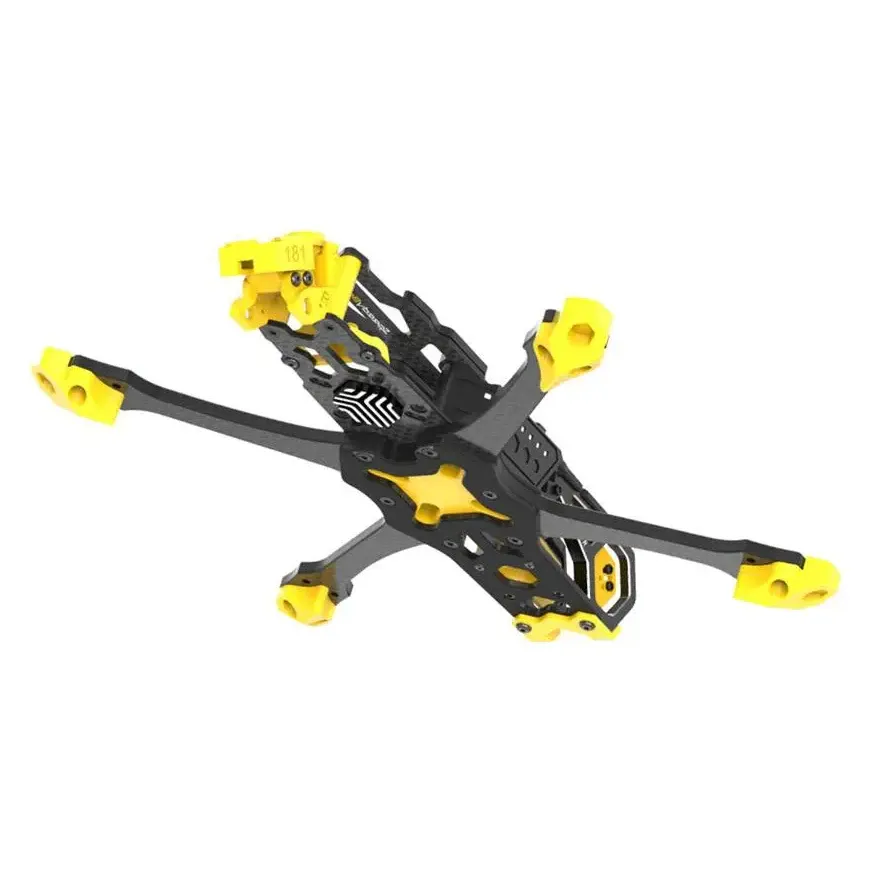

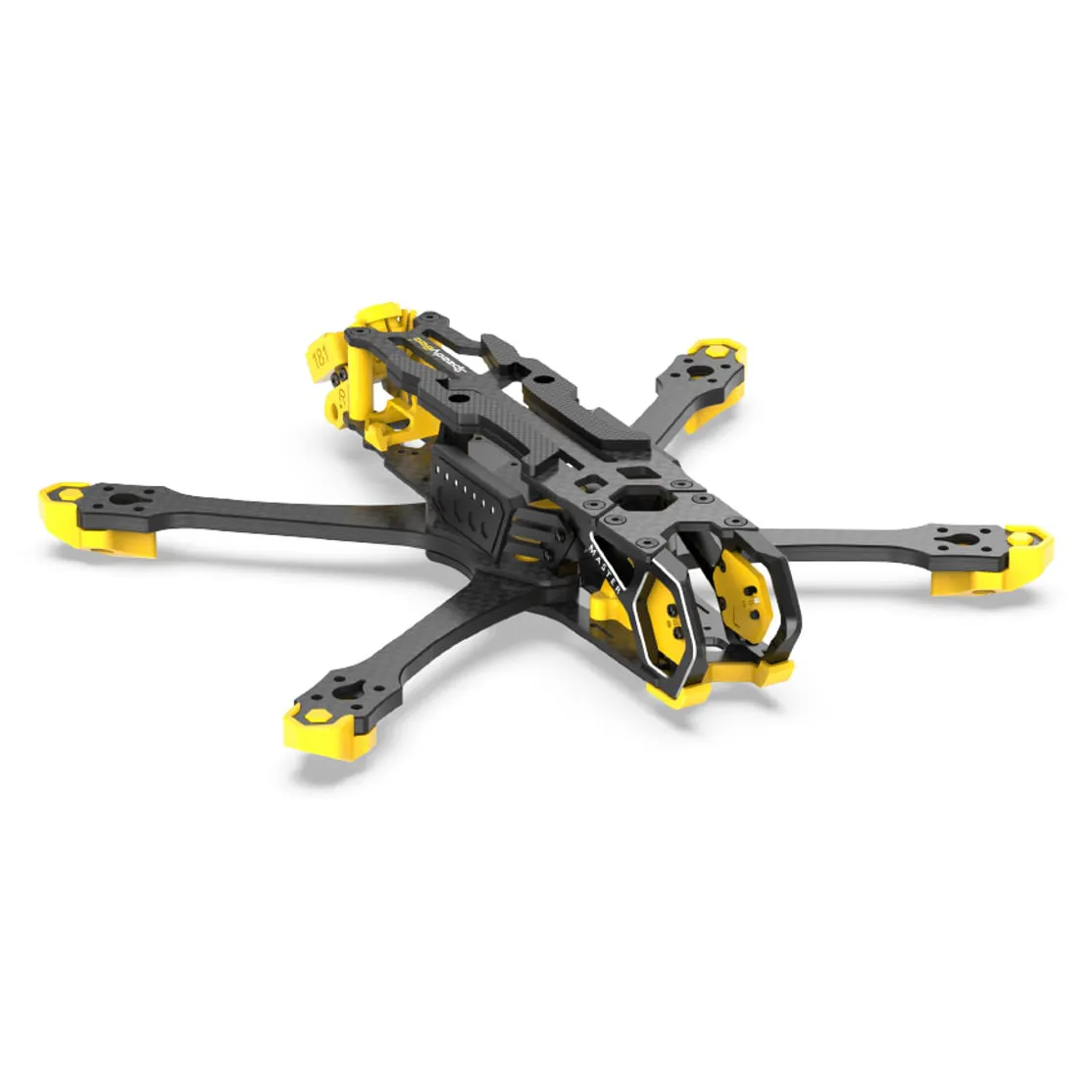

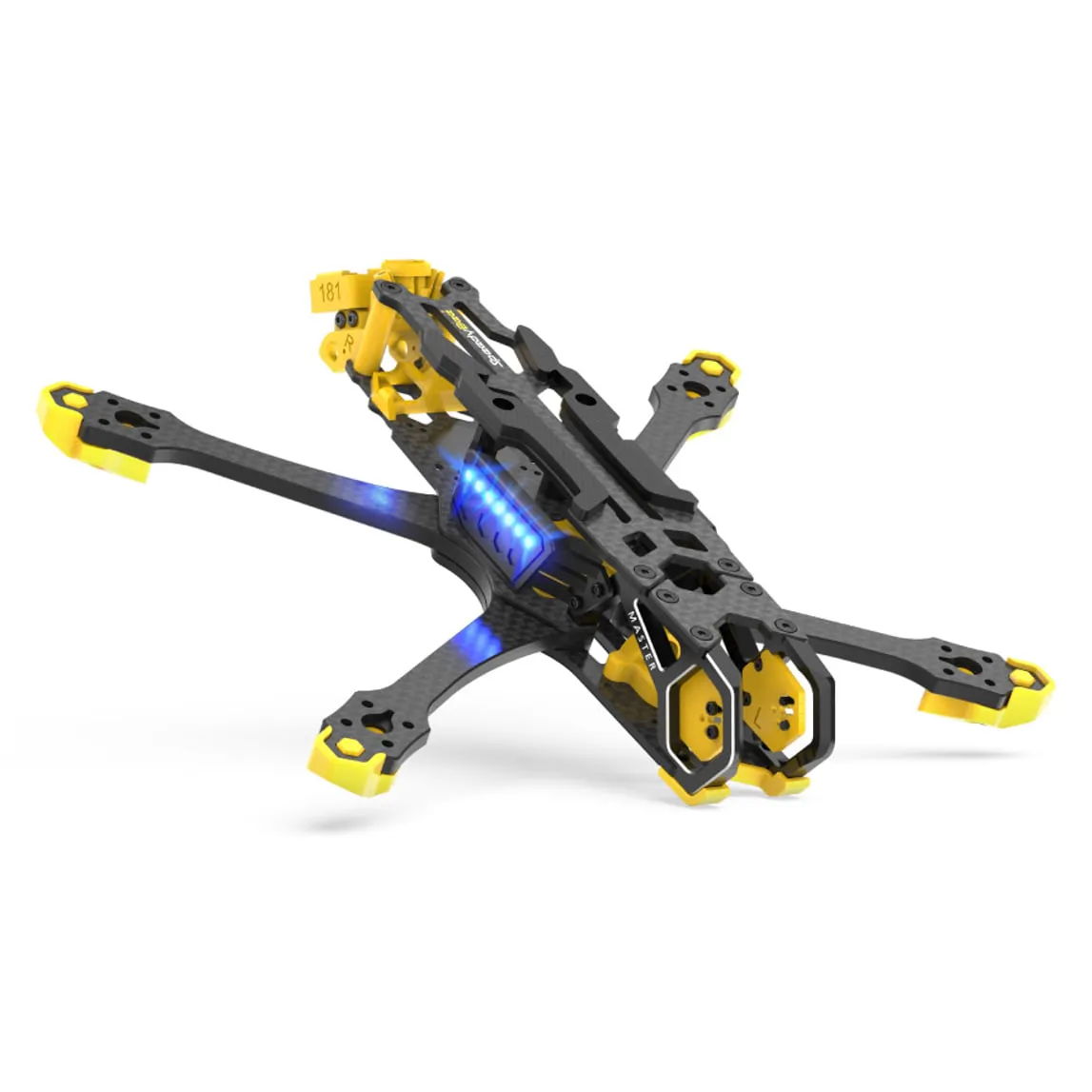

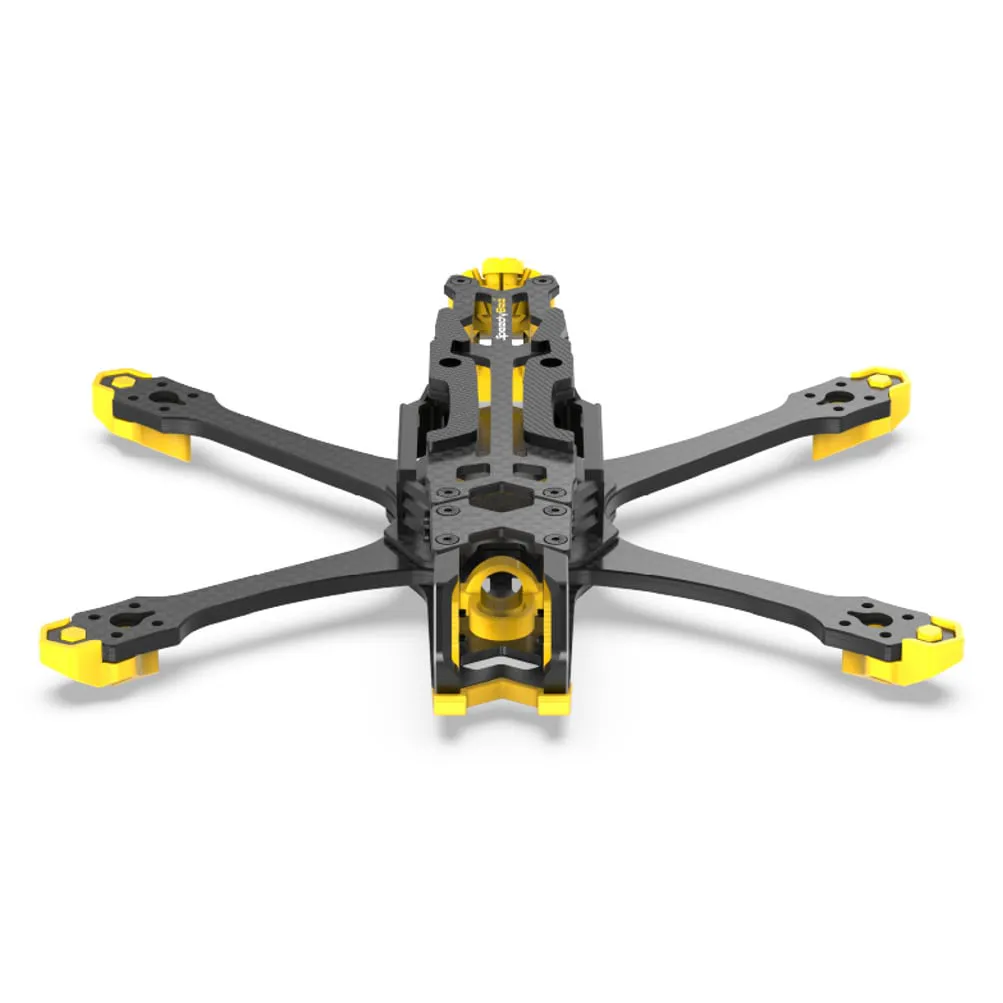

SpeedyBee Master 5 V2 Frame

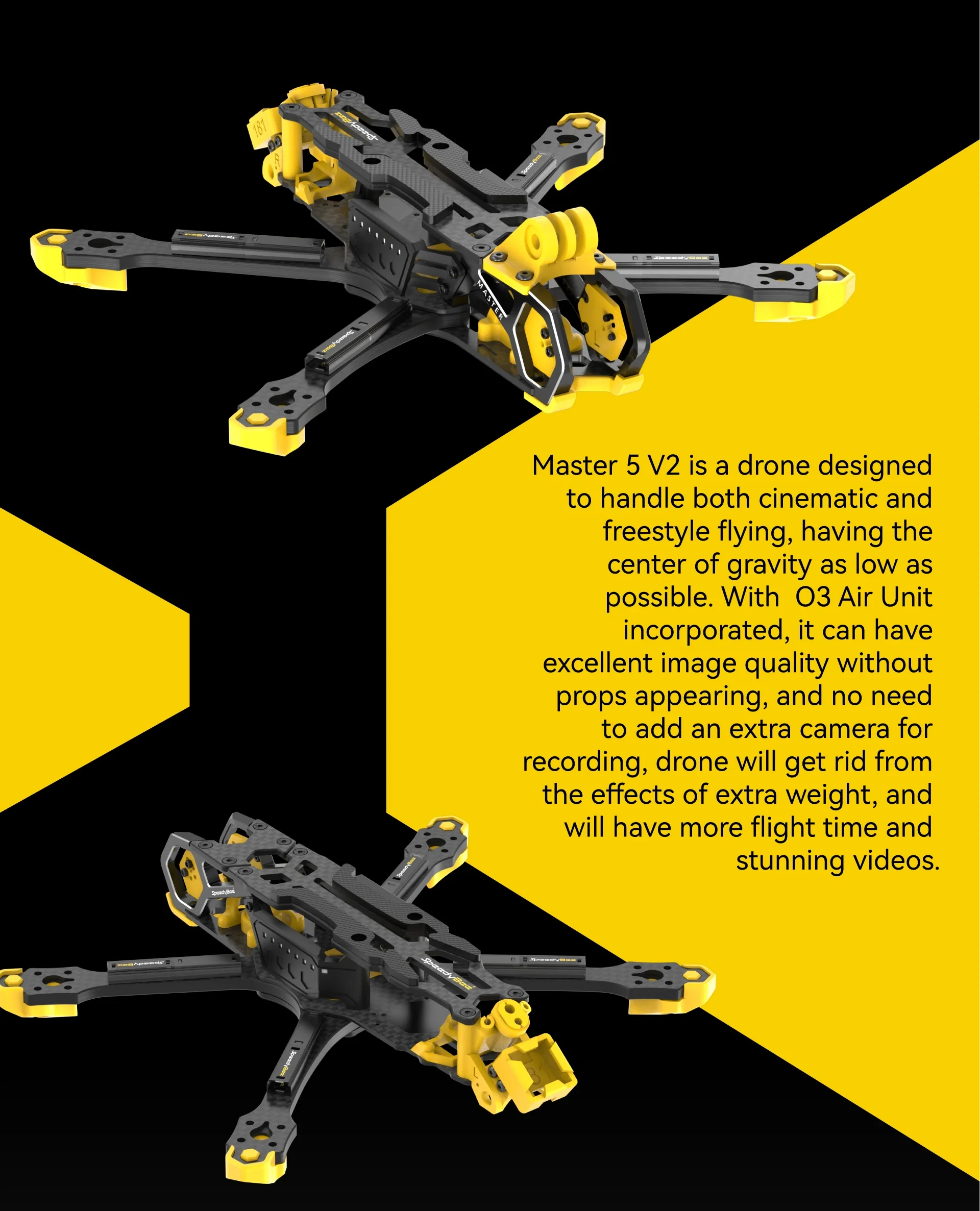

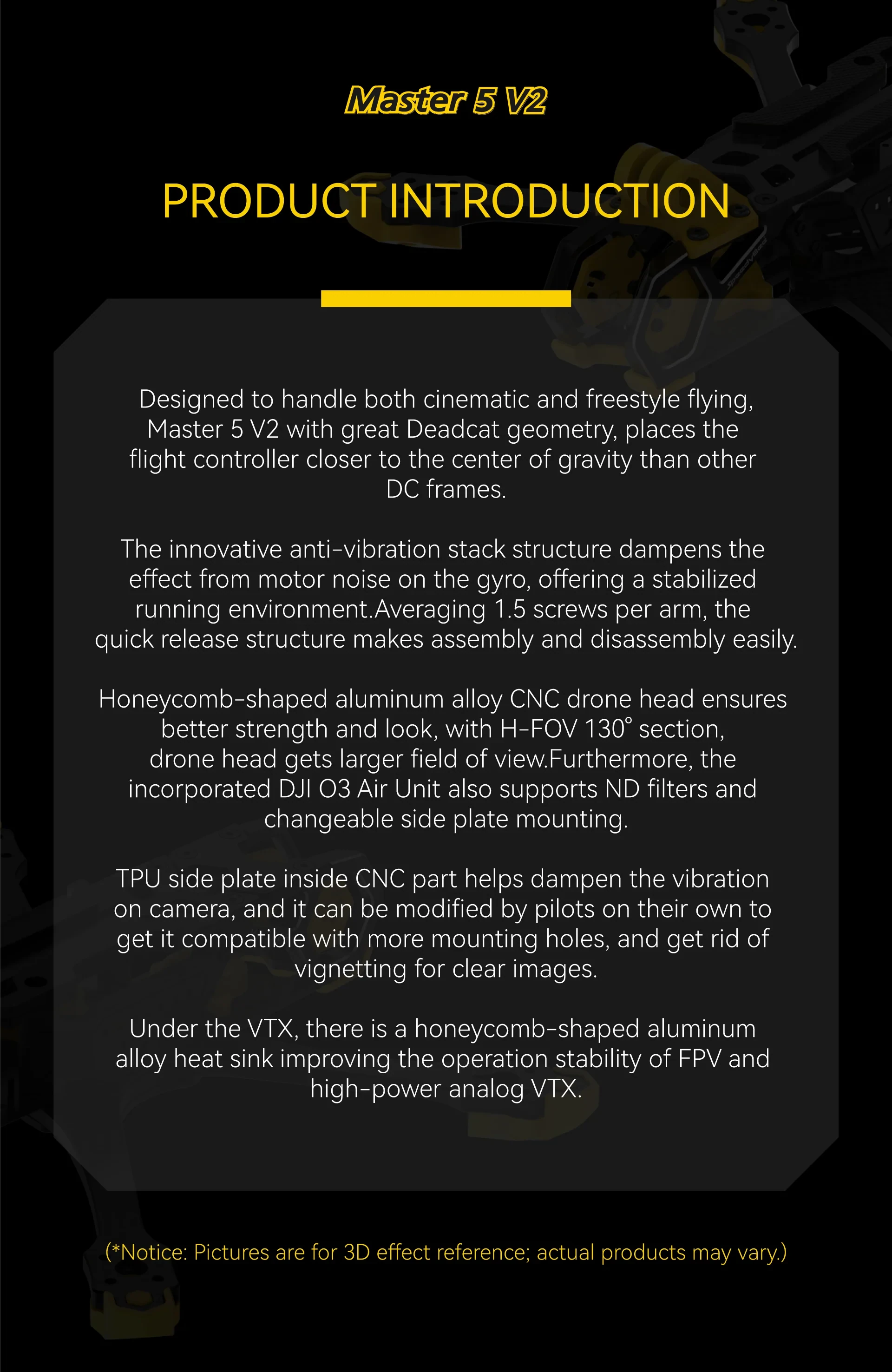

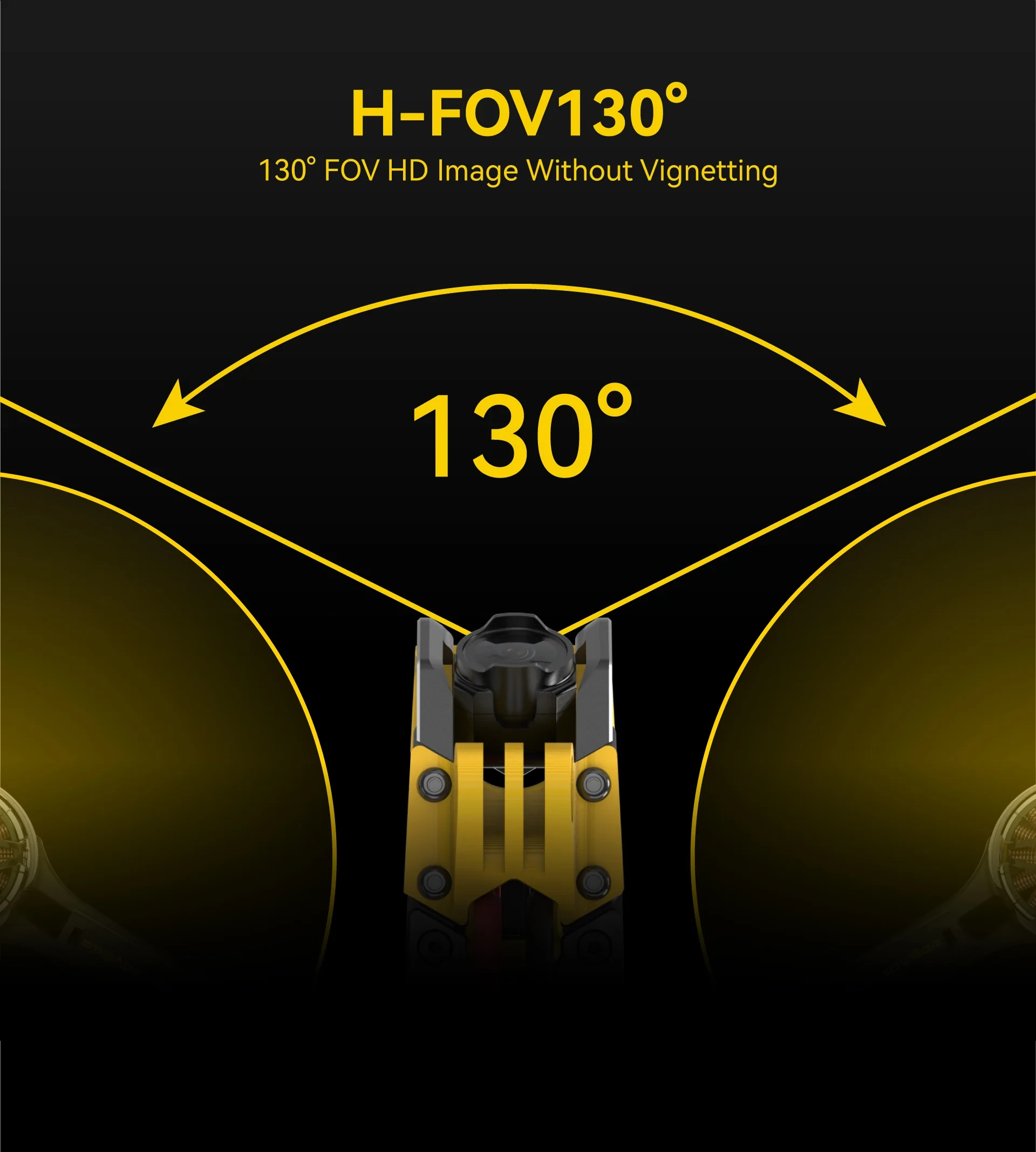

The SpeedyBee Master 5 V2 is a 5-inch freestyle frame with Deadcat geometry that sweeps the front arms out of shot, keeping propellers out of the picture for HD and digital video systems.

Key features

• Deadcat layout positions the flight controller and camera closer to the centre of gravity for balanced, stable flight.

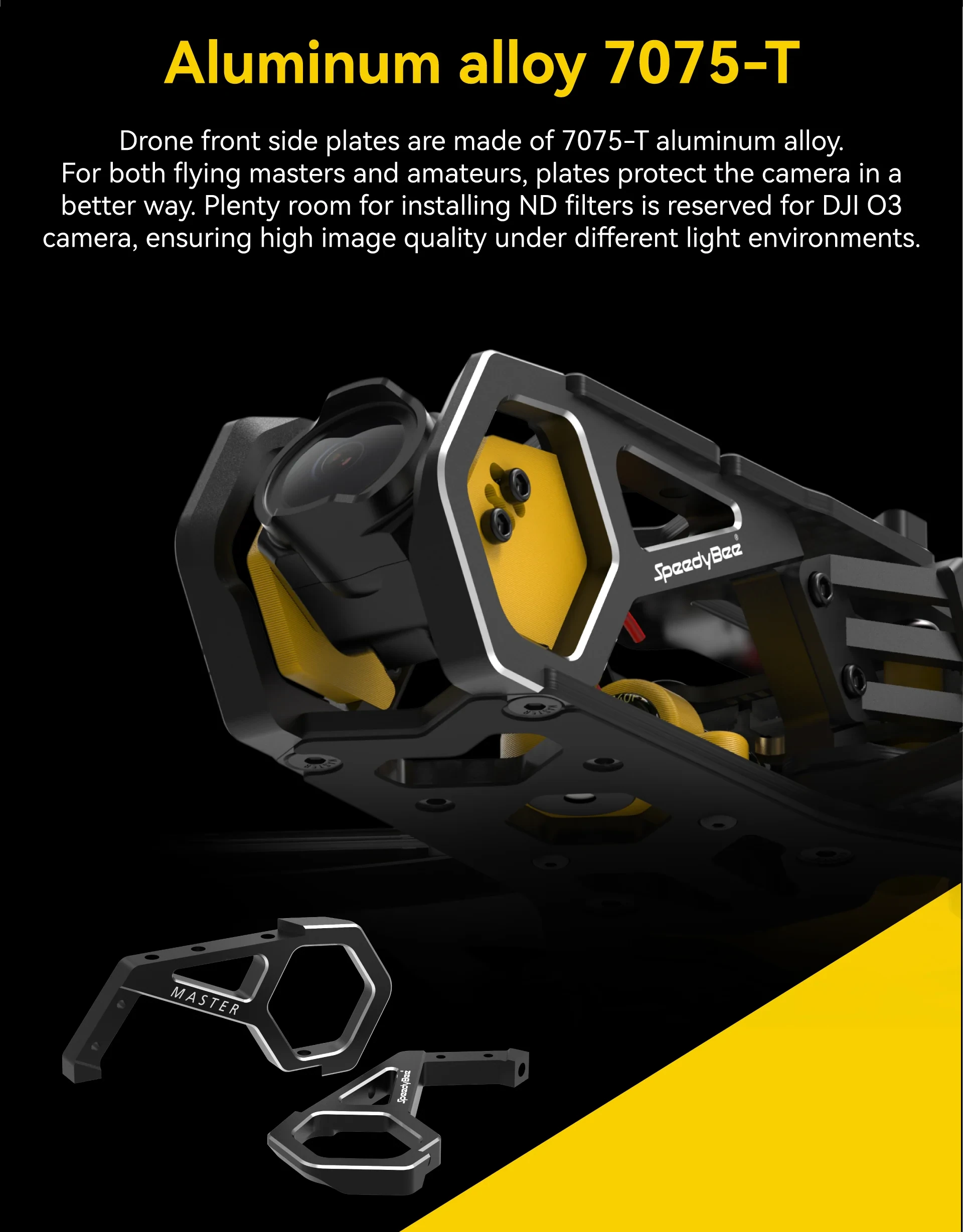

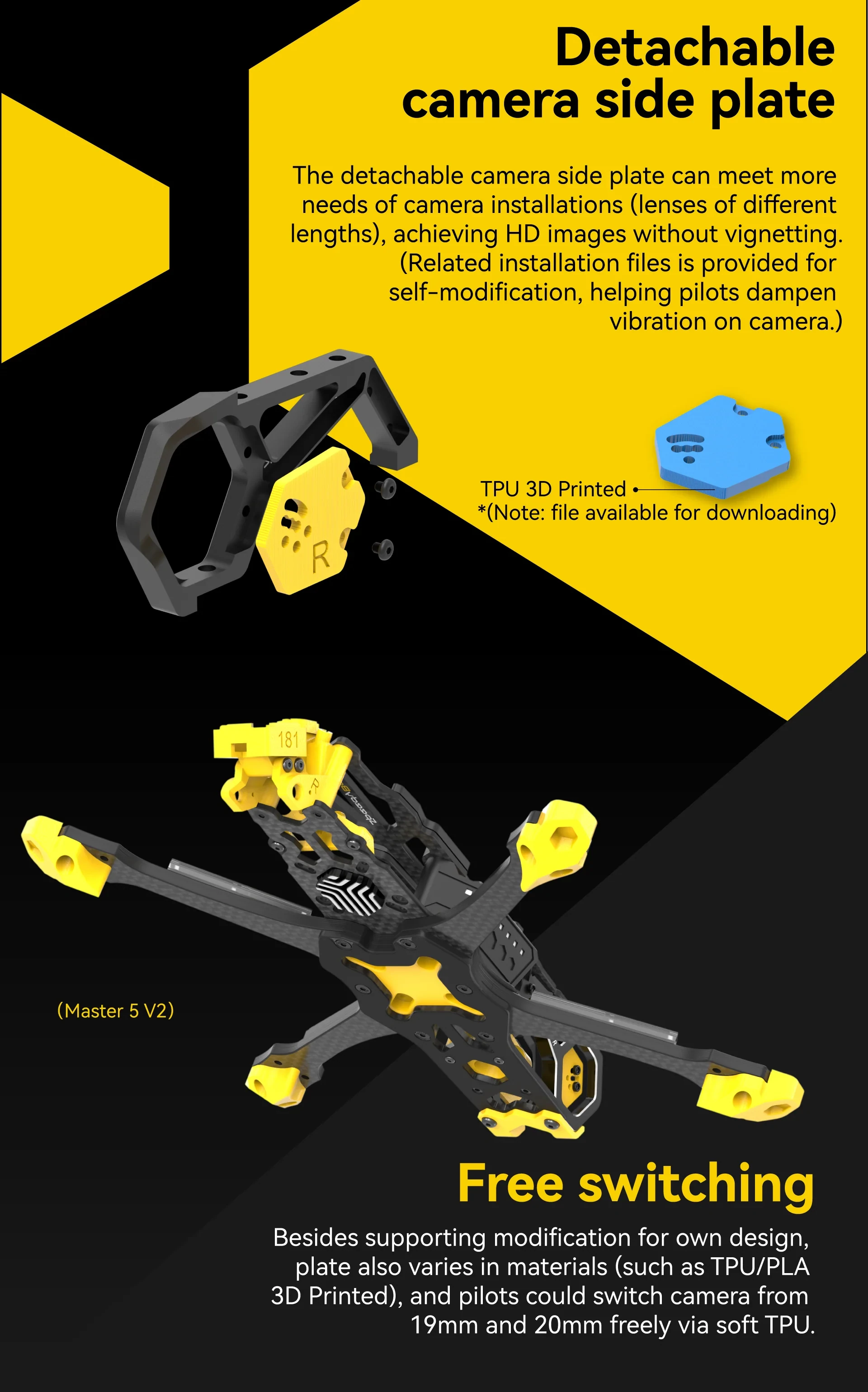

• 7075-T aluminium front side plates are detachable and switchable, natively fitting 19mm and 20mm cameras including the DJI O3 Air Unit.

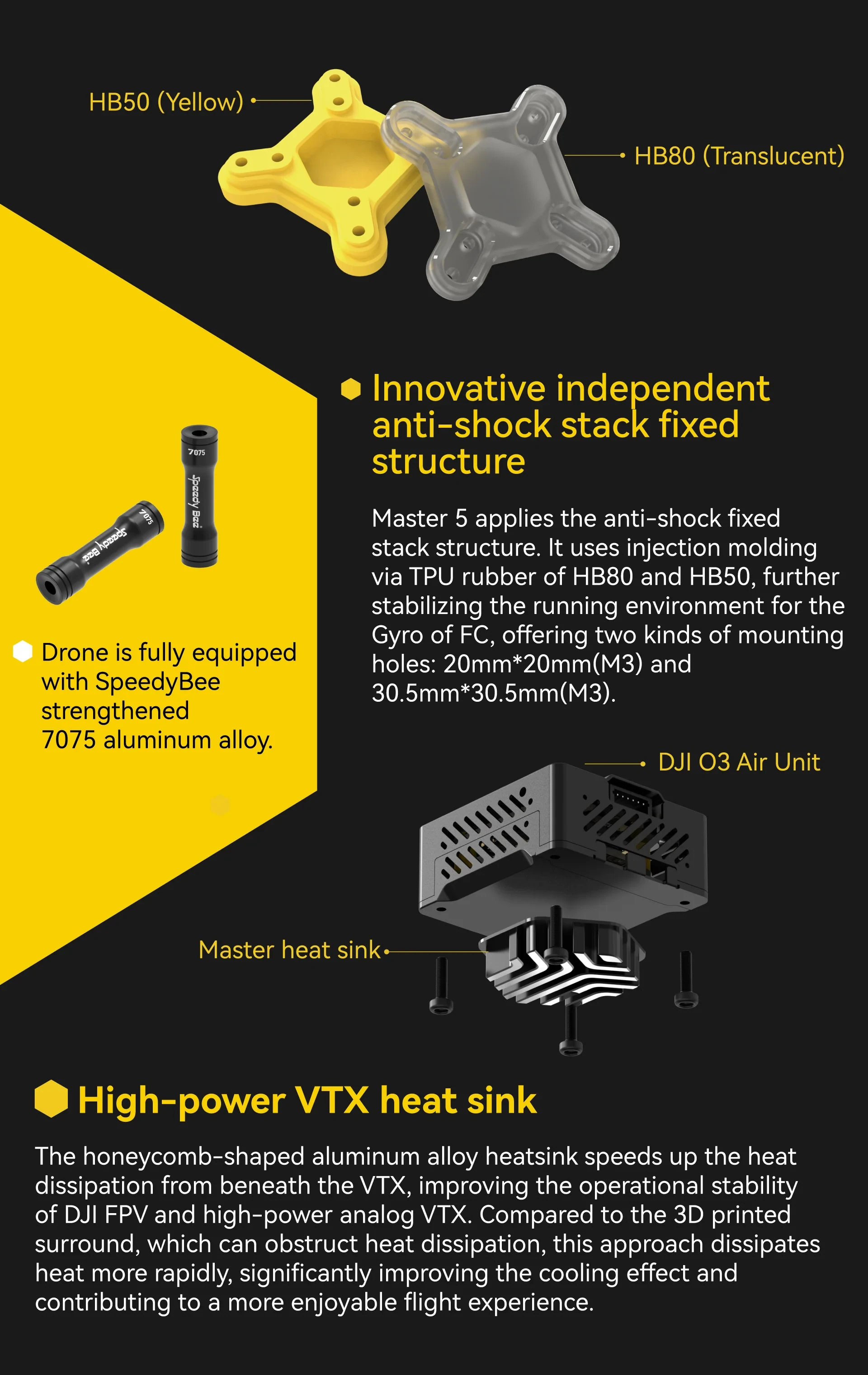

• Independent anti-vibration stack structure isolates the flight controller from motor noise for a cleaner gyro trace.
• Honeycomb-shaped aluminium VTX heatsink helps prevent thermal throttling on high-power analogue or digital video transmitters.
• Dual 30.5x30.5 and 20x20 mounting on the stack and VTX plate, with 16x16mm motor mounting.

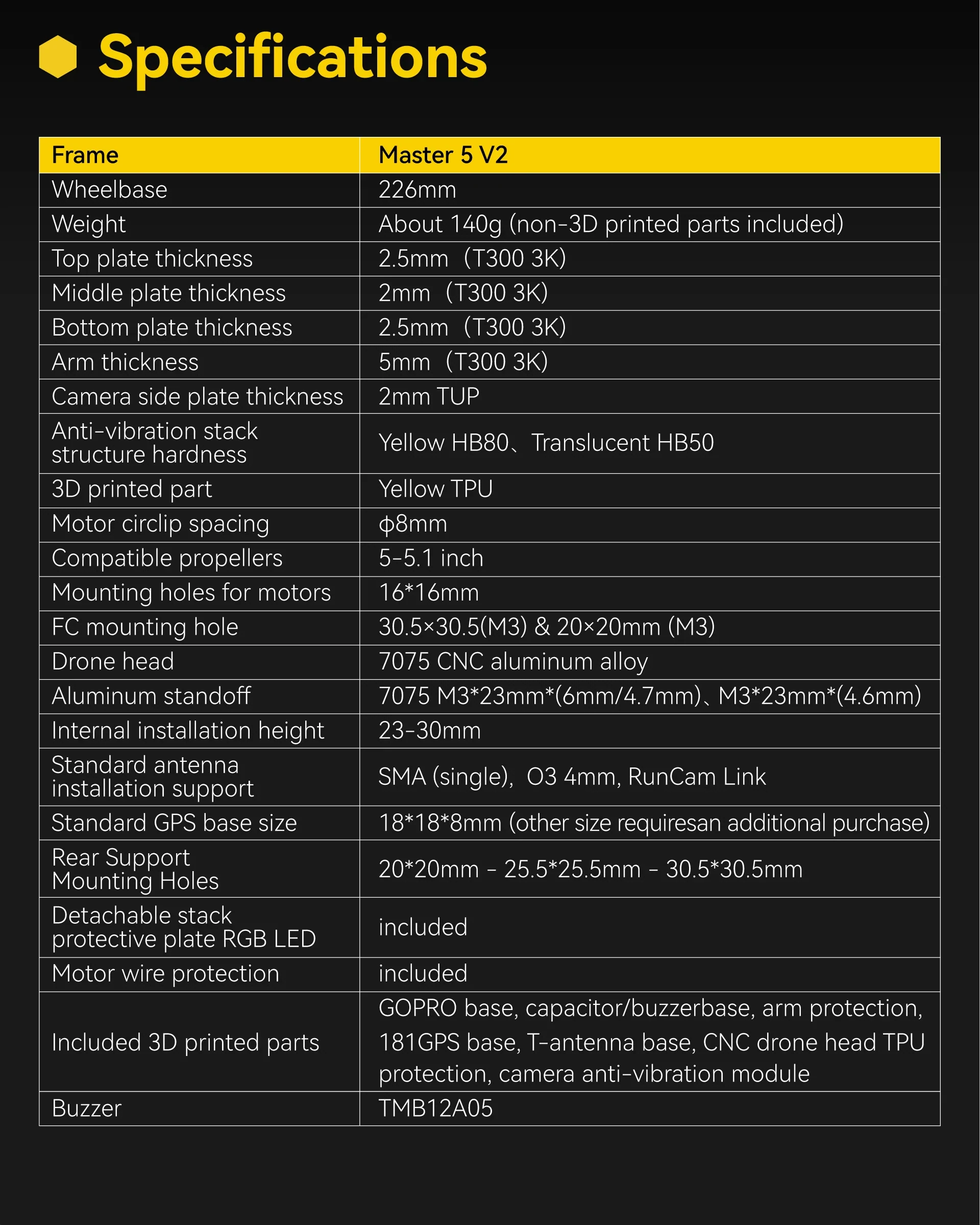

Specifications

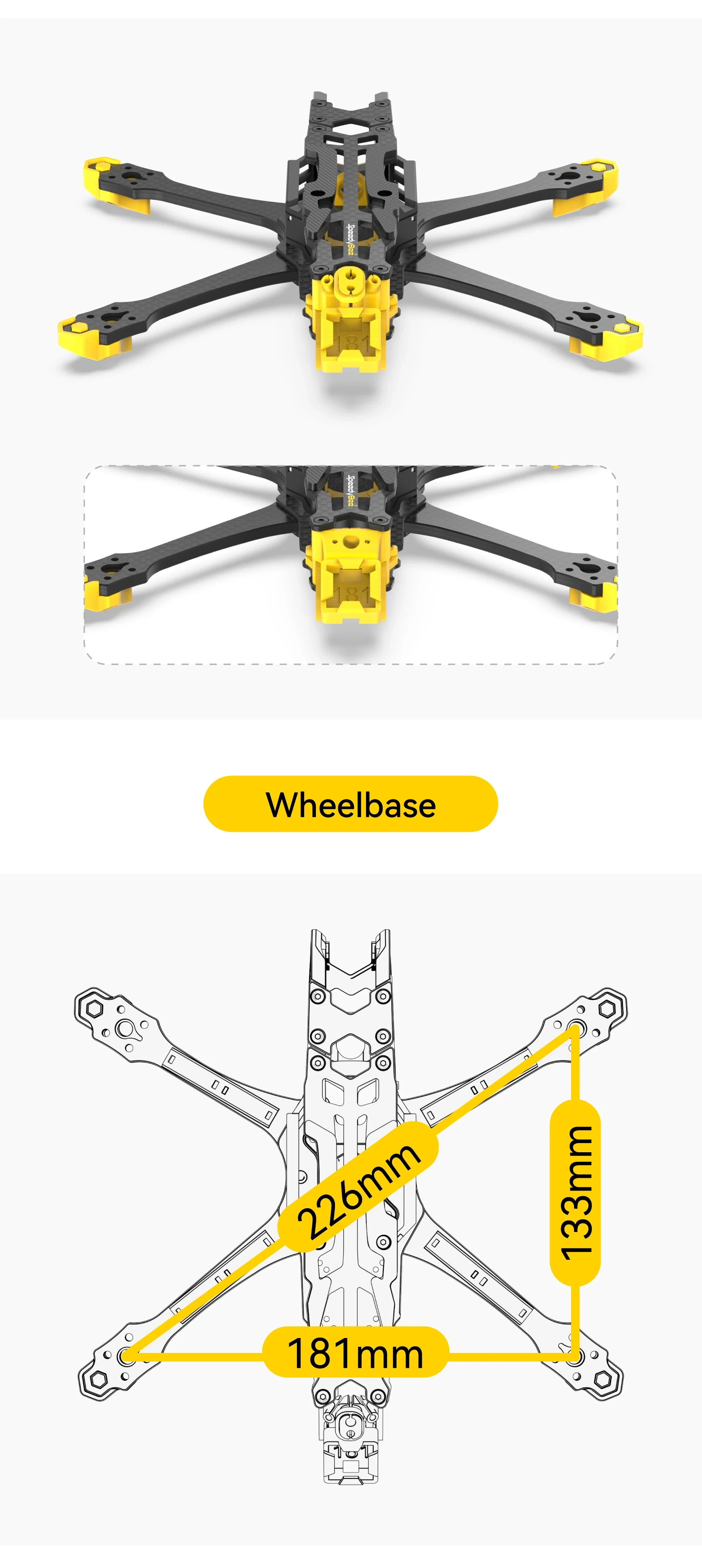

• Wheelbase: 226 mm
• Geometry: Deadcat
• FC mounting: 30.5 x 30.5 mm / 20 x 20 mm (M3)
• Rear VTX mounting: 20 x 20 mm / 25.5 x 25.5 mm / 30.5 x 30.5 mm
• Motor mounting: 16 x 16 mm
• Arm thickness: 5 mm (T300 3K carbon)
• Plate thickness: 2.5 mm top, 2 mm middle, 2.5 mm bottom (T300 3K carbon)
• Internal installation height: 23-30 mm

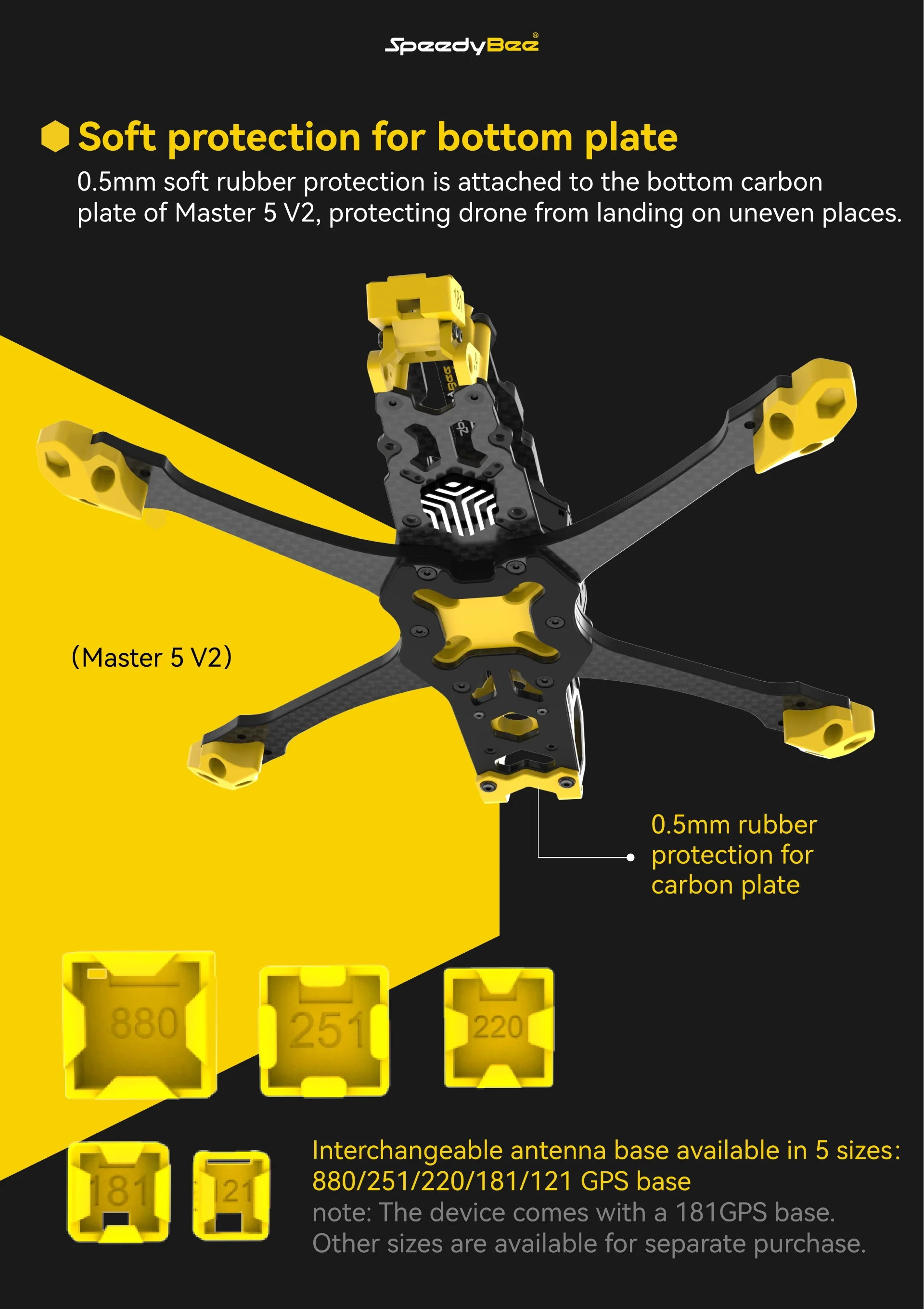

• GPS base: 18 x 18 x 8 mm

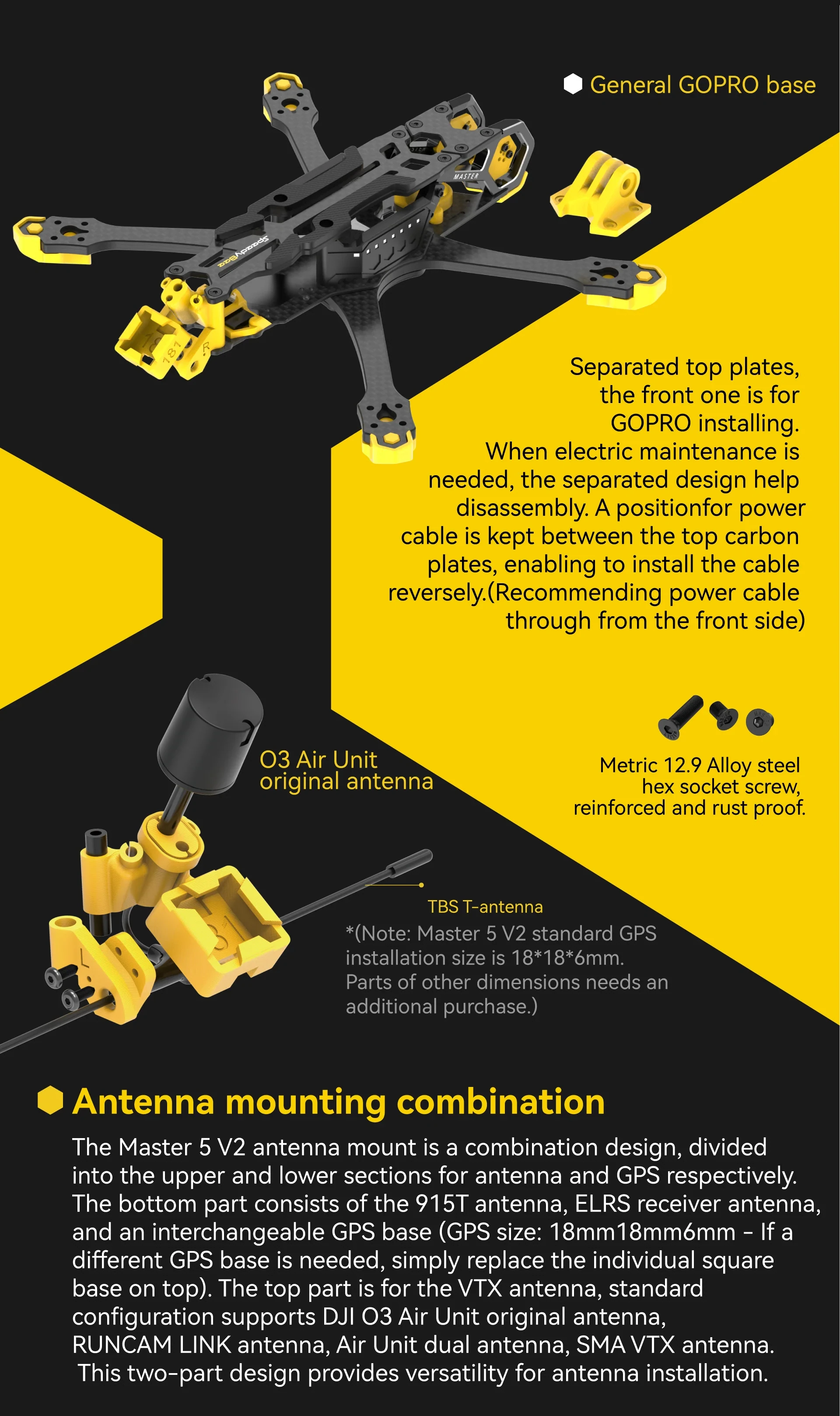

• Antenna mounts: single SMA, DJI O3, RunCam Link
• Camera side plate: 7075-T aluminium, 2 mm thick
• Compatible cameras: 19 mm, 20 mm
• Max propeller size: 5.1"
• Weight: 143 g (excluding TPU parts)

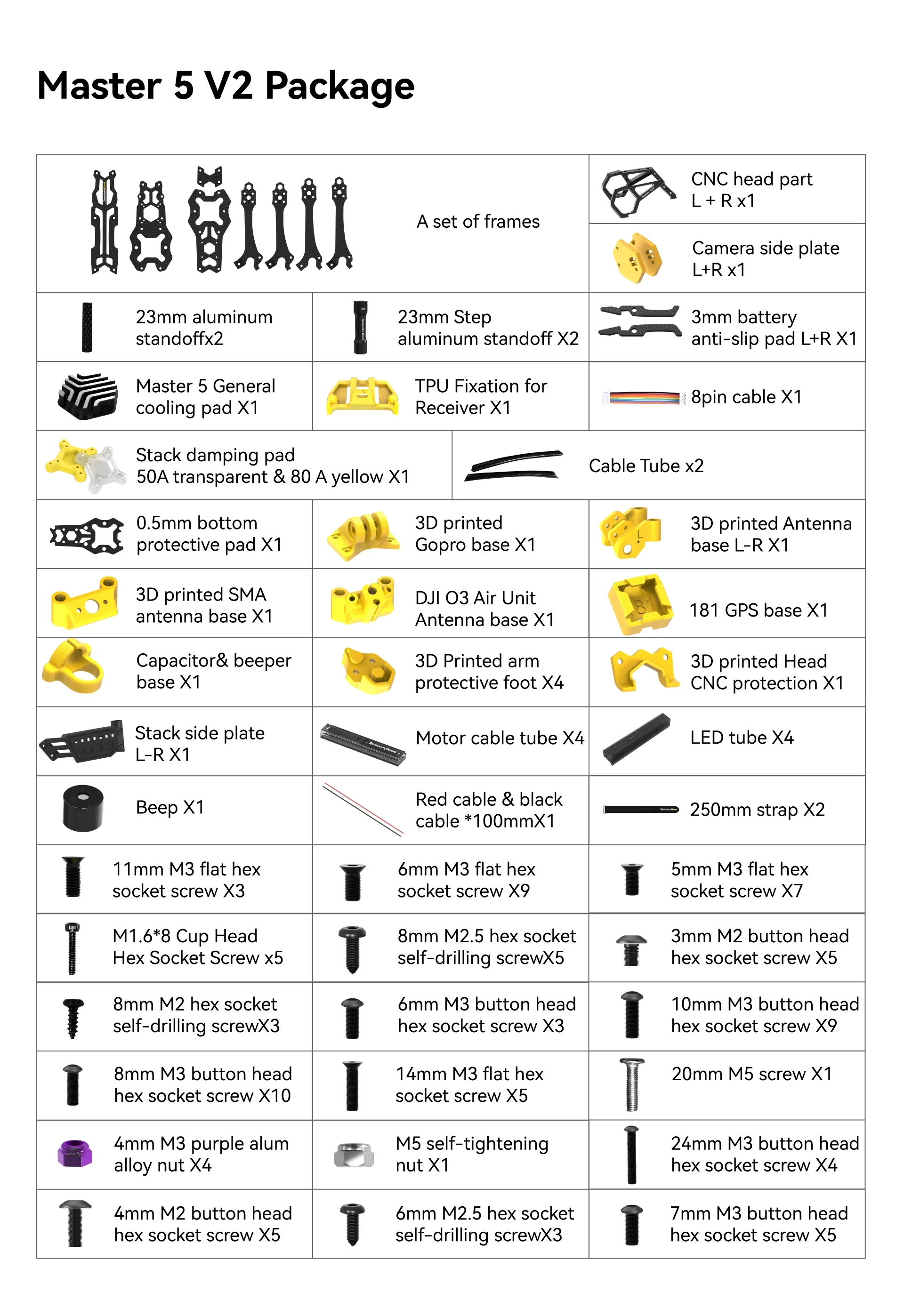

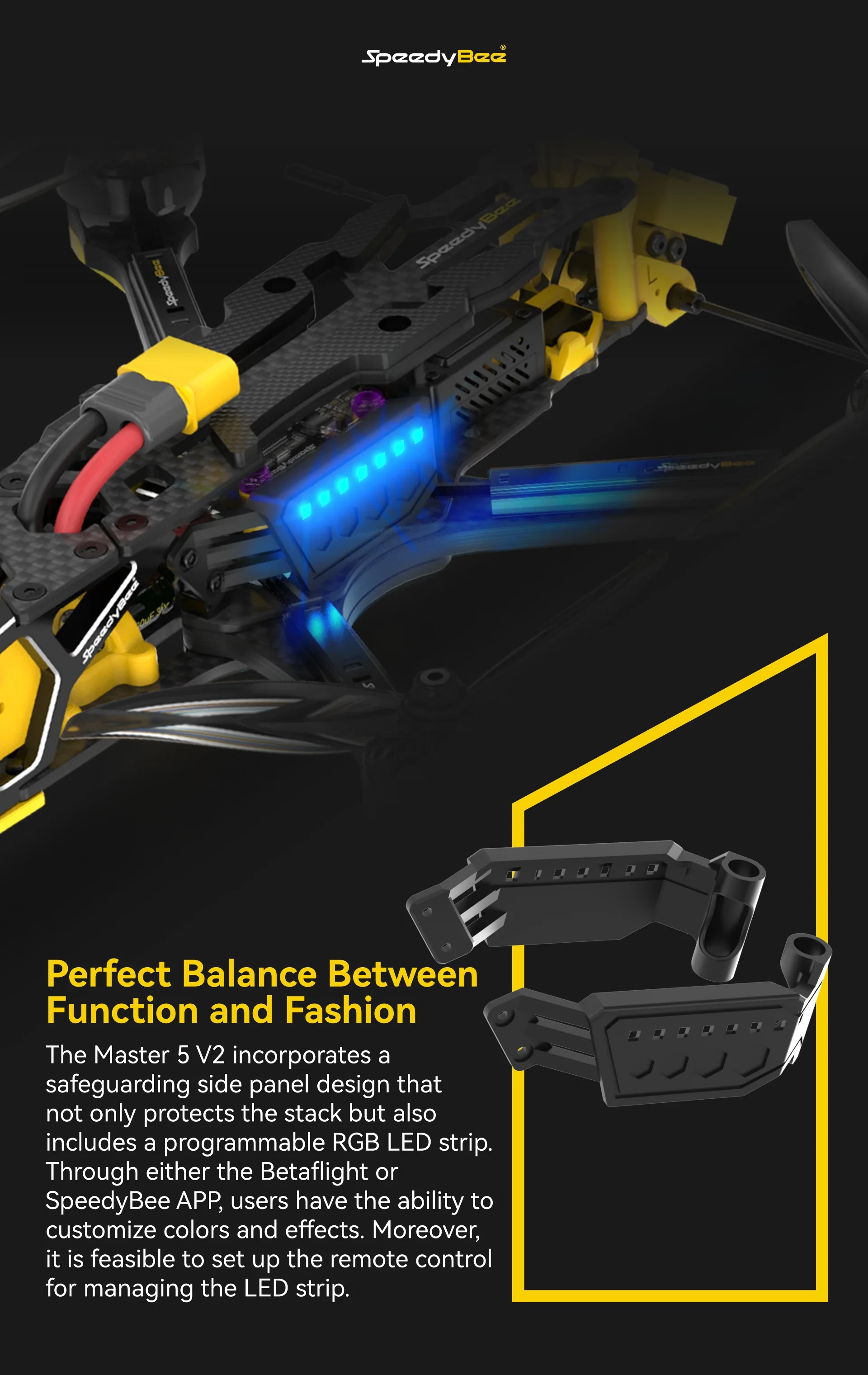

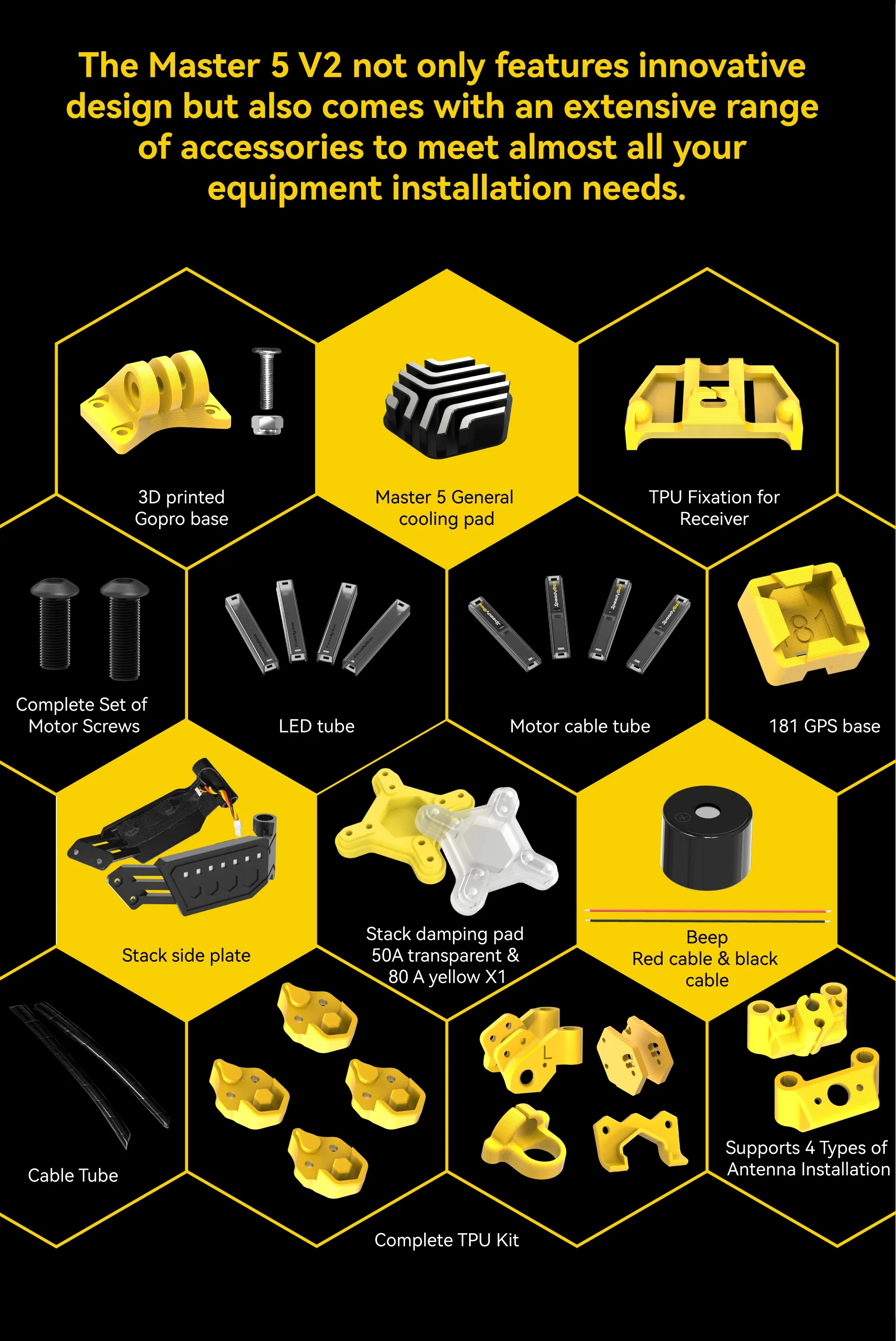

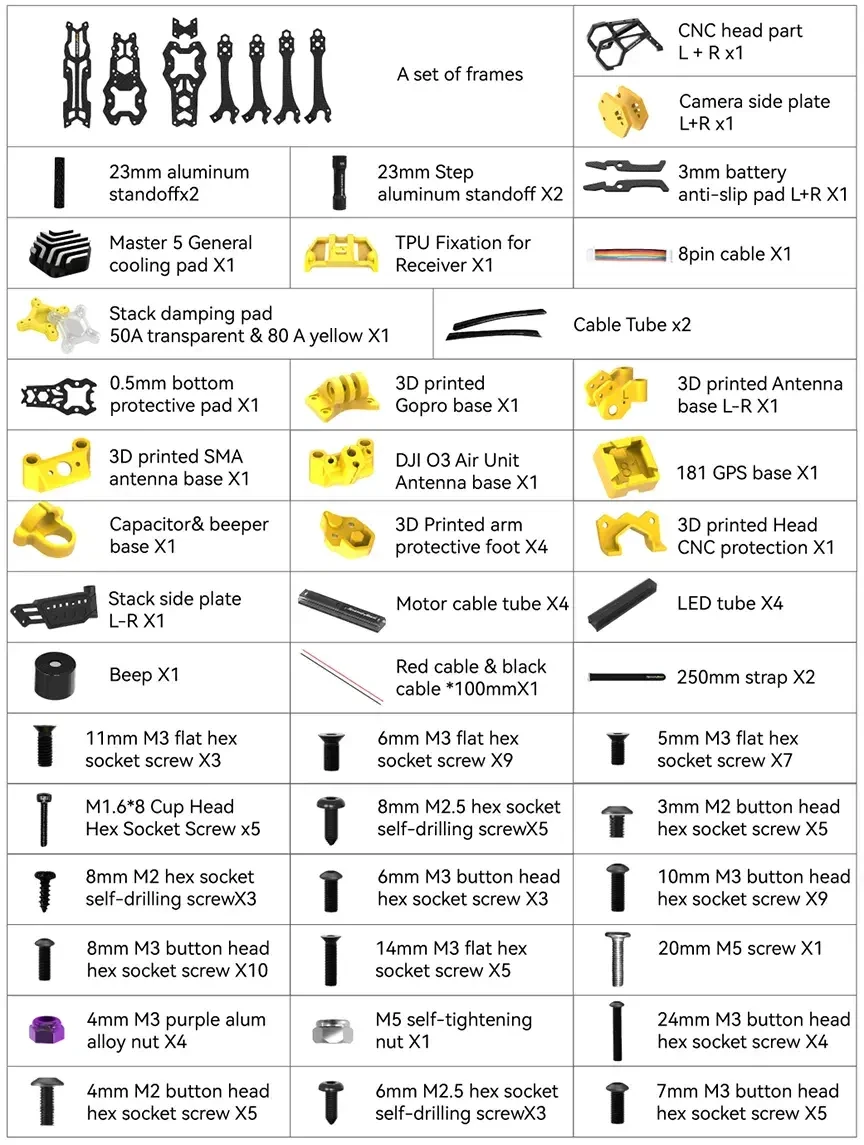

• Included: detachable stack protective plate with RGB LED, motor wire protection, TPU GoPro base, GPS base, T-antenna base and arm guards

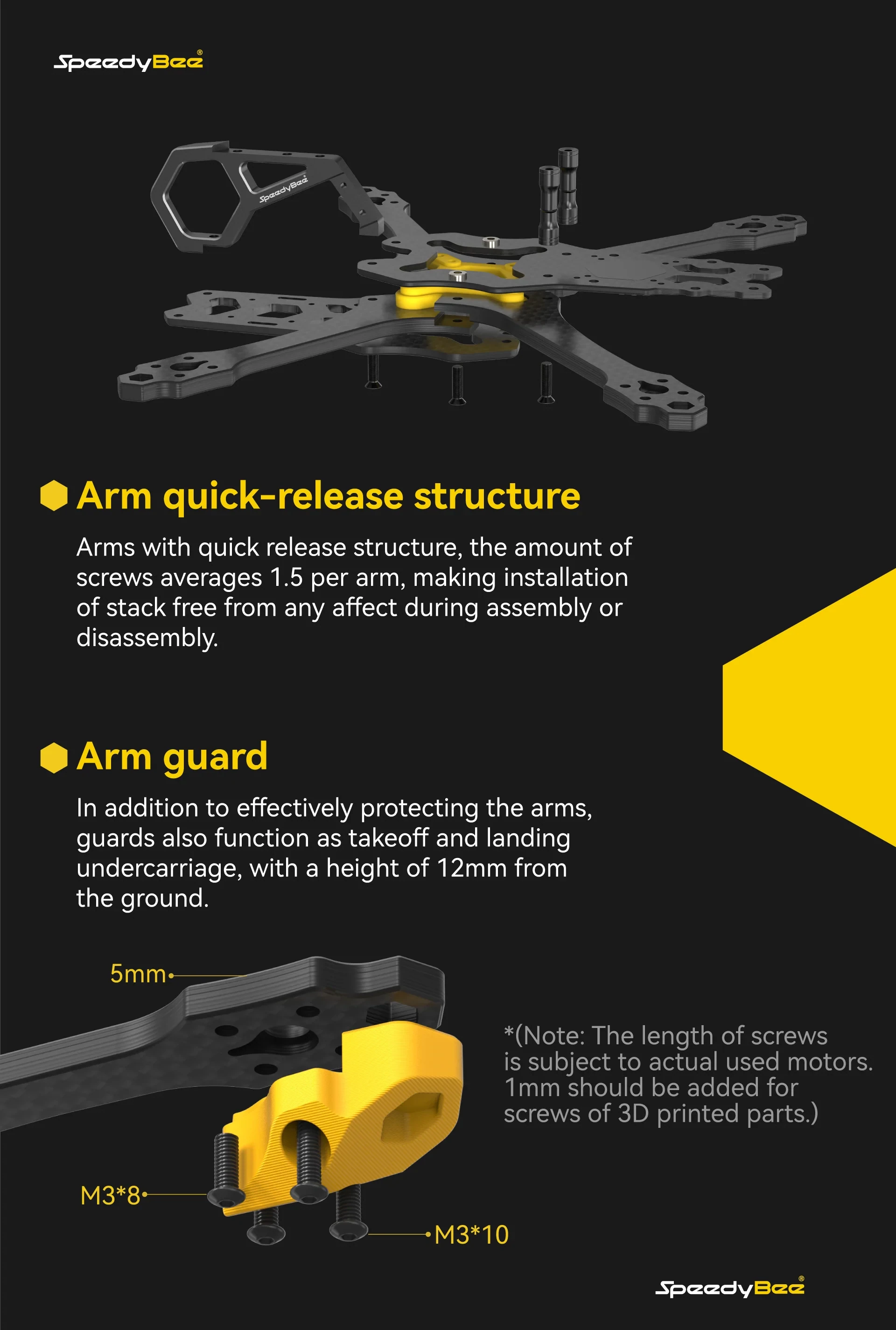

Quick-release side plates and the TPU camera mount make it straightforward to service the DJI O3/O4 camera or swap ND filters without a full teardown.
