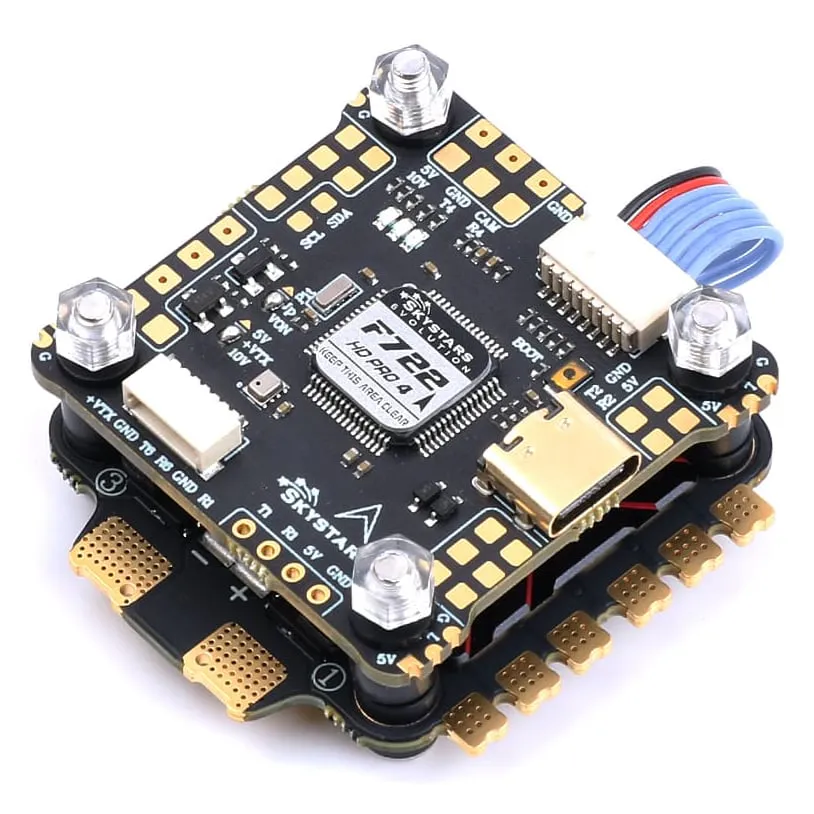

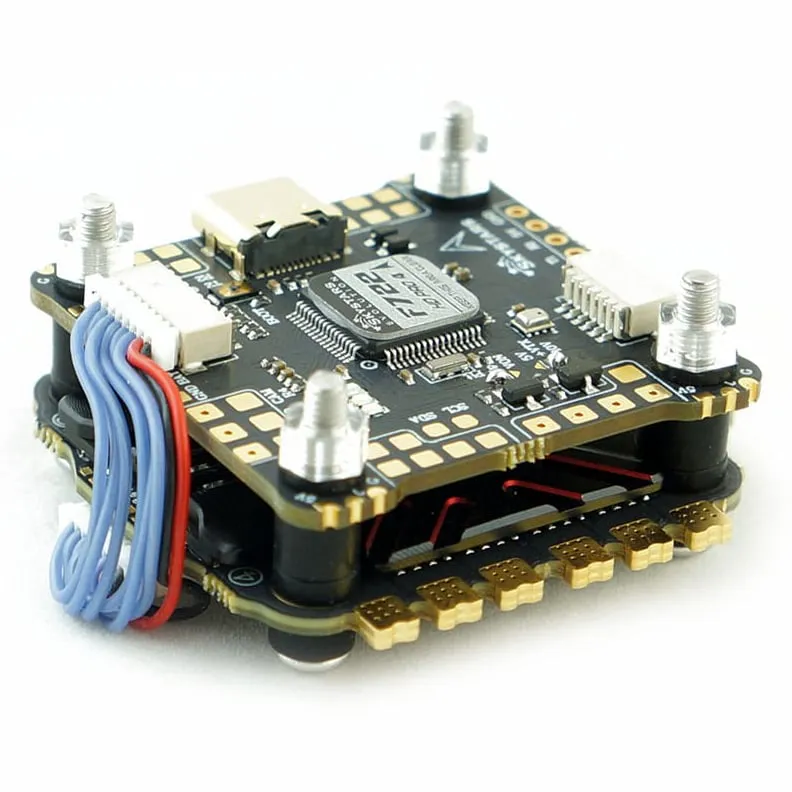

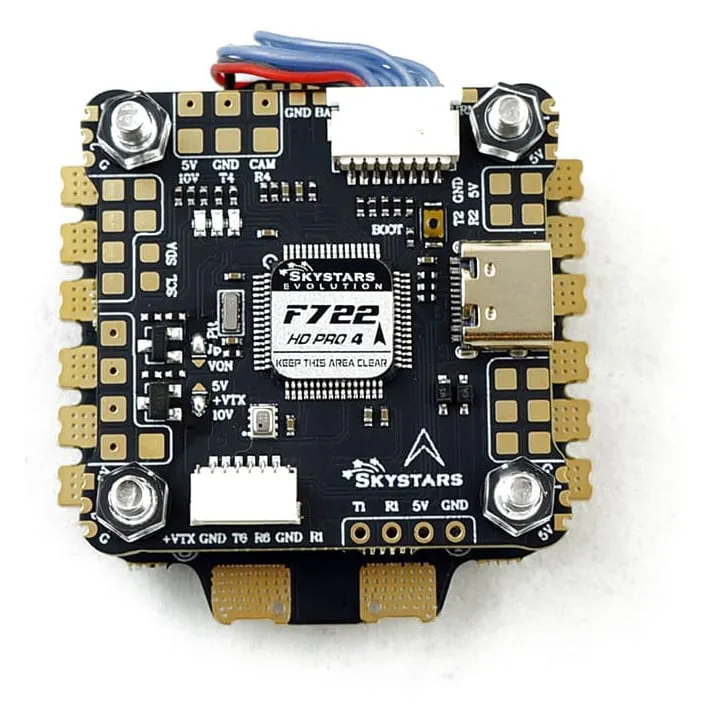

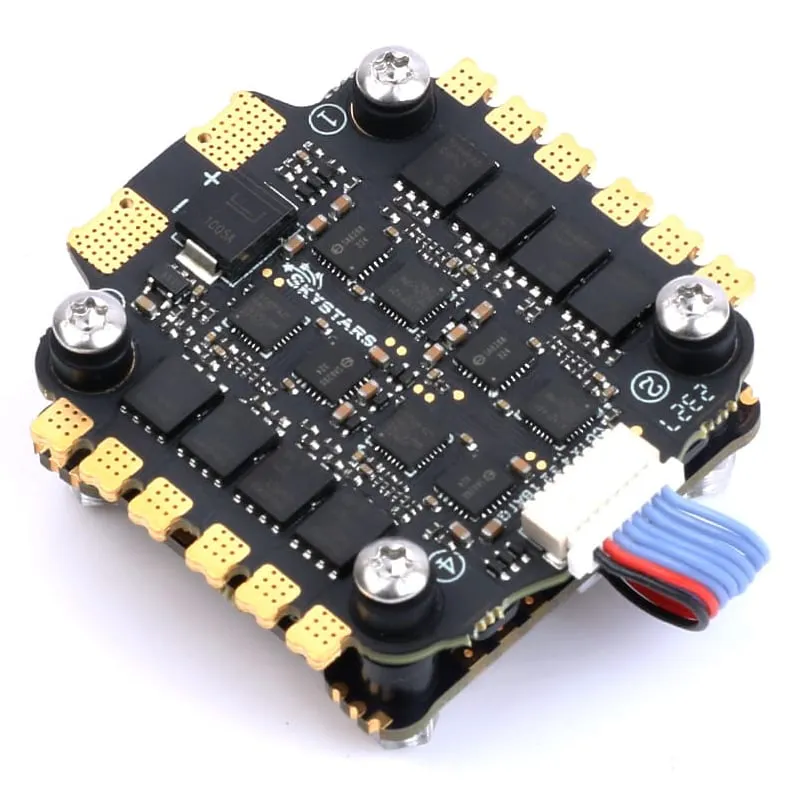

Skystars F7 Pro 4 + KM65 BL32 FC+ESC Stack (MPU6000)

The Skystars F7 Pro 4 and KM65 BL32 stack is a heavy-duty flight controller and ESC combination built to handle aggressive 5-inch freestyle, competitive racing, and demanding 7-inch cinelifter platforms. Driven by a fast F7 processor, this flight controller features the highly sought-after MPU6000 gyro, ensuring exceptionally clean gyro traces and straightforward PID tuning even on noisy, vibration-heavy frames.

Key features

• Coveted MPU6000 gyro for noise-resistant, locked-in flight characteristics and simple tuning.
• High-capacity 65A BLHeli_32 4-in-1 ESC provides immense power delivery for high-kV or large heavy-lift motors without thermal throttling.
• Plug-and-play digital video support with a dedicated 10V BEC to power DJI O3, Walksnail, and HDZero VTX units safely.
• Generous UART layout for comprehensive receiver, GPS, and telemetry integration.
• 16MB onboard Blackbox flash memory for detailed flight logging and resonance analysis.

Specifications

• FC Processor: STM32F722
• Gyro: MPU6000
• Barometer: BMP280
• OSD: Betaflight SPI OSD; DJI HD OSD on UART6
• UARTs: 6
• Input Voltage: 3-6S
• ESC Continuous Current: 65A
• ESC Firmware: BLHeli_32
• ESC details: 32-bit F4 MCU, bidirectional DShot, PWM up to 128 kHz, current sensor, TVS diode, aluminium heatsink
• BEC Output: 5V/3A, 10V/3A
• Mounting Size: 30.5x30.5
• FC size: 39 x 39 mm, 6.9 g
• Supported Firmware: Betaflight, INAV
• In the box: FC, ESC, XT60 lead, capacitor, accessory kit

With standard 30.5x30.5 mounting and robust current limits, this stack drops directly into mid-to-large frame layouts, providing ample electrical overhead for power-hungry builds.
