Seeed Studio L76K GNSS Module
₹2,099Incl. GST
SKU SEEED-L76K-GNSS-MODULE
Made in India: NoBrand: Seeed StudioGNSS Chipset: L76KAntenna Connector: U.FL
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

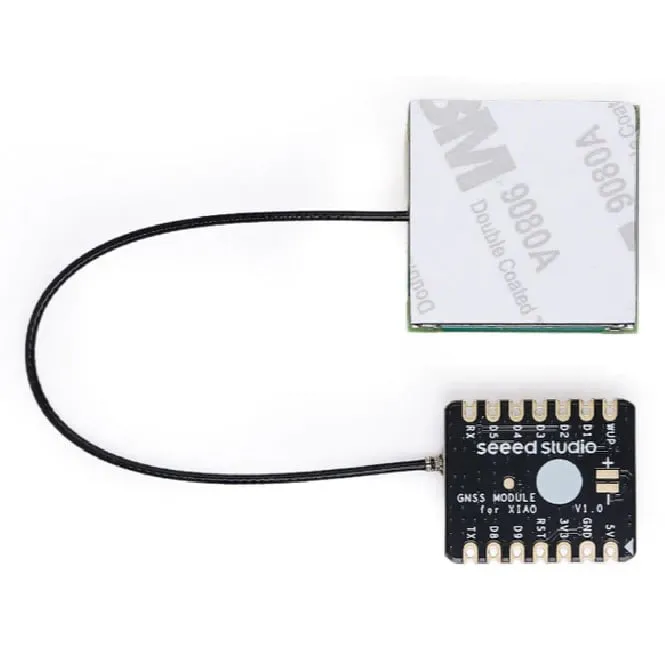

The Seeed Studio L76K GNSS Module is a Quectel L76K-based positioning module for the Seeed Studio XIAO platform, adding multi-constellation satellite positioning to compact drone and robotics builds.
Key features
- Tracks GPS, GLONASS and BeiDou across 32 tracking / 72 acquisition channels for reliable multi-system fixes.
- 2.0 m CEP position accuracy, with a built-in low-noise amplifier and SAW filter for better sensitivity.

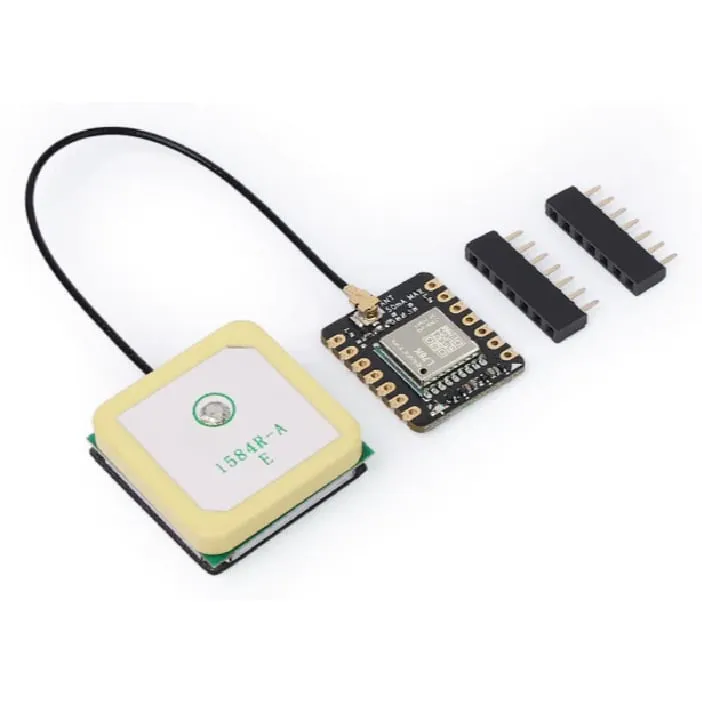

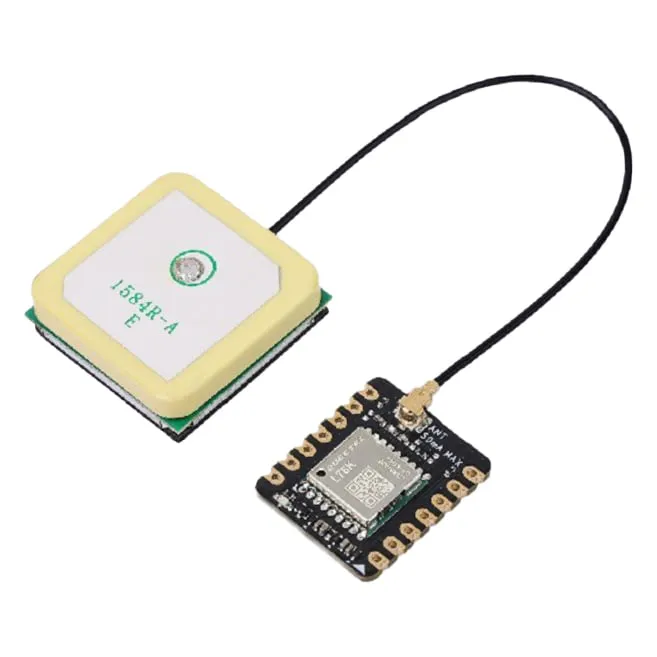

- Bundled active antenna on a 10 cm RF1.13 cable with a U.FL plug.
- Draws around 41 mA while tracking and just 360 µA in standby.
- Compact 18 x 21 mm module, outputting NMEA over UART at up to 5 Hz.
Specifications
- GNSS chipset: Quectel L76K
- Bands: GPS L1, GLONASS L1, BeiDou B1
- Accuracy: 2.0 m CEP
- Update rate: up to 5 Hz
- Dimensions: 18 x 21 mm
Designed to plug into a Seeed Studio XIAO board; confirm your host's UART wiring and power budget before integration.
| Made in India | No |
|---|---|
| Brand | Seeed Studio |
| GNSS Chipset | L76K |
| Antenna Connector | U.FL |
