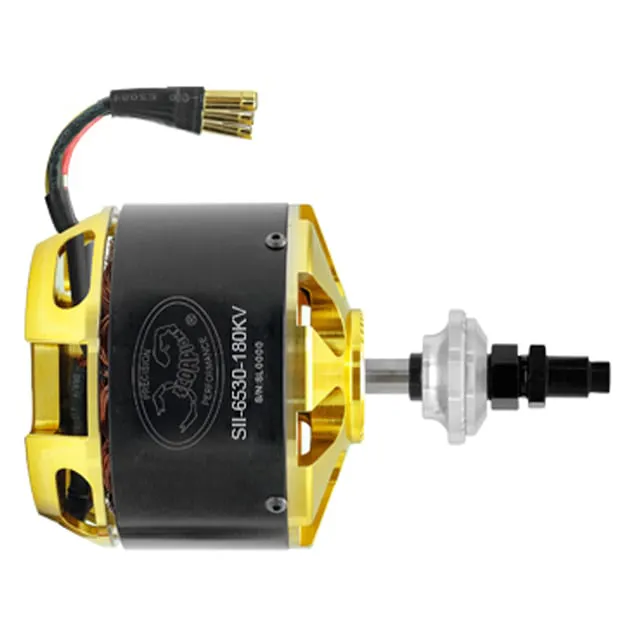

Scorpion SII-6530 180KV Motor

The Scorpion SII-6530-180KV is a large outrunner brushless motor from Scorpion's SII series, built for 70-85cc aerobatic and up to 120cc sport/scale fixed-wing aircraft rather than multirotor drones.

Key features

• Precision-milled aluminium housing with gold electro-coating and 0.35mm laminated, epoxy-coated stator plates for efficiency and low eddy-current loss.
• Rated for up to 12S LiPo packs, with a recommended setup of 12S 5000-6000mAh packs and 25-26in propellers.
• Handles up to 110A continuous current and 160A peak, for roughly 4.9kW of continuous output.
• M8x1.0-threaded 7.98mm shaft accepts standard large-scale aircraft propeller adapters.
• Ships with female bullet connectors, heat shrink, a thrust washer, tapered and spacer collars, a prop washer, prop nut and nut locks for a complete installation.

Specifications

• Stator size: 6530
• KV: 180KV
• Weight: 1043g
• Shaft diameter: 7.98mm
• Max input: 12S LiPo
• Max continuous current: 110A

This is a fixed-wing airplane motor, not a multirotor propulsion unit; match the propeller, ESC and battery before fitting it to any airframe.
