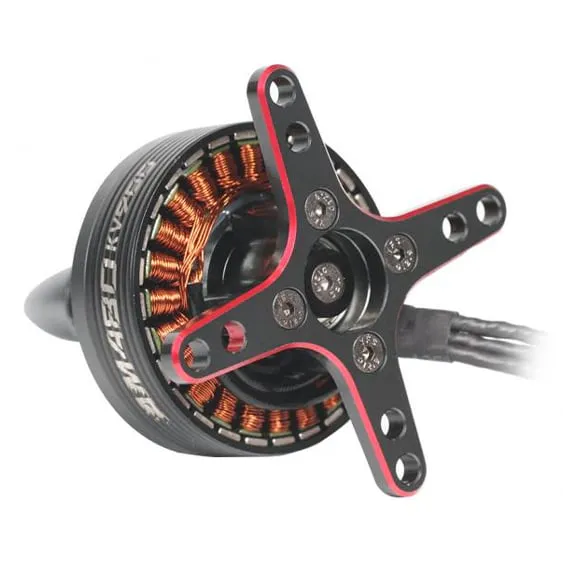

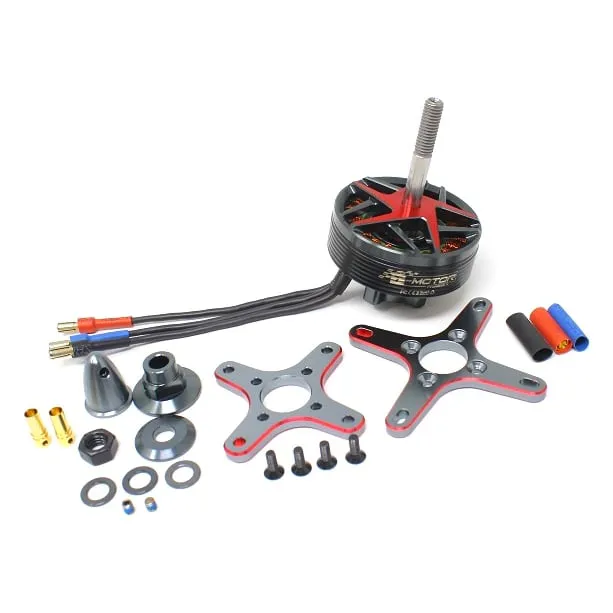

T-Motor AM480 3D Fixed-Wing Motor
SKU TMOTOR-AM480-3D-650KV
KV: 650KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The T-Motor AM480 3D is a brushless outrunner for freestyle and 3D fixed-wing aircraft. It comes in two windings: 650KV for 5-6S power systems and 900KV for 3-4S, so the same motor size covers both a high-voltage setup and a lighter 4S plane.
Key features
Built for freestyle and 3D aerobatic planes that need strong, linear throttle response.
650KV winding for 5-6S; 900KV winding for 3-4S.
6 mm shaft for fixed-wing prop adaptors.
Sized for 48-52 inch 3D planes.

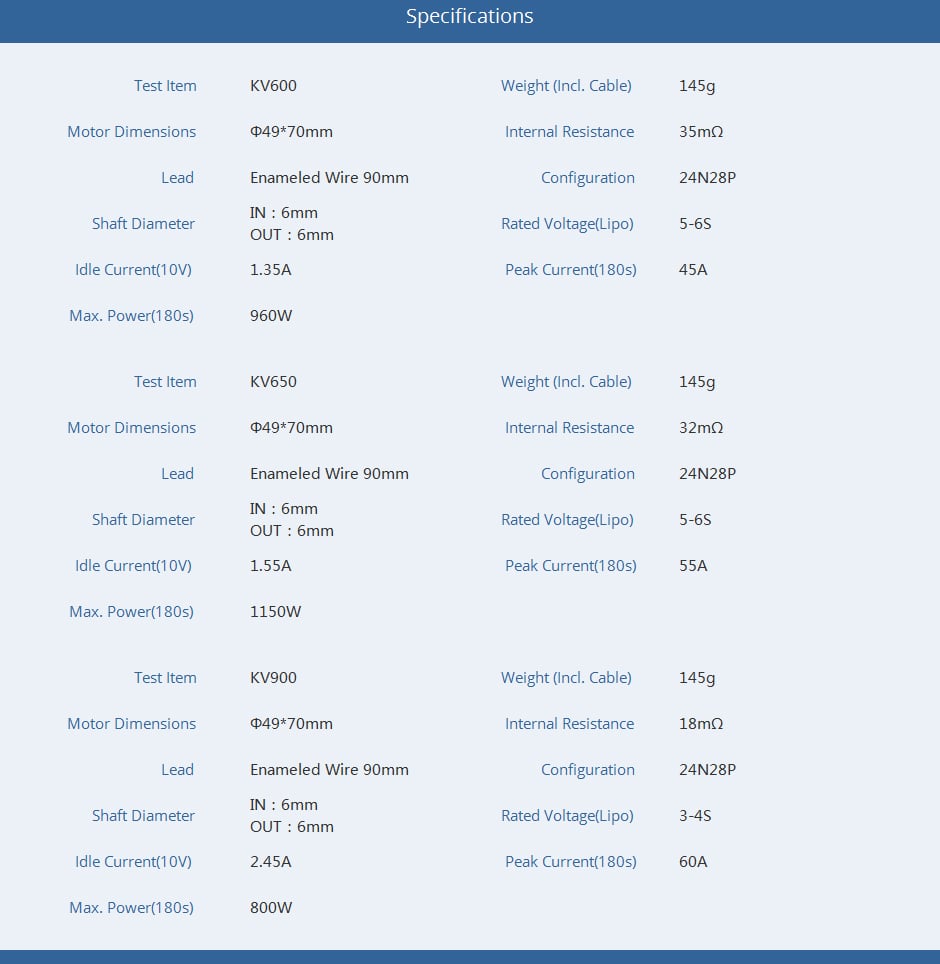

Specifications
Model: AM480 3D
KV options: 650KV (5-6S) / 900KV (3-4S)
Configuration: 24N28P
Shaft diameter: 6 mm, hollow
Peak current (650KV): 55 A
Max power (650KV): 1150 W
Idle current (650KV): 1.55 A
Leads: 90 mm enamelled wire
Weight: 145 g
Motor type: Brushless outrunner

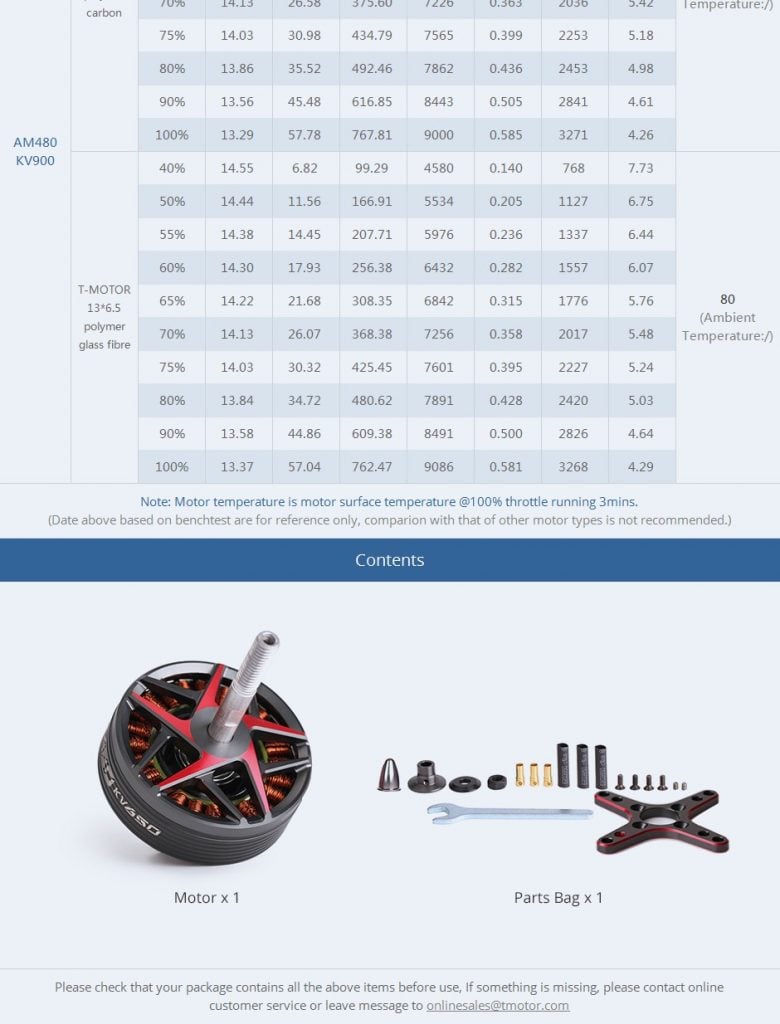

In the box: motor, hardware pack
Choose the winding to match your pack: 650KV on 5-6S, 900KV on 3-4S. Size the propeller and ESC to the aircraft's weight and check the motor mount before installation.
| Weight | 145 g |
|---|---|
| KV | 900 KV, 650 KV |
| Brand | T-Motor |
| Made in India | No |
| Cell Count | 3–6S |
