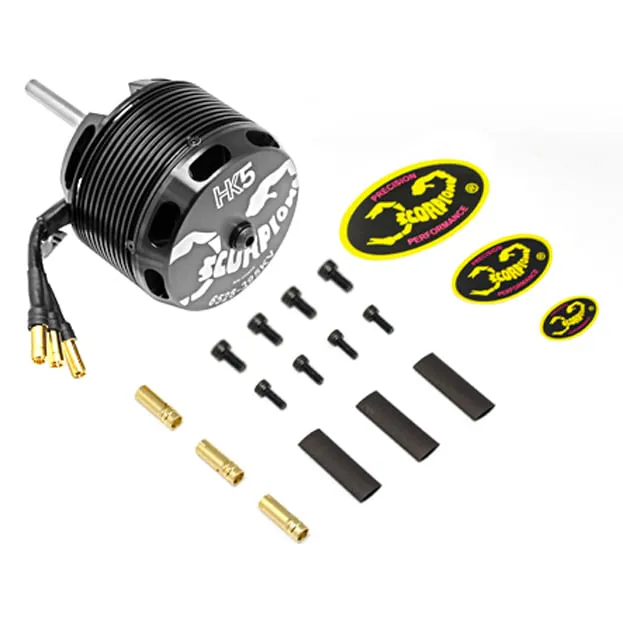

Scorpion HK5-6528 295KV UAV Helicopter Motor
SKU SCORPION-HK5-6528-295KV
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Scorpion HK5-6528-295kv is a large helicopter motor from Scorpion's HK5 series, built for 900–1000mm-class UAV helicopters on 12S-14S.
Key features
Rated for 12S to 14S LiPo power with 110A continuous and 220A peak (2-second) current.
Delivers 5720W continuous and 11,440W peak power for large UAV helicopters carrying payloads.
65mm stator diameter with a 6+7T winding and 12-arm, 10-pole construction for high torque per amp.

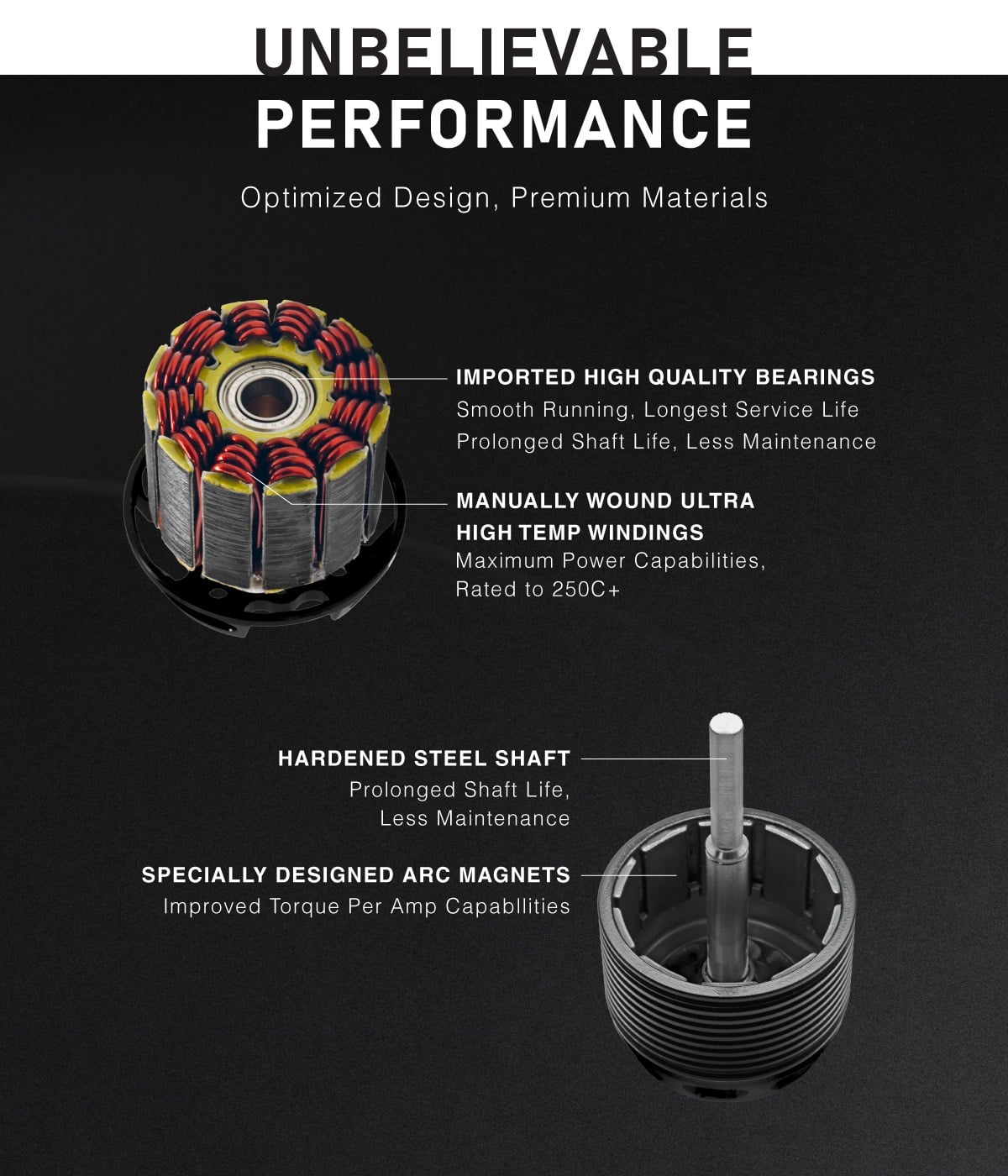

Redesigned internal fan paired with a centrifugal external fan for improved cooling and lower running temperatures.
Specifications

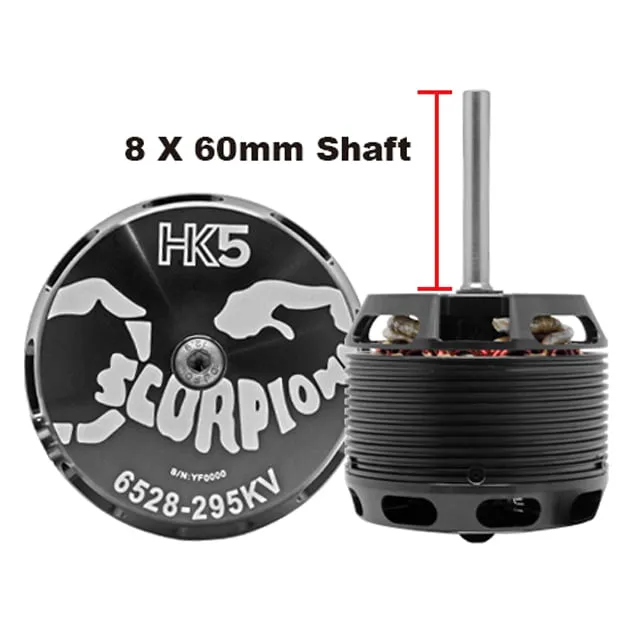

Stator size: 6528
KV: 295KV
Weight: 1070g
Continuous current: 110A
Continuous power: 5720W
Input voltage: 12S-14S
Size the propeller, ESC and battery pack together for the intended payload; this motor suits large UAV helicopters rather than small racing or freestyle frames. Its low 295KV winding is built to turn a large rotor efficiently at high torque rather than high RPM.
| Weight | 1070 g |
|---|---|
| Input Voltage | 12–14S |
| KV | 295 KV |
| Stator Size | 6528 |
| Stator Diameter | 65mm |
| Stator Height | 28mm |
| Brand | Scorpion |
| Made in India | No |
