5" Motors

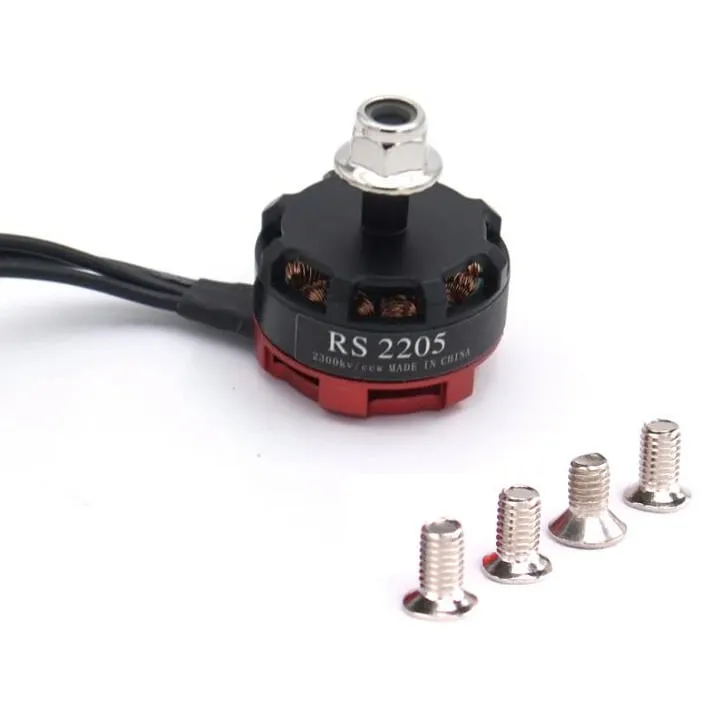

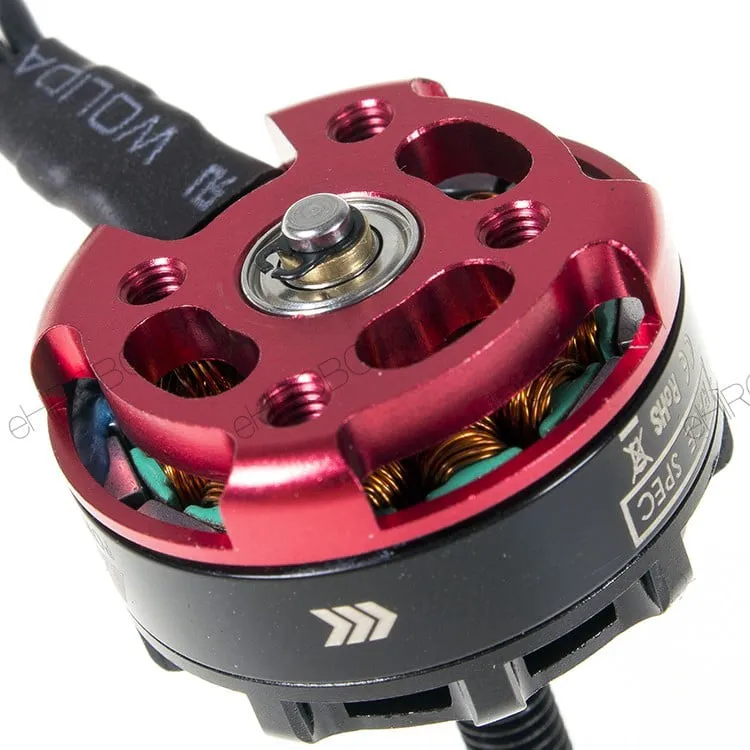

RS2205 2300KV CCW Brushless Motor (Silver Cap)
₹899
SKU RS2205-2300KV-CCW-SLV
Pack Size: 1Stator Size: 2205KV: 2300 KVShaft: 5mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
The RS2205 2300KV brushless motor is a classic high-RPM power plant engineered for 5-inch FPV racing and freestyle builds. Configured for counter-clockwise (CCW) rotation and identified by its silver locking cap, this motor delivers aggressive throttle response and consistent thrust when paired with a 3S or 4S LiPo battery.
Key features
- Optimised for 5-inch propellers on 3S to 4S power systems
- Integrated cooling fins pull air through the motor bell to reduce heat during high-throttle passes
- Silver threaded cap visually indicates CCW thread direction, helping prevent mid-flight prop ejections
- Utilises standard M3 mounting threads for wide compatibility with legacy and modern 5-inch frames
Specifications
- Stator Size: 2205
- KV Rating: 2300 KV
- Input Voltage: 3-4S LiPo
- Prop Shaft: 5mm
- Weight: Approx. 30g
- Thread Direction: CCW (Silver Cap)
This motor is an excellent fit for builders assembling custom 5-inch quadcopters, providing a proven thrust-to-weight ratio for freestyle acrobatics, training rigs, and line-of-sight flying.
