Racing FramesZMR250 /
ZMR250 /
₹1,149Incl. GST
SKU ZMR250-QAV250-CF
Prop Size: 5"Wheelbase: 250 mmBrand: GenericWeight: 160 g
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

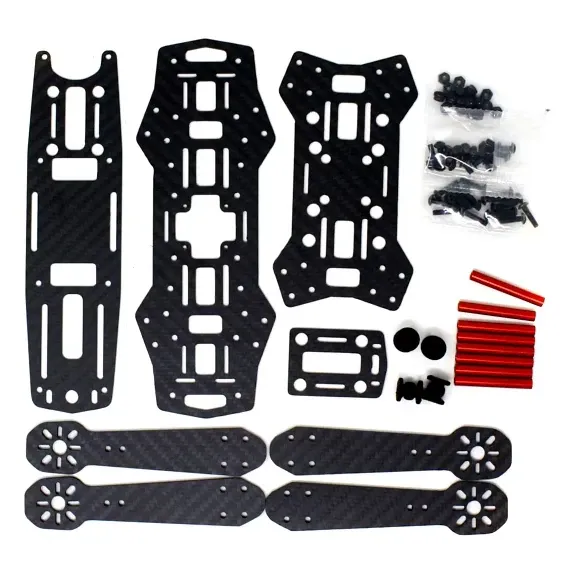

The ZMR250 / QAV250 is a carbon fibre racing frame with a 250mm wheelbase, built for 5-inch FPV builds using separate flight electronics.
Key features
- 3mm-thick carbon fibre arms resist breakage at the motor mounts on hard landings, with dampers at the arm tips.
- Large front and rear deck plates leave room for mounting an HD camera, battery and other electronics.
- Multiple motor-mounting holes on each arm fit a range of motor bolt patterns.
- Includes a camera lens holder and a vibration-damped bracket for housing the camera.
- Weighs around 160g bare, keeping typical all-up weight in the 500-600g range for this class of quad.
Specifications
- Wheelbase: 250mm
- Propeller size: 5 inches
- Material: Carbon fibre
- Frame weight: approx. 160g
- Camera mounting: 37mm board cameras, or cased cameras with a mounting bracket
Best paired with 1806 to 2206 class motors — a typical propulsion match for this frame's size and weight.
| Prop Size | 5" |
|---|---|
| Wheelbase | 250 mm |
| Brand | Generic |
| Weight | 160 g |
| Material | Carbon Fiber |
| Arm Thickness | 3 mm |
