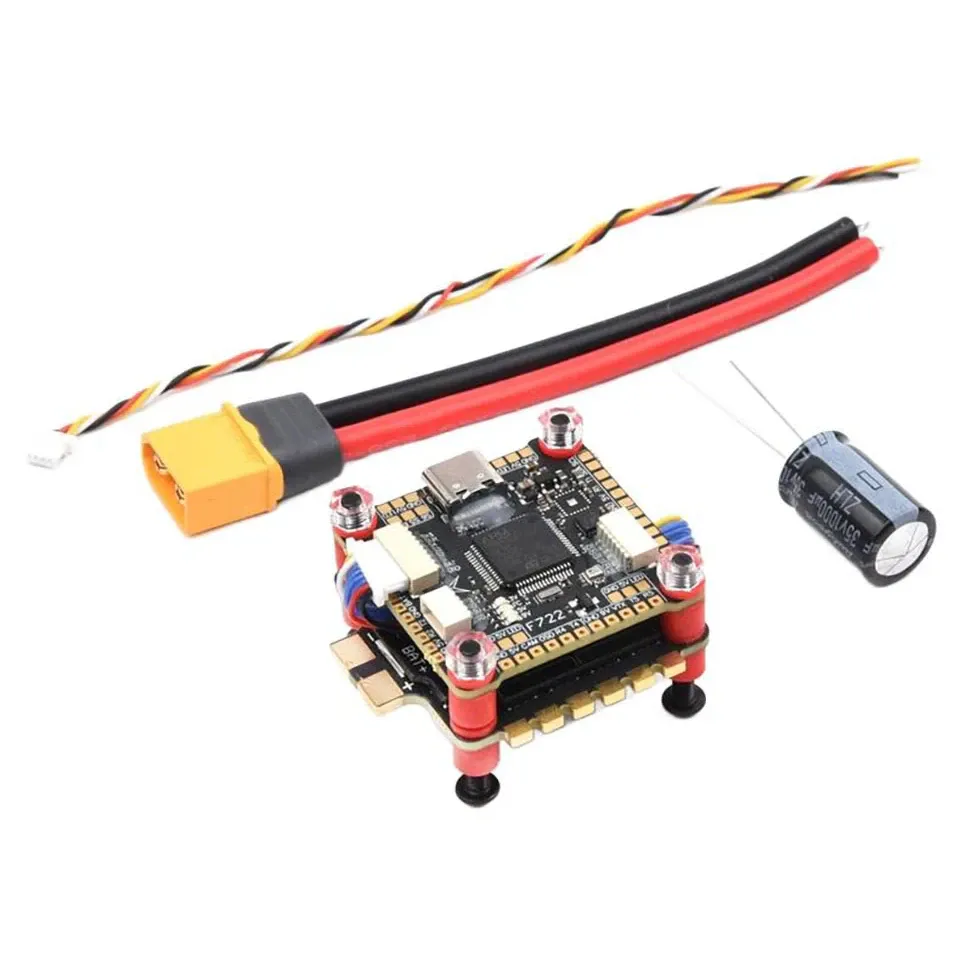

ReadyToSky F7 Flight Controller + 60A BLHeli_S 4-in-1 ESC Stack
₹8,099Incl. GST
SKU RTS-F7-60A-STACK
Mounting Size: 30.5x30.5FC Processor: F7ESC Current: 60 AInput Voltage: 3–6S
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

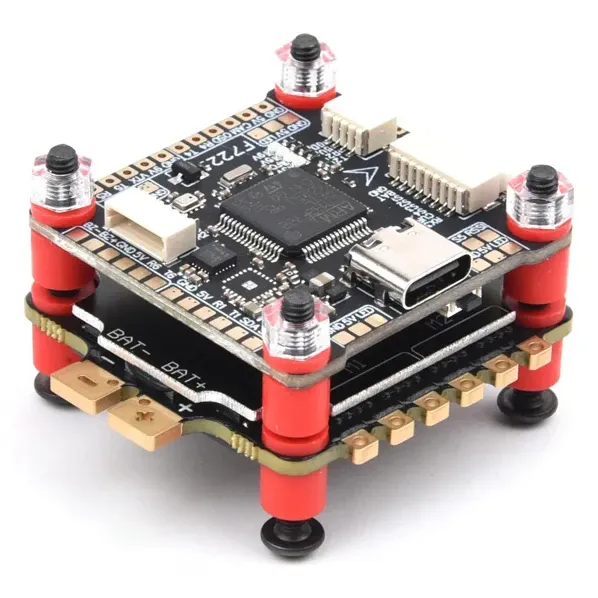

A 30.5x30.5 mm stack that combines a ReadyToSky F7 flight controller with a 60A BLHeli_S 4-in-1 ESC, for 5-inch and larger freestyle and racing quads running 3S to 6S LiPo packs.
Key features
- F7-series flight controller and 4-in-1 ESC on the same 30.5x30.5 mm bolt pattern
- BLHeli_S ESC accepts DShot600, DShot300, DShot150, OneShot125, Multishot and PWM
- Onboard filter capacitor damps back-EMF spikes and steadies the battery voltage
- EMI shielding shell protects the ESC against electromagnetic interference in tight builds
- ESC board weighs just 14.6 g
Specifications
- FC processor: F7 series
- ESC continuous current: 60 A
- ESC firmware: BLHeli_S
- ESC protocols: DShot600, DShot300, DShot150, OneShot125, Multishot, PWM
- Input voltage: 3-6S LiPo (12-26 V)
- Mounting: 30.5 x 30.5 mm
- ESC weight: 14.6 g
- ESC BEC: None
The ESC has no 5 V BEC, so the receiver, camera and VTX must run from the flight controller's regulators or a separate BEC; check what the flight controller supplies before wiring. Keep each motor's peak draw within the 60A per-channel rating.
| Mounting Size | 30.5x30.5 |
|---|---|
| FC Processor | F7 |
| ESC Current | 60 A |
| Input Voltage | 3–6S |
| Made in India | No |
| Brand | ReadyToSky |
| ESC Firmware | BLHeli_S |
