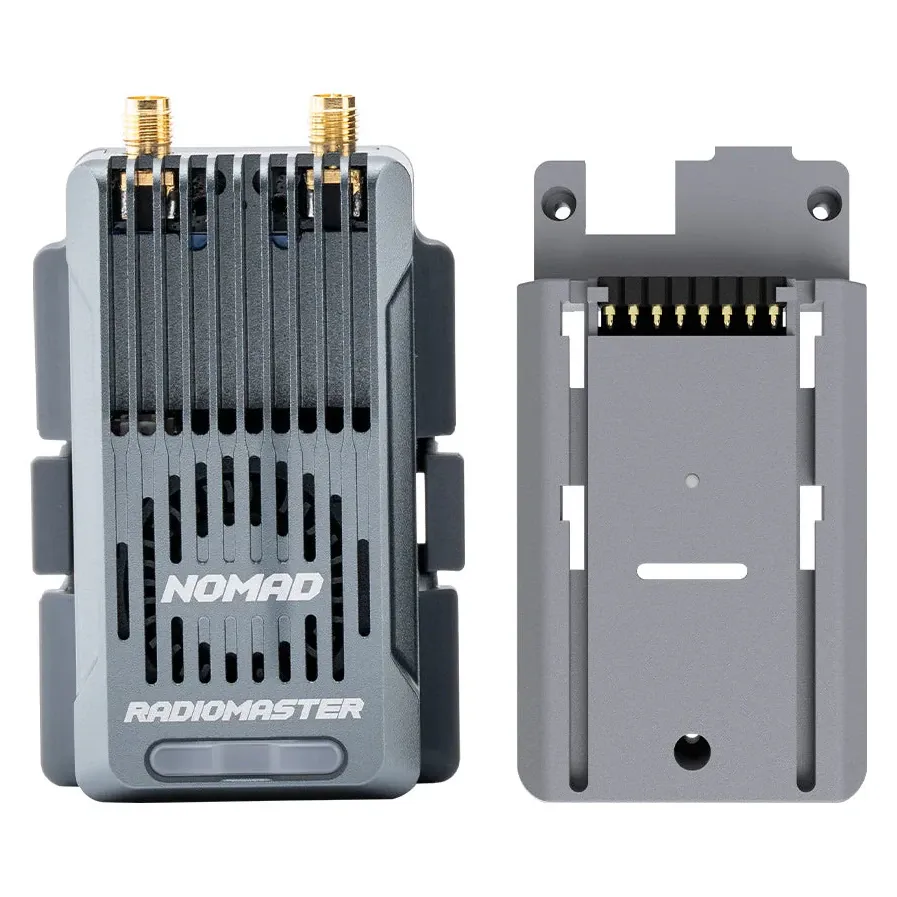

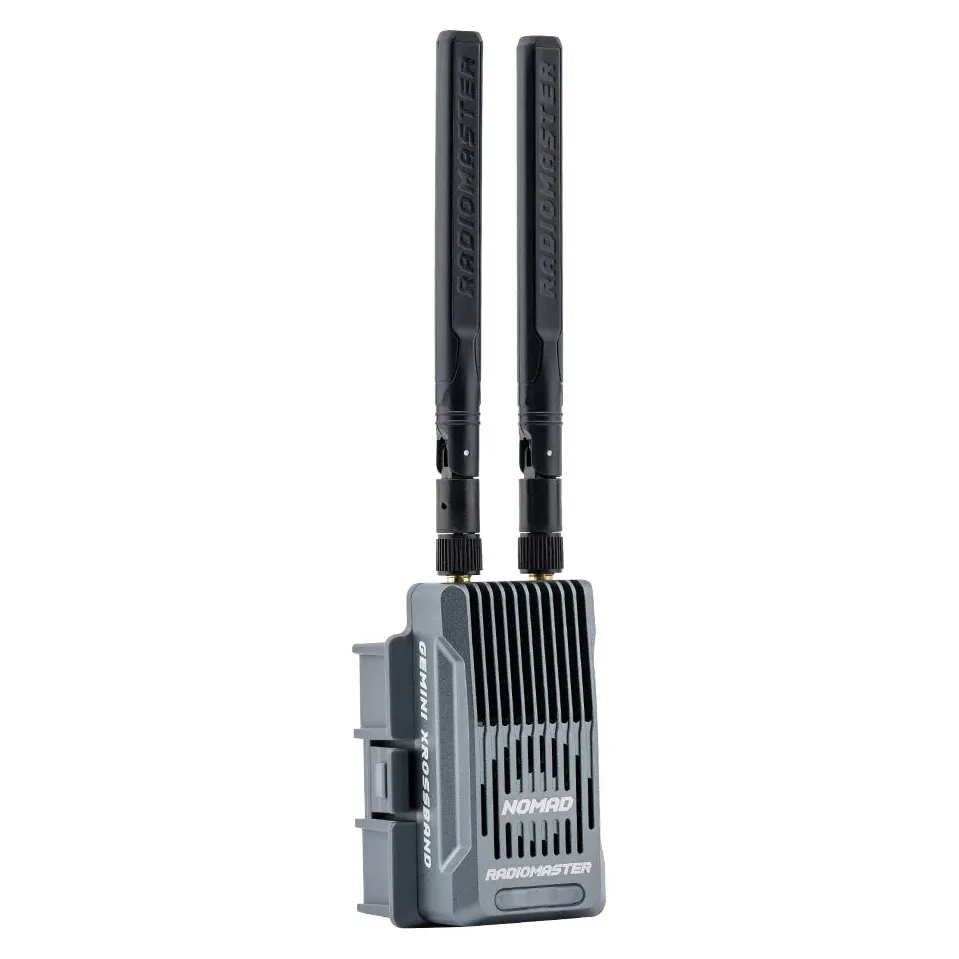

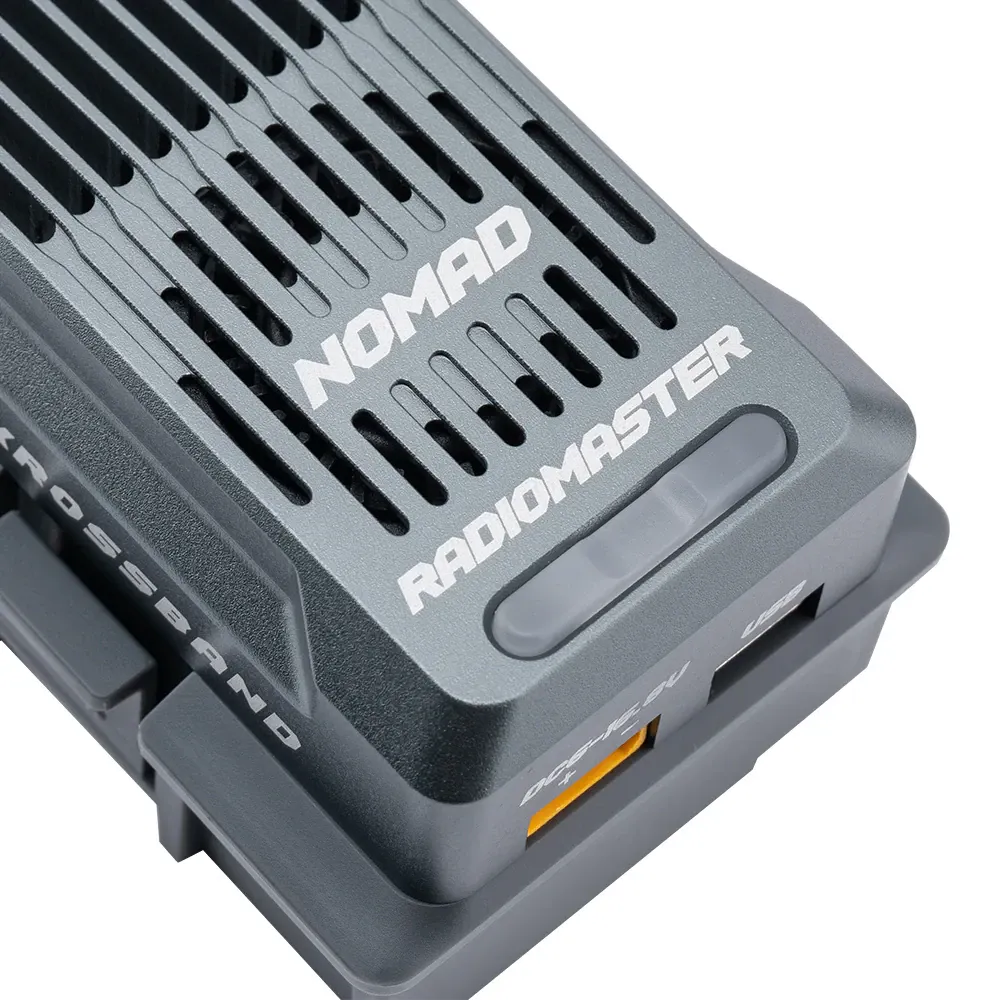

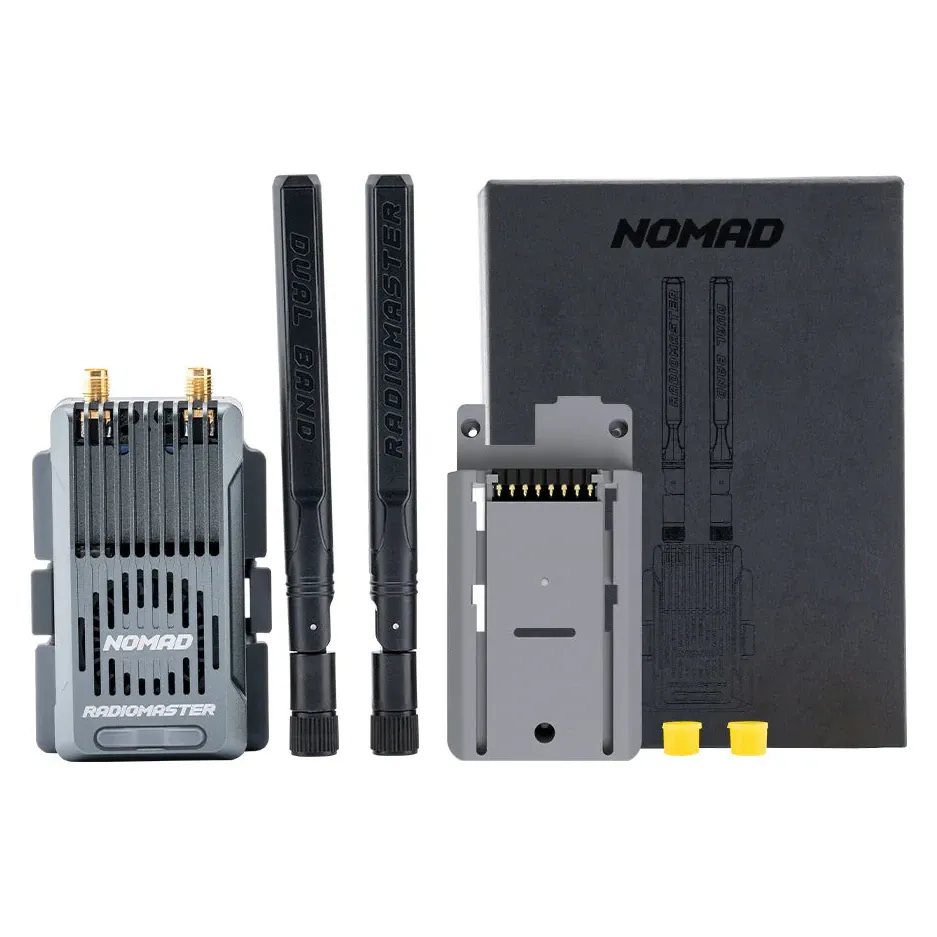

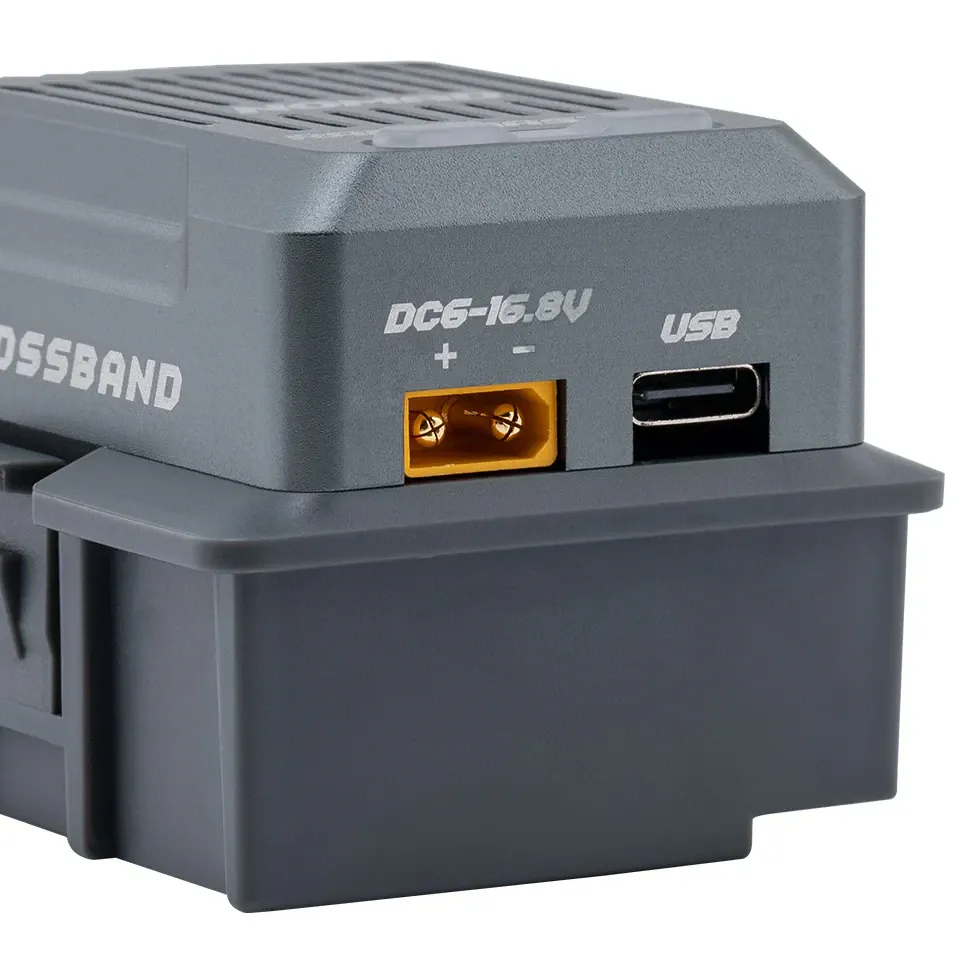

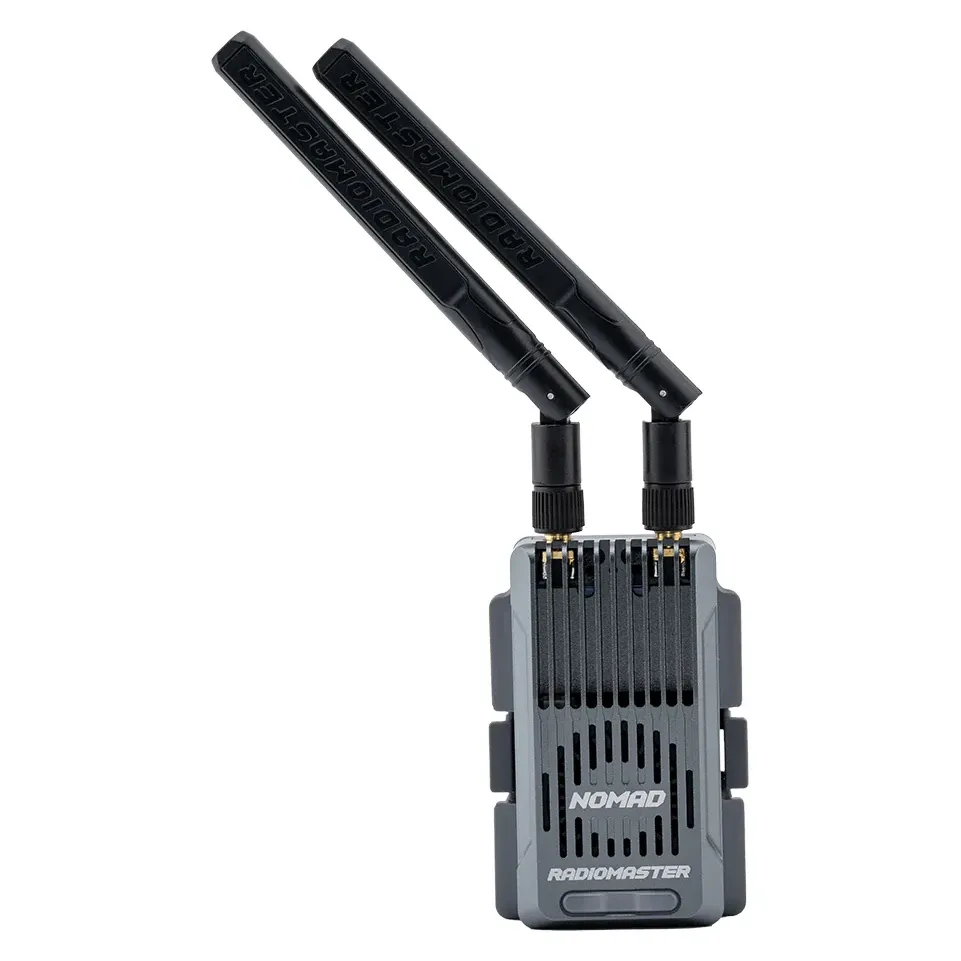

RadioMaster Nomad Dual 1W Gemini Xrossband ExpressLRS Module

The RadioMaster Nomad is a high-power ExpressLRS transmitter module designed for long-range flights and heavy-interference environments. By utilising Gemini Xrossband technology, it transmits telemetry and control packets simultaneously across both 2.4GHz and 868/915MHz frequencies. This dual-band redundancy provides robust link security for long-range fixed-wing builds, mountain-surfing FPV setups, and commercial cinelifters where signal loss is not an option.

Key features

• Transmits concurrent RF packets on 2.4GHz and 868/915MHz to heavily mitigate packet loss and frequency-specific interference.
• Delivers up to 1W (30dBm) output power per band for maximum obstacle penetration and extreme range.
• Standard JR bay form factor drops seamlessly into full-size radios like the TX16S, Boxer, and other compatible handsets.

Specifications

• RF output power: Up to 1W (30dBm) per band
• Frequency: 2.4GHz and 868/915MHz (Simultaneous)
• Supported protocol: ExpressLRS (Gemini Xrossband)
• Compatibility: Standard Micro / JR module bay

Ensure your radio firmware and ExpressLRS Lua scripts are updated to fully support Xrossband configuration. Running dual bands at maximum 1W output draws significant current; monitoring your radio's battery or using a high-capacity pack is highly recommended during extended long-range missions.
