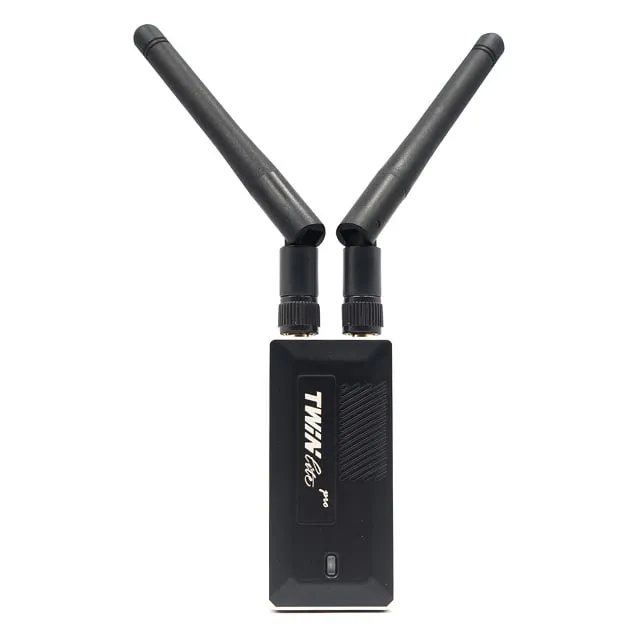

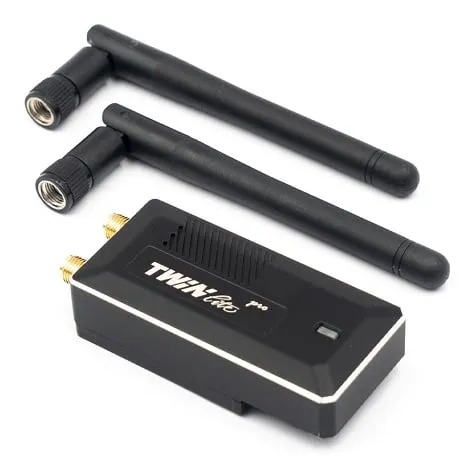

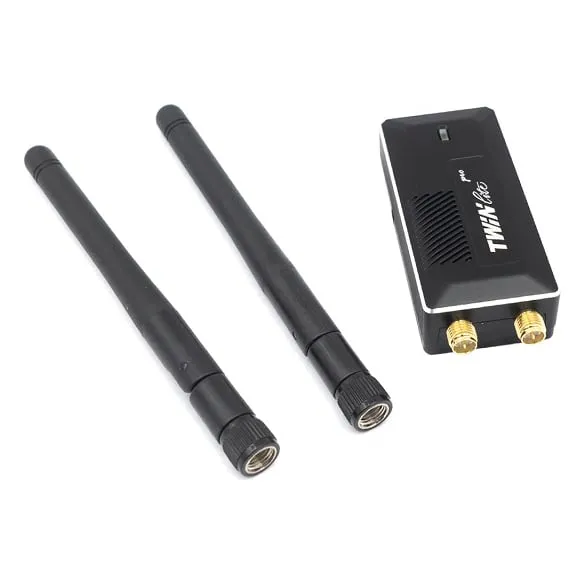

FrSky TWIN Lite Pro Module

The FrSky TWIN Lite Pro is an external RF module for ETHOS-capable radios, running FrSky's TW protocol alongside ACCESS, ACCST D16 and ELRS 2.4GHz modes for pilots who want dual-frequency redundancy rather than a single active link.

Key features

• TW mode keeps two 2.4GHz frequency bands active on the module and a TW-series receiver at the same time, rather than switching over only on failsafe like conventional redundancy.
• Two external 2.4GHz antennas give wider, multi-directional coverage than a single-antenna module.
• Adjustable RF power from 10mW up to 500mW, for long-range control over tens of kilometres depending on the setting.
• CNC-machined metal shell aids heat dissipation during sustained high-power transmission.
• Low latency under 4ms with full telemetry support.
• 84mA operating current at 100mW output keeps drain on the transmitter's own battery modest at typical power settings.

Specifications

• Dimensions: 62.8 x 30 x 17.2mm
• Weight: 36.8g (without antenna)
• RF power: 10/25/100/200/500mW
• Operating current: 84mA @ 100mW
• Protocols: TW, ACCESS, ACCST D16, ELRS 2.4GHz (compatible)

Fit it into a compatible module bay and bind to a TW-series receiver to use the dual-frequency mode, or bind to standard ACCESS, D16 or 2.4GHz ELRS receivers for regular single-link control.
