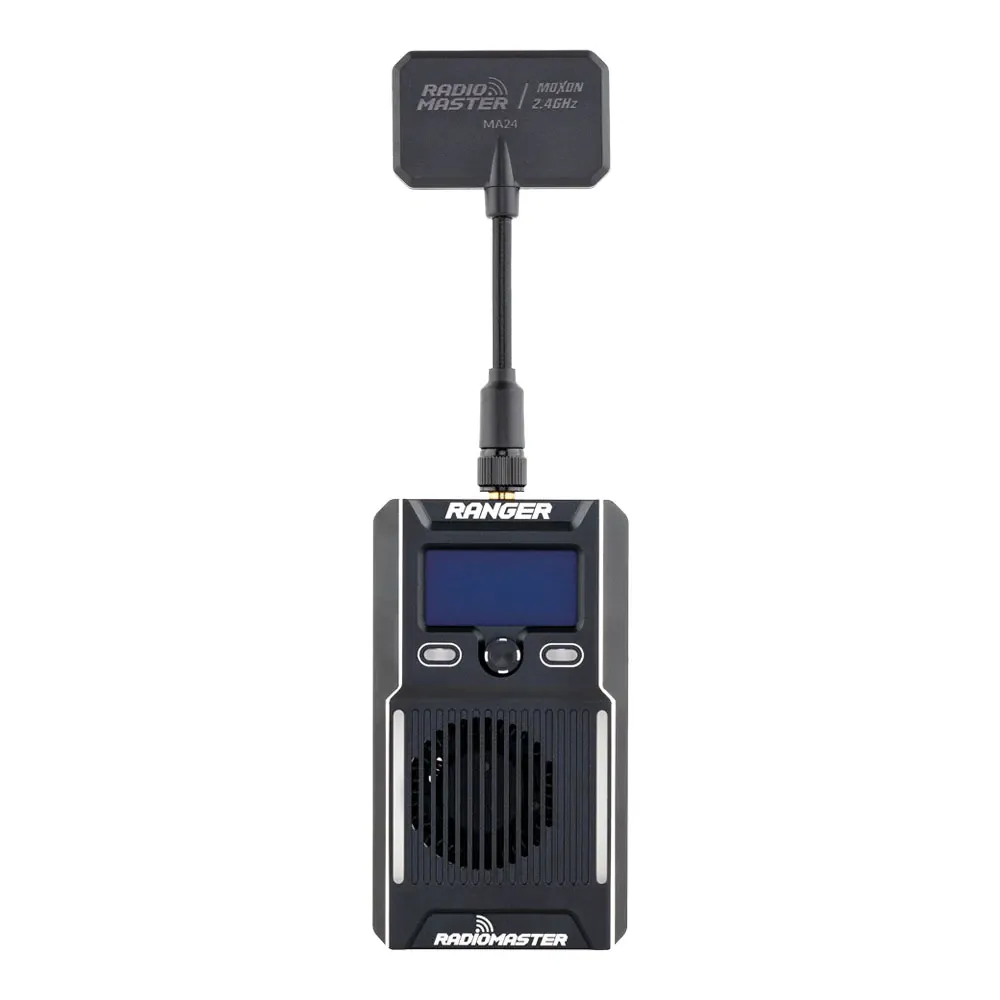

RadioMaster Ranger 2.4GHz ELRS TX Module

The RadioMaster Ranger is a high-performance 2.4GHz ExpressLRS module designed for standard JR-bay transmitters like the TX16S and Boxer. Built for pilots demanding ultra-low latency or pushing long-range FPV boundaries, it delivers up to 1W of RF output power housed in a rugged CNC-machined aluminium enclosure that ensures thermal stability during extended flights.

Key features

• Up to 1W (30dBm) maximum output power for deep penetration and long-range reliability.

• CNC-machined aluminium casing with a built-in active cooling system for efficient heat dissipation.

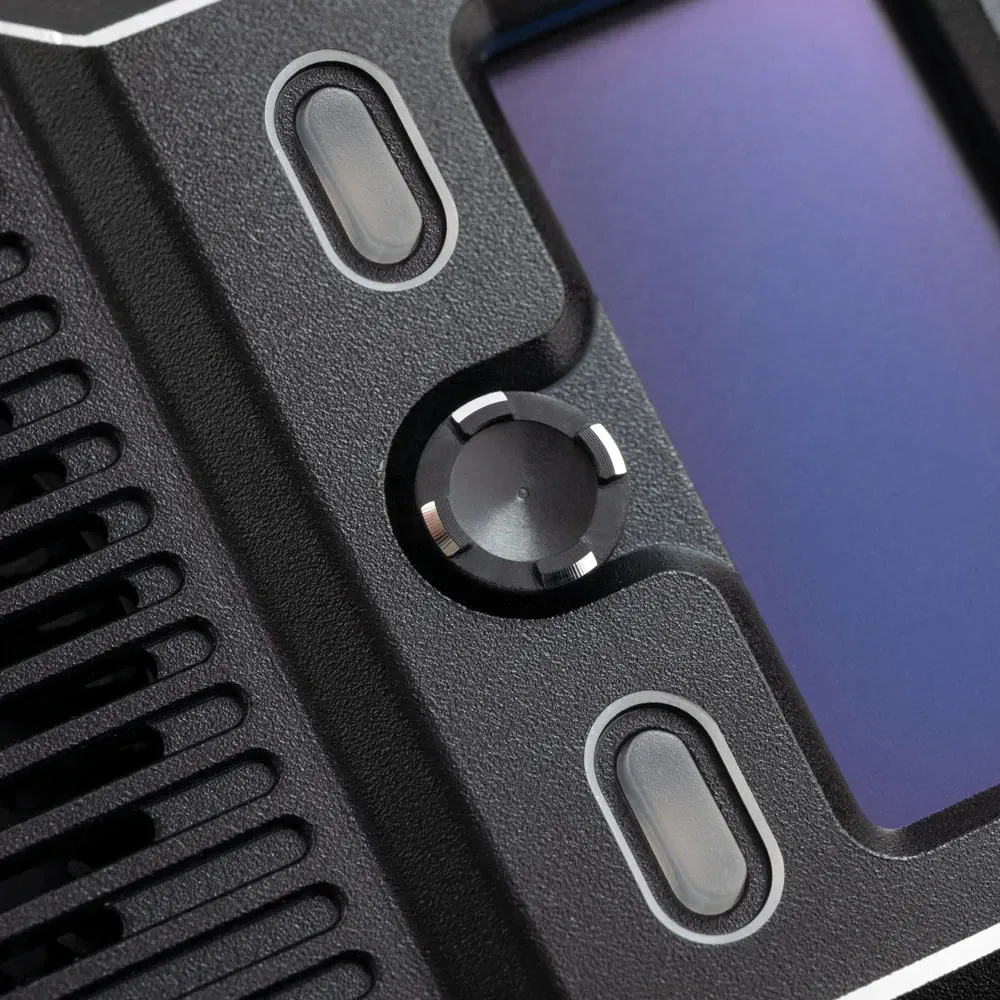

• Integrated OLED display and directional navigation keys for independent parameter adjustments without diving into transmitter LUA scripts.

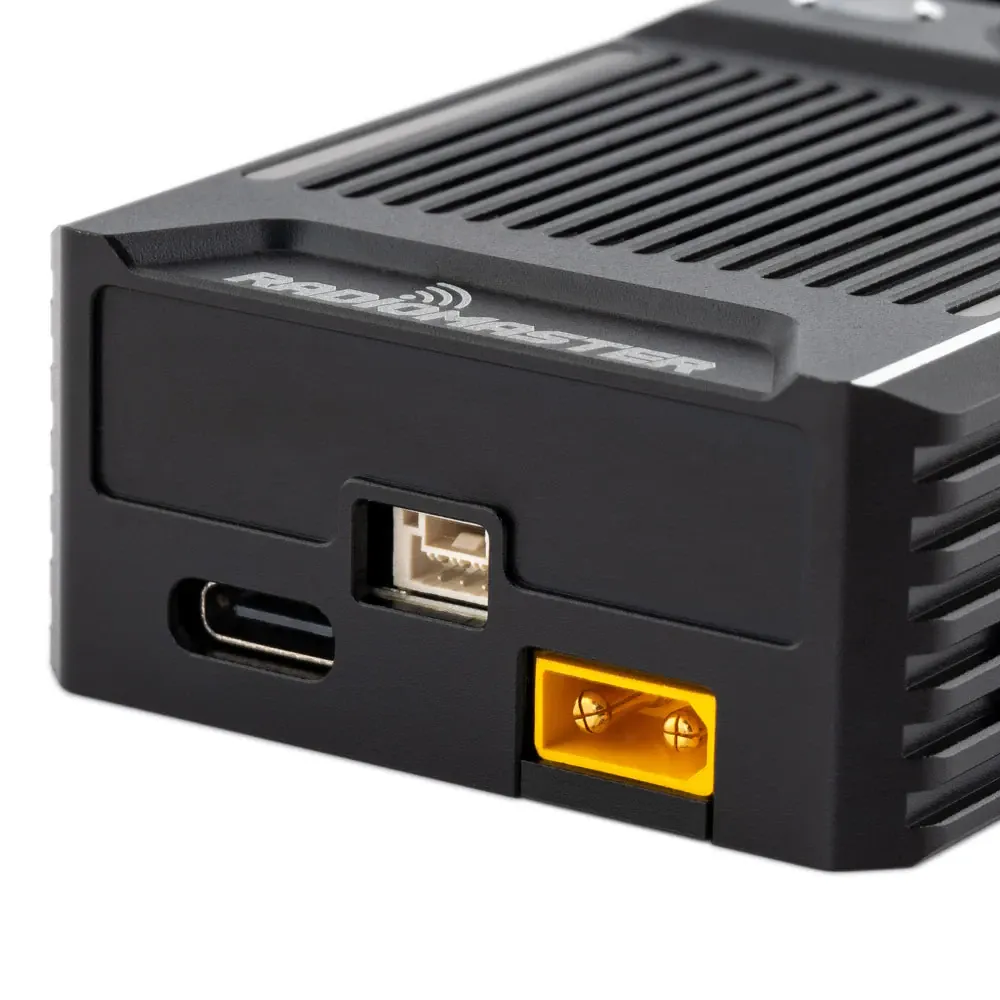

• XT30 auxiliary power port allows the module to be driven by an external 2S–4S LiPo, preserving your radio's internal battery at high power levels.

• Built-in Wi-Fi and Bluetooth support for wireless ELRS firmware flashing and telemetry forwarding.

Specifications

• RF Chip: Semtech SX1281

• Microcontroller: ESP32 (Main) / ESP8285 (Aux)

• Frequency: 2.4GHz ISM

• Maximum Packet Rate: 1000Hz (F-1000Hz)

• Maximum Output Power: 1W (30dBm)

• External Power Input: XT30 (6V–16.8V)

• Form Factor: Standard JR module bay, Nano bay adapter included

• Display: 64 x 128 px OLED, 5-way nav key and two shortcut buttons

• Weight: 126 g (without antenna), 135 g (with T antenna), 138 g (with Moxon antenna)

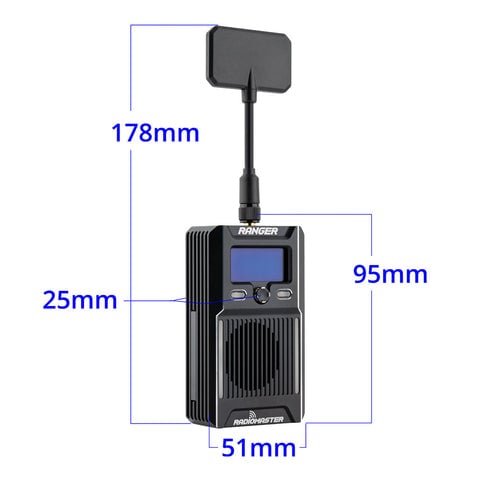

• Dimensions: 95 x 51 x 25 mm (without antenna)

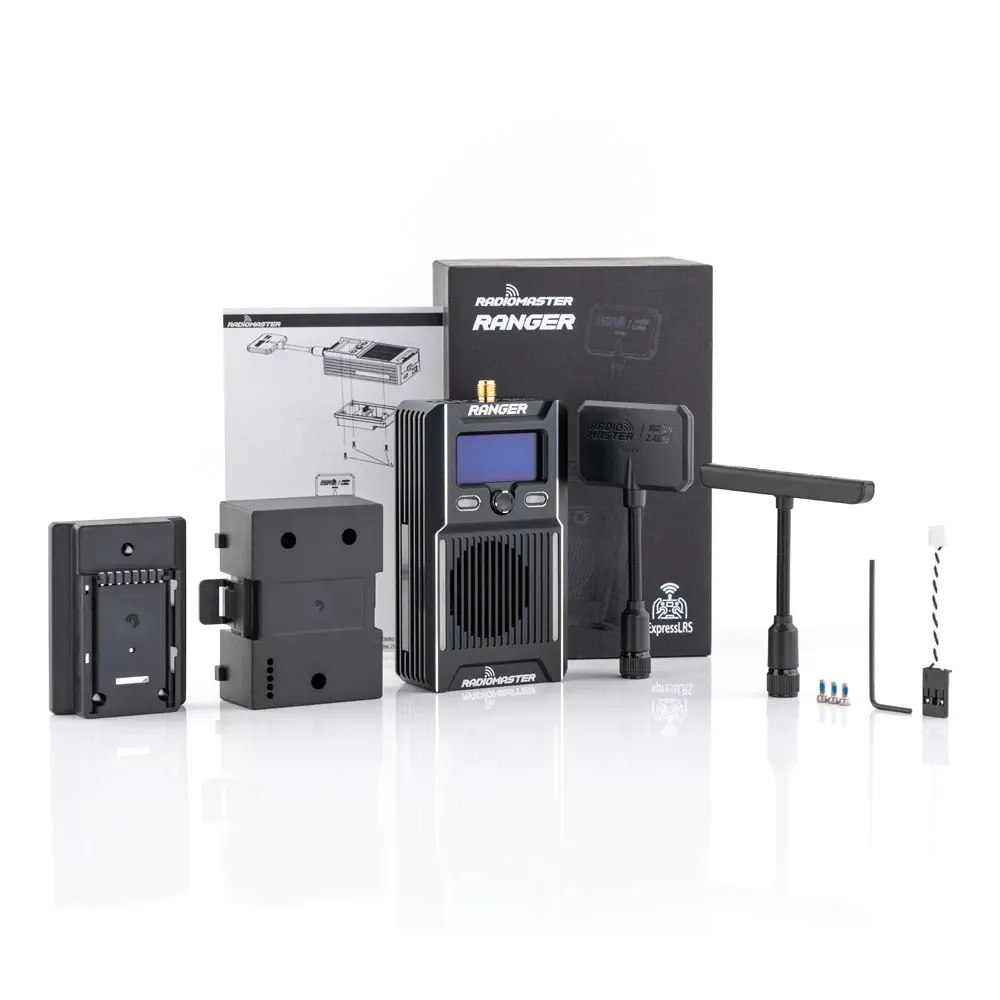

• In the box: module, T antenna and Moxon antenna (RP-SMA), JR adapter, Nano adapter, Futaba CRSF cable, screwdriver and screws

This module requires a radio running EdgeTX or OpenTX. To fully utilise the 1000Hz packet rates, ensure your transmitter firmware is updated to support the necessary high CRSF baud rates.
