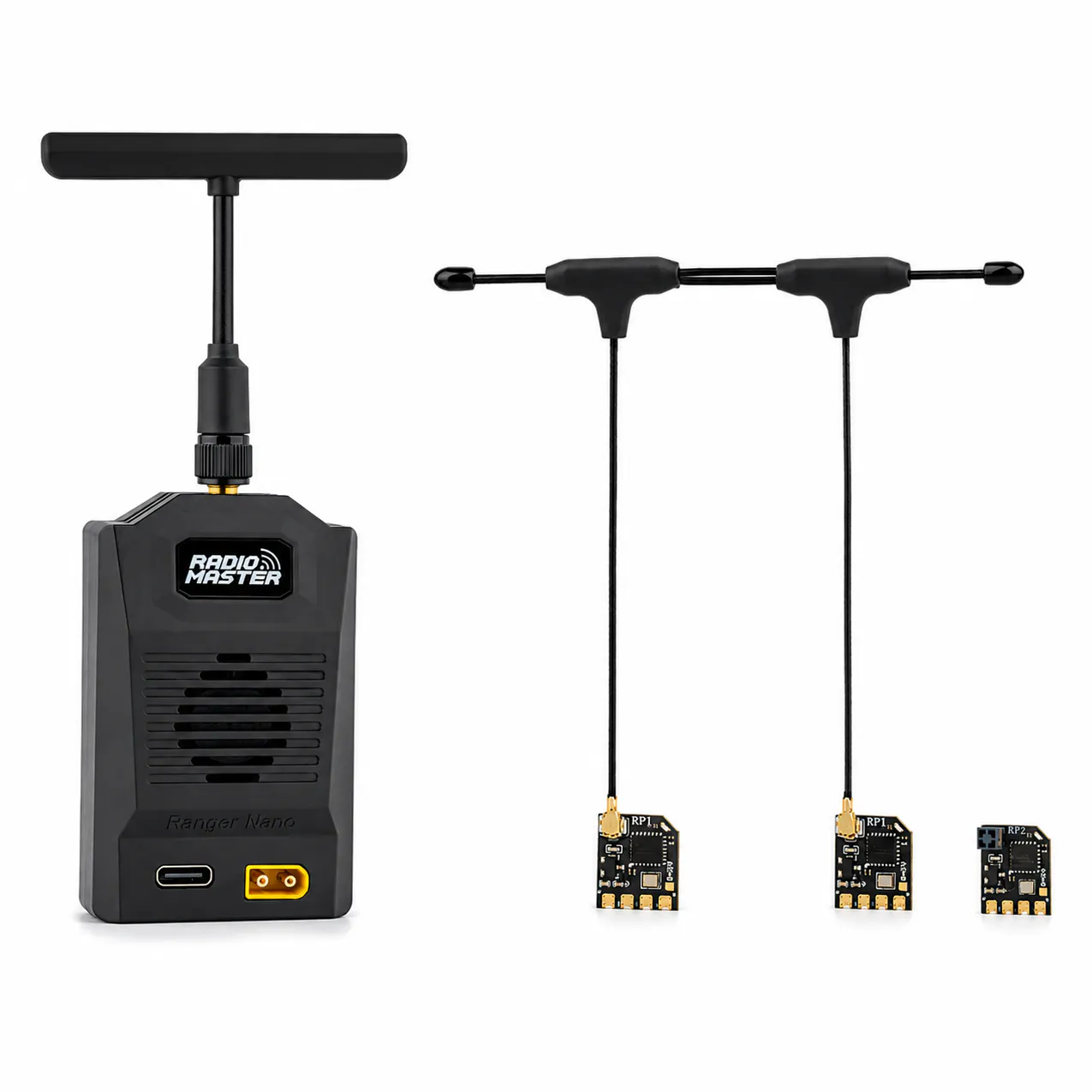

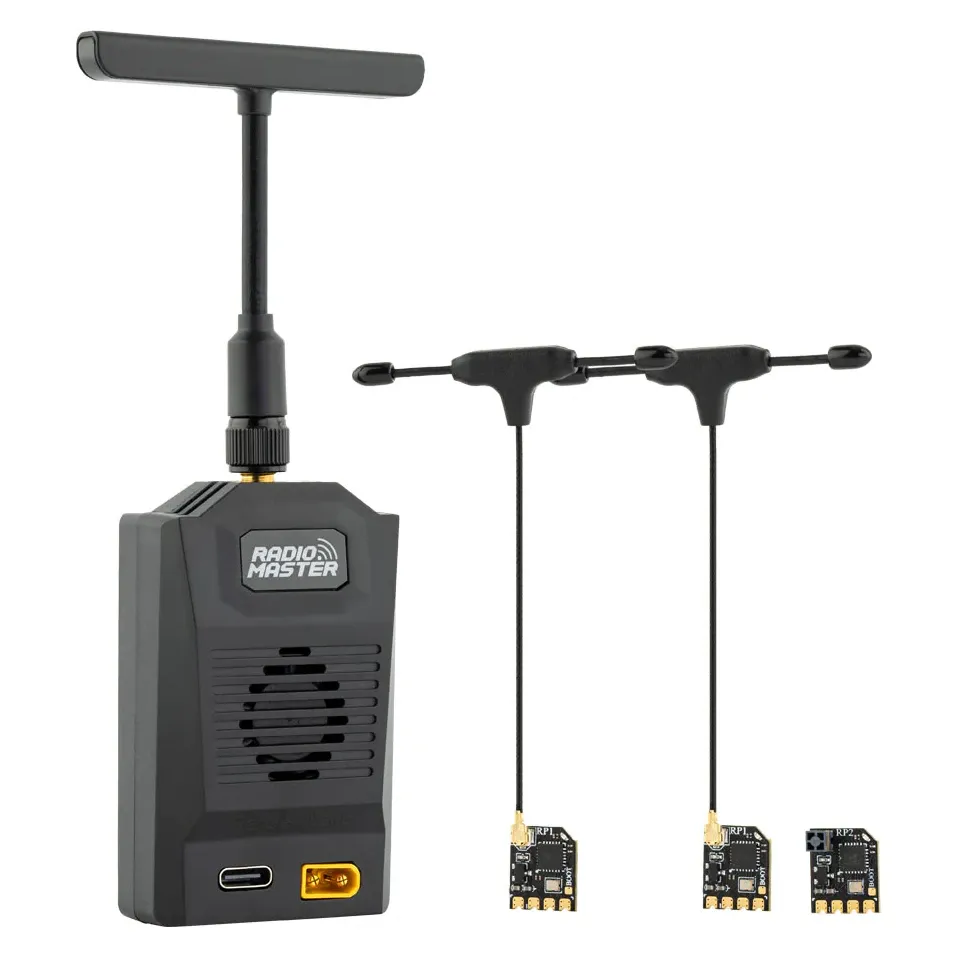

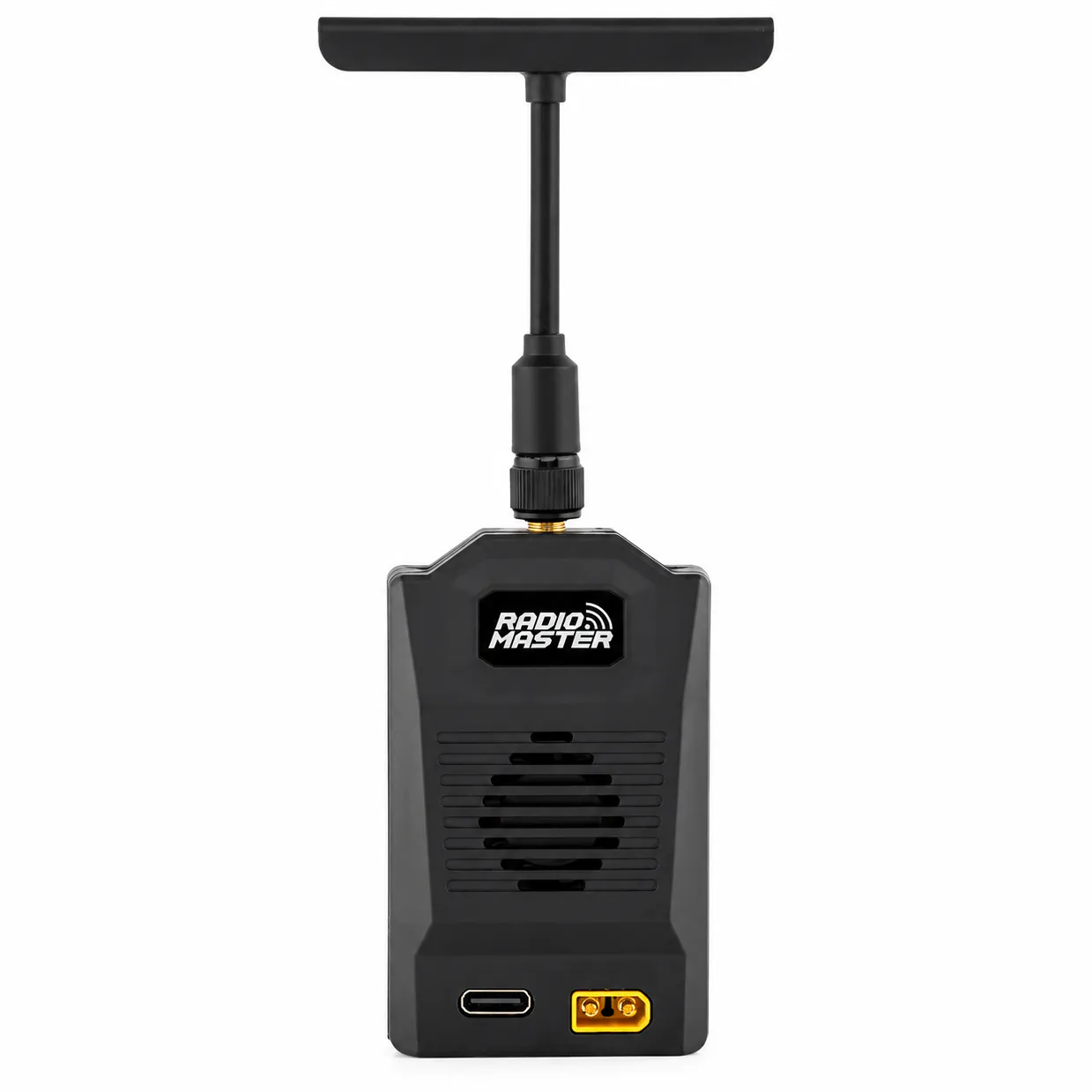

RadioMaster Ranger Nano 2.4GHz ELRS Module

The RadioMaster Ranger Nano is a high-performance 2.4GHz ELRS transmitter module designed for radios equipped with a Nano (Lite) module bay, such as the RadioMaster Zorro and Pocket. Engineered for ultra-low latency and extended range, it provides a robust control link for everything from aggressive FPV freestyle quads to long-range fixed-wing platforms.

Key features

• Up to 1W (30dBm) output power for maximum signal penetration and range

• Rugged CNC aluminium casing with an integrated fan for efficient active cooling

• Built-in Wi-Fi and Bluetooth for wireless firmware updates and telemetry routing

• Supports high-speed ExpressLRS packet rates up to F1000Hz

Specifications

• MCU: ESP32 (Main) / ESP8285 (Aux)

• RF Chip: SX1281

• Frequency: 2.4GHz ISM

• Maximum Output Power: 1000mW (30dBm)

• Supported Protocol: ELRS

• Module Bay: Nano (Lite)

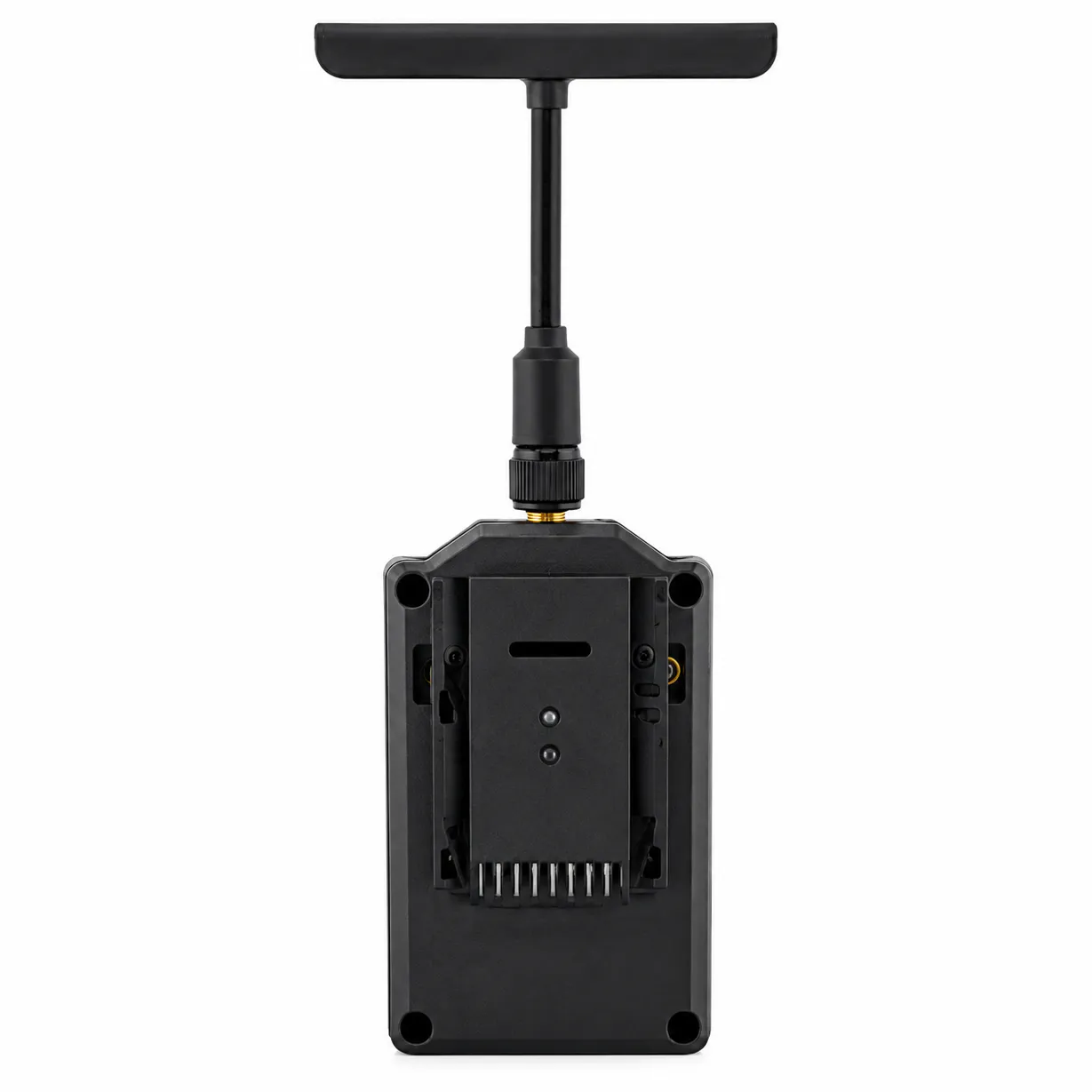

This module drops directly into a standard Nano module bay and is entirely driven by the radio's internal power. When running the Ranger Nano at its maximum 1W output setting, ensure your transmitter batteries are adequately charged to support the sustained current draw.
