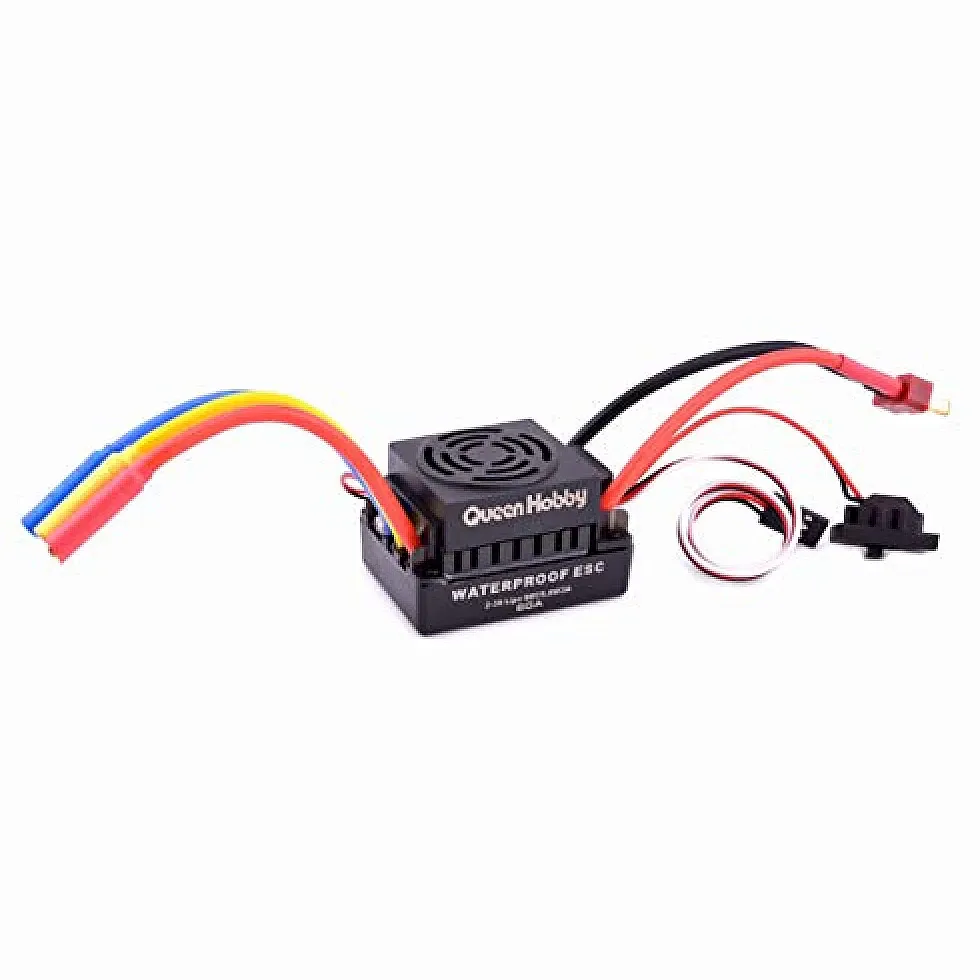

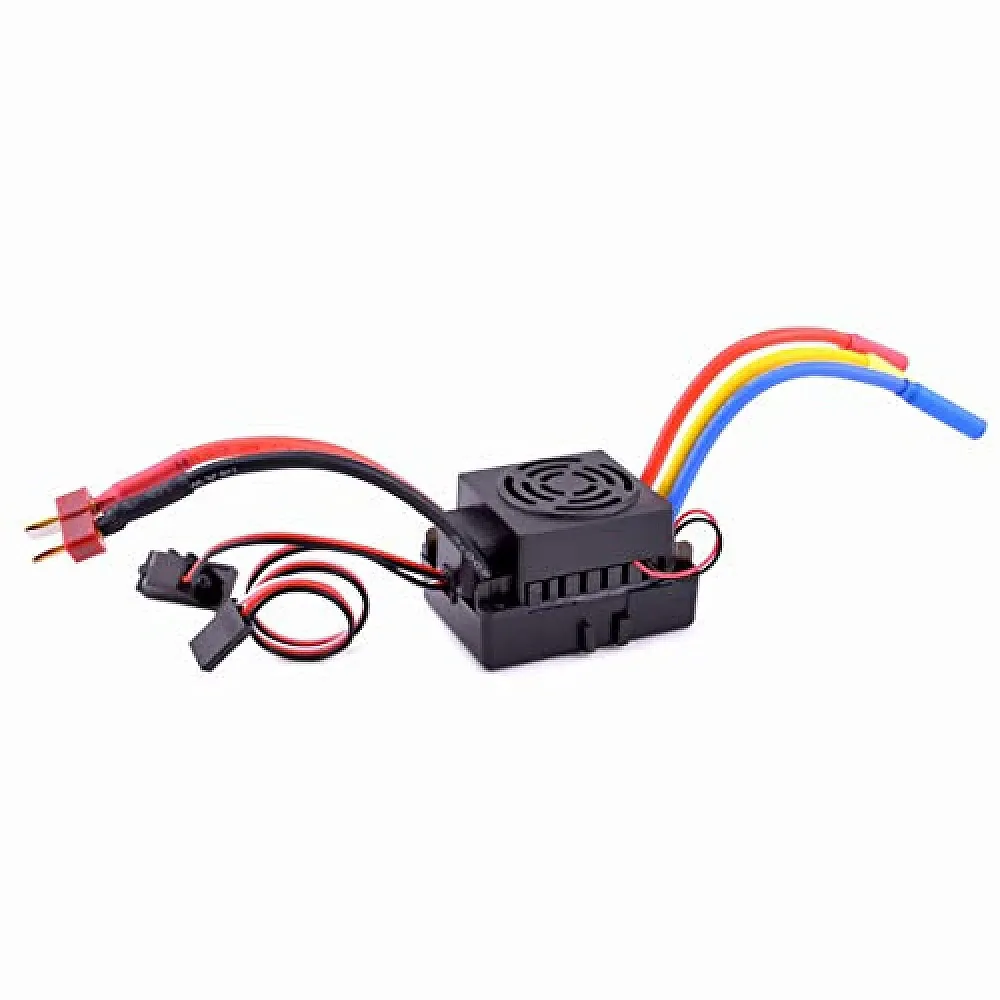

Queen Hobby 60A Brushless ESC 2-3S

The Queen Hobby 60A is a single brushless electronic speed controller for RC models running 2–3S LiPo or 4–9 cell NiMH/NiCd packs. It drives one brushless motor at up to 60 A continuous and cuts power when the battery sags too low or the controller gets too hot.

Key features

• 60 A continuous rating for one brushless motor on 2S or 3S LiPo (7.4–11.1 V nominal)
• NiMH and NiCd support from 4 to 9 cells, so older packs still work
• Low-voltage cutoff protects the battery from over-discharge
• Overheat protection guards the controller against thermal damage
• T-plug battery lead fitted as standard

Specifications

• Continuous current: 60 A
• Battery: 2–3S LiPo / 4–9 cell NiMH or NiCd
• Battery plug: T-plug (Deans-style)
• Dimensions: 50 × 35 × 34 mm (without cables)

At 50 × 35 × 34 mm this is a model-sized controller, not an arm-mounted multirotor ESC, so plan a mounting spot with some airflow. If your packs use XT60, change the plug or use an adapter lead before the first run.
