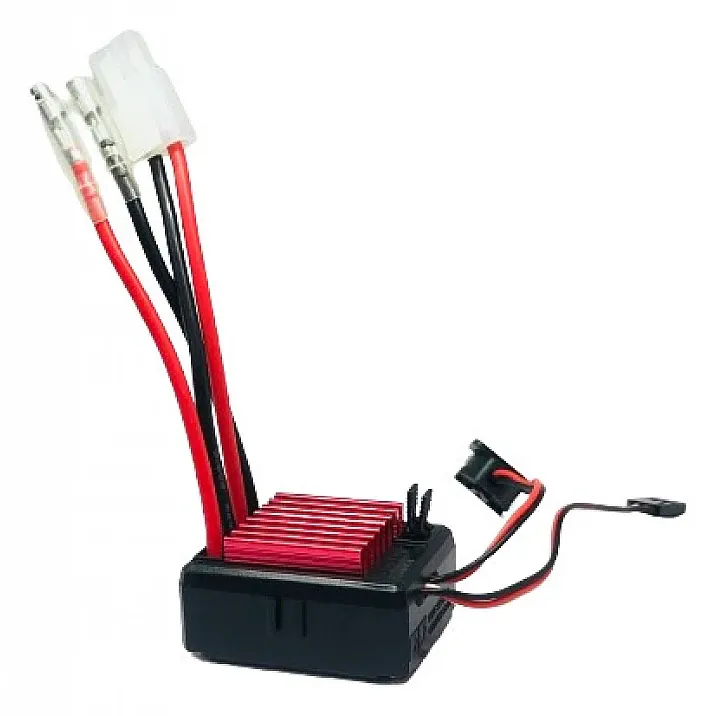

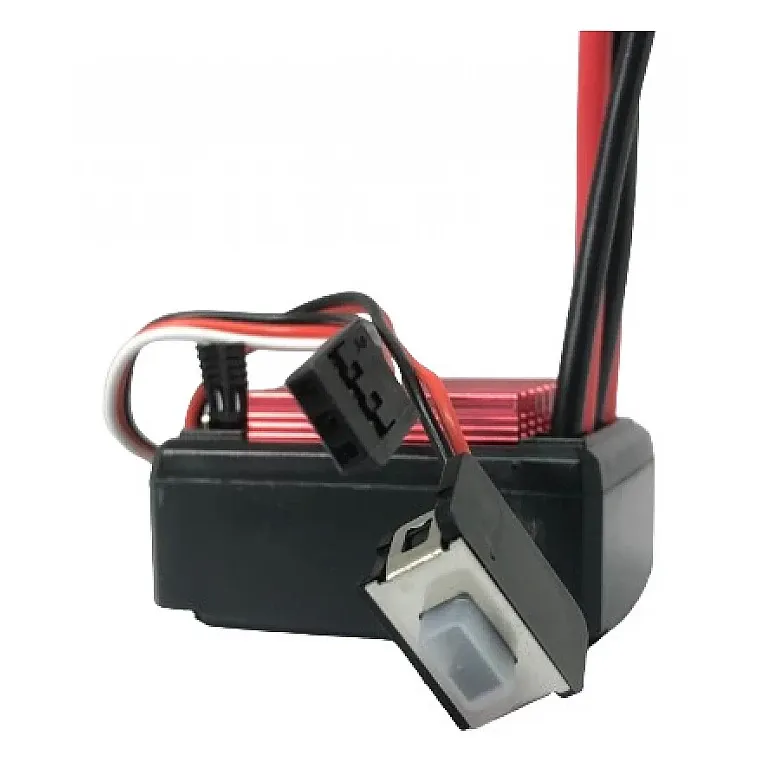

Waterproof 60A Brushed ESC (Brush-X60) for 1/10 RC Cars

The Brush-X60 is a waterproof brushed speed controller for 1/10 scale touring cars, buggies, short-course trucks, monster trucks, crawlers and tracked tank models. It drives one 540 or 550 brushed motor from a 2–3S LiPo or a 5–9 cell NiMH pack, and its built-in BEC powers the receiver and steering servo.

Key features

• 60 A continuous forward with 360 A burst; 30 A continuous reverse with 180 A burst
• Forward/reverse mode for general driving plus a dedicated crawler mode for rock crawlers and tanks
• Linear BEC rated 6 V at 2 A, so no separate receiver battery is needed
• Waterproof, for running through wet grass and puddles
• Weighs 39 g, easy to fit in a compact 1/10 chassis

Specifications

• Model: Brush-X60
• Motor type: Brushed, 540/550 size
• Forward current: 60 A continuous / 360 A burst
• Reverse current: 30 A continuous / 180 A burst
• Input: 2–3S LiPo (7.4–11.1 V nominal) or 5–9 cell NiMH
• BEC output: 6 V / 2 A, linear
• Running modes: Forward/reverse, crawler
• Weight: 39 g

Motor limits: on 2S LiPo or 6-cell NiMH, use a 540/550 motor wound above 12T or rated under 30,000 RPM at 7.2 V; on 3S LiPo or 9-cell NiMH, above 18T or under 20,000 RPM at 7.2 V. This is a brushed controller only — brushless car and drone motors need a brushless ESC.
