ReadyToSky Dual-Channel Bidirectional Brushed ESC for RC Tanks & Boats
SKU GEN-DUAL-BRUSHED-ESC-5AX2
Version: 5A×2, 2-3S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A single-board, two-channel brushed ESC for skid-steer models: RC tanks, tracked vehicles, differential-steering boats and wheeled robots. Each channel drives its own motor forwards and in reverse, so left and right sides can be run at different speeds or opposite directions for pivot turns from a standard 2-channel radio. Six versions cover 5A to 40A per channel.
Key features
- Two independent bidirectional channels, one per motor
- Versions from 5A to 40A per channel, with 2-3S or 2-6S LiPo input
- On-board BEC powers the receiver: 5V 500mA on the 5A x2, 5V 3A on the 20A to 40A x2 versions
- Works with a standard PWM receiver signal, with no extra controller hardware
- One compact board replaces two separate ESCs in tight hulls and chassis
Specifications
- 5A x2: 5A per channel, 2-3S LiPo, 5V 500mA BEC

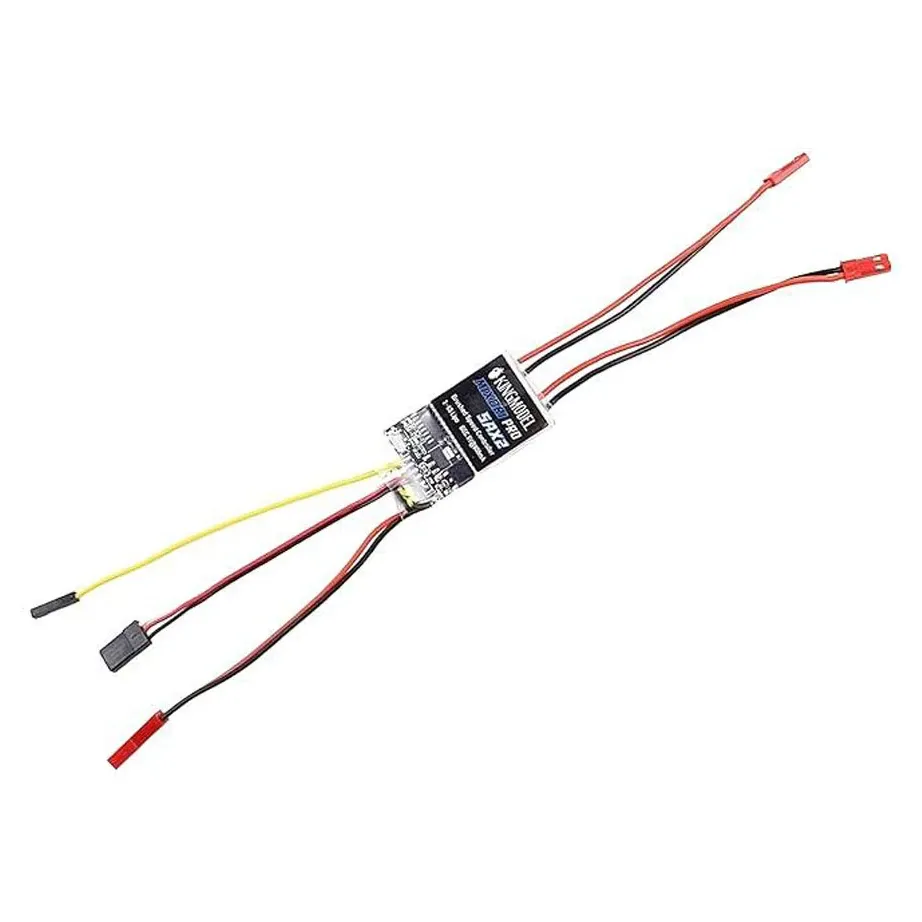

- 5A x2 PRO: 5A per channel, 2-6S LiPo

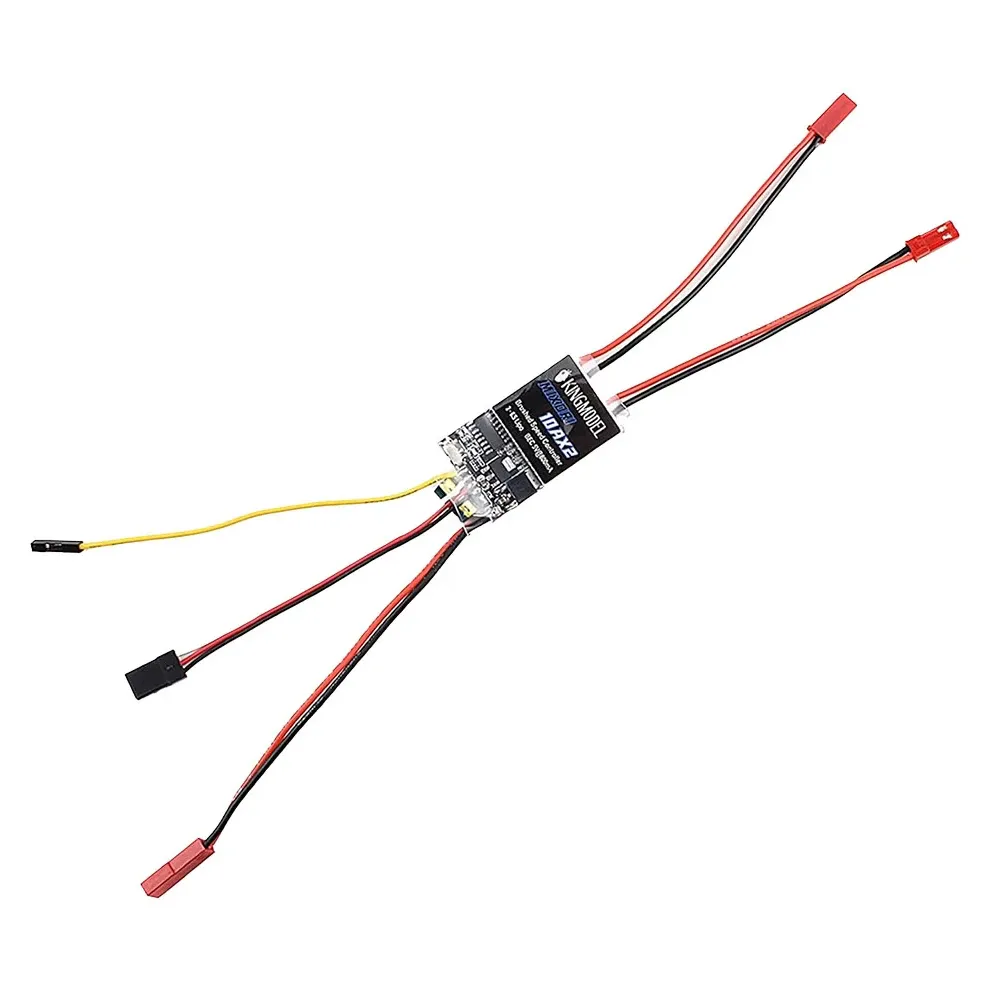

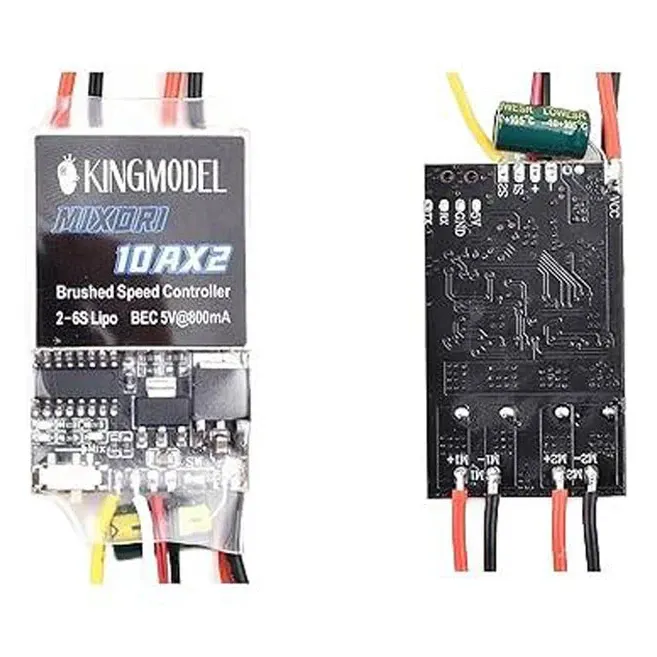

- 10A x2: 10A per channel, 2-6S LiPo (7.4-22.2V)

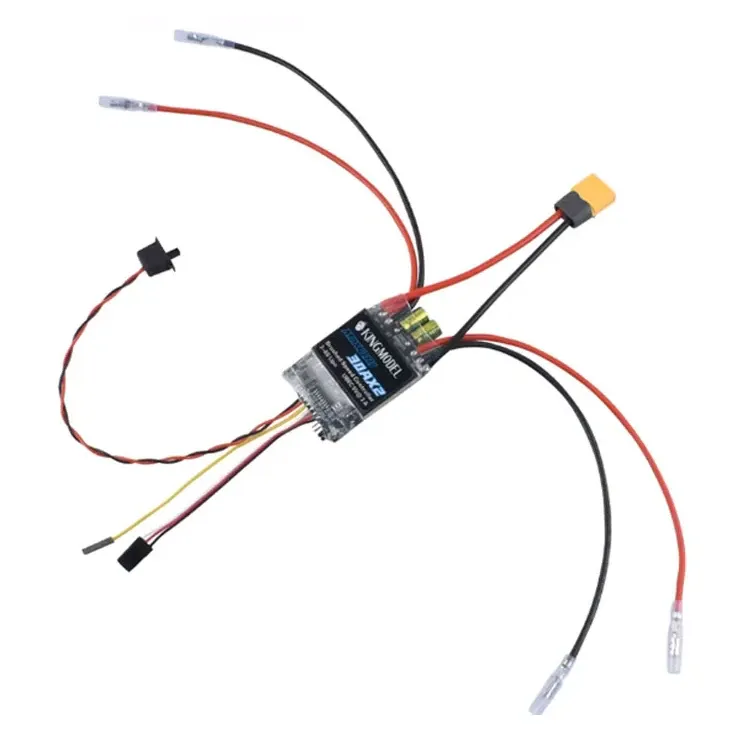

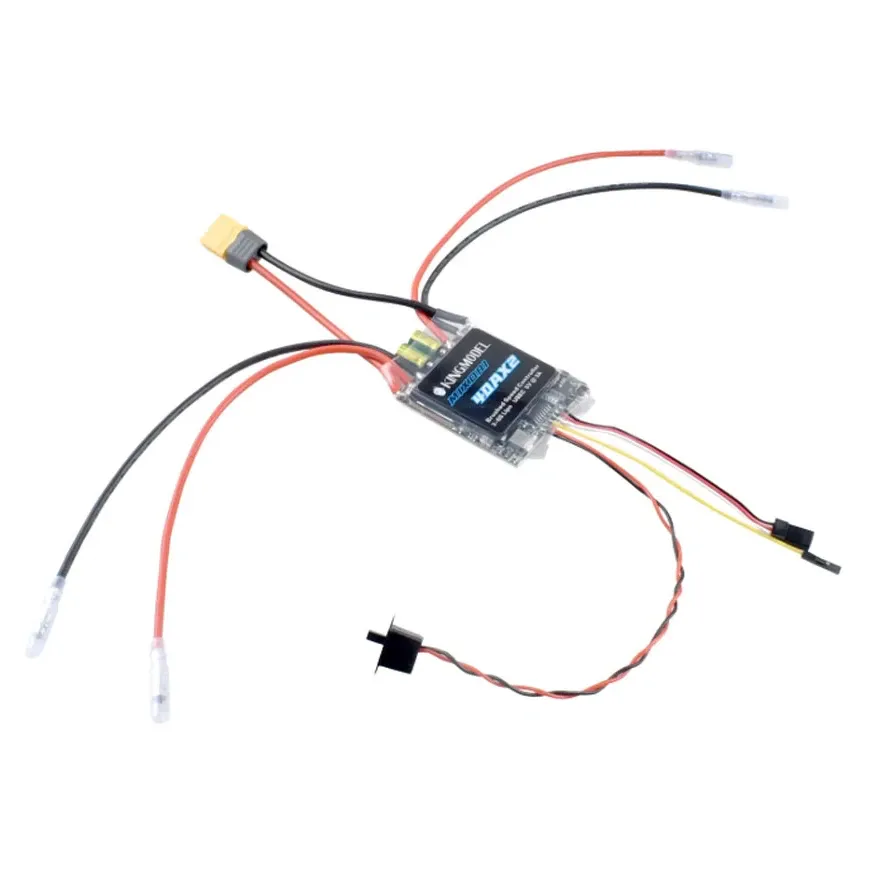

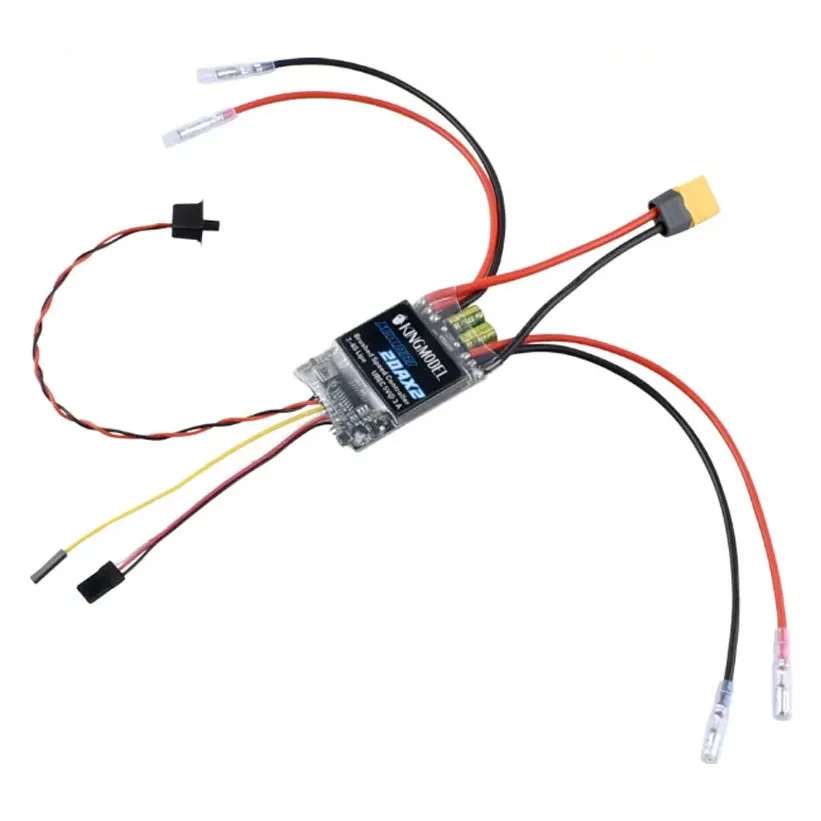

- 20A x2 / 30A x2 / 40A x2: 20A, 30A or 40A per channel, 2-6S LiPo, 5V 3A BEC
- Channels: 2, independent left and right
- Motor type: Brushed
Size the version to your motors' stall current rather than their free-running draw, because tracked models load the motors hard when turning on the spot. A 4S or larger pack needs one of the 2-6S versions.
| ESC Current | 5 A, 10 A, 20 A, 30 A, 40 A |
|---|---|
| Input Voltage | 2–6S |
| ESC Firmware | Proprietary |
| Made in India | No |
| Brand | ReadyToSky |
| BEC | Yes |
| Motor Type | Brushed |
