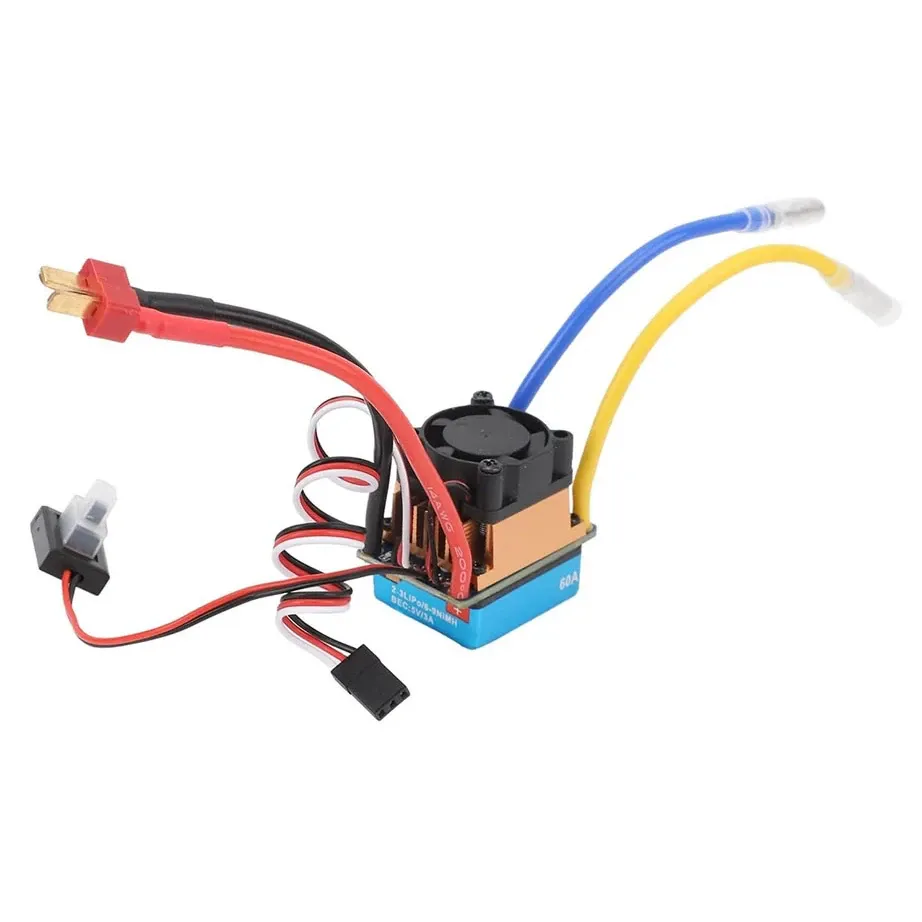

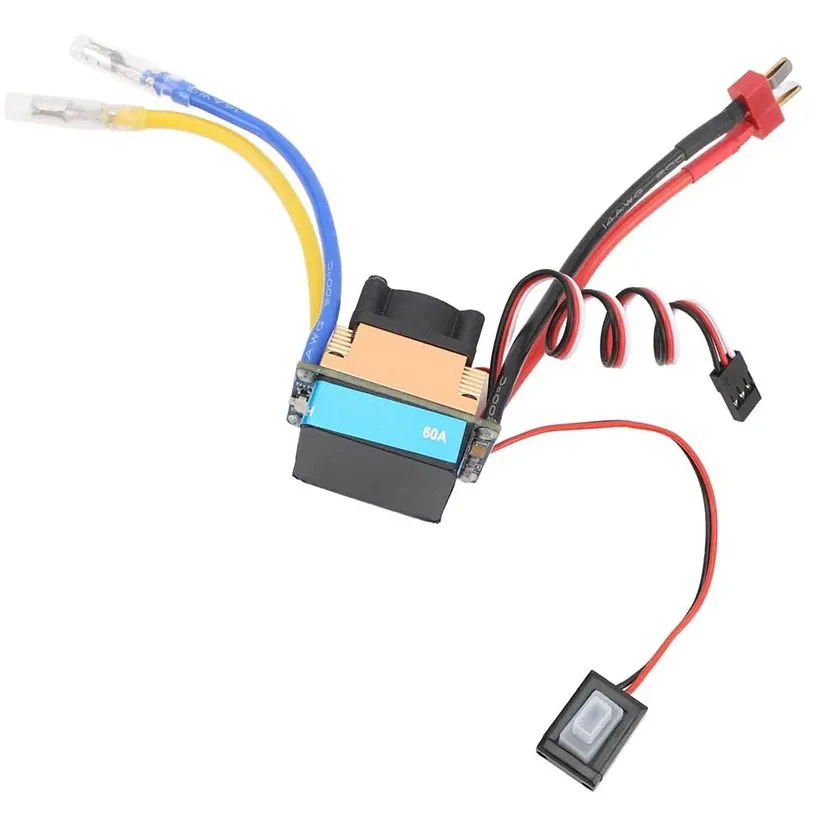

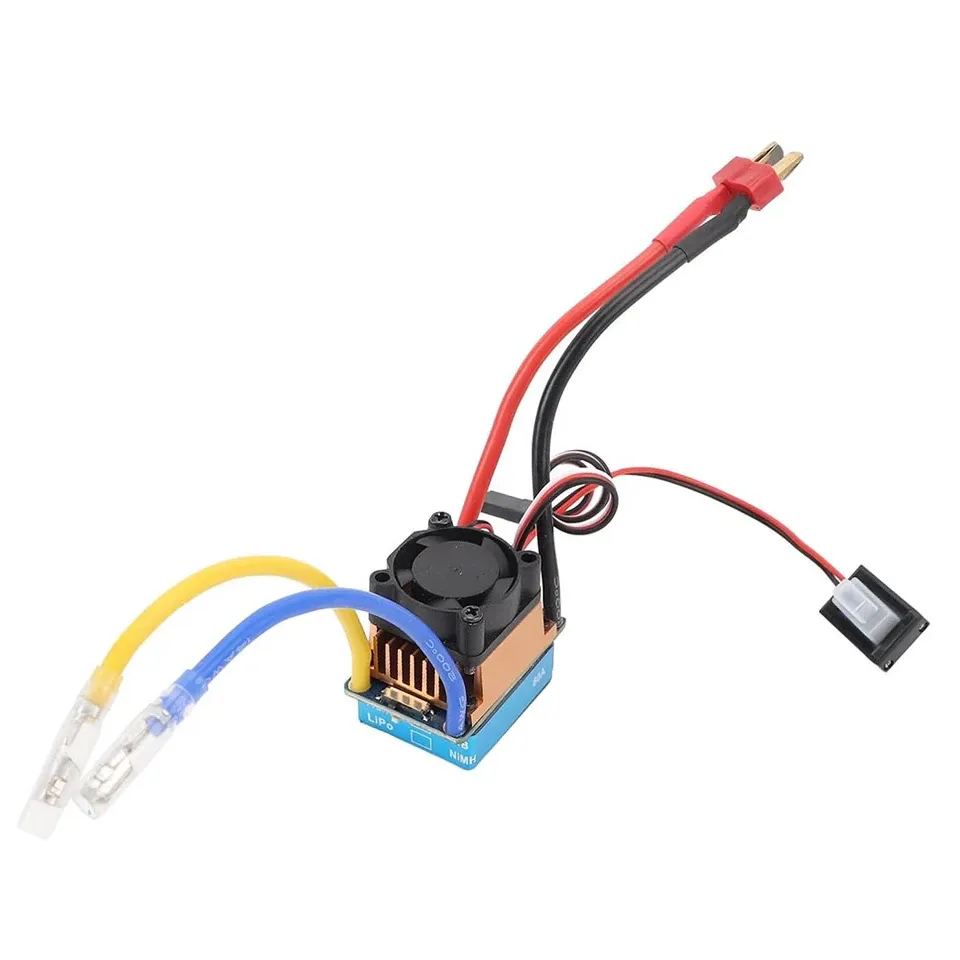

ReadyToSky 480A Brushed ESC (60A Continuous) with Cooling Fan for RC Cars & Boats
SKU GEN-BRUSHED-ESC-480A-FAN
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A fan-cooled ESC for brushed-motor 1/10 scale RC cars and boats on 2-3S LiPo or 6-9 cell NiMH. The 480A figure is the peak rating; the sustained rating is 60A, so match your motor to the continuous number. Three selectable running modes let one ESC serve a basher, a racer or a boat.
Key features
- 60A continuous and 480A peak current
- Integrated cooling fan on an aluminium-alloy and plastic case for long high-load runs
- Three modes: forward/brake/reverse, forward/brake and forward/reverse
- Automatic throttle-range calibration for quick setup with your transmitter
- 5V 3A BEC with low-voltage cut-off, over-temperature and signal-loss protection
Specifications
- Continuous current: 60A
- Peak current: 480A
- Battery: 2-3S LiPo or 6-9 cell NiMH
- BEC output: 5V, 3A
- Running modes: F/B/R, F/B, F/R
- Motor type: Brushed
- Scale: 1/10
- Dimensions: approx. 41 x 28 x 36 mm
Forward/reverse mode gives the instant reverse that boats and crawlers need, while forward/brake suits racing where reverse is not wanted. Keep the fan clear of mud and spray, as a blocked fan lets the ESC overheat and trip its thermal protection.
| ESC Current | 60 A |
|---|---|
| Input Voltage | 2–3S |
| ESC Firmware | Proprietary |
| Made in India | No |
| Brand | ReadyToSky |
| BEC | Yes |
| Motor Type | Brushed |
