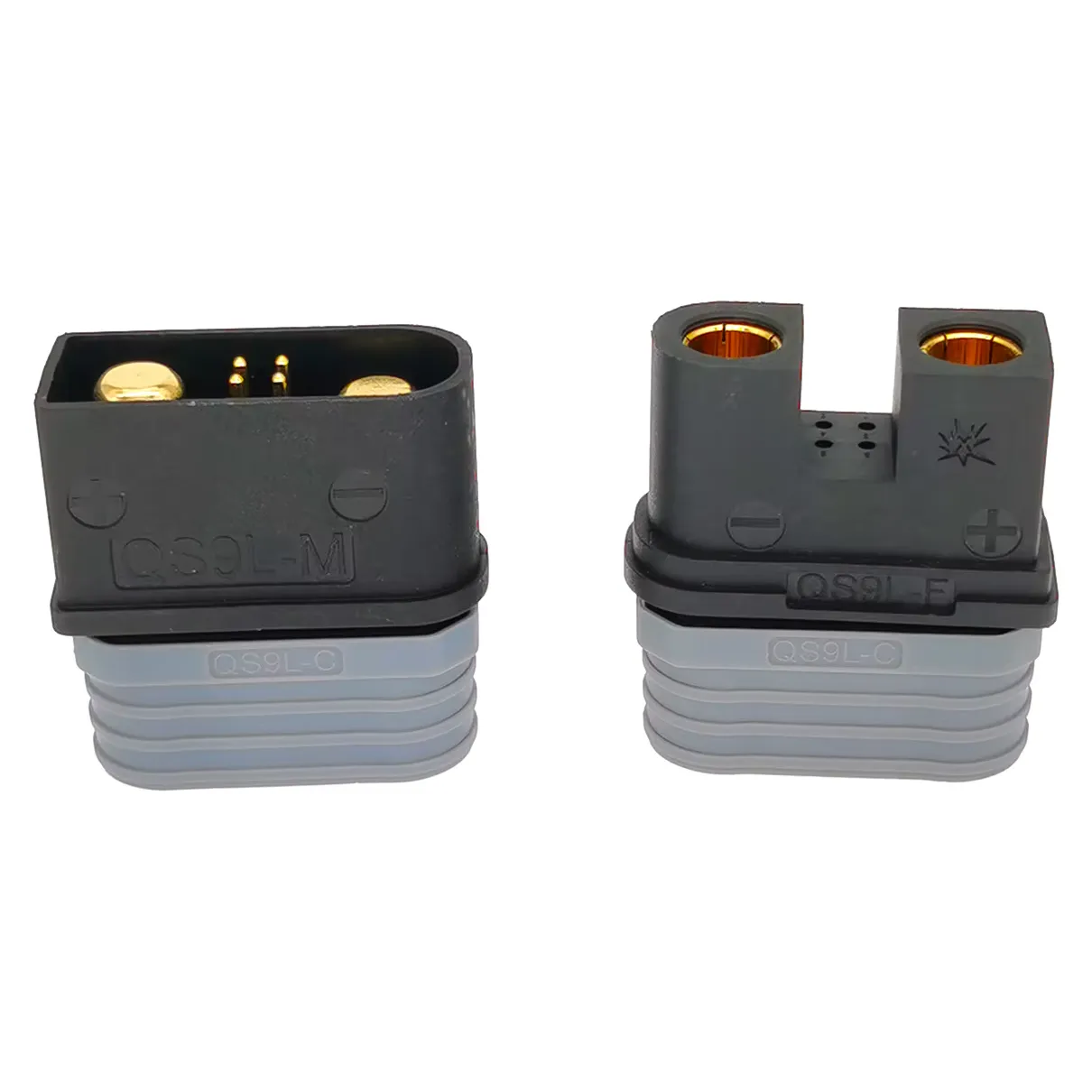

QS9L 160A High-Power Anti-Spark Connector

₹749Incl. GST

SKU GEN-QS9L-AS-MALE

Gender: Male

Battery Connector: QS9LMade in India: NoBrand: GenericConnector Gender: Female, Male + Female, Male

Free shipping. Pan India delivery from Gurugram, Haryana.

Ships within 3–4 business days — quality-checked in Gurugram before dispatch

Questions about this part? Ask us on WhatsApp

100% genuine parts
GST invoice with every order
Secure payments — cards, UPI & net banking via Razorpay
7-day returns on wrong or damaged items

QS9L anti-spark power connector with insulating covers, for high-voltage, high-current battery and ESC leads on agricultural and heavy-lift drones. Built-in signal pins sit alongside the main contacts, and the covers shield the soldered joints against short circuits. Choose a female, a male, or a male + female pair.

Key features

Anti-spark contacts stop arcing as a high-voltage pack is connected
Insulating covers protect the solder joints from shorts
Built-in signal pins alongside the power contacts
Gold-plated brass contacts with 0.32 mΩ internal resistance
Rated for 1000 connect and disconnect cycles

Specifications

Continuous current: 160 A
Peak current: 220 A
Rated voltage: 500 V DC
Internal resistance: 0.32 mΩ
Recommended wire: 6–10 AWG
Contacts: Gold-plated brass
Insulation rating: UL94 V-0
Operating temperature: -20 °C to +120 °C
Mating cycles: 1000
Termination: Solder, cable mount

The connector is solder-type, so use an iron with enough heat capacity for 6–10 AWG wire. Order the half that matches the lead already on your battery or ESC, or the pair when wiring both sides.
