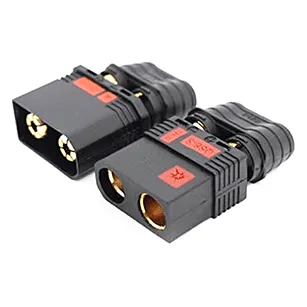

QS8-S Anti-Spark Battery Connector, 110A (5.1 / 15 Ohm)

QS8-S is a heavy-duty battery connector with a built-in anti-spark resistor: the ESC capacitors pre-charge through the resistor before the main contacts close, so plugging in a high-voltage pack does not arc or pit the contacts. It suits heavy-lift, agricultural and large fixed-wing power systems that draw well over 100 A.

Key features

• Rated 110 A continuous, 180 A instantaneous and 500 A peak
• 8.0 mm gold-plated brass contacts with 0.51 mΩ contact resistance
• Polarity-keyed, high-temperature nylon housing with clip-on guards
• Choice of 5.1 Ω or 15 Ω anti-spark resistor
• Sold as a male plug, a female plug or a male + female pair

Specifications

• Continuous current: 110 A
• Instantaneous current: 180 A
• Peak current: 500 A
• Contacts: 8.0 mm, gold-plated brass
• Contact resistance: 0.51 mΩ
• Wire size: 6–10 AWG
• Anti-spark resistor: 5.1 Ω or 15 Ω
• Options: male, female, male + female pair

Order the pair for a new build, or a single half to replace a damaged plug on a battery or ESC lead. The 15 Ω version limits switch-on inrush current to about a third of the 5.1 Ω version's, at the cost of a slightly longer pre-charge. Use a high-wattage iron so the large solder cups heat through quickly without softening the housing.
