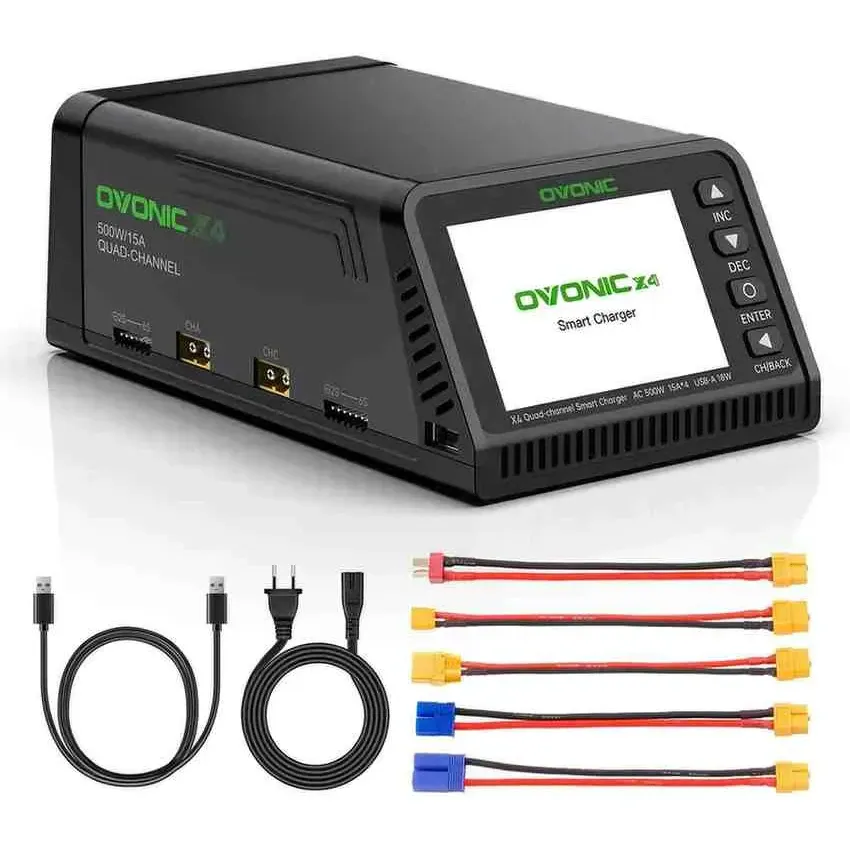

OVONIC X4 500W 4-Channel AC Smart Charger

The OVONIC X4 is a four-channel AC balance charger with 500 W total output, for pilots who charge several 1–6S packs at once: FPV quads, RC cars, planes and boats. Power is shared dynamically, giving up to 250 W per channel with one or two channels in use, 167 W across three and 125 W across four.

Key features

• Charges LiPo, LiHV, LiFe and Li-ion from 1S to 6S, plus 3–18S NiMH and NiCd
• Up to 15 A charge current per channel and 1.2 A balance current per cell
• Synchronous rectification for up to 98% conversion efficiency and less heat
• 3.5-inch IPS colour screen shows voltage, current, internal resistance and capacity for each channel
• Protection against over-voltage, reverse polarity, short circuit, over-current, overheating and cell mismatch
• XT60 outputs with an adapter kit to EC5, XT30 and T-plug included; physical buttons work with gloves on

Specifications

• Input: AC 100–240 V, 50–60 Hz
• Total output: 500 W
• Power per channel: 250 W (1–2 channels), 167 W (3), 125 W (4)
• Charge current: up to 15 A per channel
• Balance current: up to 1.2 A per cell
• Output voltage: 0–27 V DC
• Voltage accuracy: ±10 mV
• Batteries: LiPo/LiHV/LiFe/Li-ion 1–6S; NiMH/NiCd 3–18S
• Outputs: XT60 with JST-XH balance ports
• Operating temperature: −10 to 45 °C

With all four channels running, each gets 125 W, which is about 5 A into a 6S LiPo at 25.2 V: roughly 1C for 6S 5000 mAh packs and well above 1C for 5-inch 1300–1500 mAh packs.
