OVONIC X1 Pro Dual-Channel Charger (AC 300W / DC 700W, 16A)

The OVONIC X1 Pro is a dual-channel smart balance charger that runs from mains AC or a DC supply and charges two packs at once at up to 16 A per channel. It covers 1–6S LiPo, LiHV, Li-ion and LiFe plus 1–16S NiMH, so one unit handles bench and field charging from single-cell packs up to large 6S batteries.

Key features

• 300 W combined on AC input, or up to 700 W from a 7–30 V DC supply, at up to 98% conversion efficiency
• Charge, balance, storage, discharge and SyncCharge modes
• Internal resistance check, voltage check, temperature reading and safety timer; firmware upgradable
• Balance current up to 1.2 A per cell on each channel, with ±10 mV voltage deviation

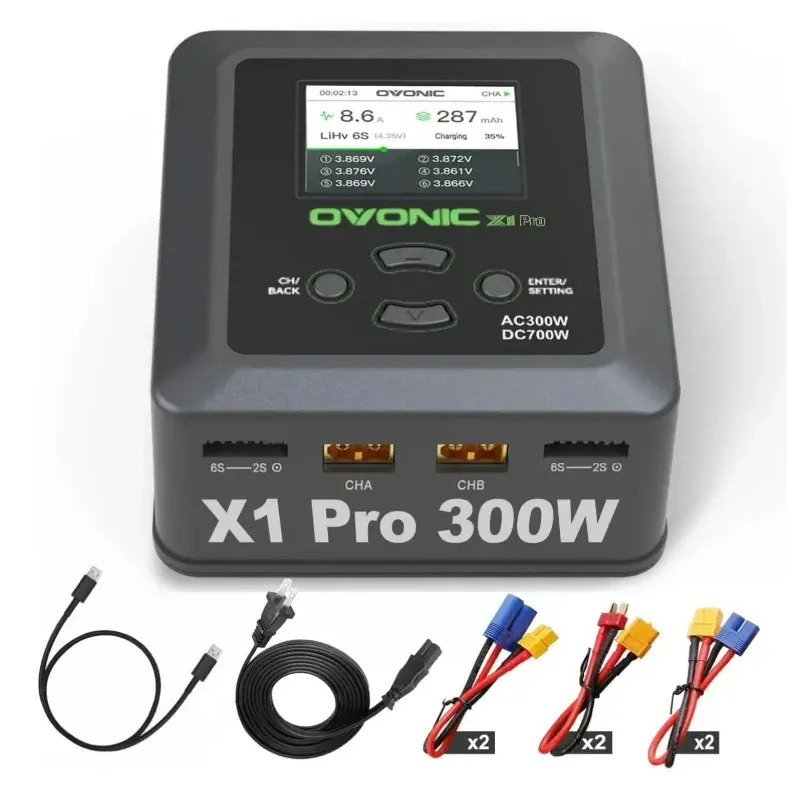

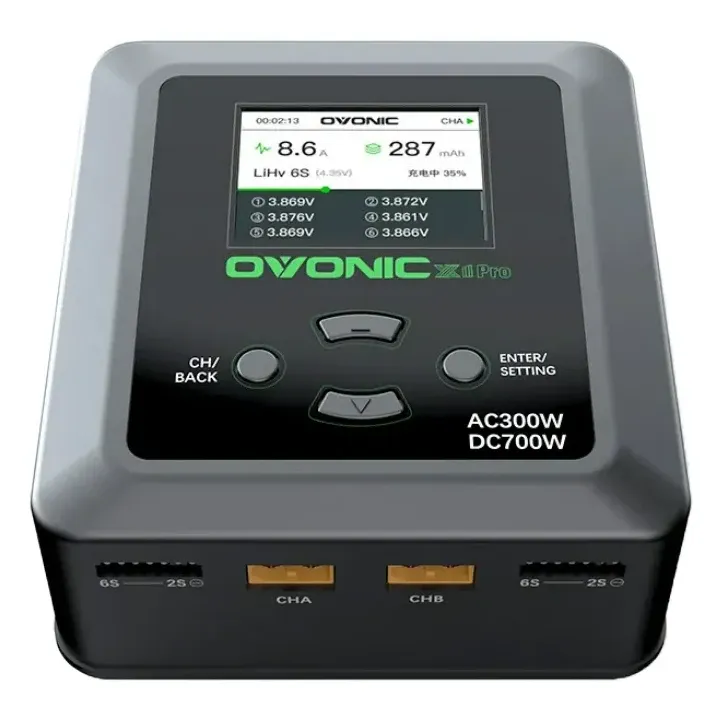

• 2.4-inch IPS screen with live charge data; XT60 output on each channel, with XT60-to-T-plug, EC3 and EC5 adapters (two of each) in the box

Specifications

• Input: AC 100–240 V / DC 7–30 V
• Max charge power: AC 300 W combined / DC 700 W
• Charge current: 0.1–16 A × 2
• Output voltage: DC 1–30 V
• Balance current: 1.2 A per cell × 2
• Discharge: 0.1–3.0 A, 15 W per channel
• Batteries: LiPo / LiHV / Li-ion / LiFe 1–6S; NiMH 1–16S
• Connectors: XT60 DC input and outputs
• Display: 2.4-inch IPS LCD
• Operating temperature: 0–65 °C
• Dimensions: 129 × 120 × 63 mm
• Weight: approx. 574 g

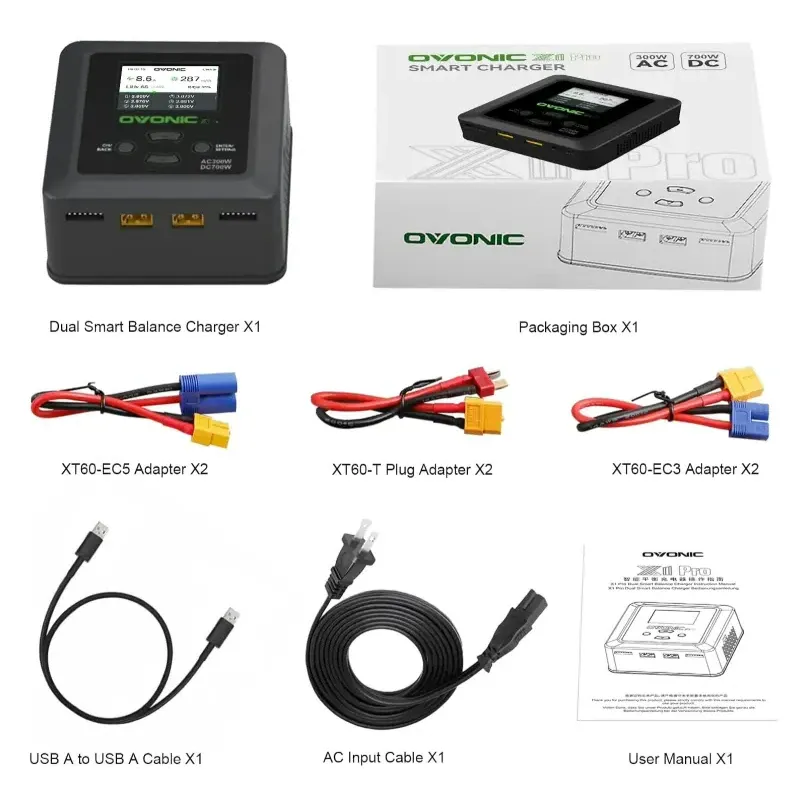

• In the box: charger, AC input cable, USB cable, 2 × XT60-T plug, 2 × XT60-EC3 and 2 × XT60-EC5 adapters, manual

On AC the 300 W budget is shared, which is enough for two 6S packs at about 6 A each (25.2 V full charge × 6 A ≈ 150 W per pack). For faster charging of big packs, run it from a DC power supply, where the ceiling rises to 700 W.
