NEO-7M GPS Module Development Board for Arduino STM32 51

₹499Incl. GST

SKU GEN-NEO7M-GPS-DEVBOARD

Compass Included: NoMade in India: NoBrand: GenericRTK Support: No

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

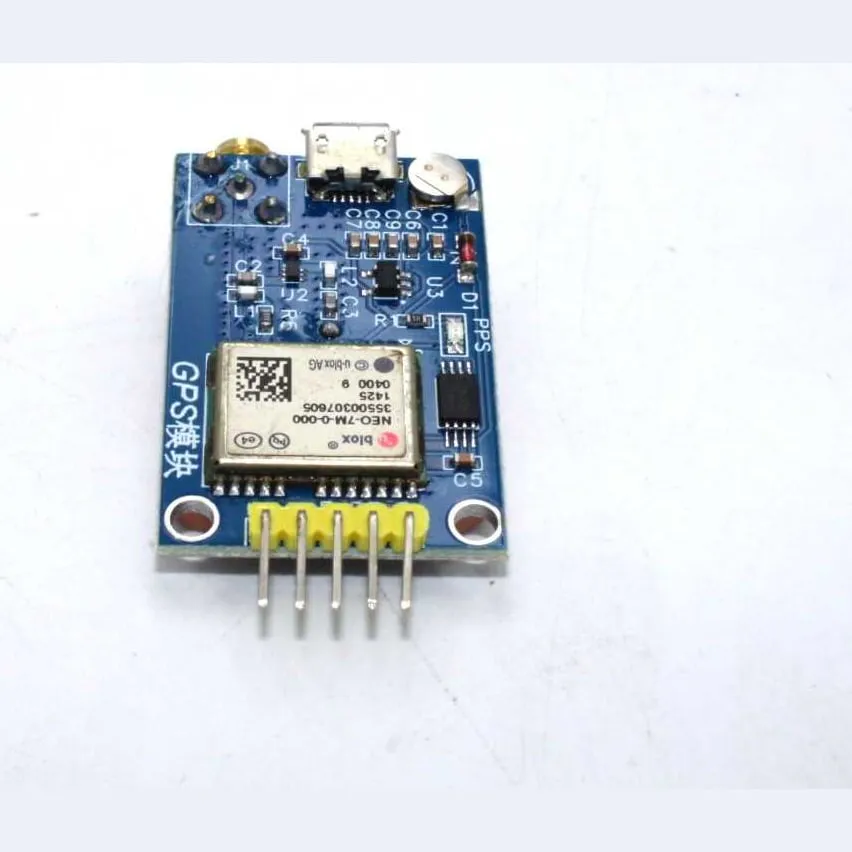

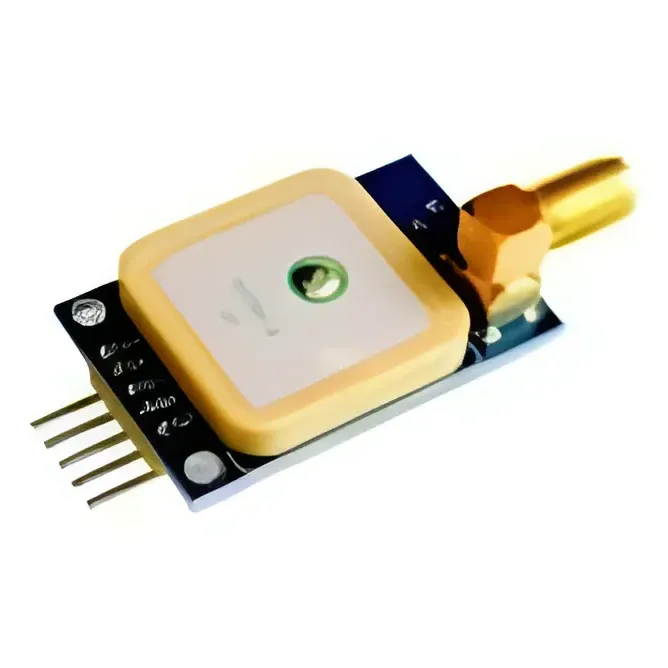

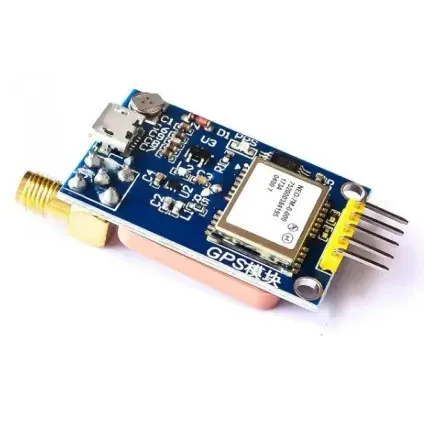

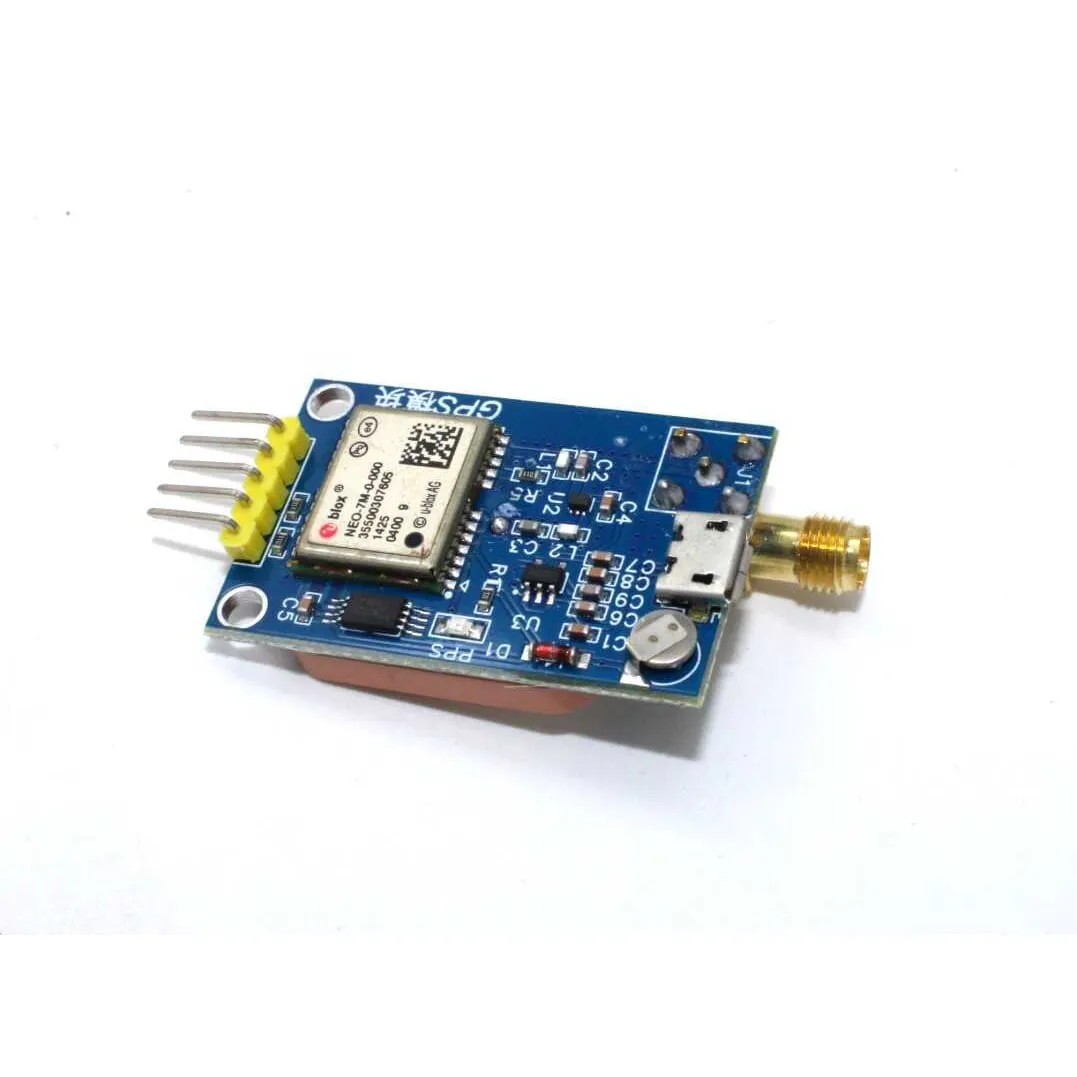

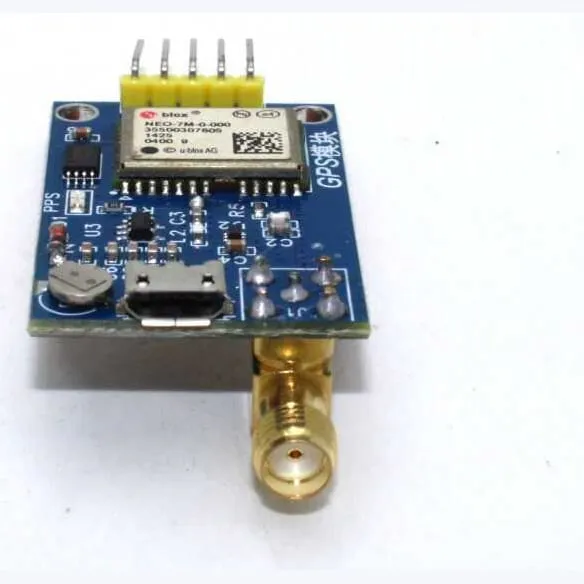

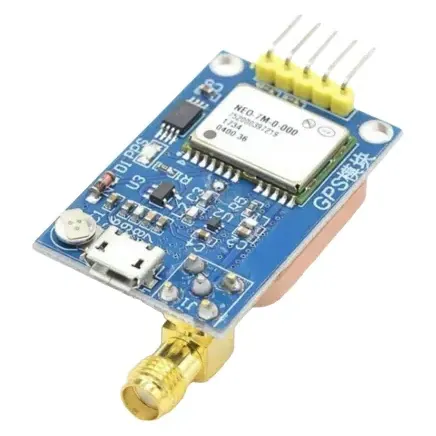

A development board built around the u-blox NEO-7M GPS receiver for Arduino, STM32 and 8051 microcontroller projects, DIY trackers and rovers. It finds satellites on its onboard ceramic antenna in open sky, and a soldered SMA jack takes an external antenna when you need stronger reception.

Key features

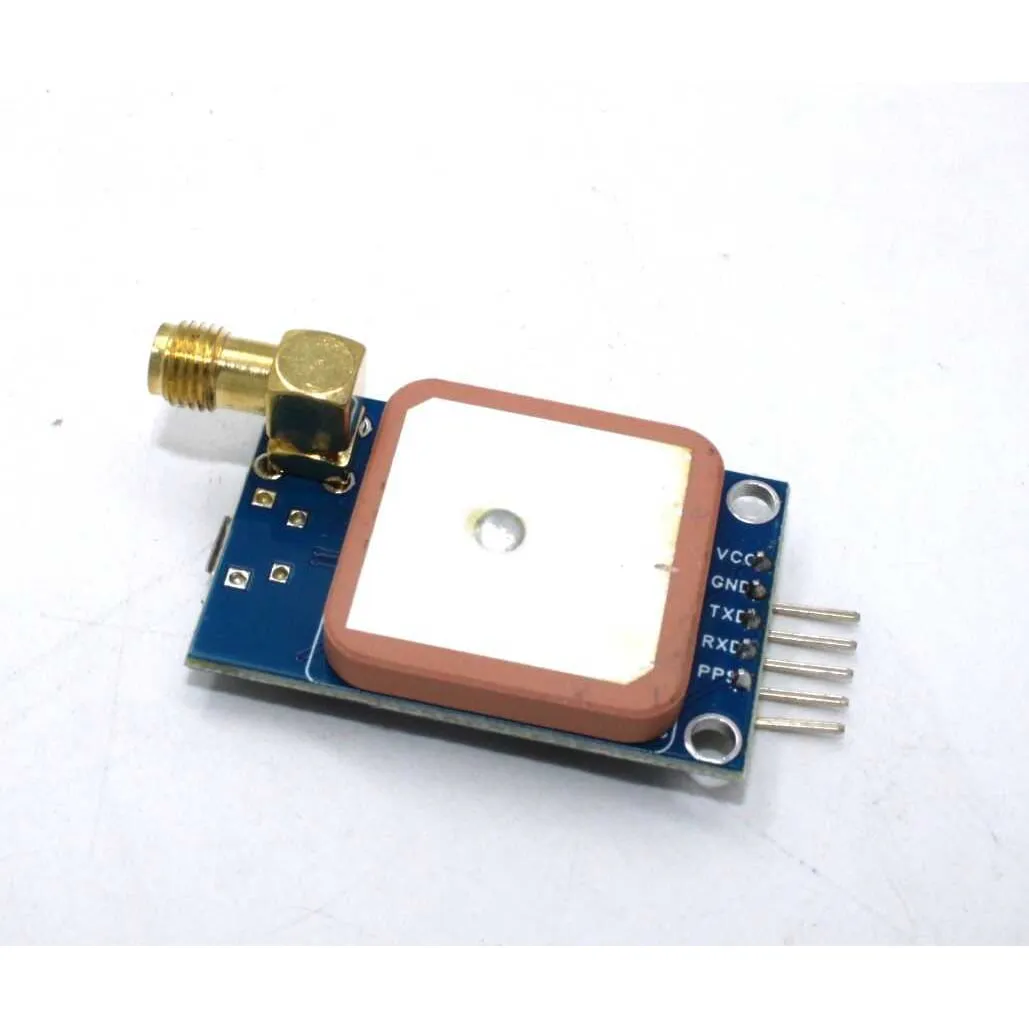

  • NMEA standard output on a TTL serial header with VCC, GND, TXD, RXD and PPS pins
  • Micro USB port for configuring and testing the module straight from a PC
  • Built-in flash keeps settings through power loss, with no external EEPROM needed
  • Signal indicator LED shows when the receiver is getting GPS data
  • Runs from a 3.3–5 V supply

Specifications

  • GPS receiver: u-blox NEO-7M
  • Protocol: NMEA
  • Interfaces: TTL UART header, Micro USB
  • Supply voltage: 3.3–5 V
  • Antenna: onboard ceramic, plus SMA jack for an external antenna

The serial pins are TTL level: connect the module's TXD to your microcontroller's RX and RXD to its TX, and never wire them straight to an RS-232 port. For a drone flight controller, a dedicated GPS module with a compass and a matching flight-controller lead is usually the simpler fit.
