NavIC L1 + L5 GNSS Module with Onboard Patch Antenna

A compact dual-band GNSS receiver module that tracks India's NavIC constellation alongside GPS, GLONASS and BeiDou on the L1 and L5 bands. The patch antenna sits on the board, so no external antenna or cable is needed. It suits drone telemetry and geo-tagging projects, Raspberry Pi builds and vehicle or asset trackers where space is tight.

Key features

• Multi-constellation reception: NavIC, GPS, GLONASS and BeiDou
• L1 + L5 dual-band operation for faster signal acquisition
• Position fix within 60 seconds under open sky
• Positioning accuracy within 10 feet (about 3 m)

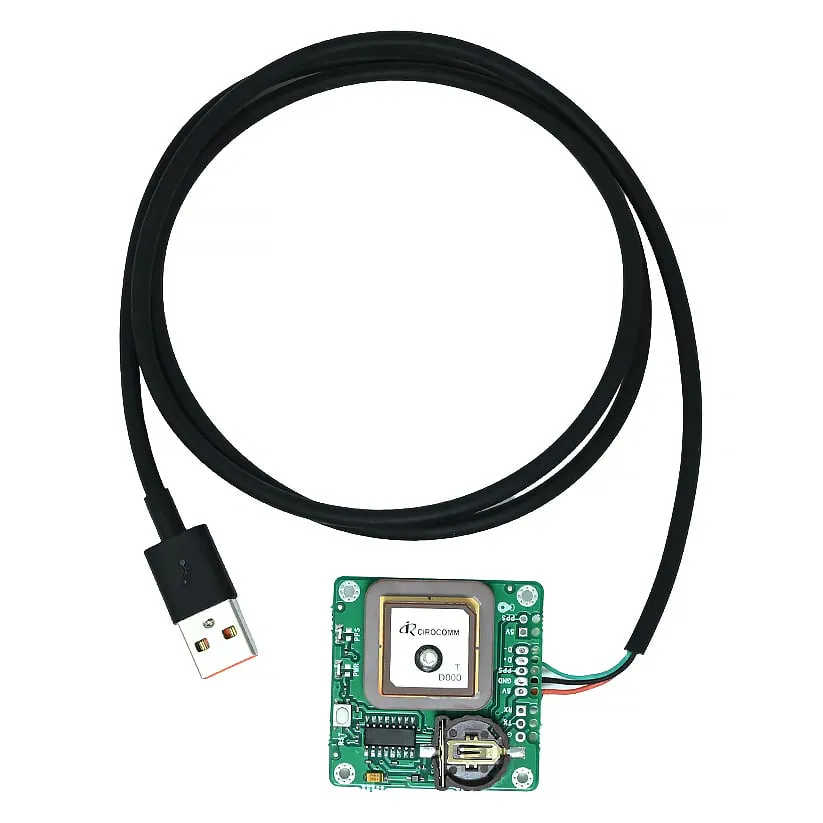

• USB serial output for direct connection to a PC, laptop or Raspberry Pi
• UART available on test pads for flight controllers and microcontrollers; designed and made in India

Specifications

• Constellations: NavIC, GPS, GLONASS, BeiDou
• Bands: L1 + L5
• Accuracy: within 10 ft (about 3 m)
• Time to fix: within 60 s, open sky
• Interfaces: USB serial, UART (test pads)

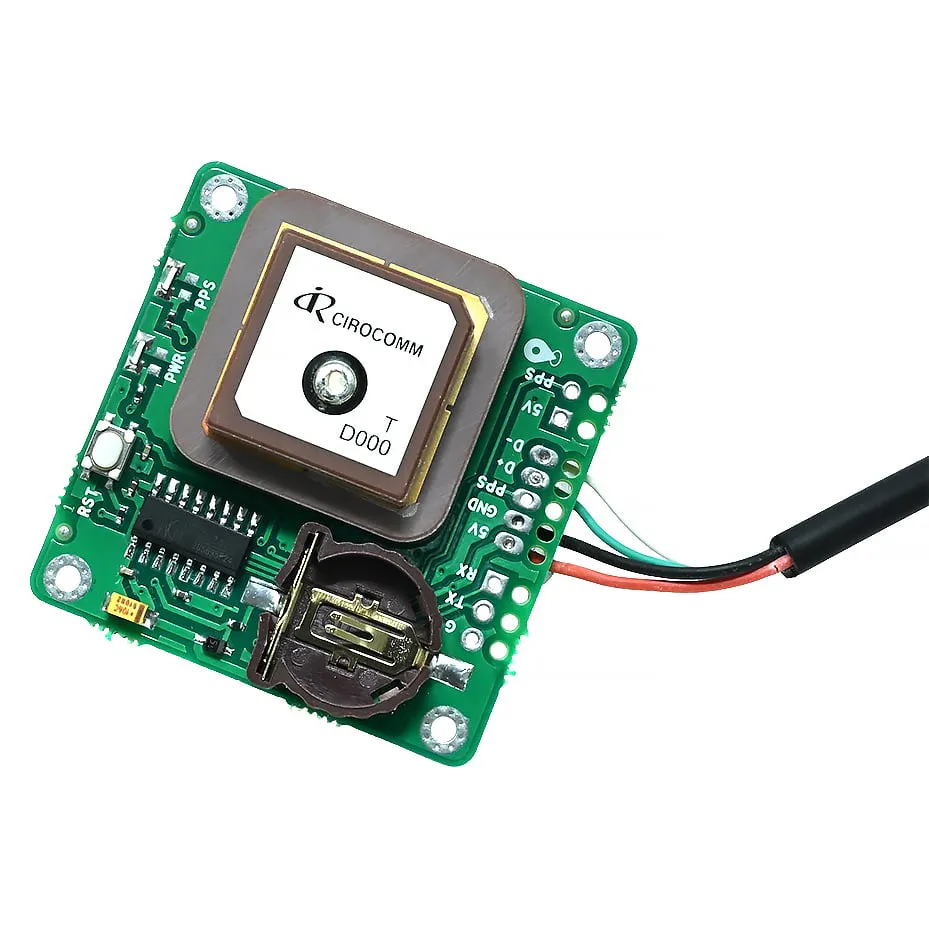

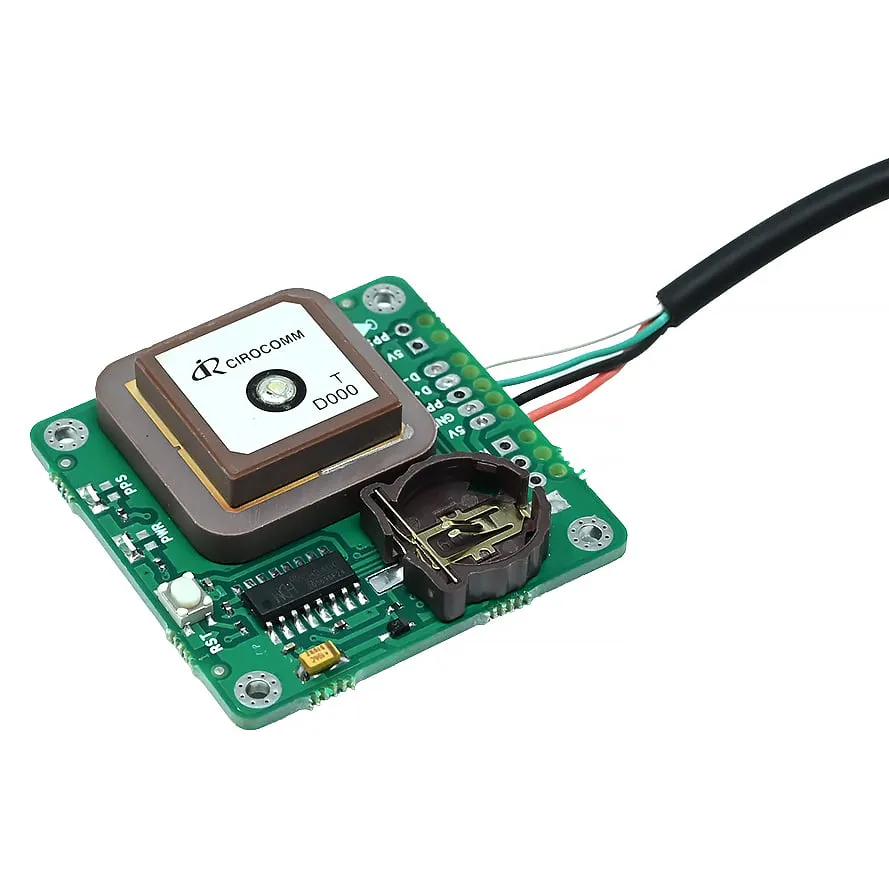

• Antenna: onboard patch

The UART is on test pads rather than a connector, so plan to solder leads for a flight-controller link and confirm the baud rate and protocol your autopilot expects. No magnetometer is specified, so add a separate compass module where your build needs heading.
