MicoAir LR900 915MHz LoRa Long-Range Telemetry Module

The MicoAir LR900 is a 915MHz LoRa telemetry radio built for ArduPilot and PX4 flight controllers, giving a small, low-cost bidirectional data link between the aircraft and ground station software.

Key features

• LoRa modulation with frequency-hopping spread spectrum for resilient long-range data transmission.
• Sold as a matched pair of the chosen model (two LR900-F or two LR900-P units), one on the aircraft and one at the ground station.
• Auto-connects on power-up with no configuration needed for standard Mission Planner or QGroundControl use.
• Available with a compact 2dBi or a high-gain 5dBi antenna to match your mission requirements.

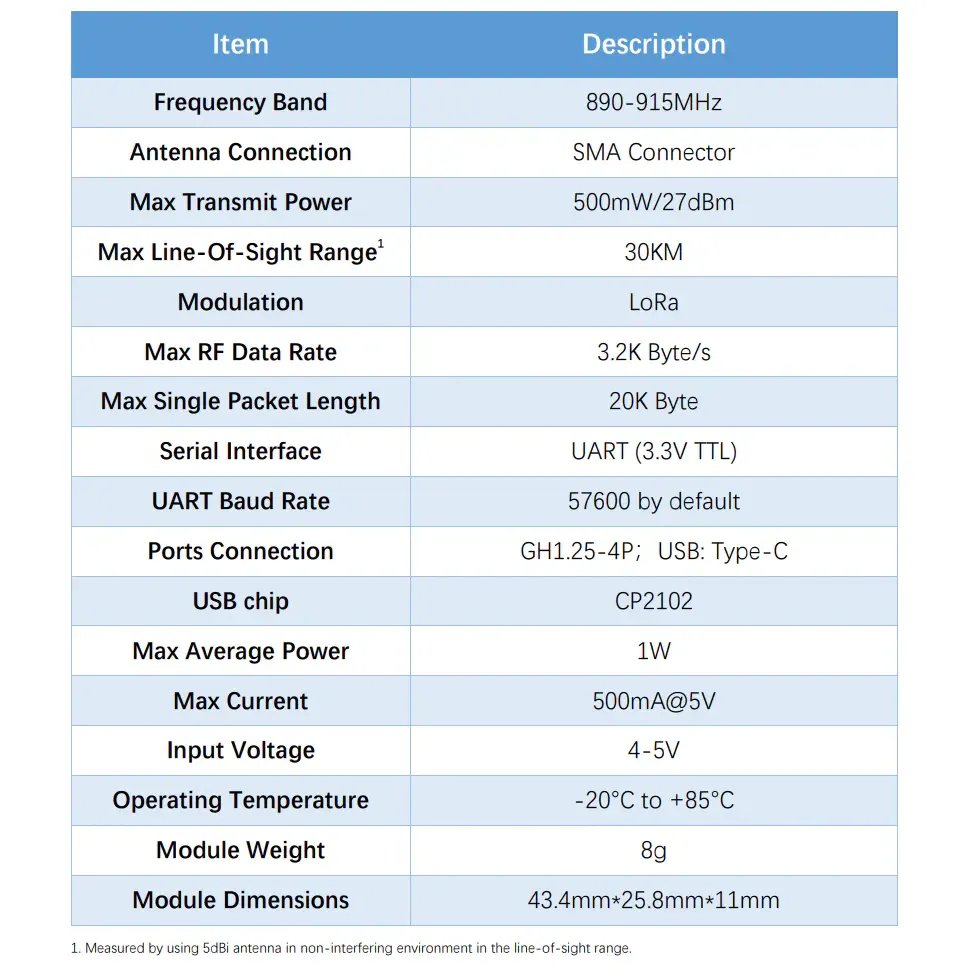

Specifications

• Operating frequency: 890–915 MHz
• Transmit power: up to 500 mW (LR900-F) / 1000 mW (LR900-P)
• Line-of-sight range: 30 km or more
• Weight: 8 g

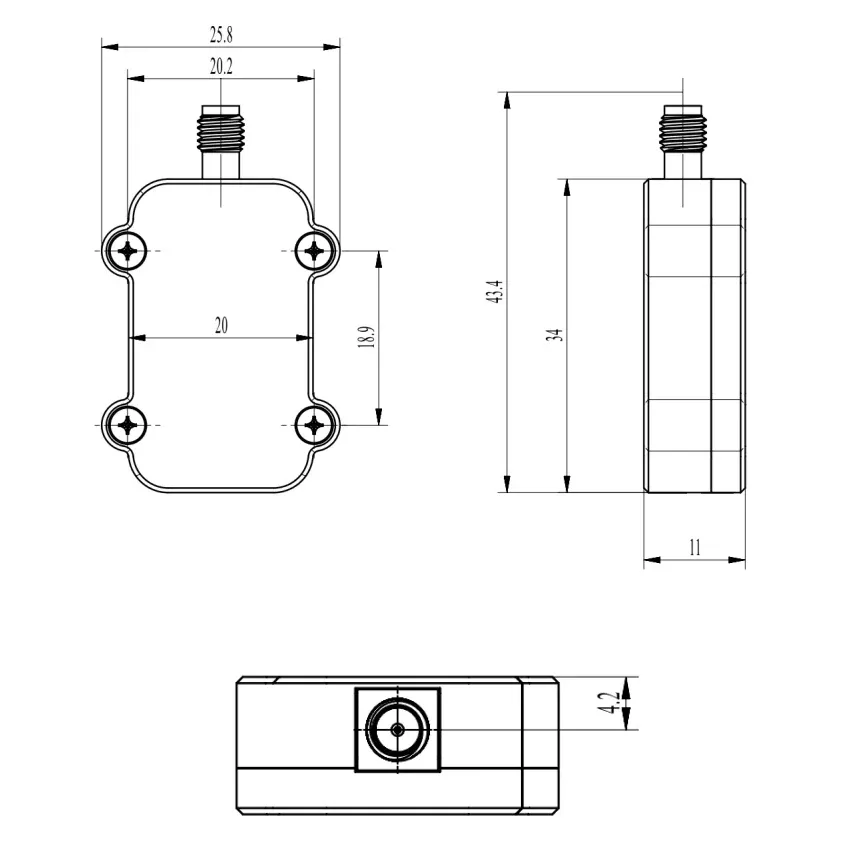

• Dimensions: 43.4 x 25.8 x 11 mm (excluding antenna)
• Supply voltage: 5 V DC (from USB or JST-GH)
• Average transmit current: 200 mA at 27 dBm (LR900-F) / 400 mA at 30 dBm (LR900-P)

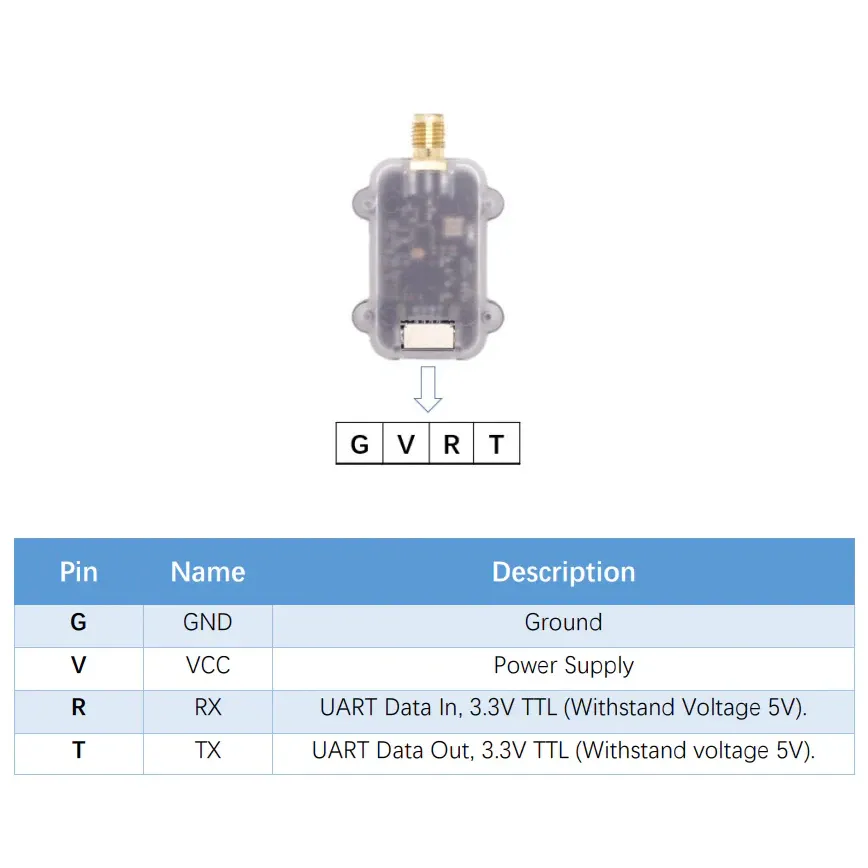

• Interface: 3.3V UART (JST-GH 1.25mm 4-pin) and USB-C (CP2102)
• Antenna connector: SMA (female)

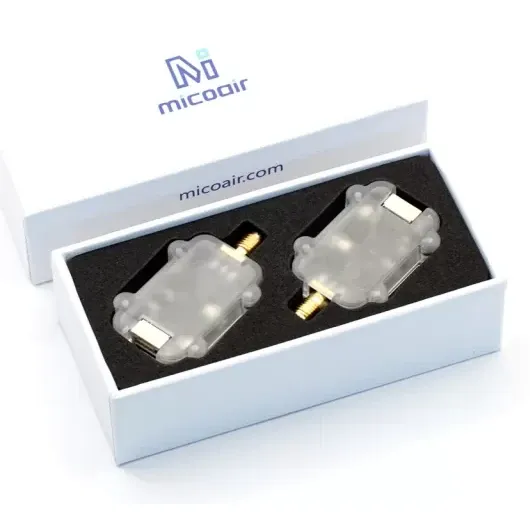

• In the box: 2 telemetry modules, 2 antennas, 2 GH1.25 cables for Pixhawk 2.4.8, 2 GH1.25 cables for Pixhawk 4/5/6

Fit this on the TELEM port of a Pixhawk-class flight controller for long-range Mission Planner or QGroundControl telemetry; check your local radio regulations before transmitting on 915MHz.
