915MHz 500mW Telemetry Kit

Establish a robust MAVLink connection between your ground control station and UAV with this 915MHz 500mW Telemetry Kit. Designed for ArduPilot and PX4 builds, this bidirectional datalink replaces standard RC telemetry with a dedicated data stream. The 500mW (27dBm) output ensures reliable long-range communication, making it highly suited for agricultural drones, autonomous fixed-wings, and heavy-lift multirotors mapping large areas.

Key features

• 500mW (27dBm) transmit power for extended range and strong signal penetration.

• Bidirectional datalink tailored specifically for MAVLink communication.

• Pre-flashed with open-source SiK firmware for plug-and-play operation.

• Two transceivers: one connects to the flight controller over UART, the other to a PC or OTG tablet over USB.

Specifications

• Frequency: 915MHz (ISM band)

• Transmit power: 500mW (27dBm)

• Receiver sensitivity: -117 dBm

• Link: full-duplex, frequency-hopping (FHSS) with adaptive TDM and error correction (up to 25% bit errors)

• Interface: TTL UART to the flight controller, USB to the ground station

• Antenna connector: RP-SMA

• Protocol: MAVLink

• Supported firmware: ArduPilot, PX4

• Telemetry firmware: SiK

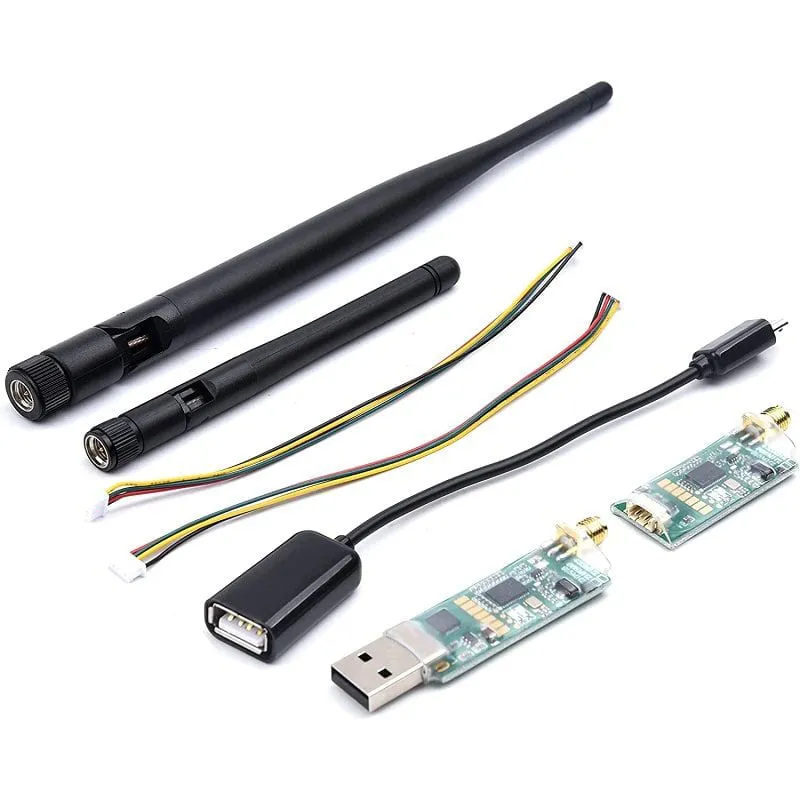

• In the box: 2 x telemetry modules, 2 x 2.5 dBi antennas, micro-USB OTG cable, flight-controller connection cables

Compatible with Pixhawk and standard UART-based flight controllers, this kit provides real-time flight data, parameter tuning, and mission-upload capabilities straight to Mission Planner or QGroundControl.
