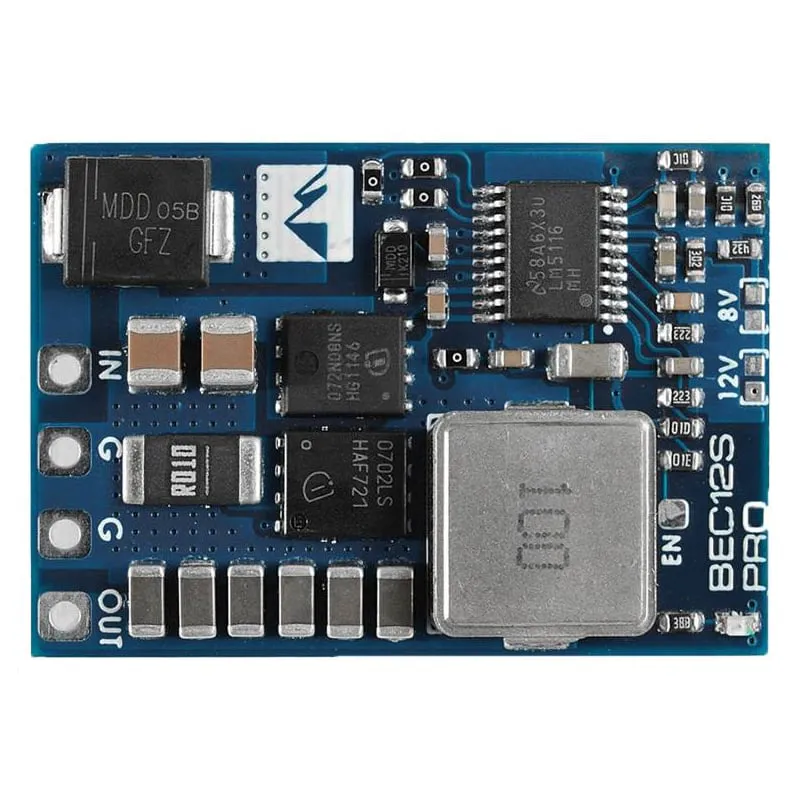

Matek 12S Pro BEC (9–55V to 5V/8V/12V 5A)

The Matek 12S Pro BEC is a high-voltage step-down regulator for heavy-lift cinelifters, X-Class rigs and agricultural drones running high-cell-count power systems. It steps a 9-55V input down to a clean, selectable output for servos, video transmitters, gimbals and cameras.

Key features

• Accepts a 9-55V input, covering 3S to 12S LiPo packs without a secondary regulator.

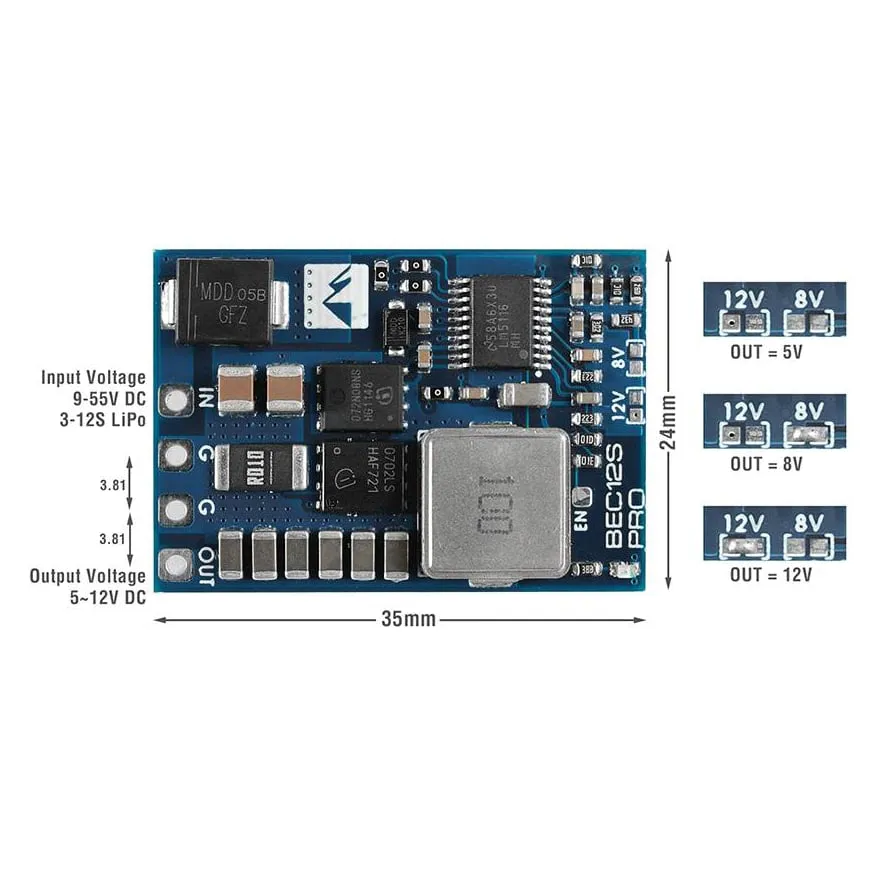

• Output voltage is set to 5V, 8V or 12V via solder-jumper pads to match your electronics.
• Synchronous switching buck design gives 88-96% conversion efficiency and low heat generation.
• Built-in thermal shutdown, over-current protection and 2-second short-circuit tolerance with self-recovery.
• Compact footprint mounts easily on a rear stack plate or arm alongside video and telemetry gear.

Specifications

• Input voltage: 9-55V (3-12S LiPo)
• Output voltage: 5V / 8V / 12V (selectable)
• Output current: 5A continuous, 9A peak
• Dropout voltage: 2V (at least 14V input needed for a stable 12V output)
• Reverse-polarity protection: none
• Pin pitch: 3.81mm
• Size / weight: 35 x 24 x 5.5mm, 5g

On 8S to 12S builds, mount the BEC with good airflow and fit a low-ESR capacitor across the main battery input to protect it from voltage spikes at plug-in; the selectable output also suits agricultural spray drones sharing one high-voltage pack across the flight controller, pump and servo electronics.
