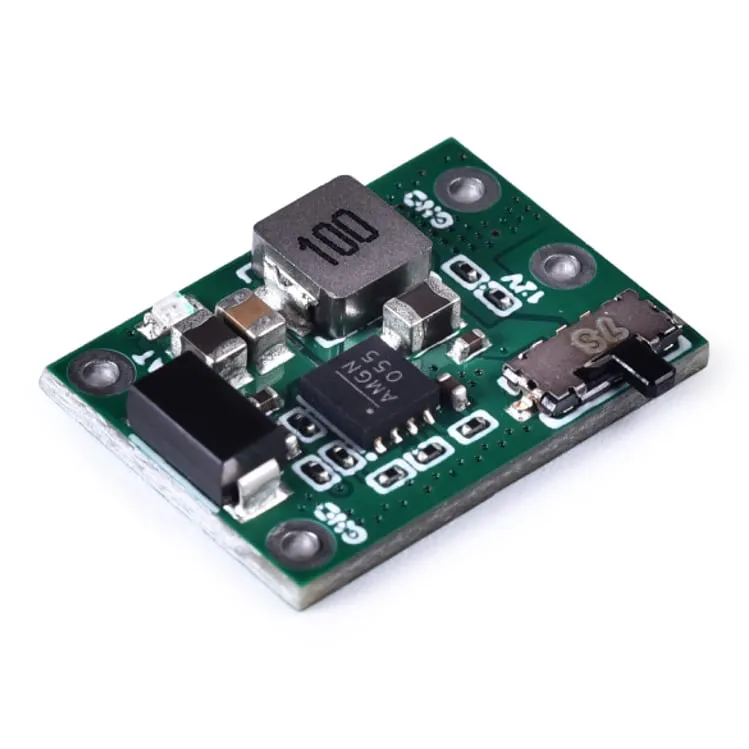

SpeedyBee 12V 1A Micro BEC Module with Physical Switch (3-6S)

The SpeedyBee 12V 1A Micro BEC takes power from a 3–6S LiPo and supplies a regulated 12V rail for accessories that need their own steady 12V supply on a quad. It supports a physical switch, so the 12V output can be turned off without unplugging the battery, and at 1.5g and 1.15mm thick it fits almost anywhere in a build.

Key features

• Regulated 12V output rated at 1A

• Accepts 3S to 6S LiPo input, 11.1–22.2V nominal

• Physical switch support to cut the 12V rail on the bench, so the powered device is not left running while you configure the quad

• Ultra-thin board that slips under a stack or along an arm without adding bulk

Specifications

• Input voltage: 3–6S LiPo (11.1–22.2V nominal)

• Output: 12V, 1A

• Dimensions: 16.9 × 11.95 × 1.15mm

• Weight: 1.5g

Add up the draw of everything you connect: 1A at 12V is 12W in total. Keep the load within that, and choose a higher-rated BEC if a device's peak draw exceeds it.
