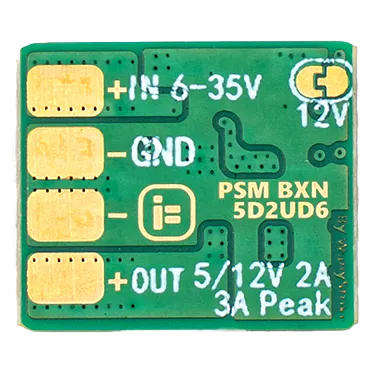

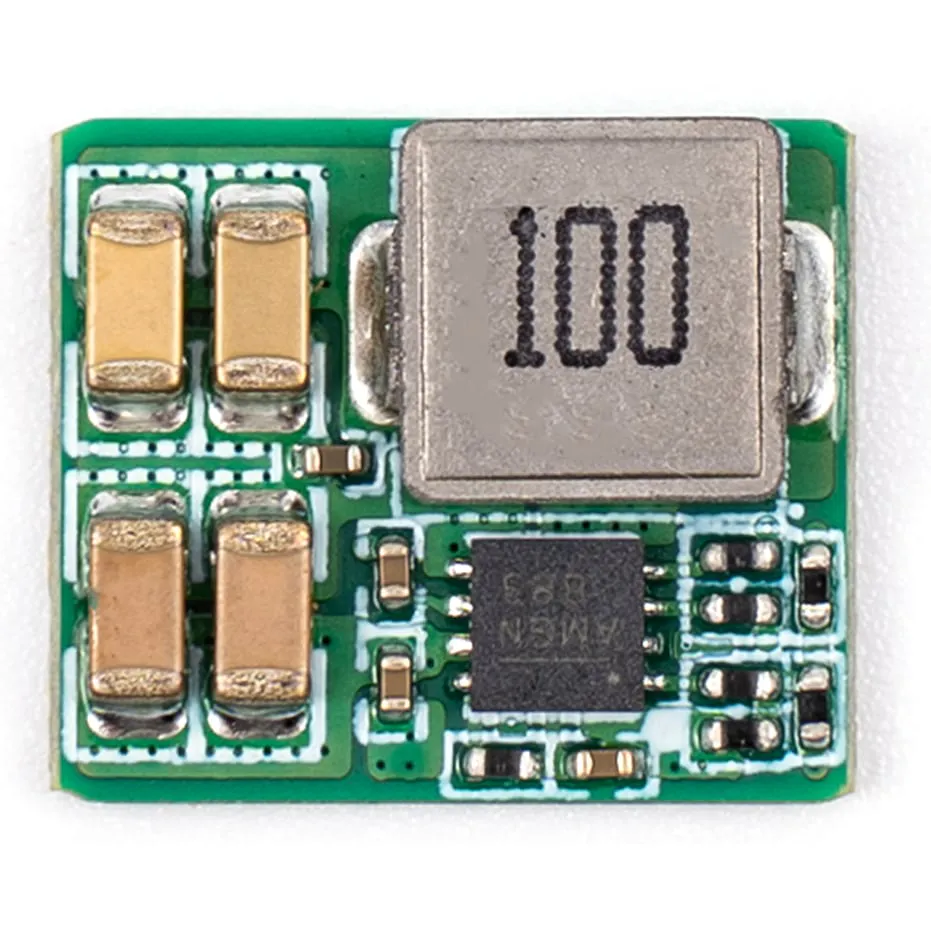

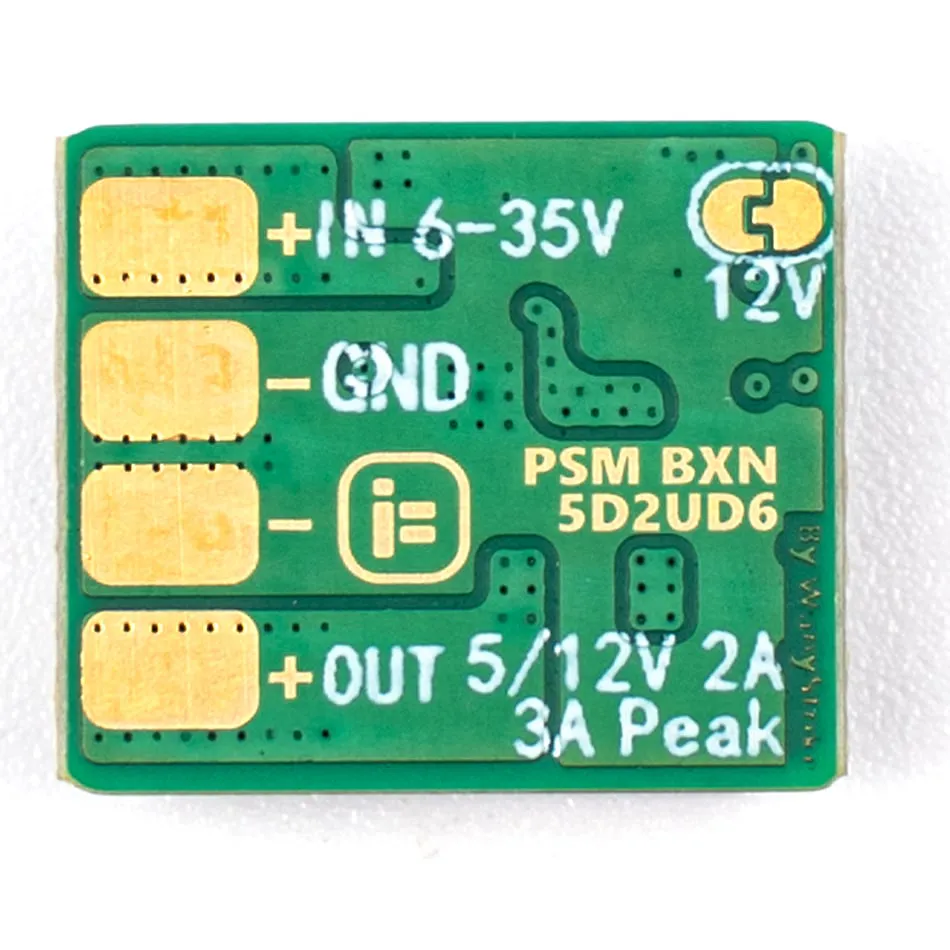

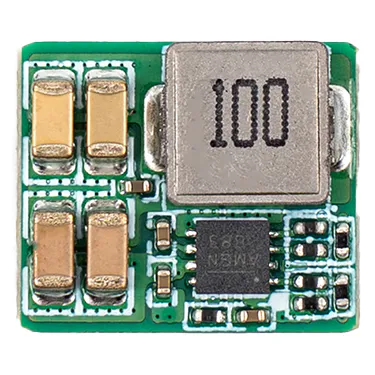

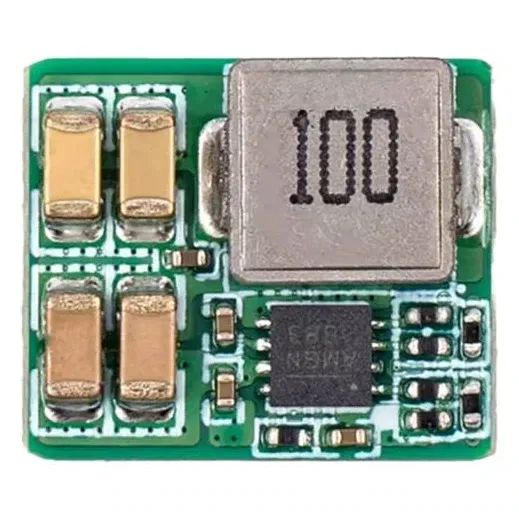

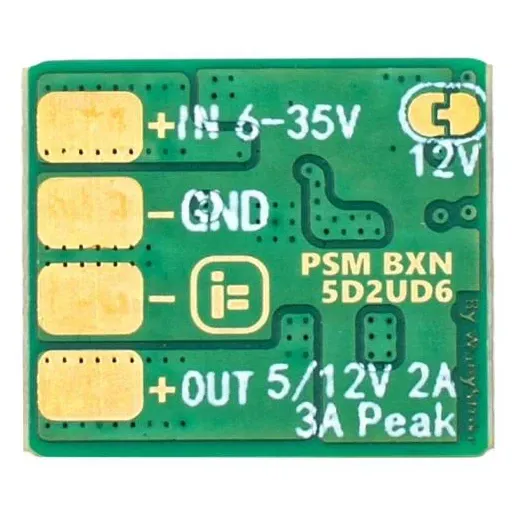

iFlight Blitz 5V/12V 2A BEC Module V1.1

The iFlight Blitz V1.1 BEC module is a compact, high-efficiency step-down voltage regulator designed to power flight controllers, FPV cameras, video transmitters, and auxiliary electronics in 2S to 8S drone builds. With a convenient physical selector switch, pilots can toggle between a stable 5V output for receivers and GPS modules or a clean 12V rail for high-power HD air units and analog VTXs.

Key features

• Selectable dual-voltage output: Integrated step-down selector switch instantly toggles between regulated 5V and 12V outputs without requiring micro-soldering jumpers.
• Wide input voltage compatibility: Supports a 2S to 8S LiPo input voltage range (6V to 35V), making it suitable for freestyle quads, cinelifters, and X-Class builds.
• 2A continuous current delivery: Delivers up to 2A of reliable output current, providing ample headroom for power-hungry HD video transmission gear and peripherals.
• Compact lightweight footprint: Low-profile PCB layout designed to fit easily inside tight frame stacks and crowded canopies without adding noticeable weight.

Specifications

• Input voltage: 2S–8S LiPo (6V–35V)
• Output voltage: 5V or 12V (selectable via switch)
• Continuous output current: 2A
• Dimensions: 12 mm × 14 mm × 4.5 mm
• Weight: 1.8 g

When powering 12V peripherals such as the DJI O3 Air Unit or high-powered VTXs from high-voltage 6S or 8S main battery leads, this standalone BEC prevents brownouts and isolates sensitive onboard components from ESC voltage spikes.
