Micro 2-8S BEC Voltage Regulator (5V/12V, 2A)

A micro BEC that takes 2–8S LiPo input (7.4–29.6 V nominal) and supplies a regulated 5 V or 12 V rail at 2 A. Use it to give an FPV camera, video transmitter, receiver, LED strip or GPS its own clean supply when the flight controller's onboard regulators are short of current or don't offer the voltage you need.

Key features

• Wide 2–8S input covers small 2S builds through to 8S long-range and cinelifter packs
• 5 V or 12 V output, so one part covers 5 V peripherals as well as 12 V cameras and video transmitters
• 2 A continuous, 3 A peak output current

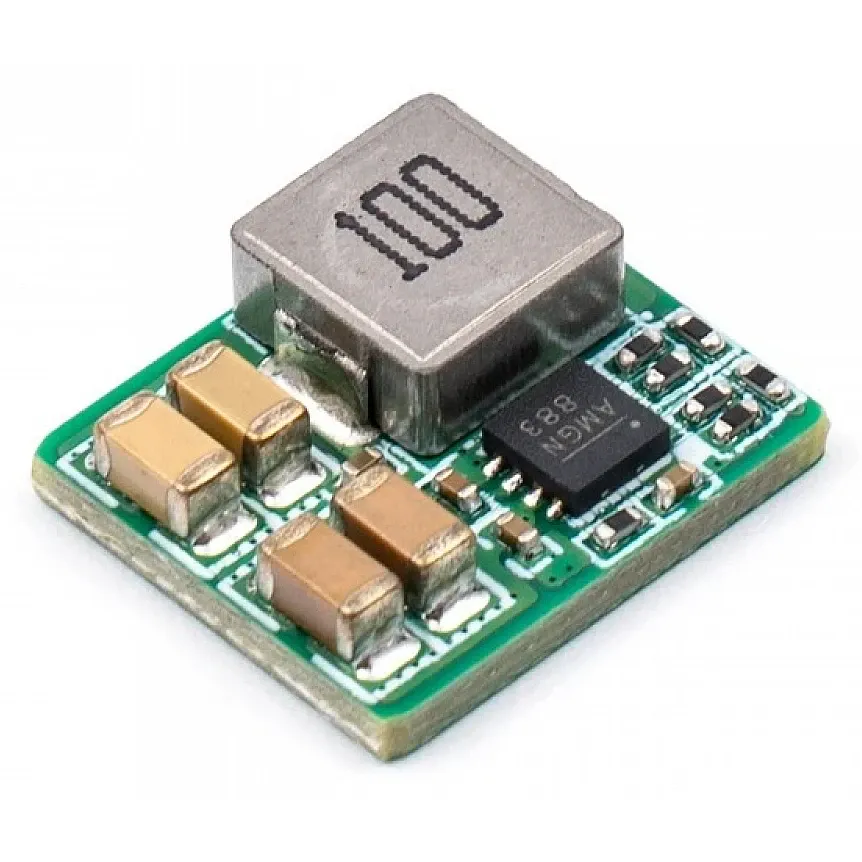

• Micro-sized board that tucks into tight spaces in drones, RC cars and planes
• Ships with two red and two black silicone leads for the input and output wiring

Specifications

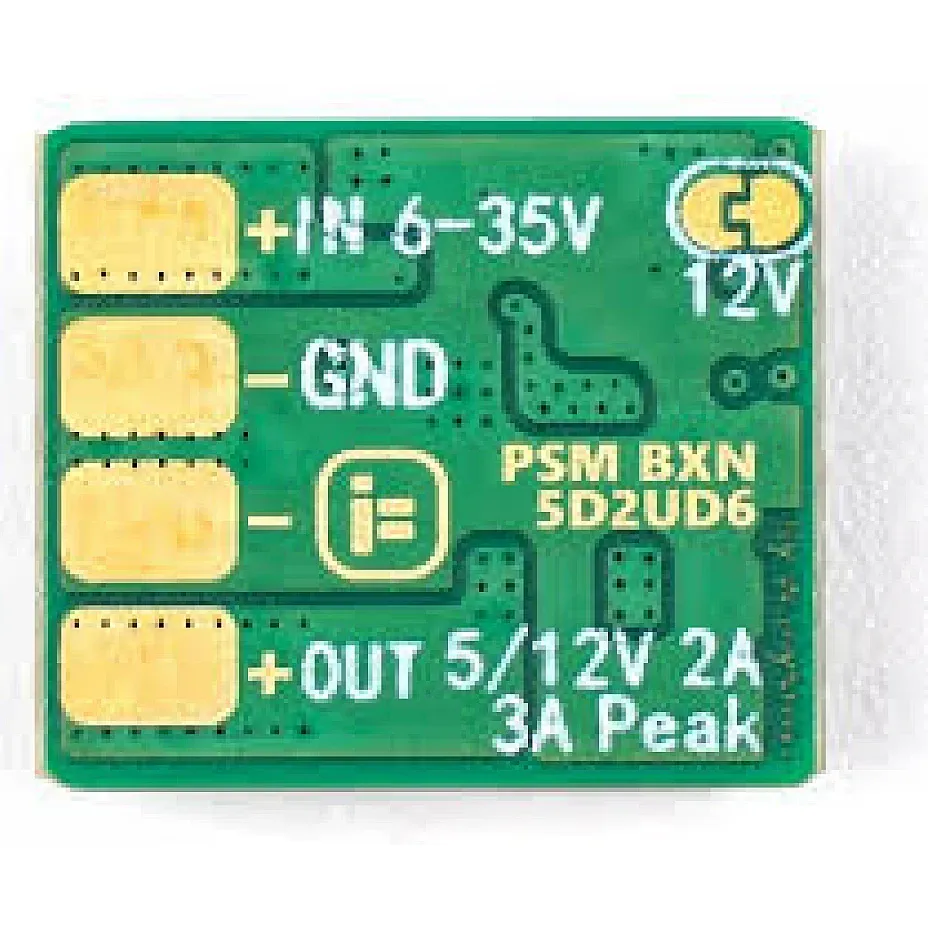

• Input voltage: 2–8S LiPo (7.4–29.6 V)
• Output voltage: 5 V or 12 V
• Output current: 2 A continuous, 3 A peak

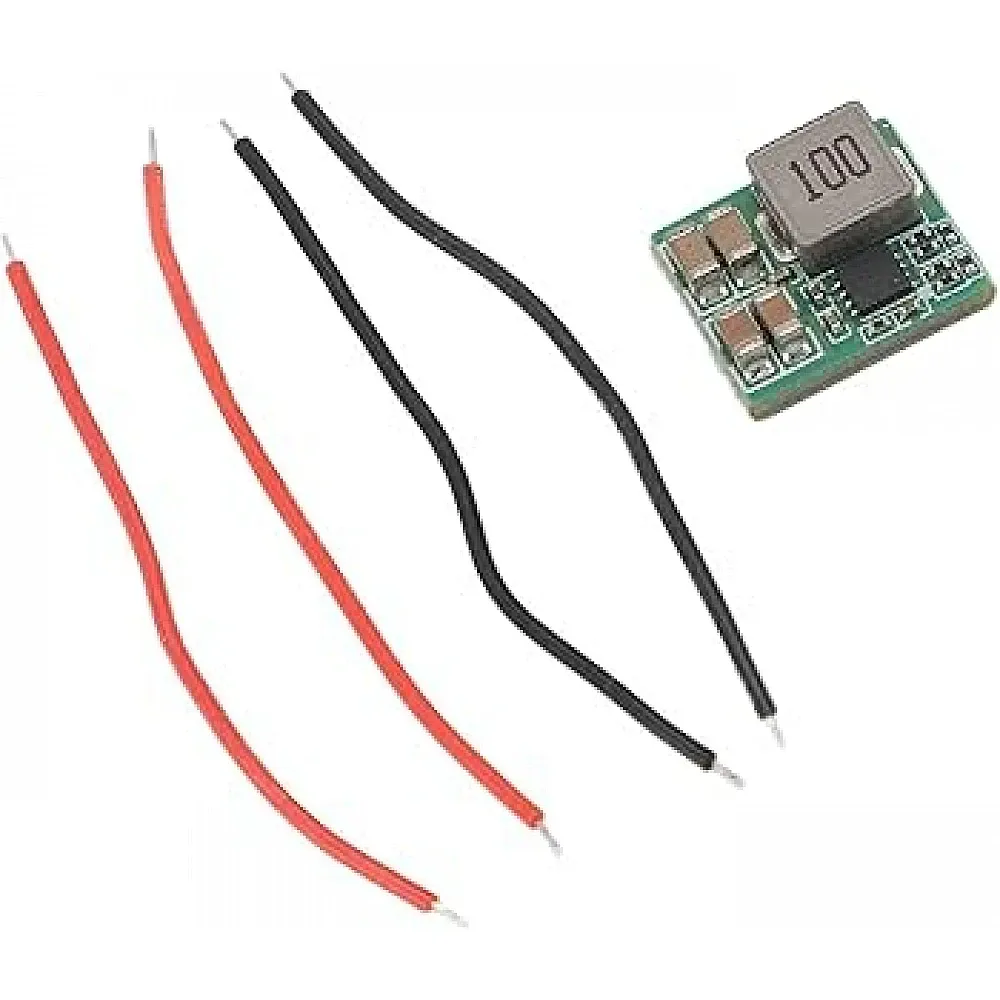

• In the box: 1 x BEC module, 2 x red and 2 x black silicone wires

Add up the current of everything on the rail before wiring and keep it under 2 A continuous; for a power-hungry HD air unit, check its rated draw at 12 V first.
