Matek Micro BEC 5V / 12V-ADJ

Name: Matek Micro BEC 5V / 12V-ADJ
Brand: MATEKSYS
SKU: MATEK-MBEC2A-5V-12V
Price: 1749 INR
Availability: InStock

₹1,749

SKU MATEK-MBEC2A-5V-12V

Made in India: NoBrand: MATEKSYS

Free shipping. Pan India delivery from Gurugram, Haryana.

Sourced on demand — most orders ship within 3–4 days

100% genuine parts
GST invoice with every order
Secure UPI & bank transfer
7-day returns on wrong or damaged items

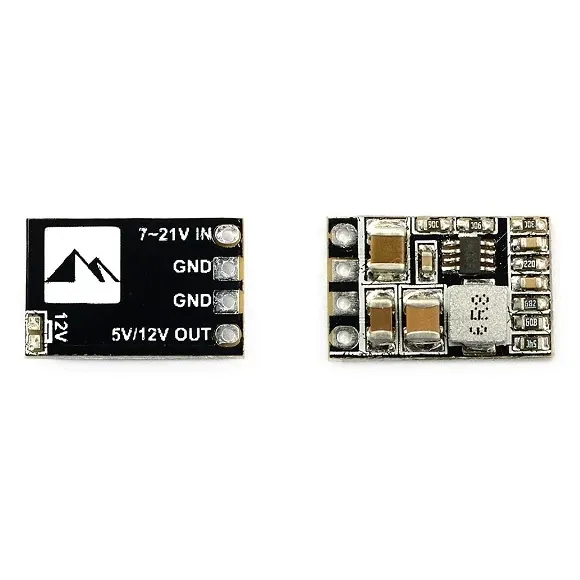

The Matek MBEC2A is a lightweight, high-efficiency synchronous step-down voltage regulator designed for FPV drones and fixed-wing builds. Weighing just 1 gram, it provides a clean, regulated power supply for receivers, video transmitters, and cameras without occupying valuable frame space.

Key features

Selectable output voltage via a simple solder bridge (5V default, 12V selectable)
High-efficiency synchronous switching design for minimal heat dissipation
Ultra-compact footprint easily heat-shrinked and tucked into tight micro or racing frames

Specifications

Input voltage: 7–21V (2–5S LiPo)
Output voltage: 5V or 12V (step-down only)
Output current: 2A continuous
Dimensions: 17 x 11 x 3 mm
Weight: 1 g

Because this is a step-down (buck) converter, your input voltage must exceed the target output. To utilize the 12V output setting, the BEC must be powered by at least a 4S LiPo.
