MAD FS 2207.5 Turbo FPV Motor (1750/1960/2550KV)

The MAD FS 2207.5 Turbo is a freestyle-focused brushless motor for 5 and 6 inch quads, offered in three windings: 1750KV and 1960KV for 6S, and 2550KV for 4S. MAD's FS series differs from its BSC line through a lightweight titanium shaft and 0.15 mm silicon-steel laminations for higher efficiency, finished with a second anodising pass.

Key features

• 2207.5 stator (22 mm × 7.5 mm) in a 12N14P layout

• 1750KV version rated at 36 A maximum current and 828 W, with up to 1.7 kg of thrust

• Rotor balanced to 5 mg or better for smooth, low-vibration footage

• Titanium shaft and thin laminations keep weight down and efficiency up

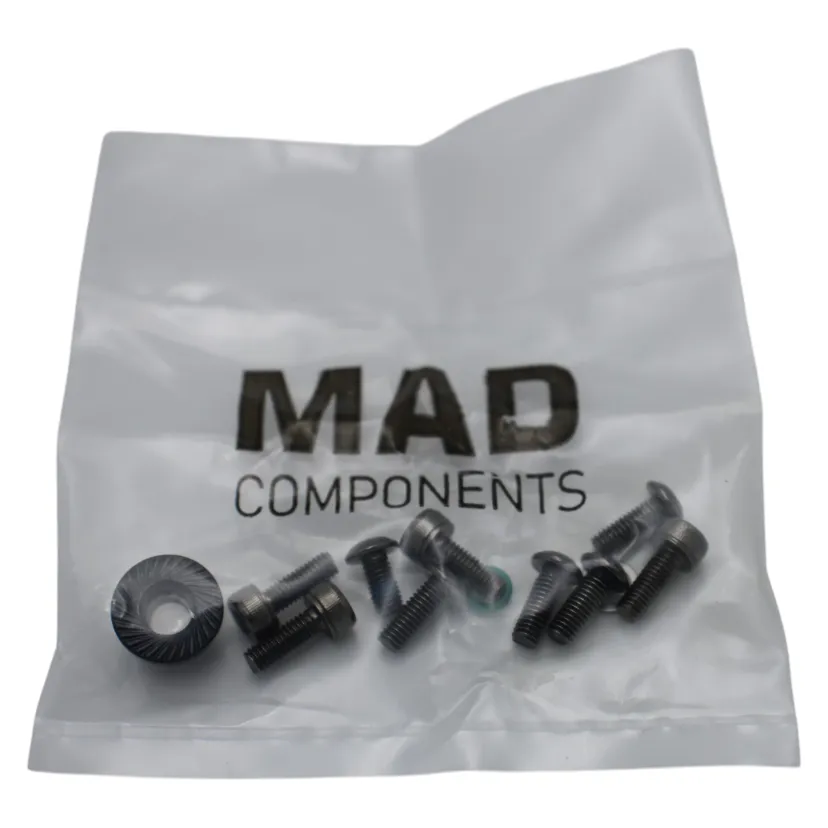

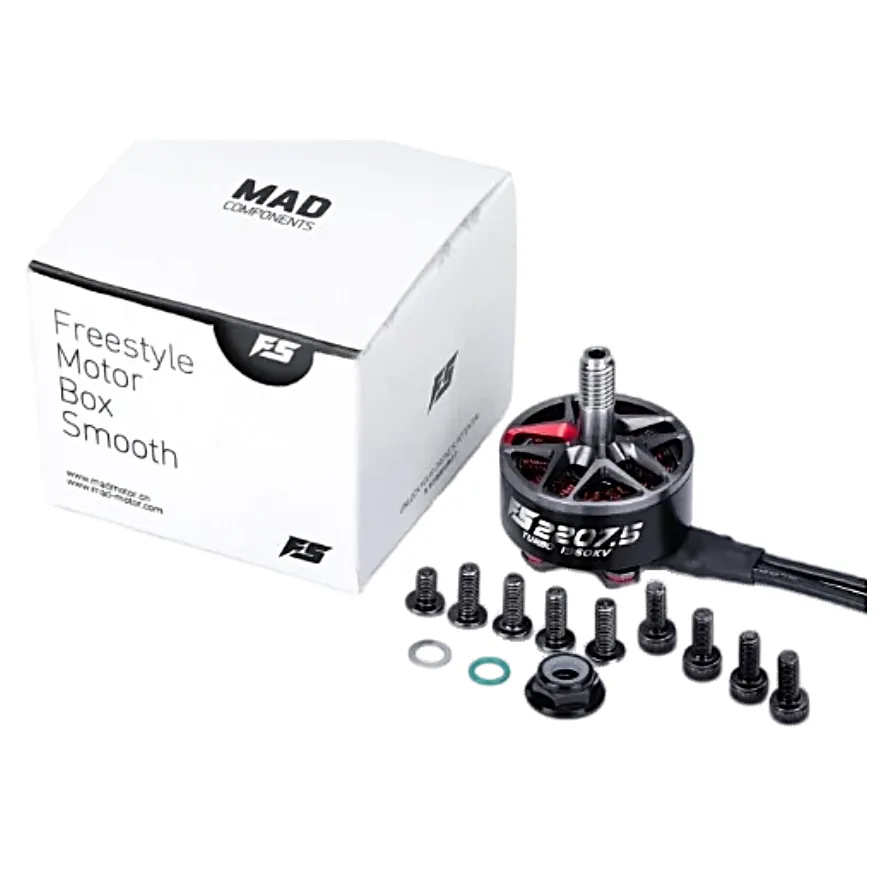

• Supplied with locking shaft screw, O-ring and gaskets

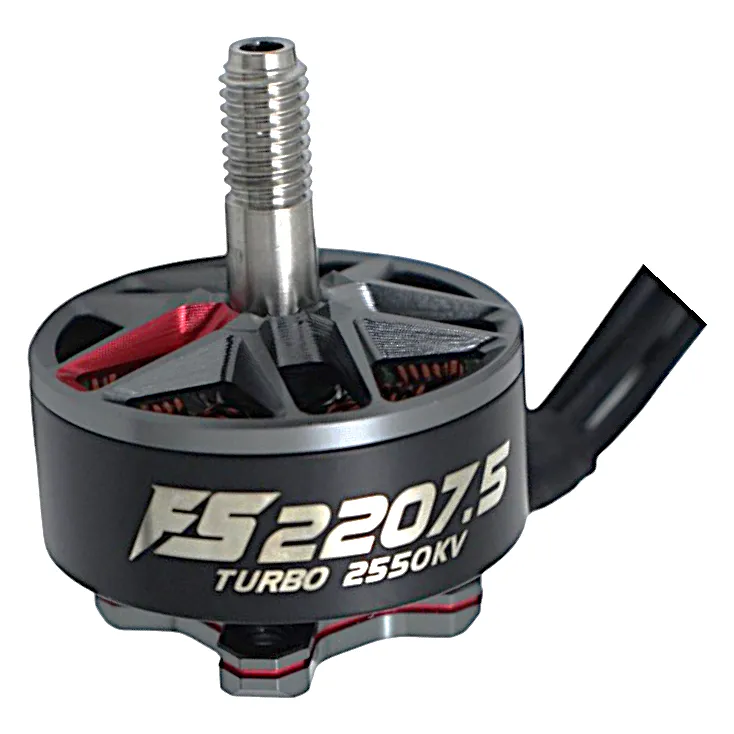

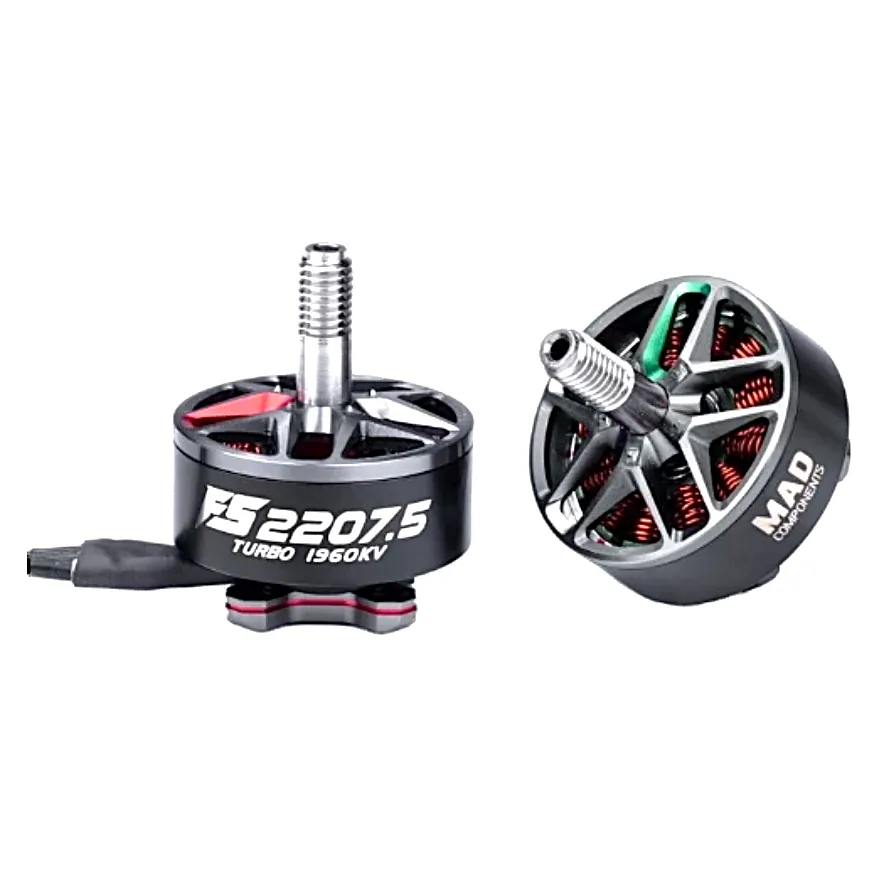

• Red in all three KV options; 2550KV also available in green

Specifications

• Model: MAD Turbo FS2207.5 V1.0

• Stator: 2207.5, 12N14P

• KV options: 1750KV (6S), 1960KV (6S), 2550KV (4S)

• Motor size: 27 × 33.4 mm

• Shaft: 4 mm, titanium

• Max current (1750KV): 36 A

• Max power (1750KV): 828 W

• Max thrust (1750KV): 1.7 kg

• Internal resistance (1750KV): 70 mΩ

• Lead length: 150 mm

• Rotor balance: 5 mg or better

• Recommended ESC: 35–60 A BLHeli_32, or a 60 A 6S 4-in-1

• Recommended prop: 6 inch

• Suggested battery: 4S 1500 mAh or 6S 1300 mAh

Choose the KV by battery: 1750KV gives smoother, more efficient 6S freestyle, 1960KV adds punch on 6S, and 2550KV is the 4S option. Motors are sold singly, so order four for a quad.
