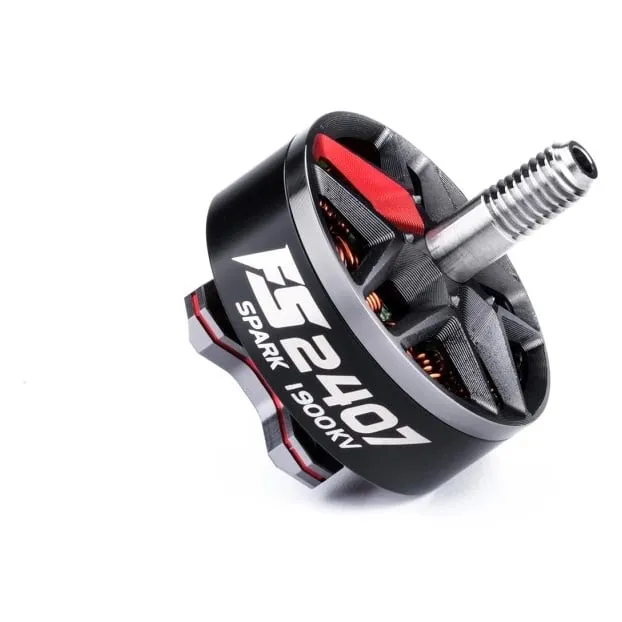

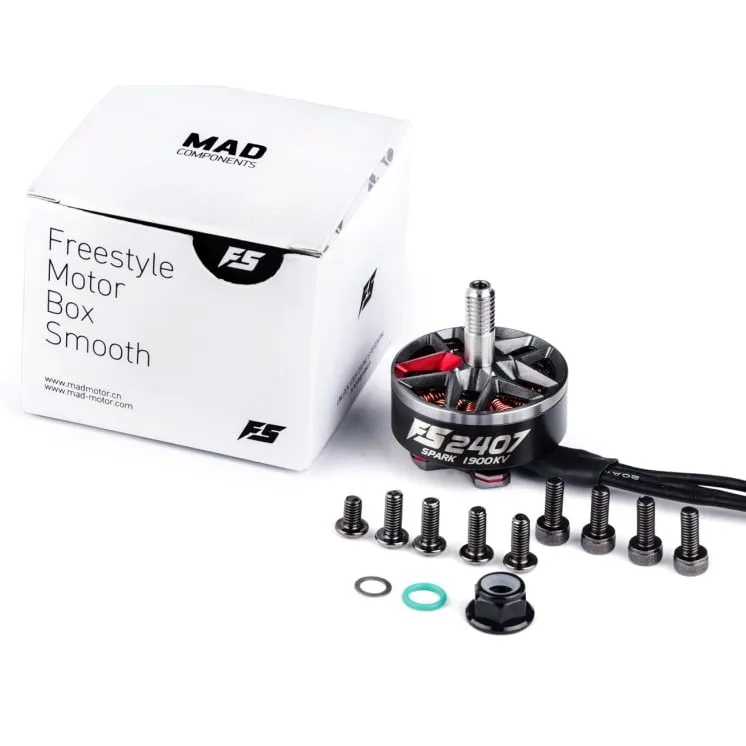

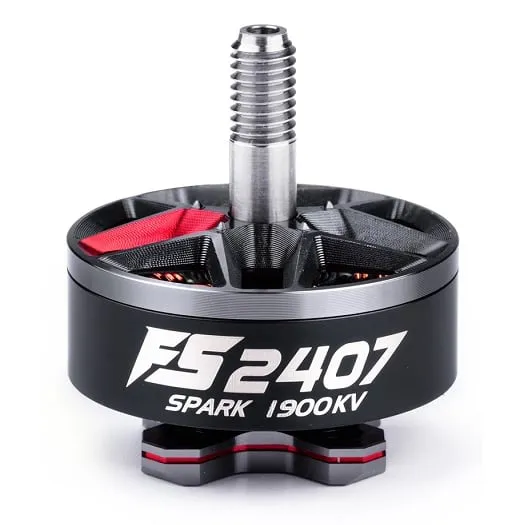

MAD FS 2407 Spark Motor
₹2,599Incl. GST
SKU MAD-FS2407-SPARK-1900KV-GRN
KV: 1900KV
Color: Green
Stator Size: 2407Prop Mount: M5KV: 1900 KV, 2600 KVShaft: 4mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The MAD FS 2407 Spark is an FPV motor for 5-inch freestyle and racing builds, offered as a 2600KV winding for 4S and a 1900KV winding for 6S LiPo power. Its larger 2407 stator than the 2306 aims for stronger acceleration and top-end speed, with green- and red-anodised bell options.
Key features
- 2407 stator (12N14P winding) for strong acceleration and top speed.
- M5-threaded propeller nut mounting, matching standard 5-inch prop hubs.
- Rotor balanced to within 5mg for smooth, low-vibration running.
- 150mm 20AWG silicone cable for tidy wiring to the ESC.
- Standard M5 mounting keeps it a drop-in swap on existing 5-inch frames.
Specifications
- Stator: 2407
- KV: 2600KV (4S) / 1900KV (6S)
- Configuration: 12N14P
- Shaft: 4mm (M5 prop nut)
- Motor dimensions: 29 x 32.3mm
- Colour: Green, Red
Use an ESC and propeller combination rated for the cell count of your chosen winding (4S for 2600KV, 6S for 1900KV), and fit a matched set of four motors across the build for even, predictable thrust.
| Stator Size | 2407 |
|---|---|
| Prop Mount | M5 |
| KV | 1900 KV, 2600 KV |
| Shaft | 4mm |
| Input Voltage | 4–6S |
| Brand | MAD Components |
