iFlight BLITZ E80 Pro G2 80A 4-in-1 BLHeli_32 ESC (35×35/30×30)

The iFlight BLITZ E80 Pro G2 is a high-current 4-in-1 ESC engineered for demanding cinelifters, macro-quads, and X-Class builds. Capable of handling high-voltage power systems, this speed controller provides the sustained amperage necessary to safely drive large stator motors on heavy-lift platforms.

Key features

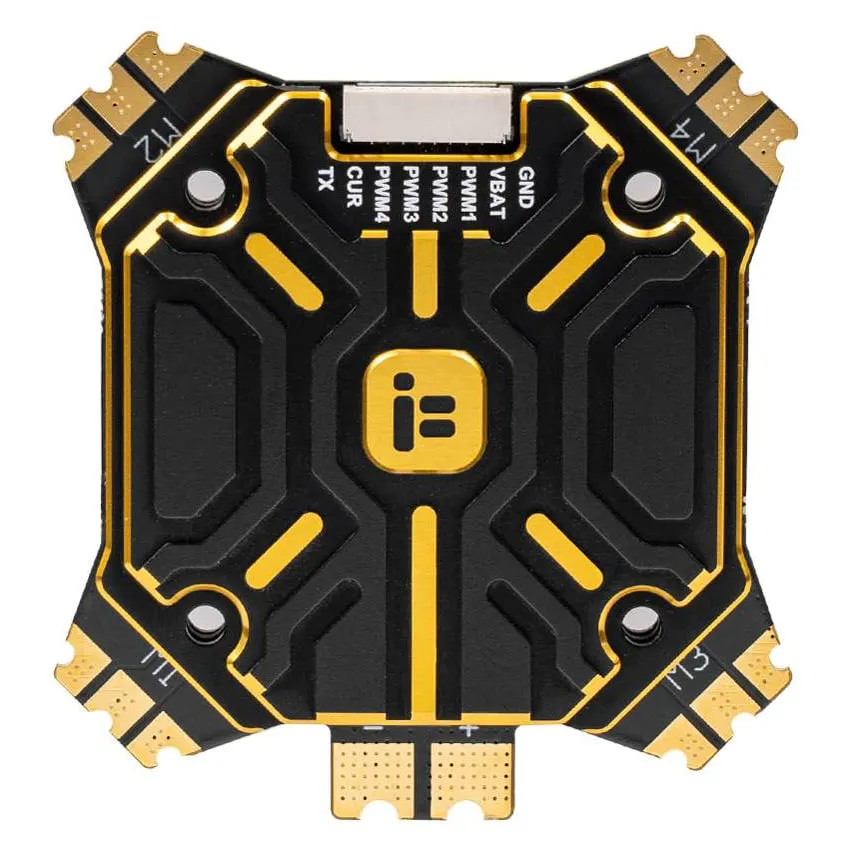

• CNC aluminium shielding: An integrated metal cover acts as a passive heat sink while protecting surface-mounted components from prop strikes and debris.

• 100A burst capacity: Delivers overhead current for aggressive throttle inputs and heavy payloads without thermal throttling.

• 8S high-voltage support: Fully rated for 2-8S LiPo setups to maximise motor efficiency on large rigs.

• Advanced telemetry: Supports bidirectional DShot and RPM filtering for precise motor management and cleaner gyro data.

Specifications

• Input Voltage: 2-8S LiPo

• Continuous Current: 80 A

• Burst Current: 100 A

• Firmware: BLHeli_32 (target IFLIGHT_BLITZ_G2)

• MCU: G071

• Current sensor: Yes (scale 200)

• BEC: None

• Telemetry: Supported

• Mounting Pattern: 35x35 mm; 30.5x30.5 mm via the included adapter

• Dimensions: 35 x 42 mm

• Weight: 65 g (+/-10 g)

• In the box: ESC, 30x30-to-35x35 mounting adapter, XT90E-M adapter, XT90 connector with 10AWG lead, 10AWG grounding and voltage wires, 2 x 470 uF 50 V capacitors, filter module, FC connecting wire, hardware set

This ESC is designed to pair with modern 32-bit flight controllers in large-scale applications. Ensure the frame provides adequate airflow across the aluminium heat sink to maintain peak thermal efficiency during extended heavy-lift flights.
