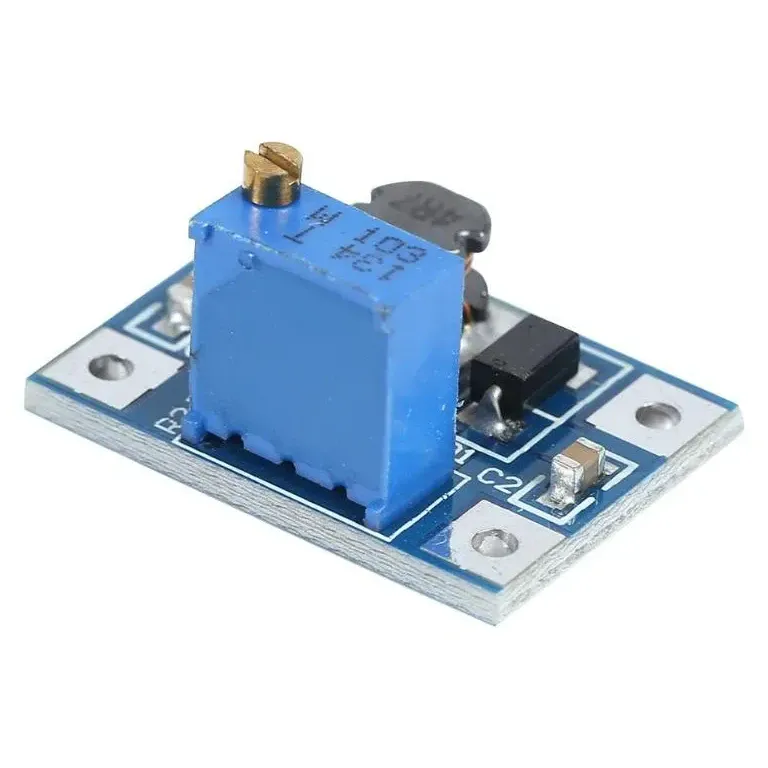

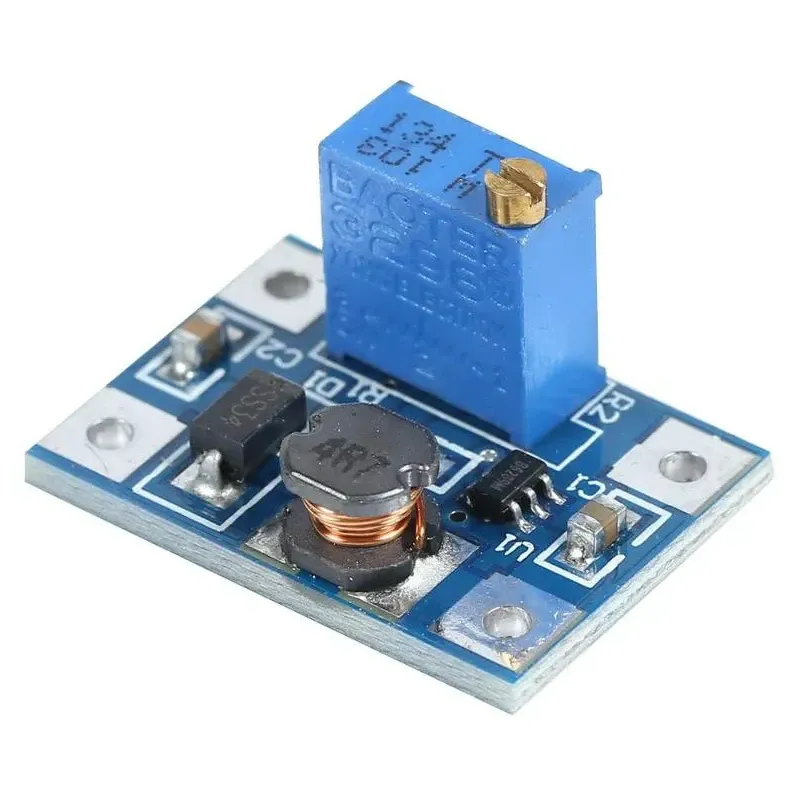

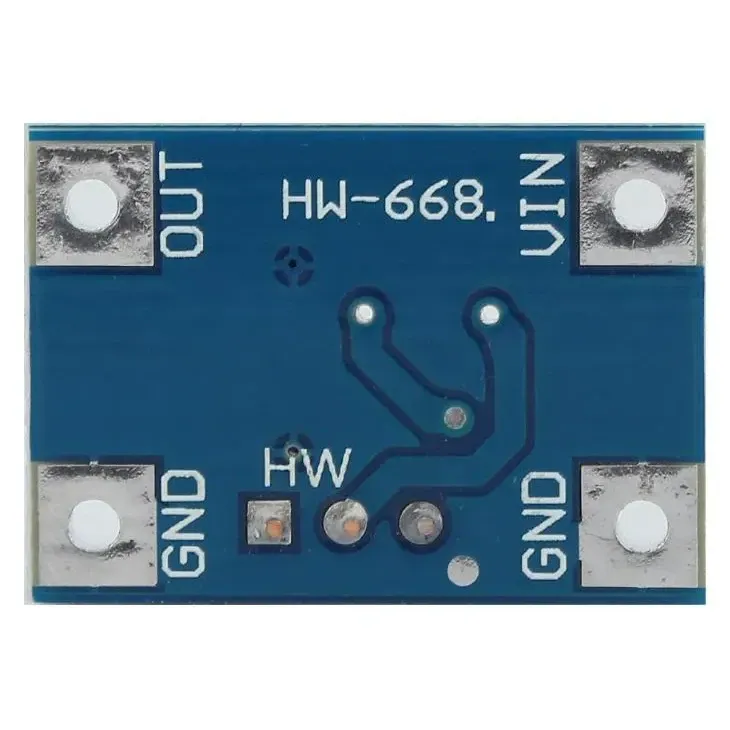

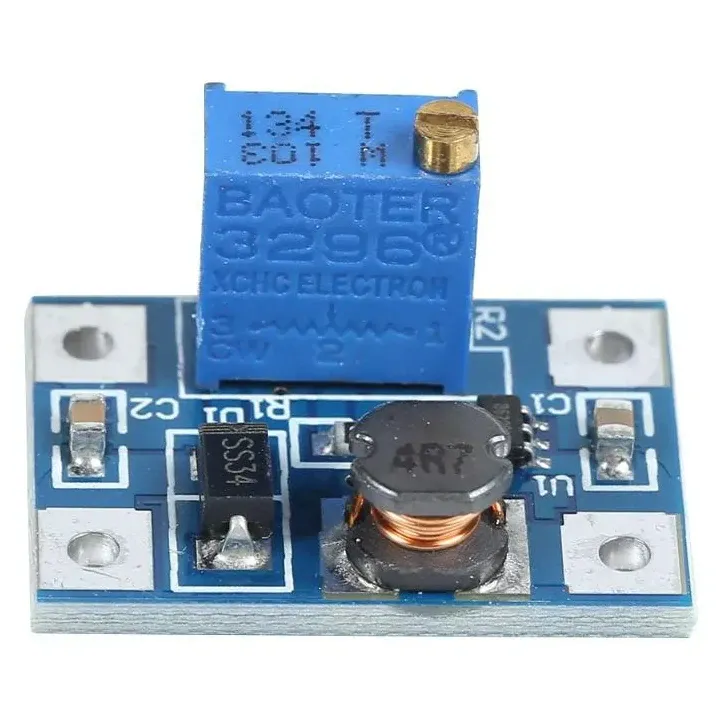

SX1308 DC-DC Adjustable Boost Converter Module 2A
SKU GEN-SX1308-BOOST-2A
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
Compact step-up (boost) converter module built around the SX1308 regulator. It raises a lower DC input to a higher output that you set with the onboard trimmer, useful for running higher-voltage accessories, sensors or LED strips from a single cell or another low-voltage supply.
Key features
- Wide input range accepts anything from a single Li-ion cell up to a 5S pack
- Output adjustable across 2–28V with the onboard potentiometer
- Conversion efficiency of up to 93% keeps heat and battery drain low
Specifications
- Input voltage: 2–24V DC
- Output voltage: 2–28V DC, adjustable
- Output current: up to 2A
- Efficiency: up to 93%
- Controller IC: SX1308
A boost converter only steps up, so set the output above your input voltage. Adjust it with no load connected and confirm the reading on a multimeter before wiring in your device. The 2A rating is a ceiling: available output current falls as the gap between input and output widens, so a large step-up from a low input delivers well under 2A.
| Input Voltage | 1–5S |
|---|---|
| Made in India | No |
| Brand | Generic |
| Output Current | 2 A |
