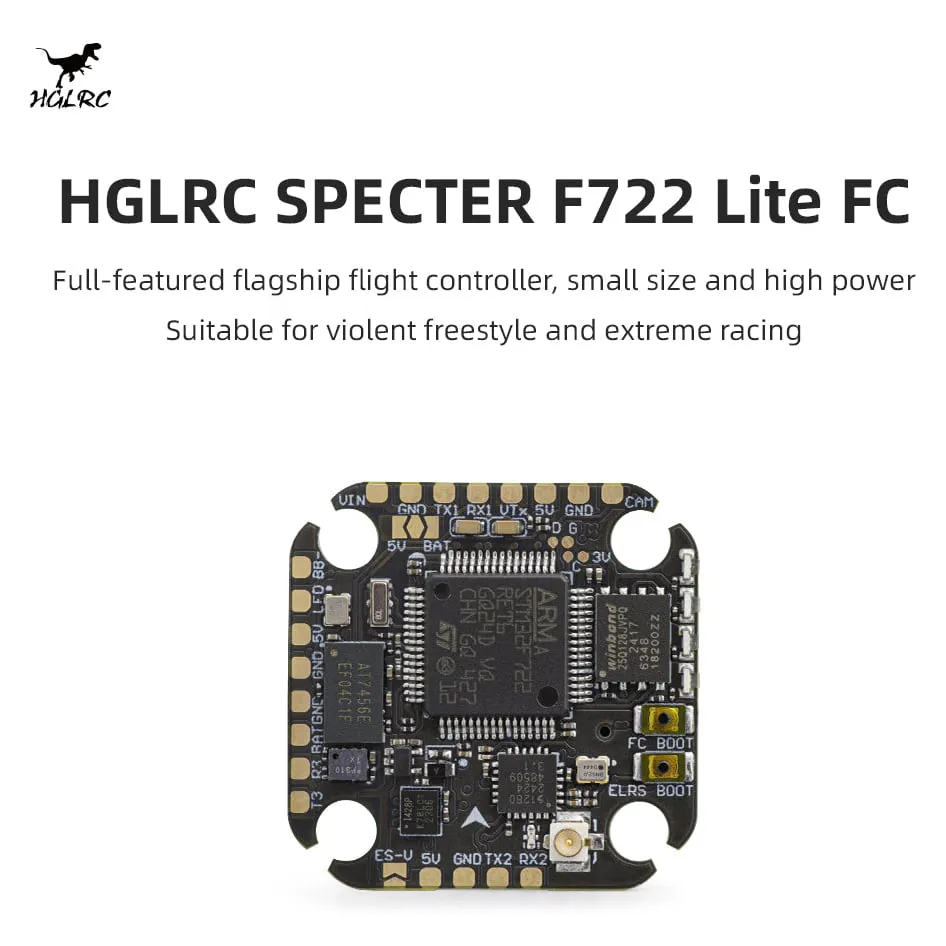

HGLRC Specter F722 Lite ELRS 2.4GHz Flight Controller

The HGLRC Specter F722 Lite is an ultra-light flight controller for freestyle and racing FPV builds, weighing just 4g with a built-in ELRS 2.4GHz receiver on board.

Key features

• F722 processor with an ICM42688P gyro and dps310 barometer for fast, precise flight-instruction processing.

• Wide 8.4-25.2V (2-6S) input voltage range suits everything from 3-inch whoops to 7-inch long-range builds.

• Onboard ELRS 2.4GHz receiver removes the need for a separate receiver board and antenna wiring.

• 16MB blackbox and 5 UARTs support Betaflight logging and a range of peripherals.

• 5V/BAT voltage output works with most analogue and HD video transmission systems.

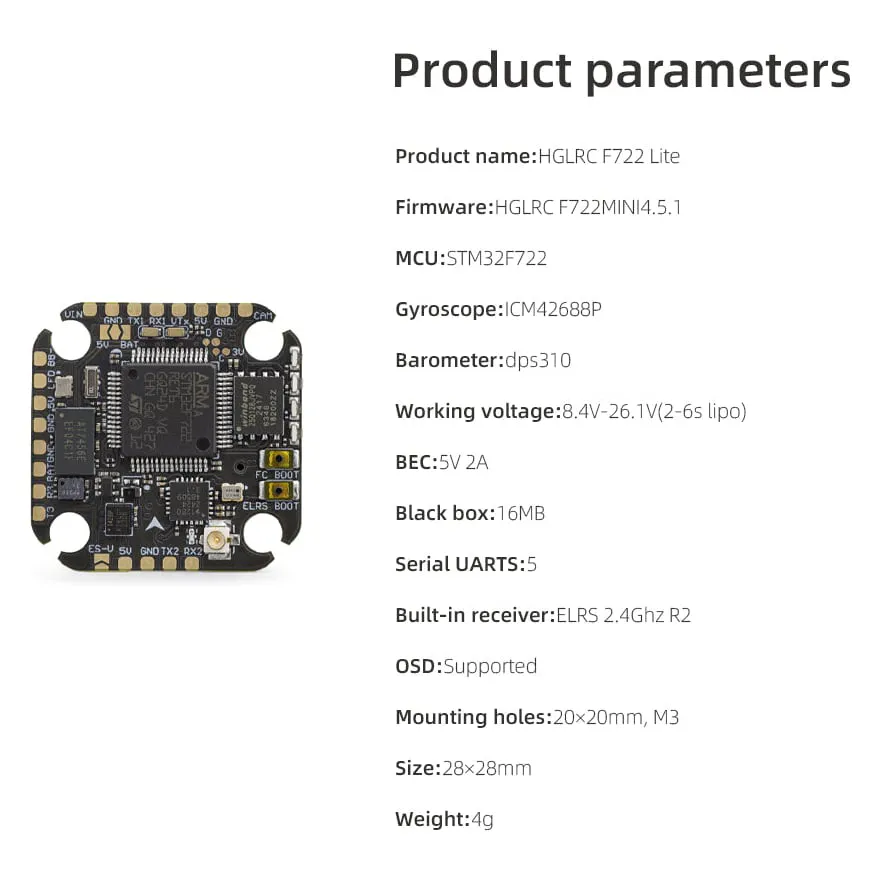

Specifications

• FC processor: F722

• Gyro: ICM42688P

• Input voltage: 2-6S

• Weight: 4g

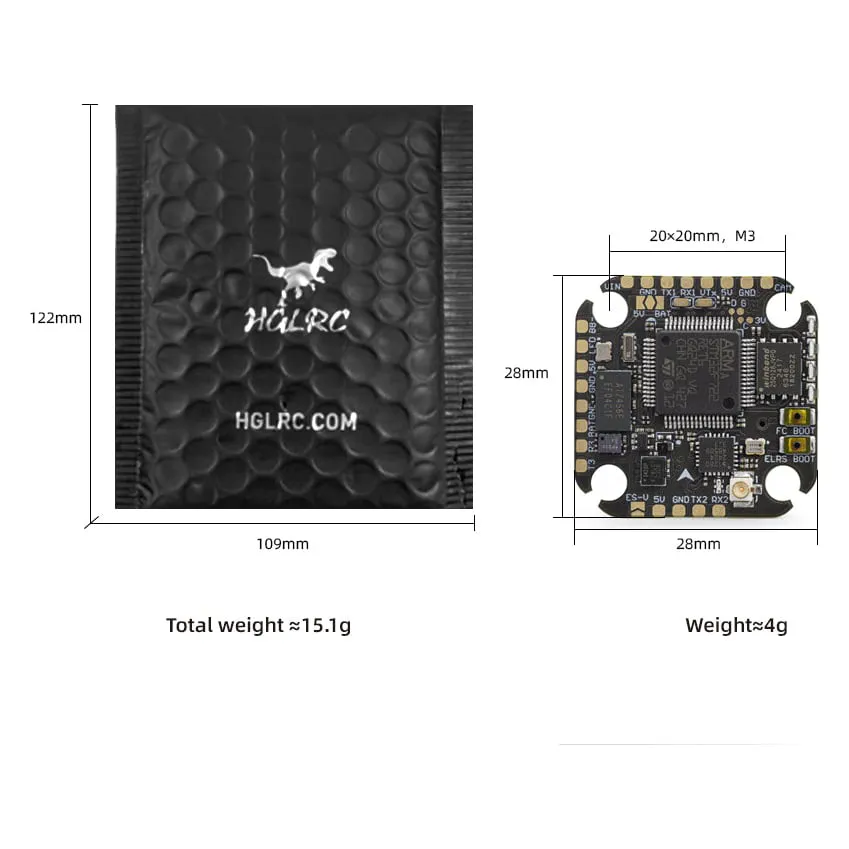

• Mounting: 20 x 20mm (M3)

• Onboard receiver: ELRS 2.4GHz

• Barometer: DPS310

• Blackbox: 16 MB

• UARTs: 5

• BEC: 5 V/2 A

• Betaflight target: HGLRCF722MINI

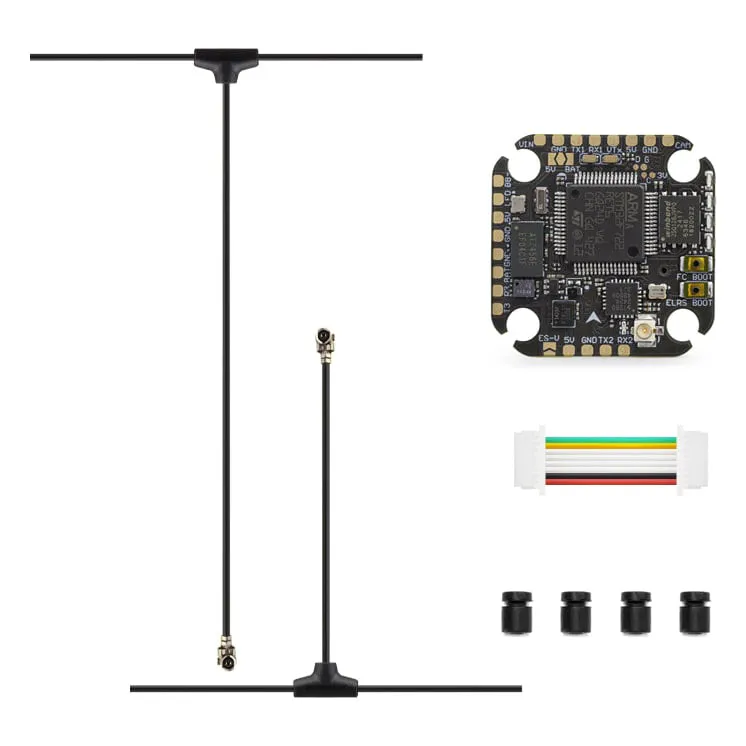

• In the box: flight controller, 25 mm 8-pin FC cable, 90 mm and 40 mm 2.4 GHz T antennas, 4 M3 x 8 anti-vibration grommets

Its wide voltage range and small 28 x 28mm footprint suit both compact whoops and larger freestyle or long-range quads without needing an external BEC. The built-in ELRS receiver frees up space in the stack for other electronics.
