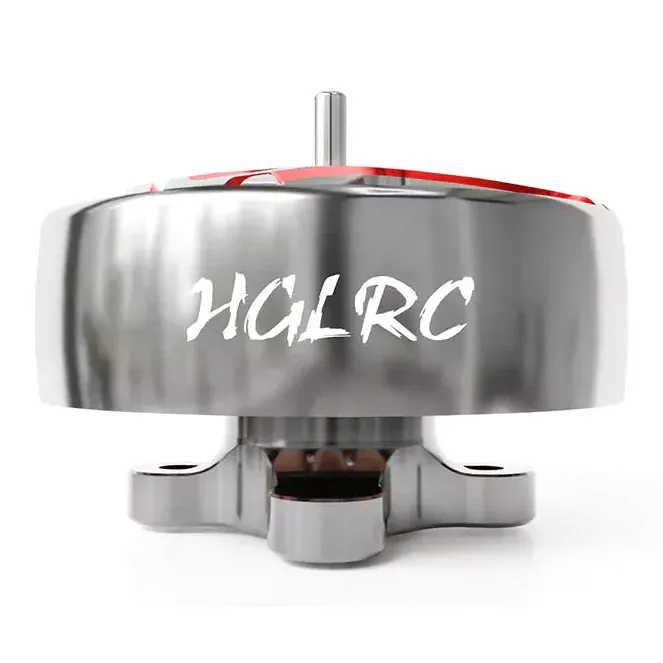

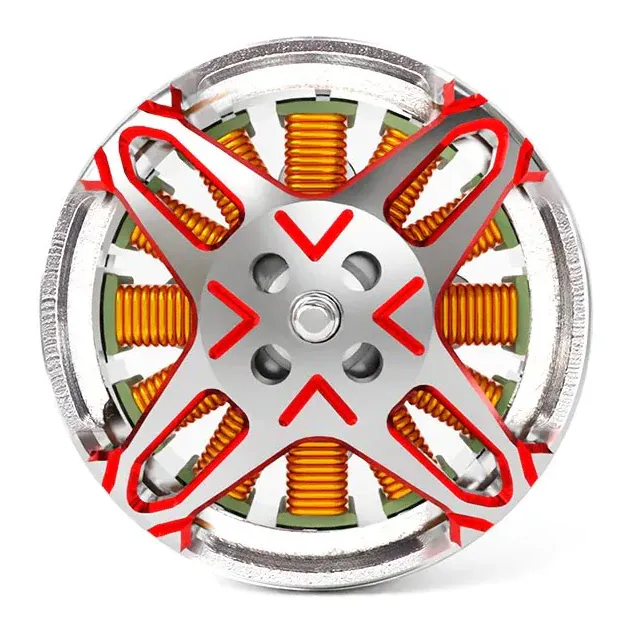

HGLRC Specter 1404 4800KV 4-6S Motor

The HGLRC Specter 1404 4800KV is a brushless motor for 3-4-inch FPV builds, sized for 2-inch tiny drones and 4-inch toothpick quads running on 4-6S power.

Key features

• 7075 aviation-grade aluminium one-piece rotor with a two-colour anodised finish for durability.

• N52H curved magnetic steel and imported Kawasaki silicon-steel stator laminations for strong torque with reduced heat build-up.

• 200 degree high-temperature-resistant copper wire winding for stable operation under sustained load.

• Alloy steel outlet shaft keeps the rotating assembly light while resisting wear.

• 4800KV winding suits smaller, higher-pitch propellers on 4-6S packs.

• Sized for 3-4 inch FPV freestyle and toothpick platforms rather than larger 5-inch frames.

Specifications

• Stator size: 1404

• KV: 4800KV

• Input voltage: 4-6S

• Weight: approx. 10 g

• Configuration: 9N12P

• Motor dimensions: 19.13 x 12.25 mm

• Mounting: 9x9mm, 4 x M2

• Shaft: 1.5mm

• Recommended propellers: 2-4 inch

• In the box: 1 x motor, 5 x M2x6mm and 2 x M2x7mm screws

Match propeller size, ESC current rating and battery cell count to this KV before fitting, and verify motor rotation direction with the flight controller after installation.
