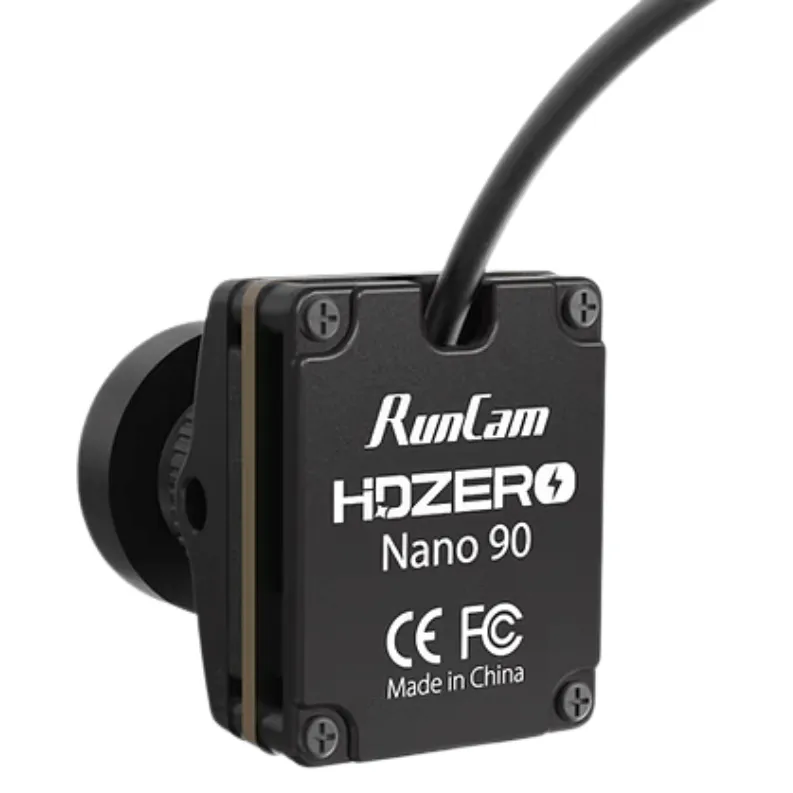

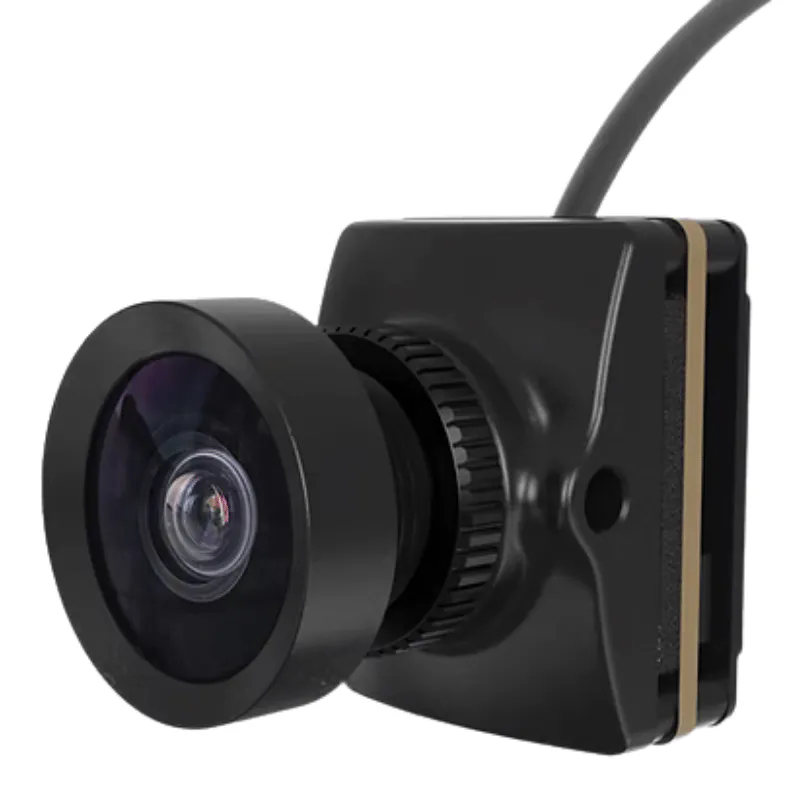

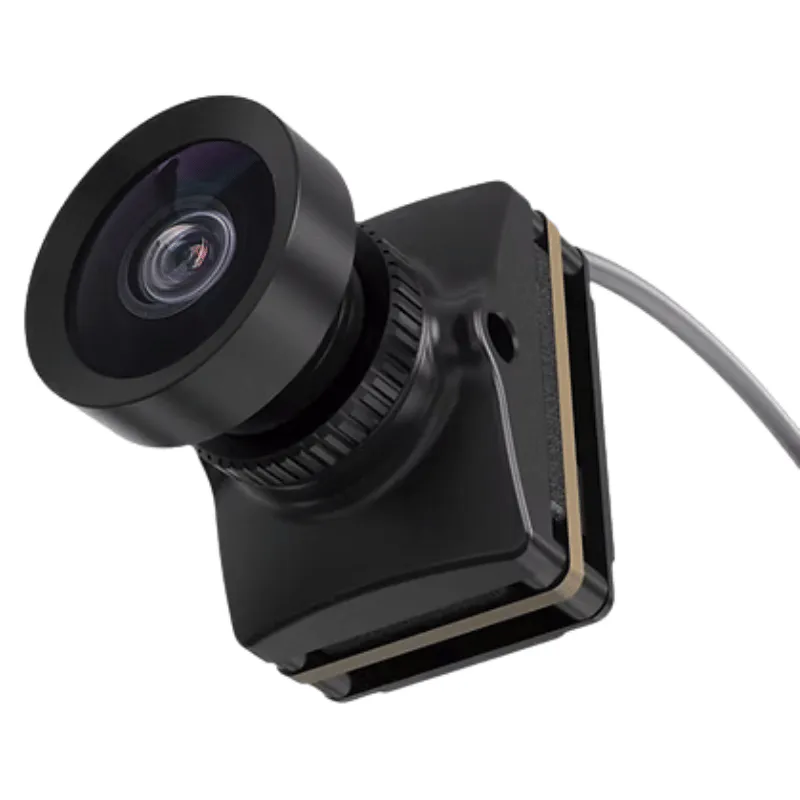

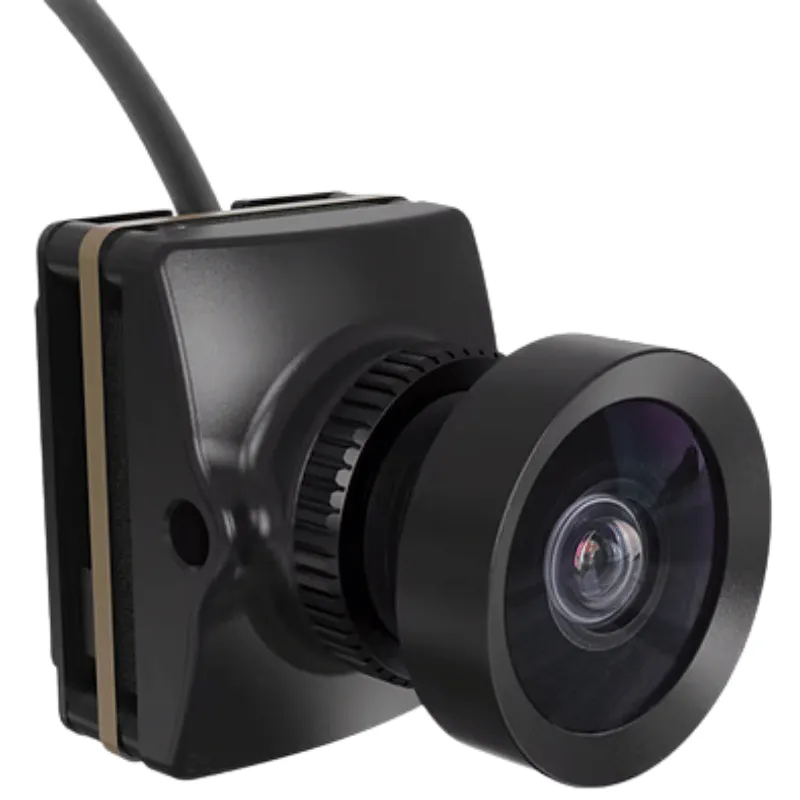

HDZero Nano 90 V2 Camera

The HDZero Nano 90 V2 is a 14x14mm digital FPV camera designed to deliver 90 frames per second for ultra-low latency video. Built for competitive FPV racers and micro whoop pilots, it prioritises reaction time and fluid motion over pure cinematic resolution, providing an analogue-style latency feel with digital clarity.

Key features

• Outputs 540p at 90fps for rapid control response, or standard 720p at 60fps
• Standard 14x14mm nano dimensions fit seamlessly into tight whoop canopies and micro frames
• V2 revision features improved optics and sensor tuning for clearer visibility during high-speed transitions
• Interfaces directly with HDZero VTX modules (Whoop, Freestyle, and Race series) via standard MIPI cables

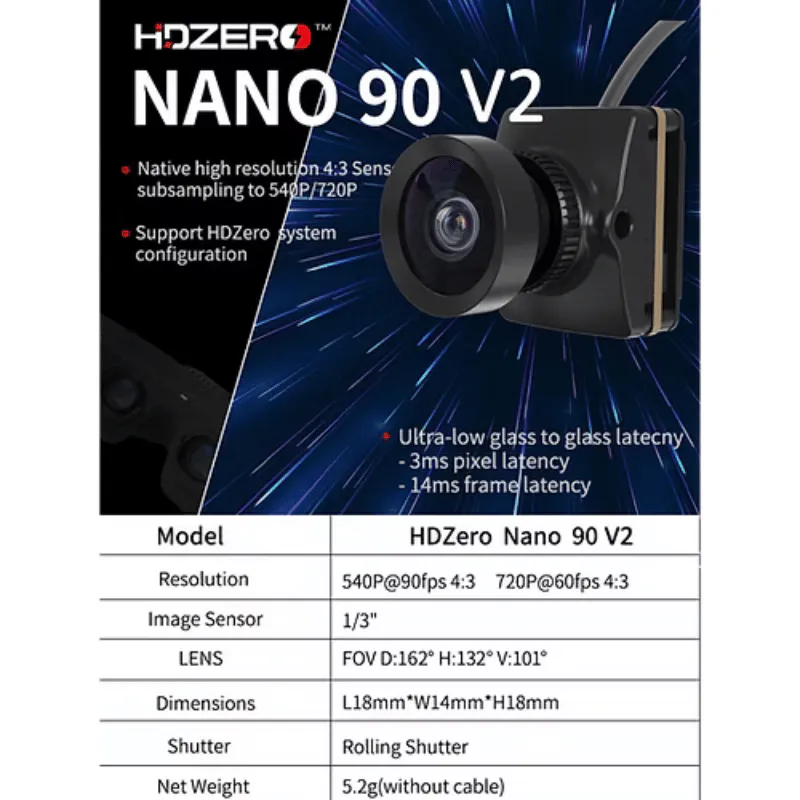

Specifications

• System compatibility: HDZero
• Resolution & Framerates: 720x540p @ 90fps, 1280x720p @ 60fps
• Aspect ratio: 4:3 (at 90fps), 16:9 (at 60fps)
• Dimensions: 14x14mm (Nano size)
• Connector: MIPI

To utilise the 90fps mode, ensure your HDZero VTX and goggles are updated to the latest firmware. Note: A MIPI cable is required to connect this camera to your video transmitter.
