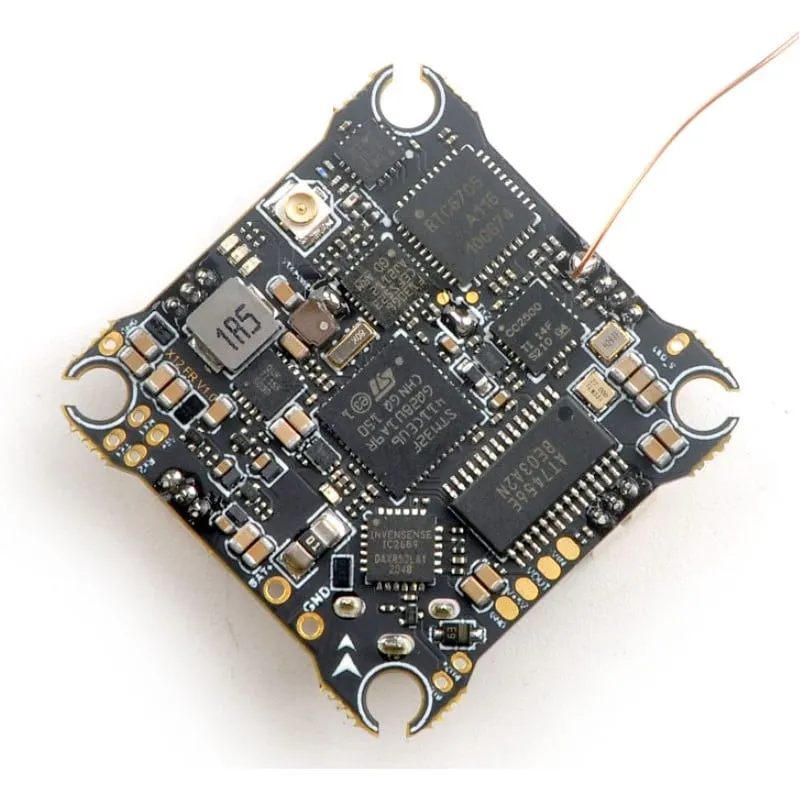

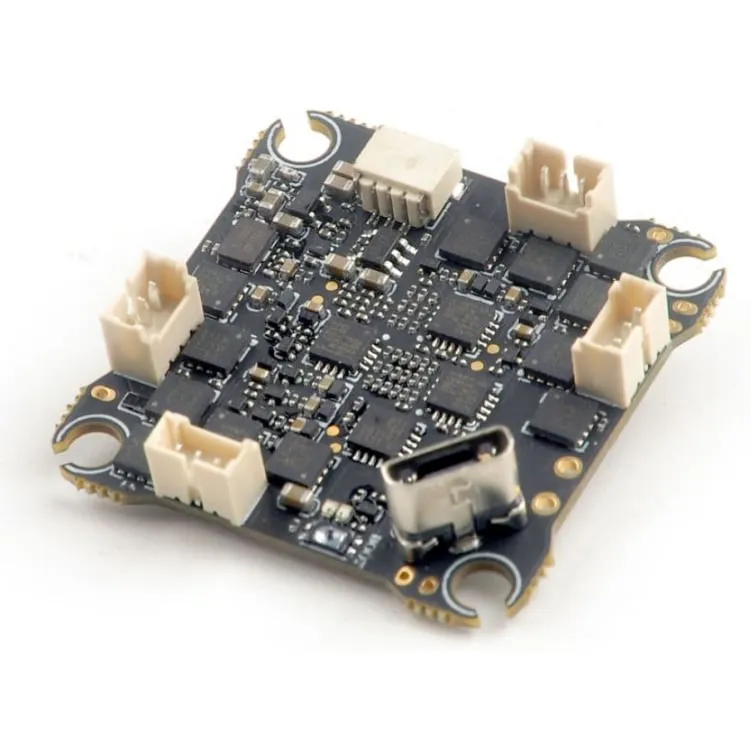

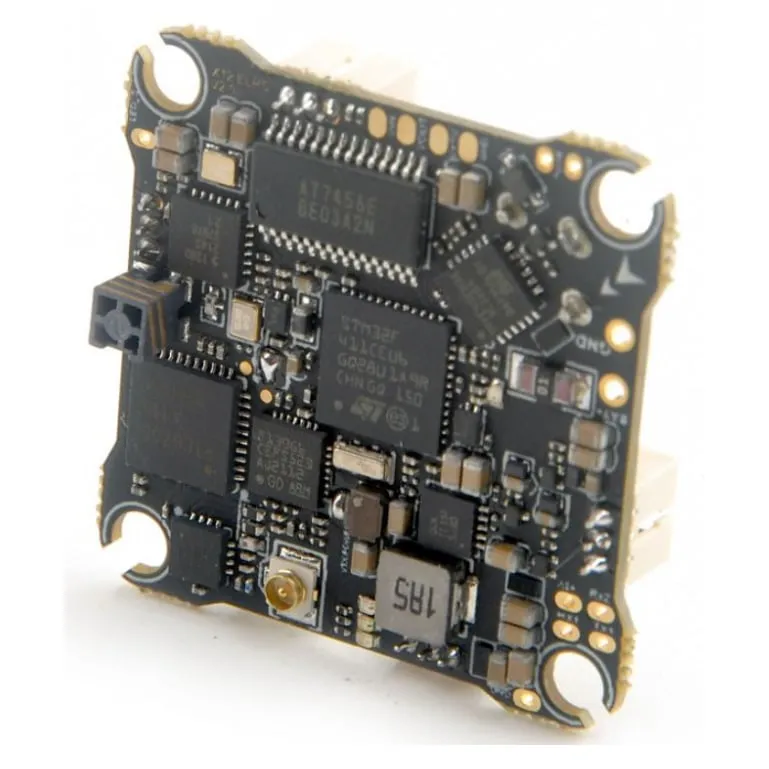

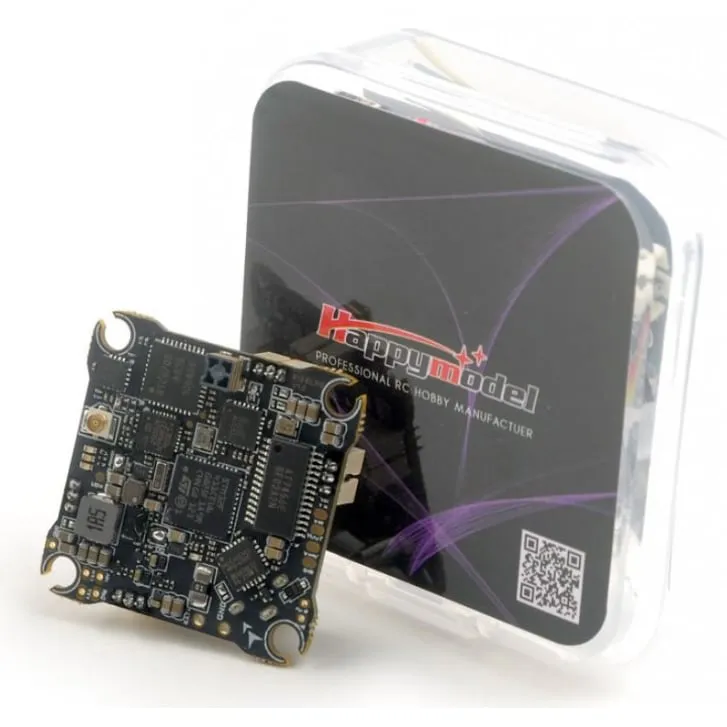

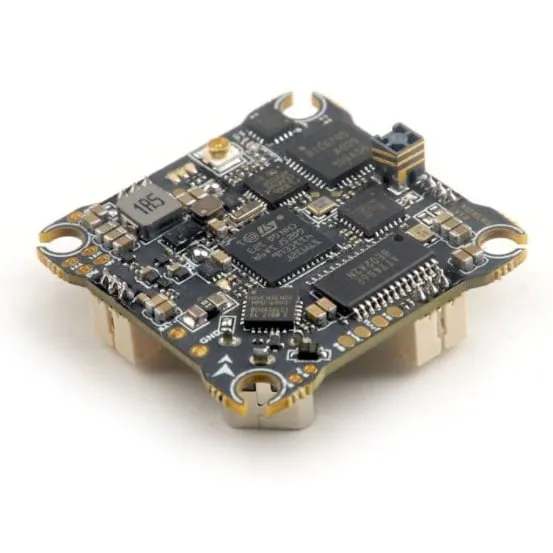

Happymodel X12 ELRS AIO Flight Controller

The Happymodel X12 is a highly integrated 5-in-1 AIO flight controller tailored for ultra-light whoops and toothpick drones. Combining an F411 processor, a 12A ESC, an onboard ELRS 2.4GHz receiver, and an adjustable 400mW OpenVTX onto a single board, it drastically reduces wiring and saves precious grams on micro builds.

Key features

• True 5-in-1 architecture integrating FC, ESC, ELRS receiver, OpenVTX, and OSD
• Supports 1S to 2S LiPo and LiHV input voltages
• Adjustable 5.8GHz video transmission up to 400mW for excellent penetration
• Standard whoop mounting layout for broad micro-frame compatibility

Specifications

• Processor: STM32F411CEU6
• Input voltage: 1-2S LiPo/LiHV
• Continuous current: 12A (15A burst)
• ESC firmware: BLHeli_S / Bluejay compatible
• Receiver protocol: SPI ELRS 2.4GHz
• Video transmitter: 5.8GHz OpenVTX (0/25/100/400mW)
• Antennas: SMD ceramic receiver antenna; U.FL connector for the VTX antenna
• Betaflight target: CRAZYBEEF4SX1280
• ELRS compatibility: works with ELRS V2.0 transmitter modules; the receiver firmware cannot be flashed separately
• Mounting pattern: 25.5mm x 25.5mm
• Board size: 30 x 30 x 8 mm
• Weight: 5.1g

Rated at 12A continuous, the X12 comfortably drives micro motors ranging from 0802 up to 1202.5 stators. It serves as a direct drop-in upgrade for the Mobula7 and Crux3, or as the ideal foundation for custom 2-inch to 3-inch toothpick builds.
