GEPRC Triple Feed Patch 5.8GHz CP FPV Antenna (SMA Male, RHCP)
SKU GEPRC-TFP1-58G-SMA-RHCP
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

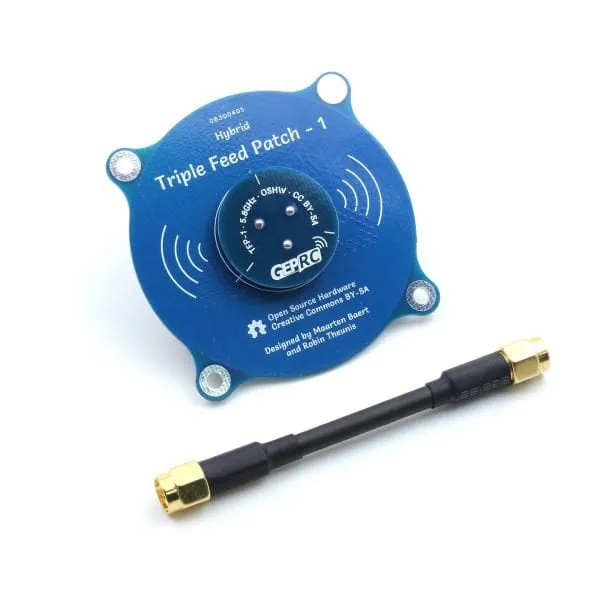

The GEPRC Triple Feed Patch-1 is a highly efficient 5.8GHz directional antenna designed for FPV ground stations and goggle receivers. Based on the renowned design by Maarten Baert and Robin Theunis, this patch array provides exceptional signal penetration and clarity for freestyle, cinematic and long-range pilots.
Key features
High 9.4dBi gain pushes video reception much further than standard omnidirectional antennas.
Optimised triple-feed array delivers a near-perfect axial ratio below 1.3, drastically reducing multipath interference and video breakup.
Wide 55-degree half-power beamwidth makes it easier to keep the drone within the optimal signal cone during flight.
Rigid PCB construction withstands travel and regular field use.
Specifications
Center frequency: 5.8 GHz
Bandwidth: 5.47 - 6.13 GHz
Gain: 9.4 dBi
Beamwidth: 55° (horizontal and vertical)
Axial ratio: < 1.3
VSWR: < 1.22 at the centre frequency (S11 < -20 dB)
Radiation efficiency: 83.5%
Polarisation: RHCP
Connector: SMA Male
For the best video link, pair this directional patch with an omnidirectional RHCP antenna on a diversity receiver module. This setup guarantees broad close-range coverage alongside reliable long-range directional punch.
| Polarization | RHCP |
|---|---|
| Antenna Connector | SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | GEPRC |
| Gain | 9.4 dBi |
| Antenna Type | Patch |
