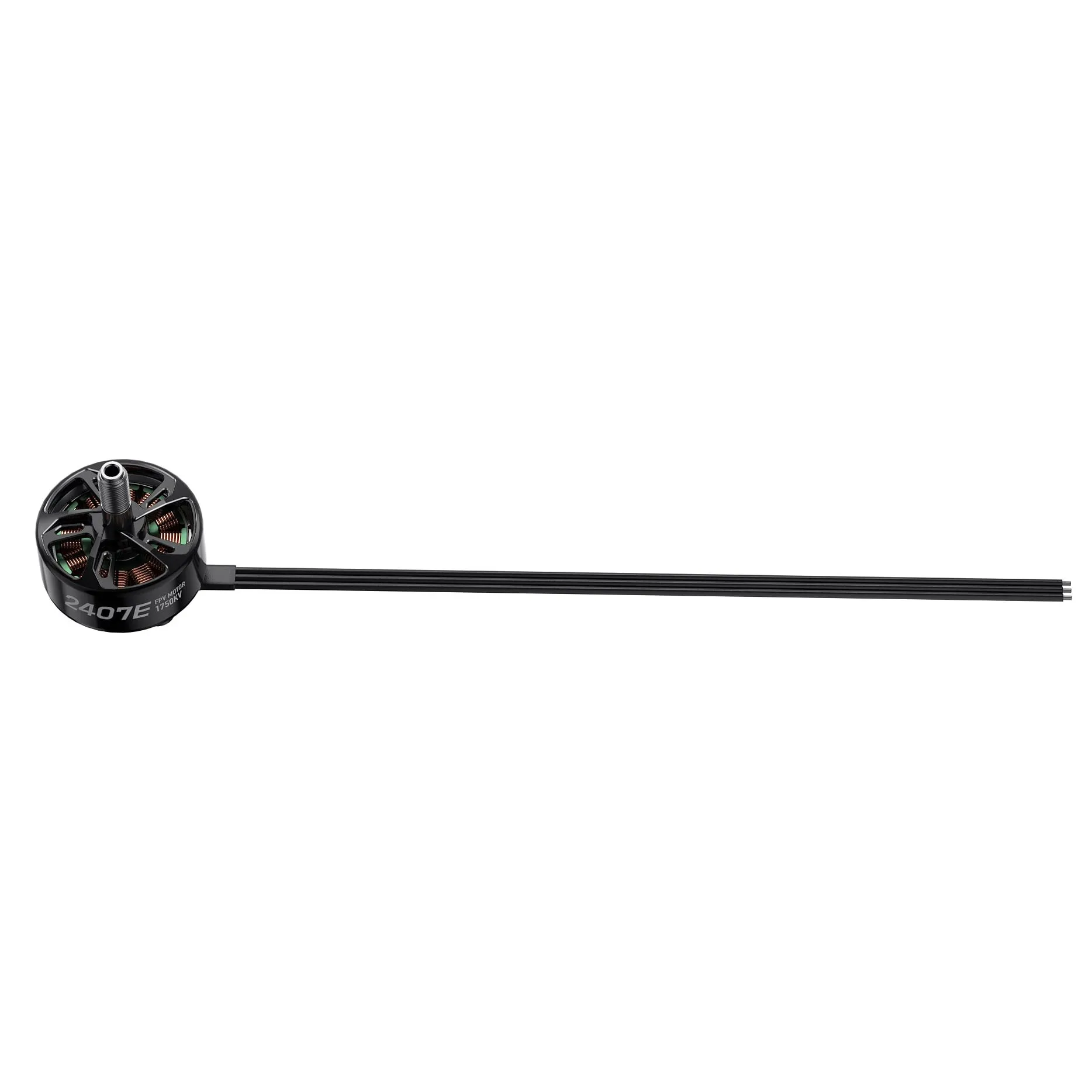

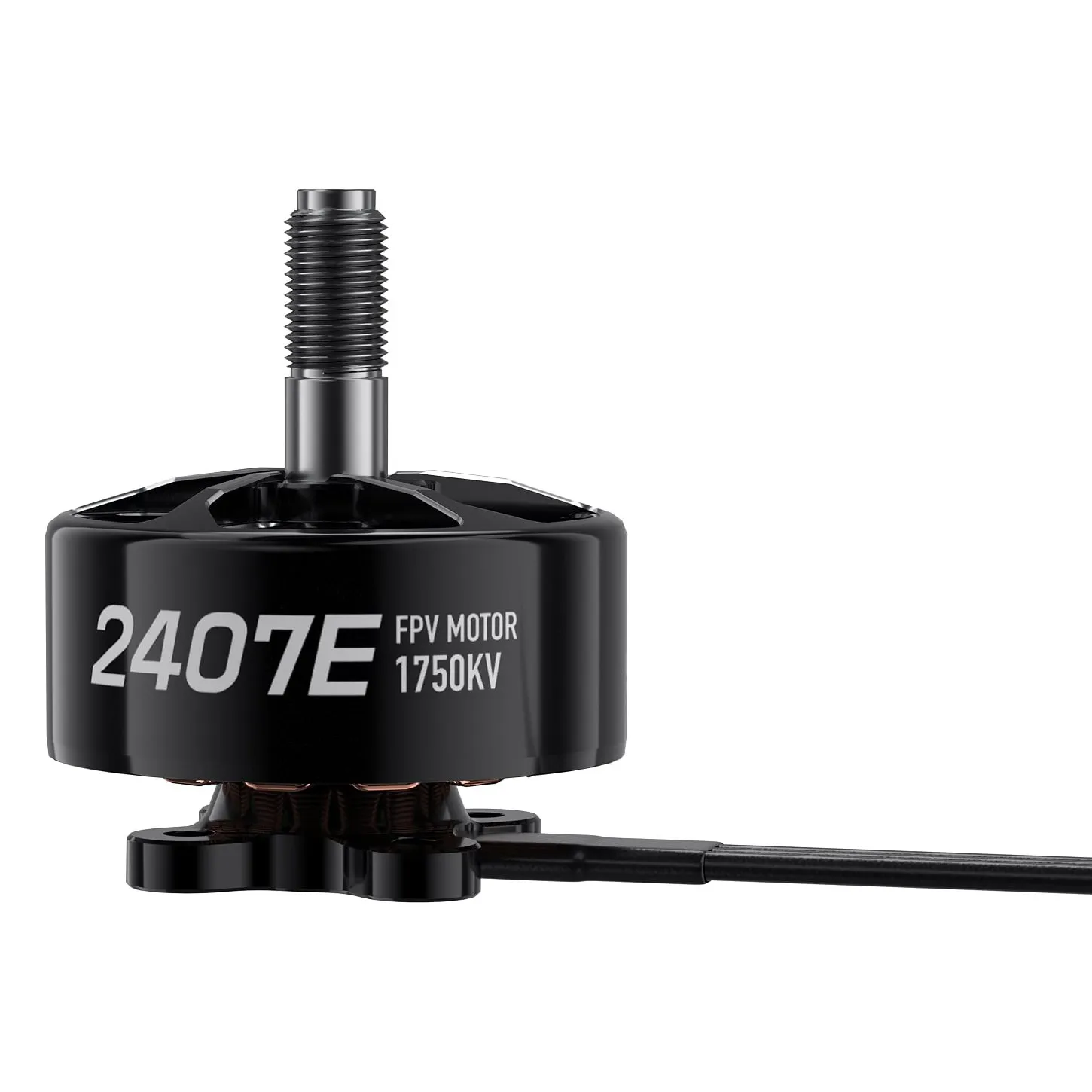

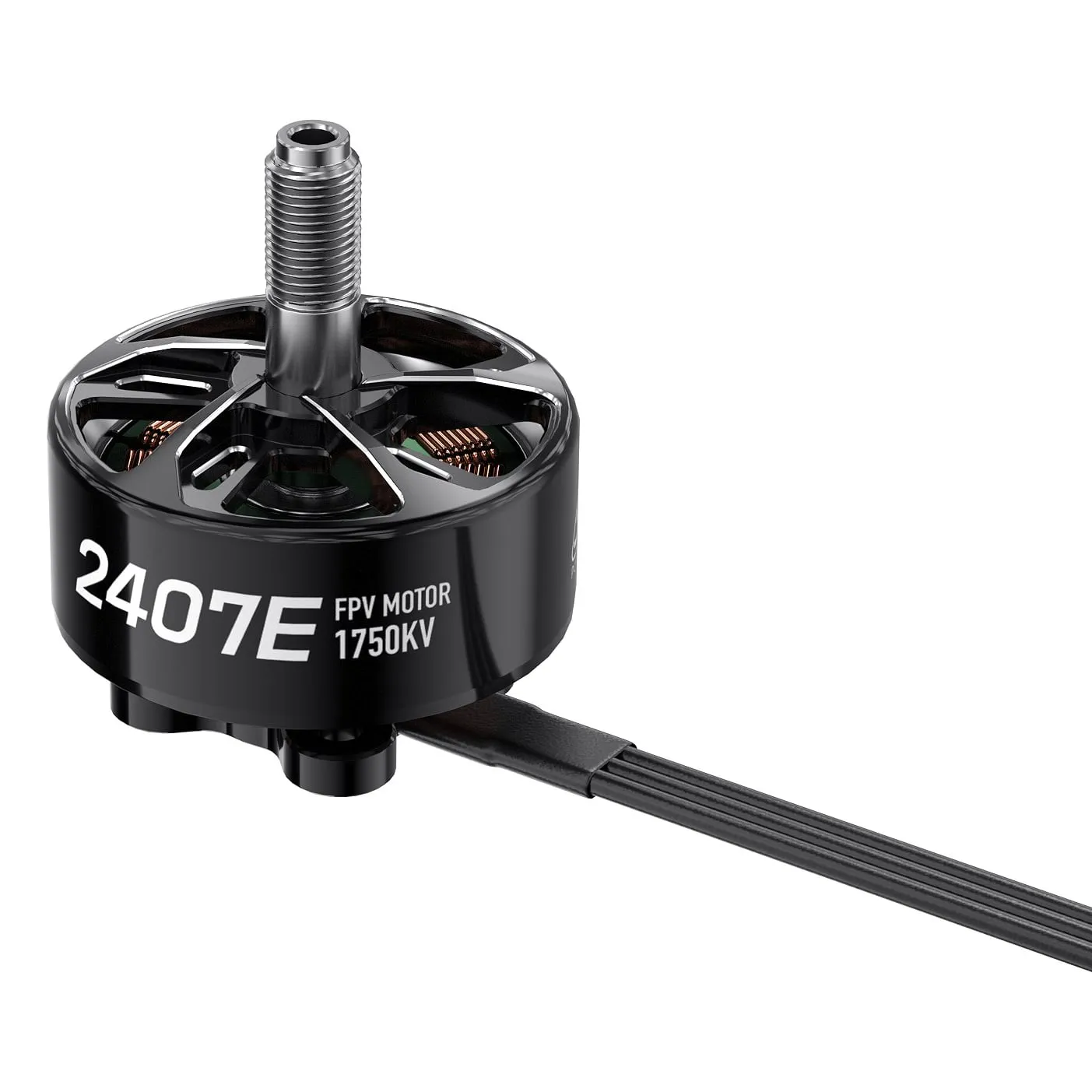

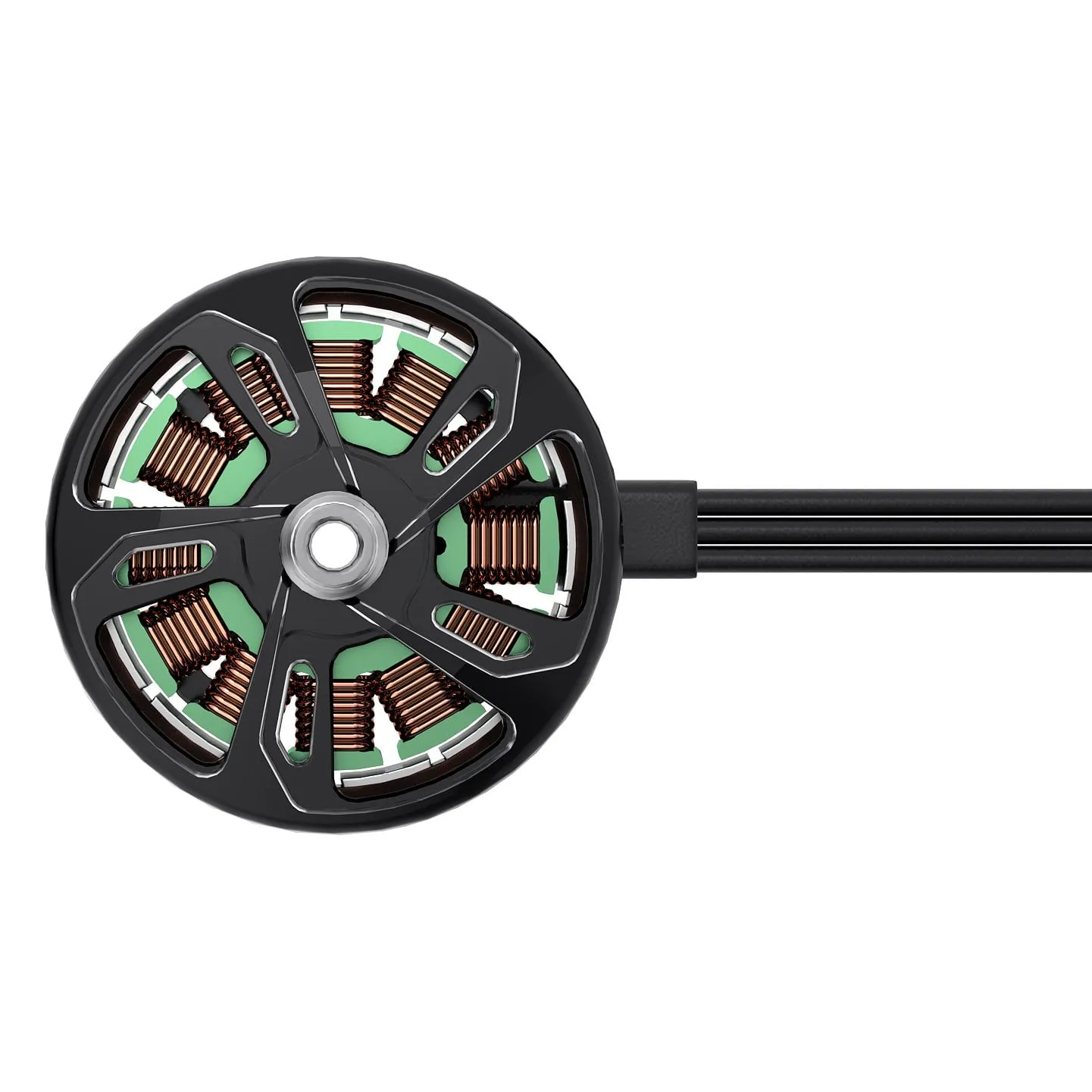

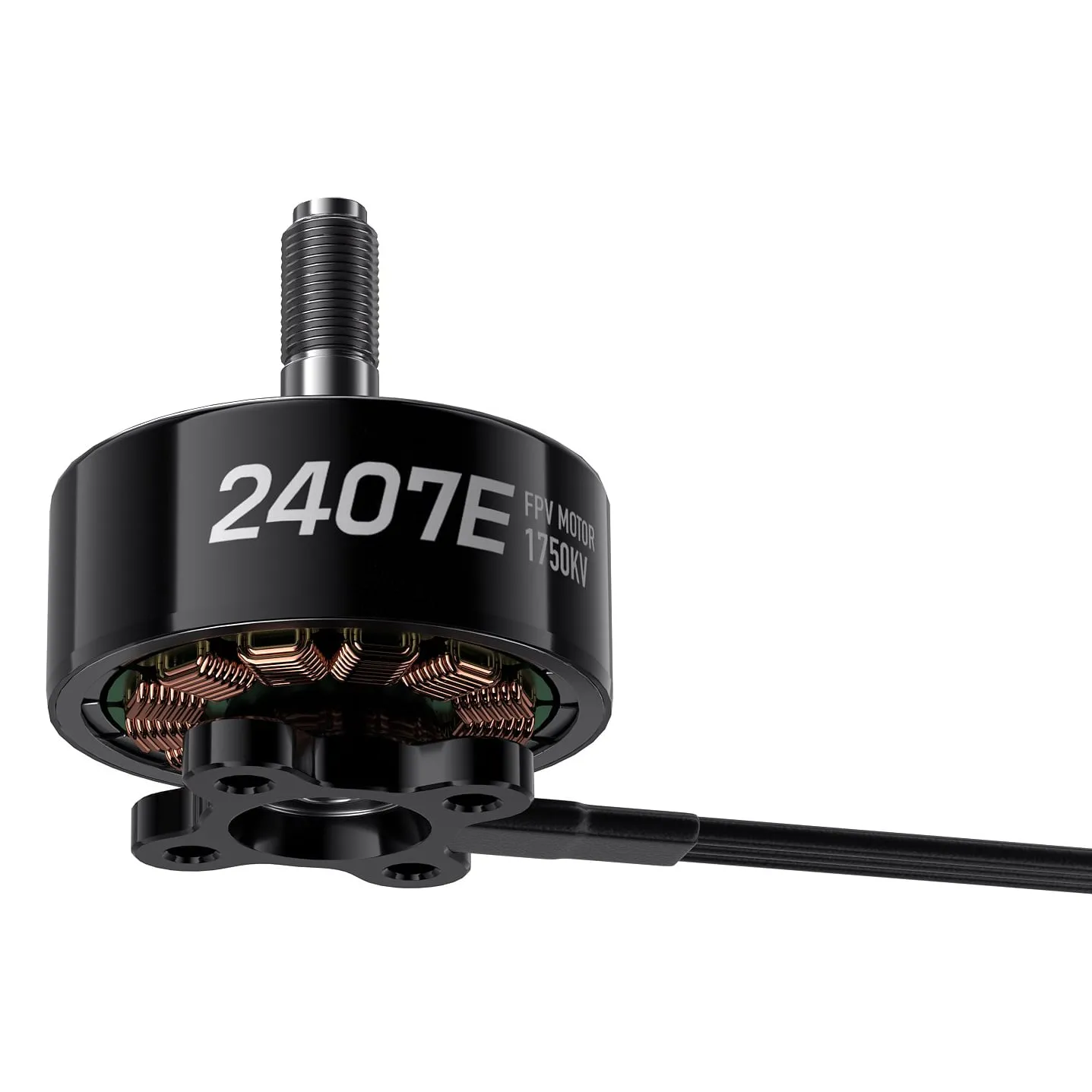

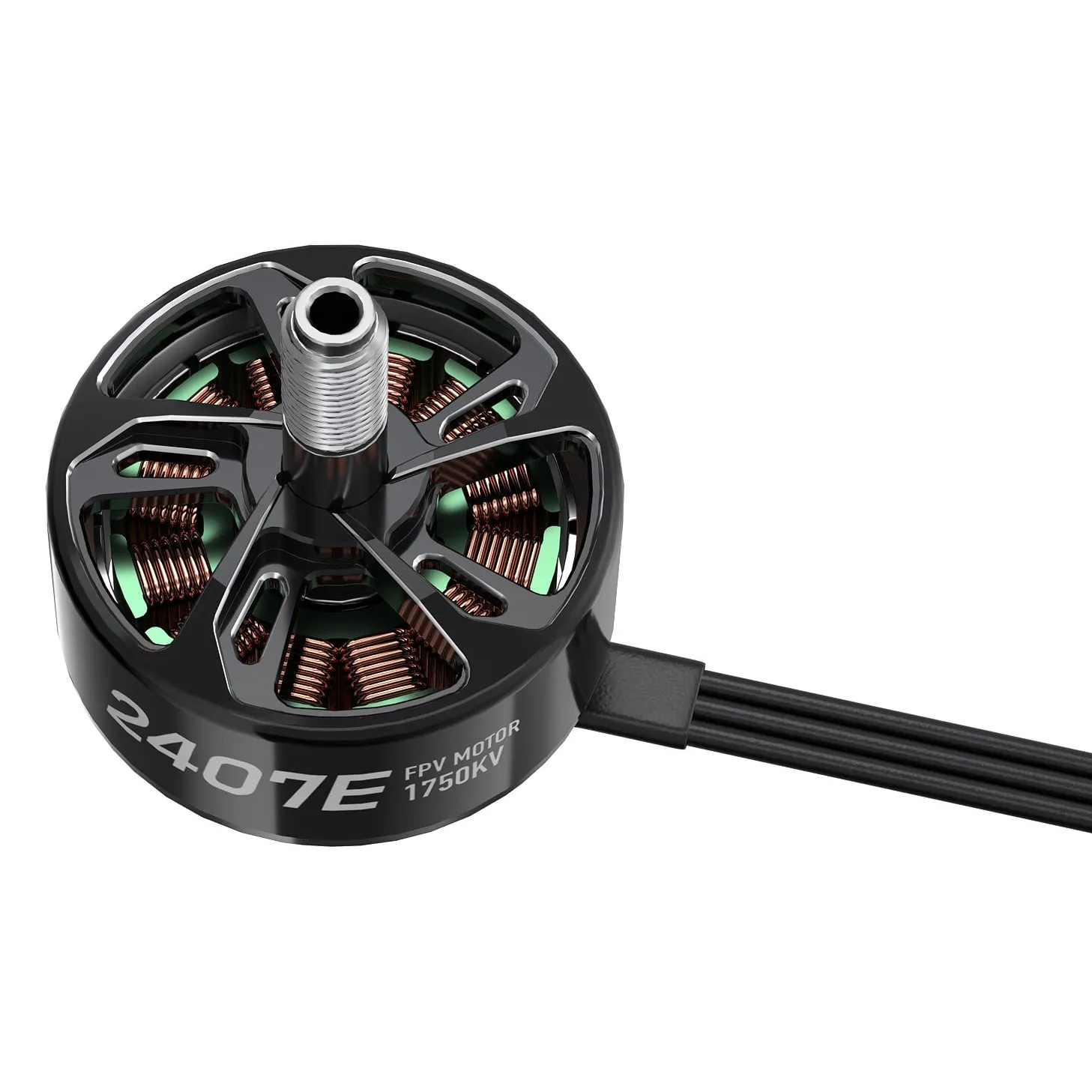

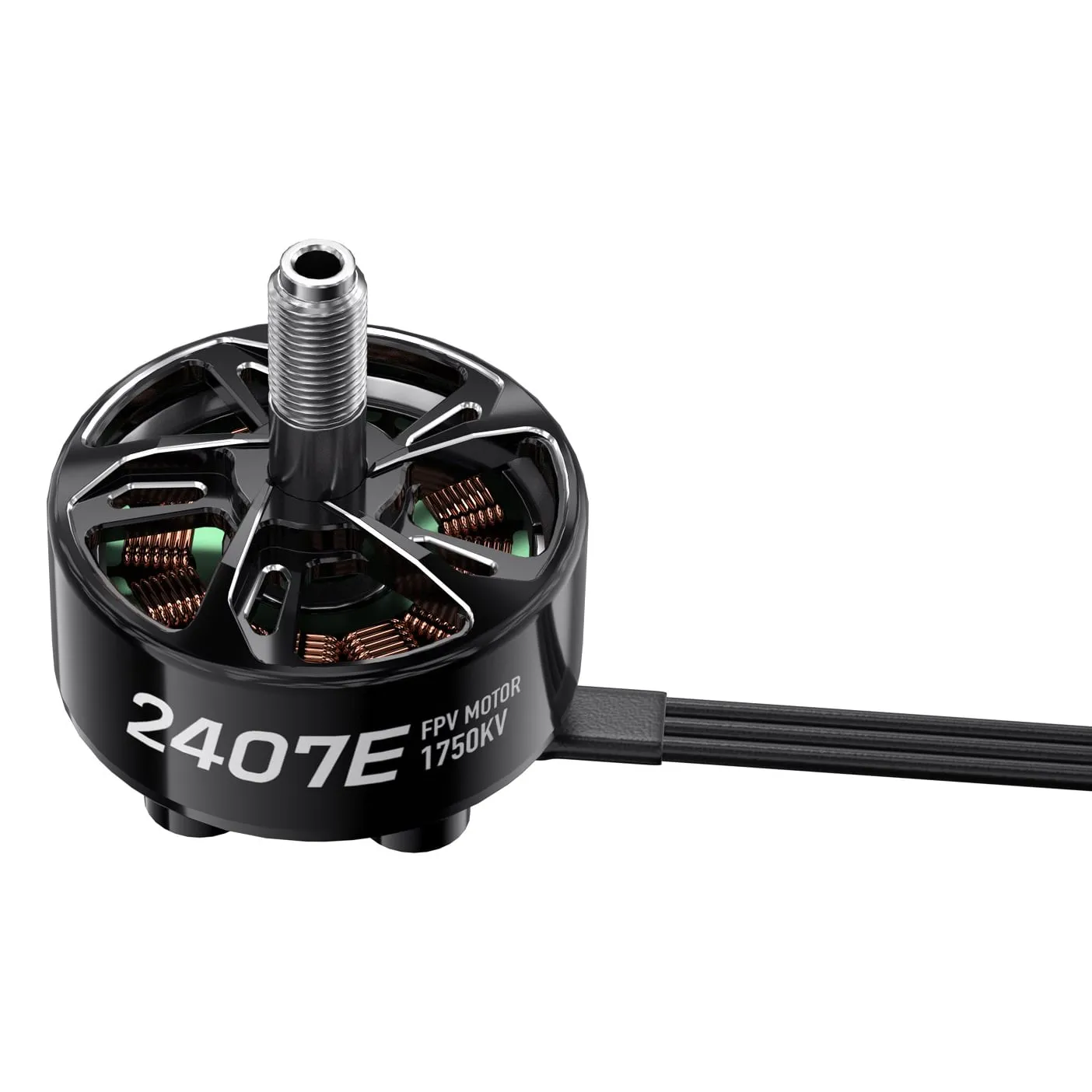

GEPRC SPEEDX2 2407E Motor (1750KV)

The GEPRC SPEEDX2 2407E (1750KV) is a high-torque brushless motor tailored for aggressive 5-inch freestyle builds and mid-range cinematic FPV setups. With its taller 2407 stator, this motor delivers increased low-end authority and rapid RPM response compared to traditional 2207 variants, making it highly capable of driving aggressive-pitch 5-inch or light 6-inch propellers without bogging down under load.

Key features

• Increased 24x7mm stator volume yields superior torque and punch-out recovery
• High-temperature N52H arc magnets ensure consistent efficiency across the throttle band
• Durable 5mm titanium alloy shaft resists bending during hard impacts
• Machined aluminium bell designed for excellent heat dissipation during high-amp 6S runs

Specifications

• Stator size: 2407
• KV: 1750
• Configuration: 12N14P
• Input voltage: 6S LiPo
• Max power: 972.7 W
• Peak current: 49 A
• Interphase resistance: 38 mOhm
• Recommended ESC: 60A, 6S
• Recommended propeller: 5-6 inch
• Shaft diameter: 5mm (13.5 mm long)
• Bearings: NMB/NSK
• Mounting pattern: 16x16mm (M3)
• Motor dimensions: 34 x 30 mm
• Motor wire: 20AWG, 150 mm
• Weight: 39 g (including wire)

This motor is an ideal pairing for 6S pilots flying heavier 5-inch frames with full-size action cameras, where the extra stator mass guarantees crisp mid-air corrections and reliable sustained thrust.
