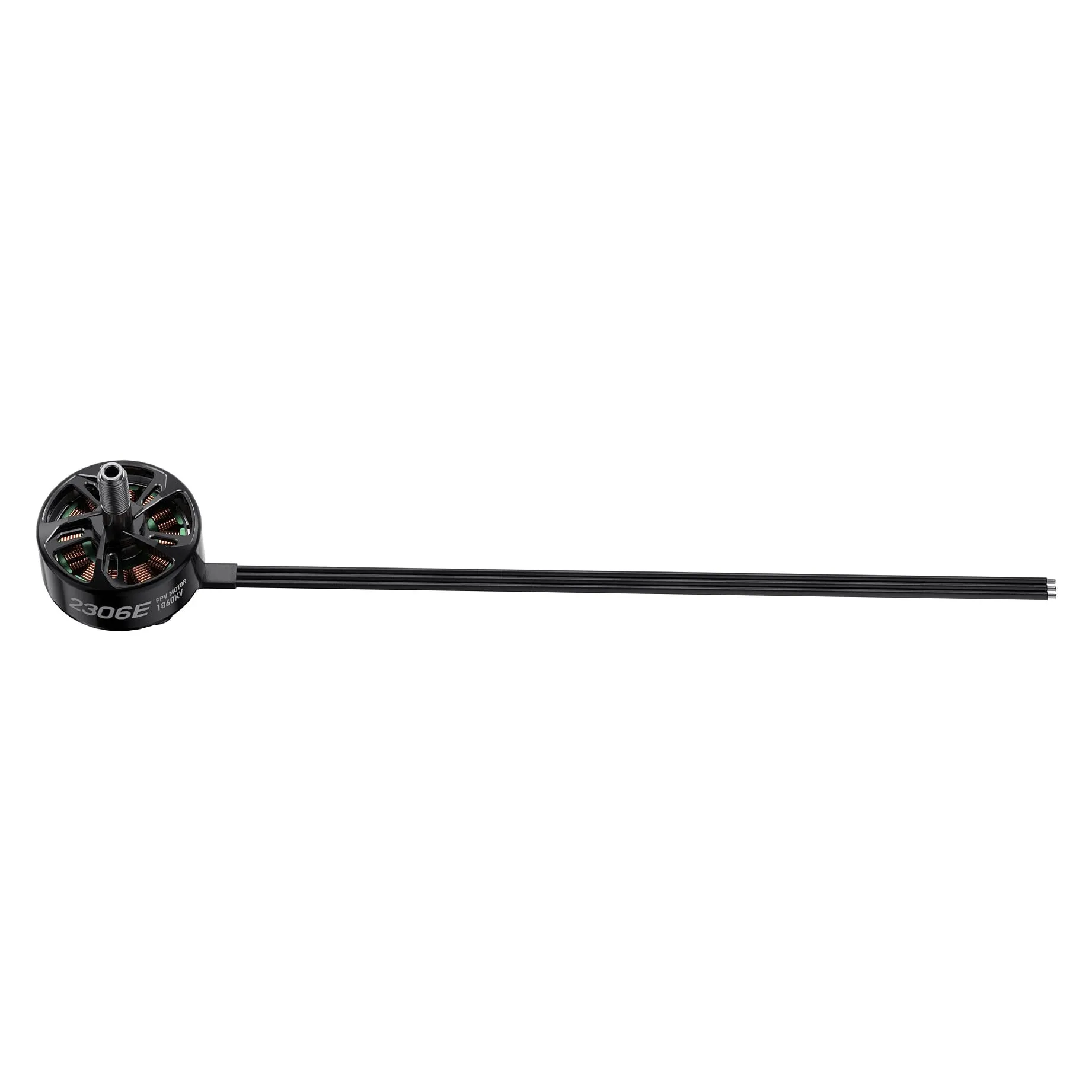

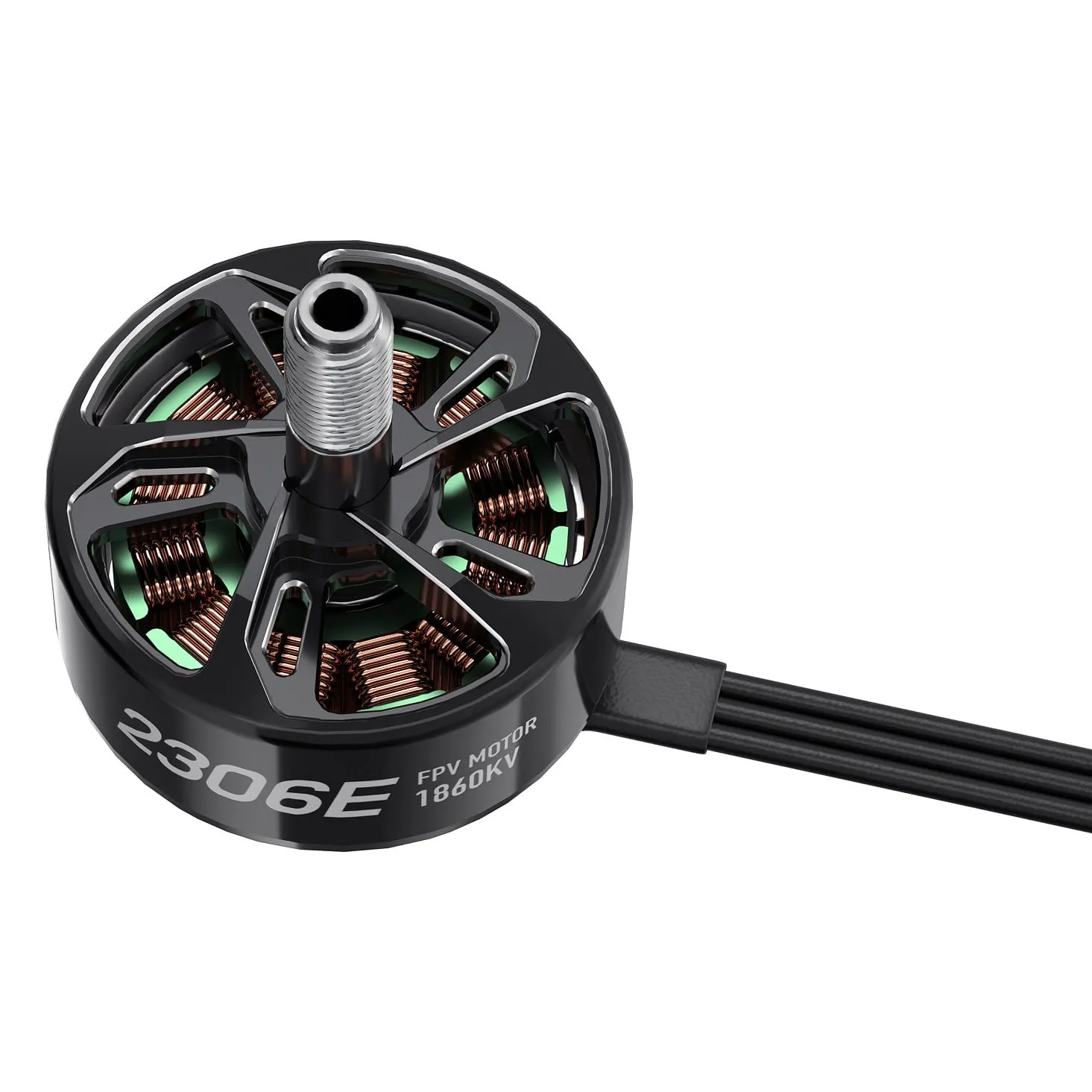

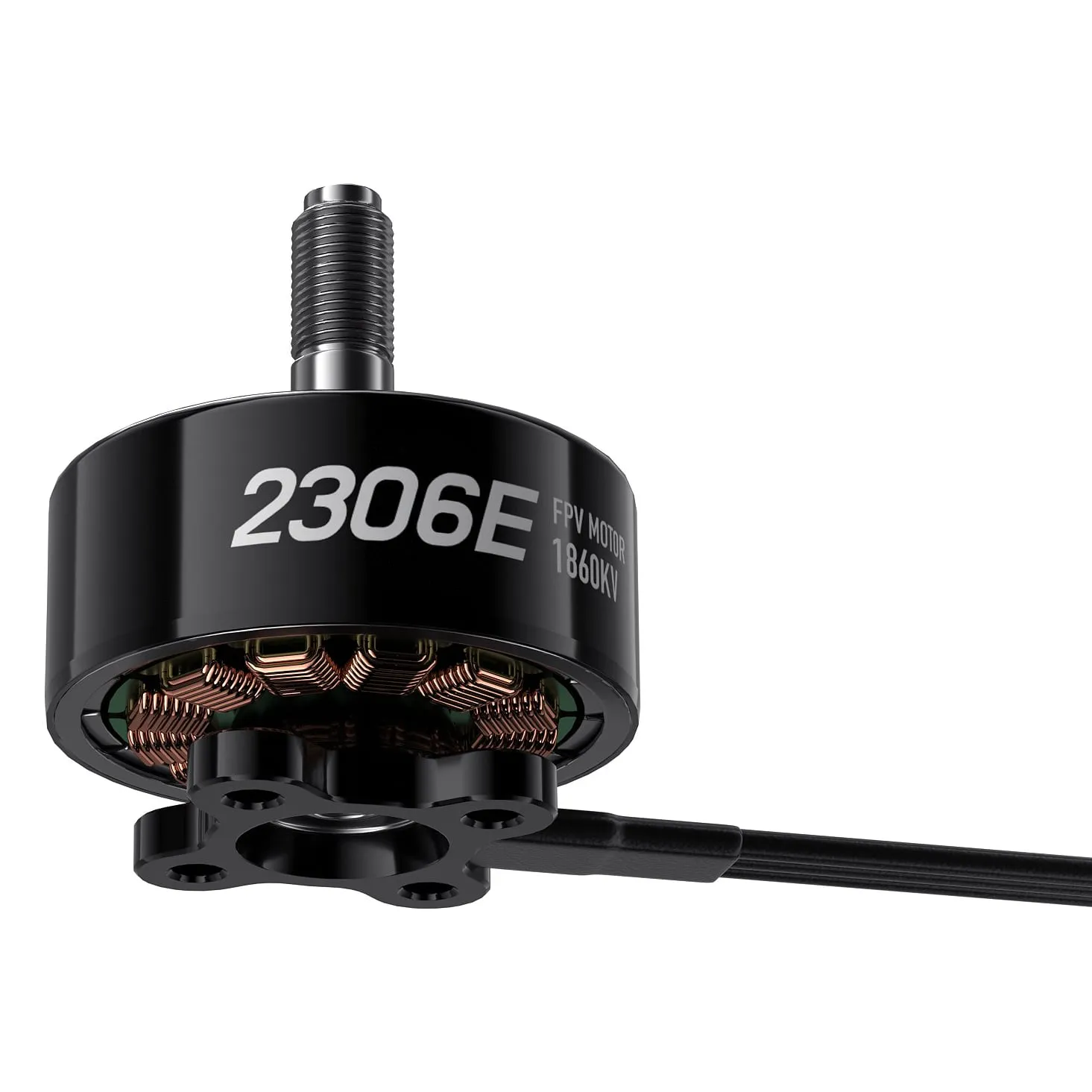

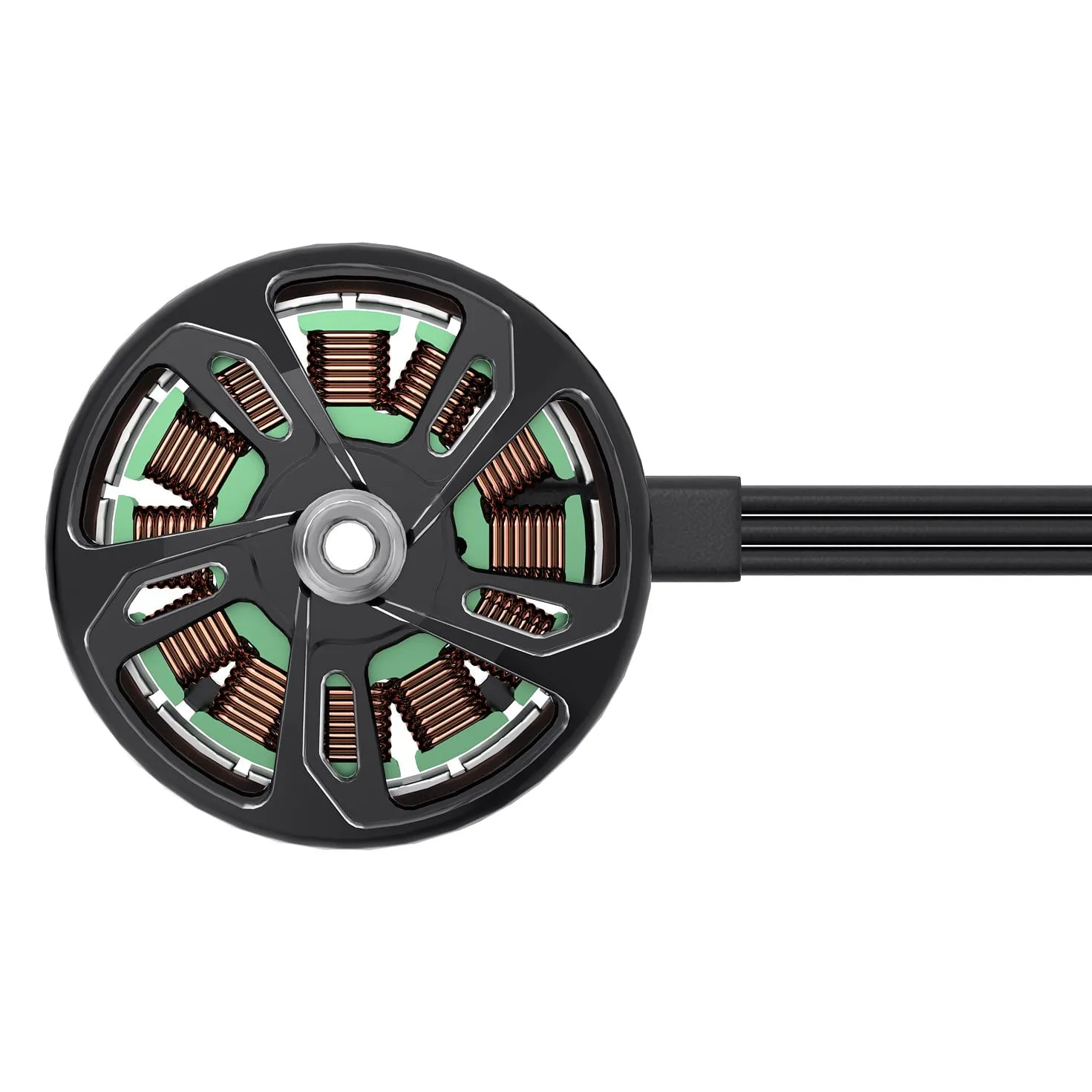

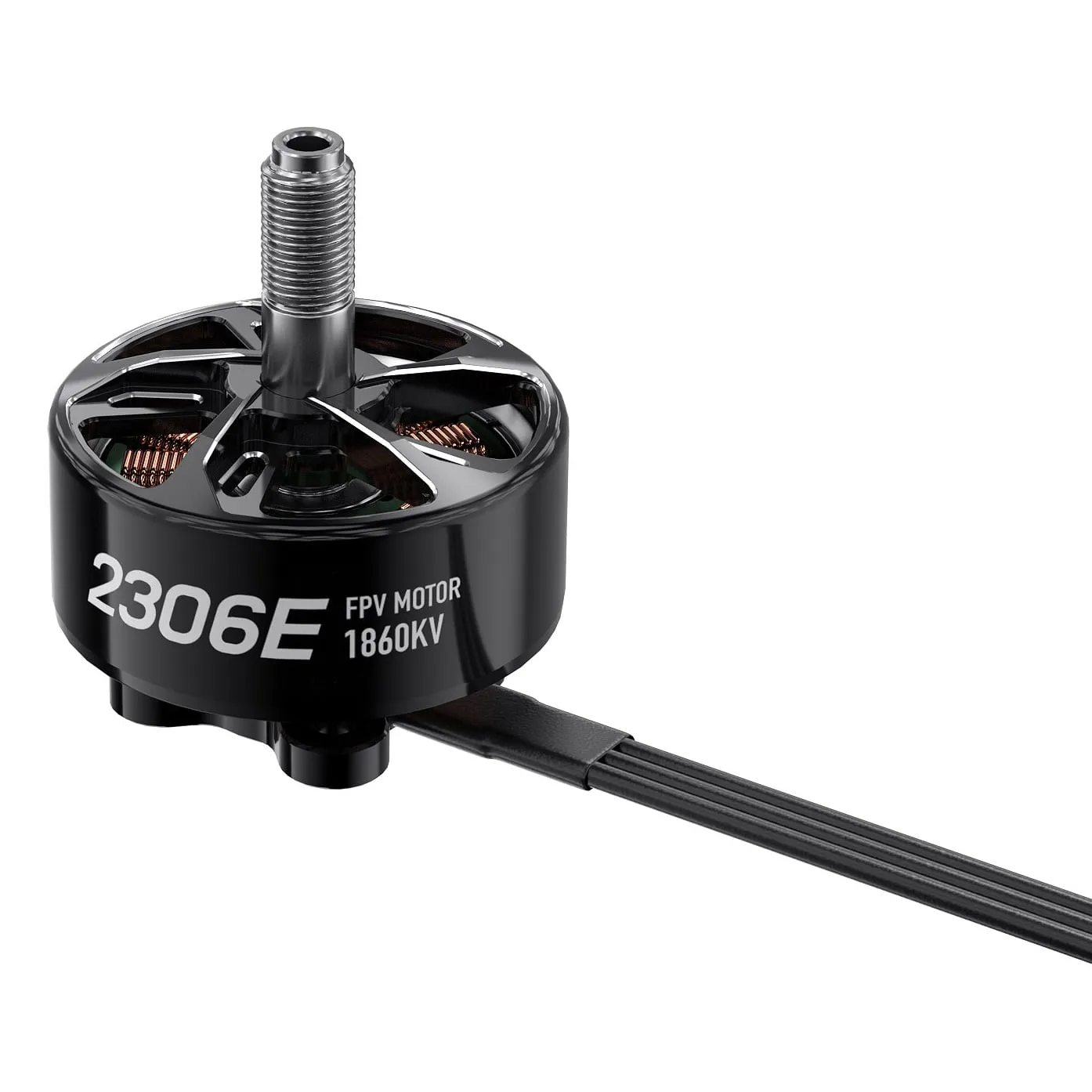

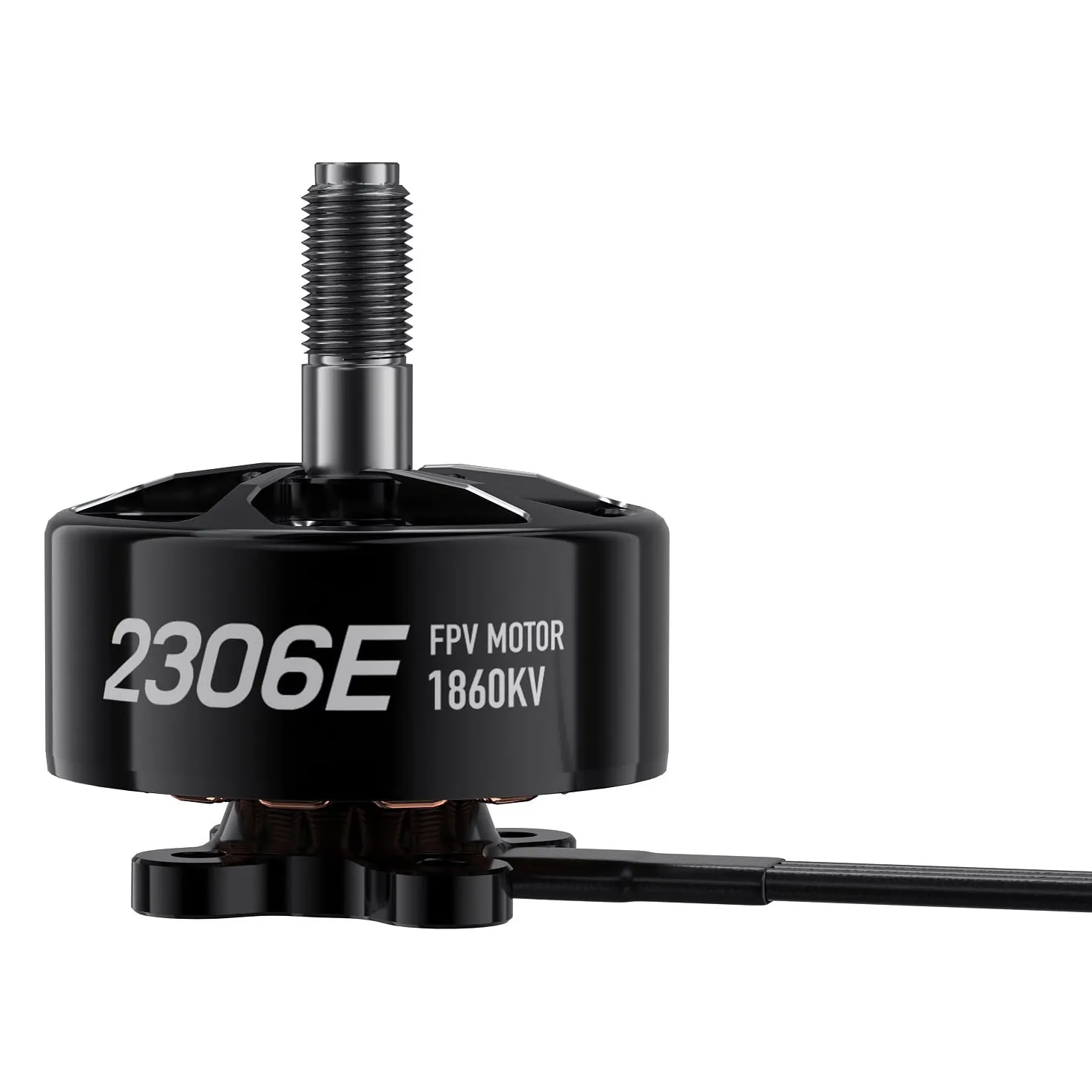

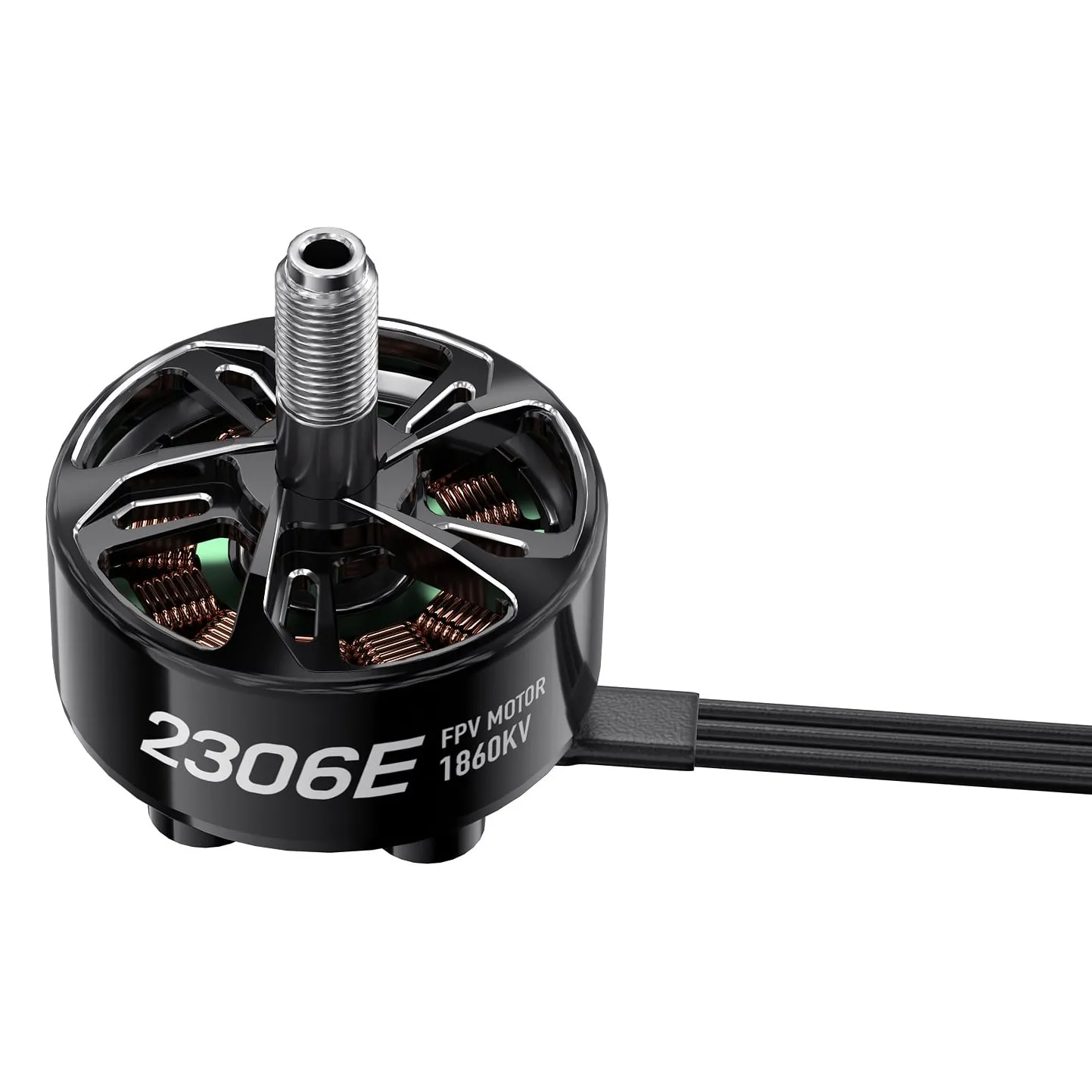

GEPRC SpeedX2 2306E Motor

The GEPRC SpeedX2 2306E is engineered for 5-inch FPV freestyle and racing quads, striking a precise balance between responsive torque and battery efficiency. Wound at 1860KV for 6S LiPo power systems, this motor employs GEPRC's updated E-series magnet configuration to reduce energy bleed and extend flight times without sacrificing the punch required for aggressive acrobatics.

Key features

• Updated E-series magnetic circuit specifically tailored to improve overall motor efficiency
• Smooth 2306 stator volume provides excellent low-end throttle resolution for technical freestyle flying
• Standard 16x16mm M3 mounting pattern ensures drop-in compatibility with modern 5-inch frames
• Industry-standard 5mm threaded shaft securely accepts all standard 5-inch FPV propellers

Specifications

• Stator size: 2306
• KV: 1860 KV
• Input voltage: 6S LiPo
• Configuration: 12N14P
• Shaft diameter: 5mm
• Shaft length: 13.5 mm
• Mounting pattern: 16x16mm (M3)
• Dimensions: 29 x 18.6 mm
• Max power: 972.7 W
• Peak current: 39.18 A
• Interphase resistance: 83.17 mOhm
• Magnets / bearings: N52H / NMB or NSK
• Wire: 20AWG, 150 mm
• Recommended ESC: 40 A, 6S
• Propellers: 4-5 inch
• Weight: 33.3 g (including wire)

Pair these motors with a reliable 45A to 60A ESC and a mid-pitch 5-inch propeller for a highly efficient, smooth-flying freestyle build.
