GEPRC Momoda RHCP FPV Antenna - MMCX Connector (100mm+70mm)

GEPRC Momoda RHCP FPV Antenna - MMCX Connector (100mm+70mm)

Name: GEPRC Momoda RHCP FPV Antenna - MMCX Connector (100mm+70mm)
Brand: GEPRC
SKU: GEPRC-MOMODA-RHCP-MMCX
Price: 1749 INR
Availability: InStock

₹1,749

SKU GEPRC-MOMODA-RHCP-MMCX

Polarization: RHCPAntenna Connector: MMCXFrequency Band: 5.8GHzMade in India: No

Free shipping. Pan India delivery from Gurugram, Haryana.

Sourced on demand — most orders ship within 3–4 days

100% genuine parts
GST invoice with every order
Secure UPI & bank transfer
7-day returns on wrong or damaged items

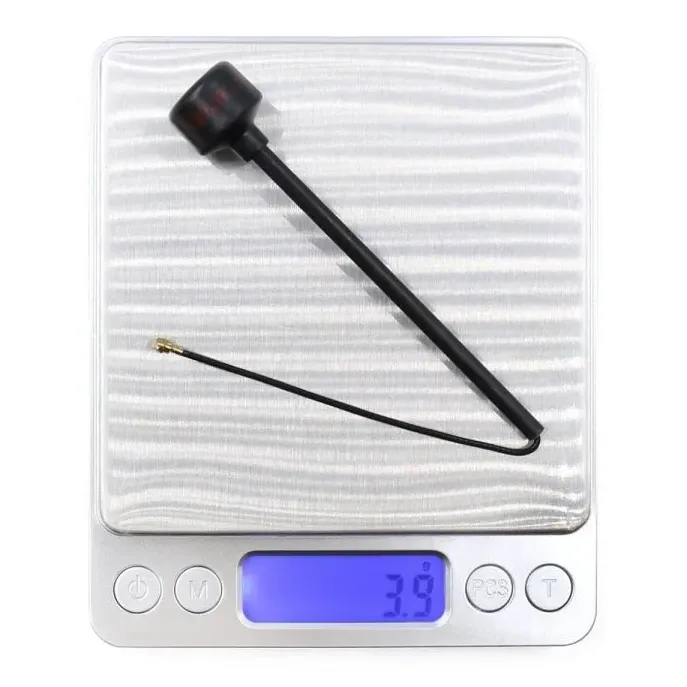

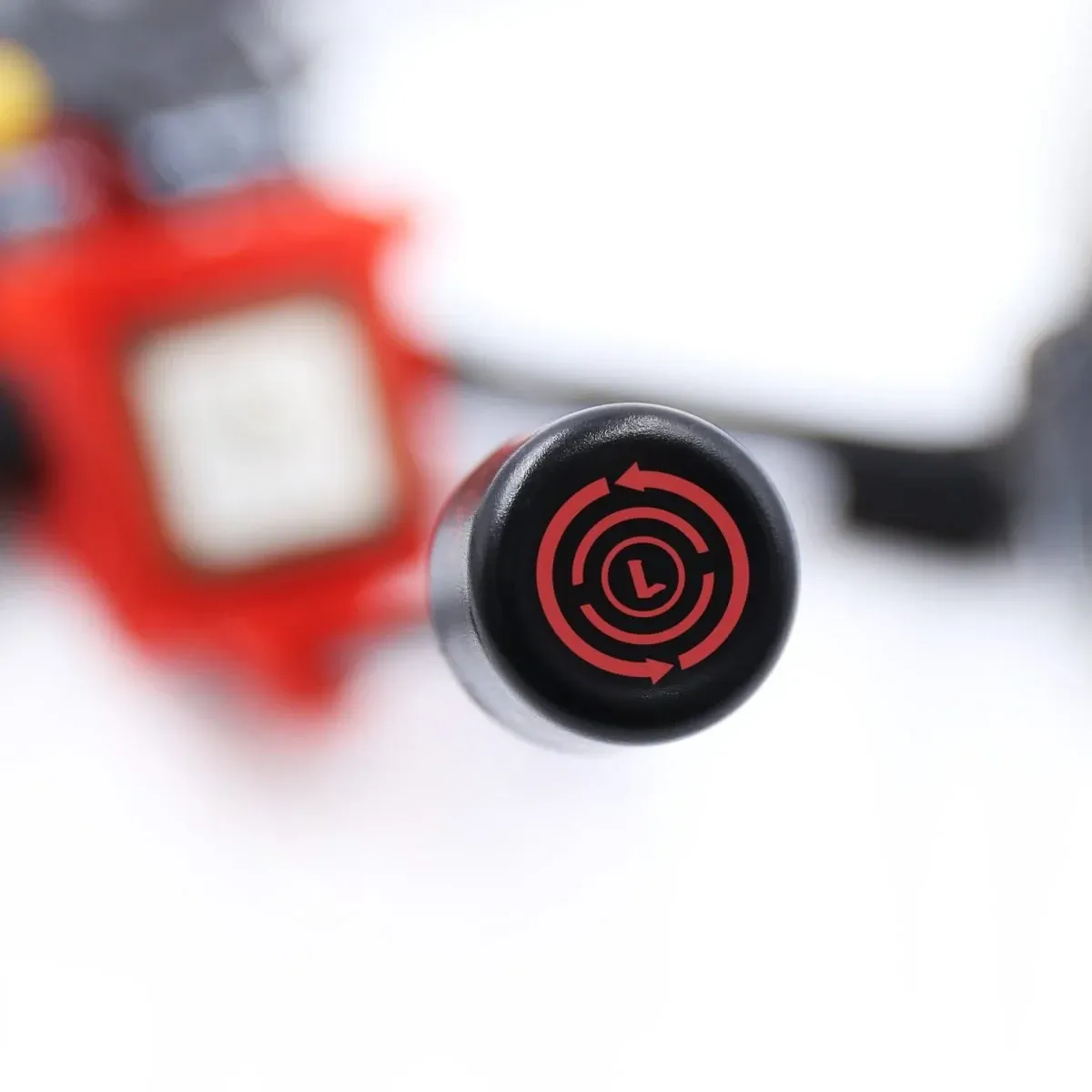

The GEPRC Momoda 5.8GHz RHCP antenna provides clean video transmission for analog and digital FPV setups utilizing MMCX VTX connections. Encased in a crash-resistant polycarbonate radome, it protects the internal radiating elements against hard impacts. The inclusion of both 100mm and 70mm cable lengths gives builders the flexibility to optimize placement on freestyle frames, ensuring the active antenna clears the carbon chassis and battery for maximum line-of-sight.

Key features

Right-Hand Circular Polarization (RHCP) limits multipath interference in high-reflection environments.
Flexible coaxial cable routes easily around standoffs and tight stack builds.
Impact-resistant polycarbonate shell prevents element deformation during crashes.

Specifications

Center frequency: 5.8GHz (5600–5950MHz)
Polarization: RHCP
Gain: 2.5dBi
Connector: MMCX
VSWR: ≤1.5
Impedance: 50Ω
Cable lengths: 100mm and 70mm

Always ensure the MMCX connector snaps fully into the video transmitter before powering on to prevent burnt VTX components. The 100mm length is ideal for rear-mounting behind large batteries, while the 70mm fits perfectly on compact or low-profile builds.
