FPV Antennas4 Leaf Clover 5.8GHz RHCP FPV Antenna (SMA /
4 Leaf Clover 5.8GHz RHCP FPV Antenna (SMA /
₹419Incl. GST
SKU GEN-CLOVER-RHCP-RPSMA-M
Connector: RP-SMA
Polarization: RHCPAntenna Connector: SMA, RP-SMAFrequency: 5.8GHzMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

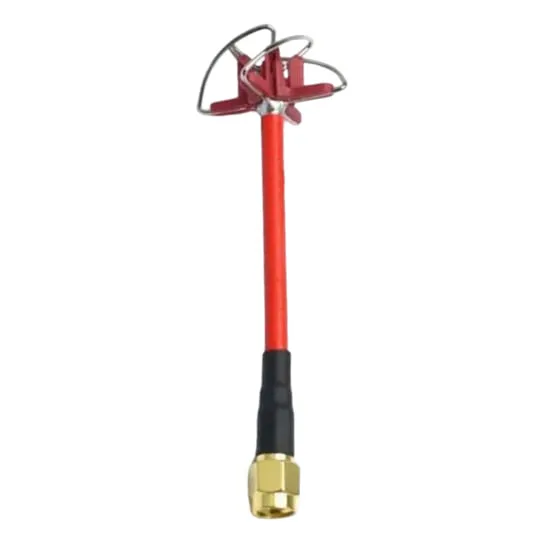

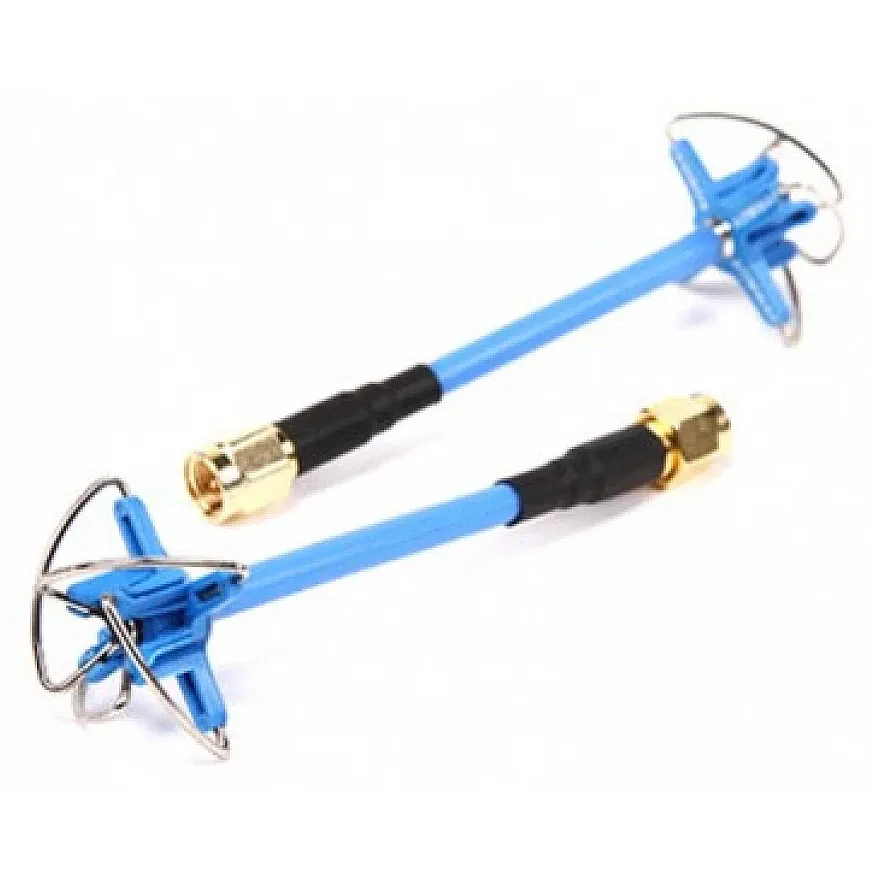

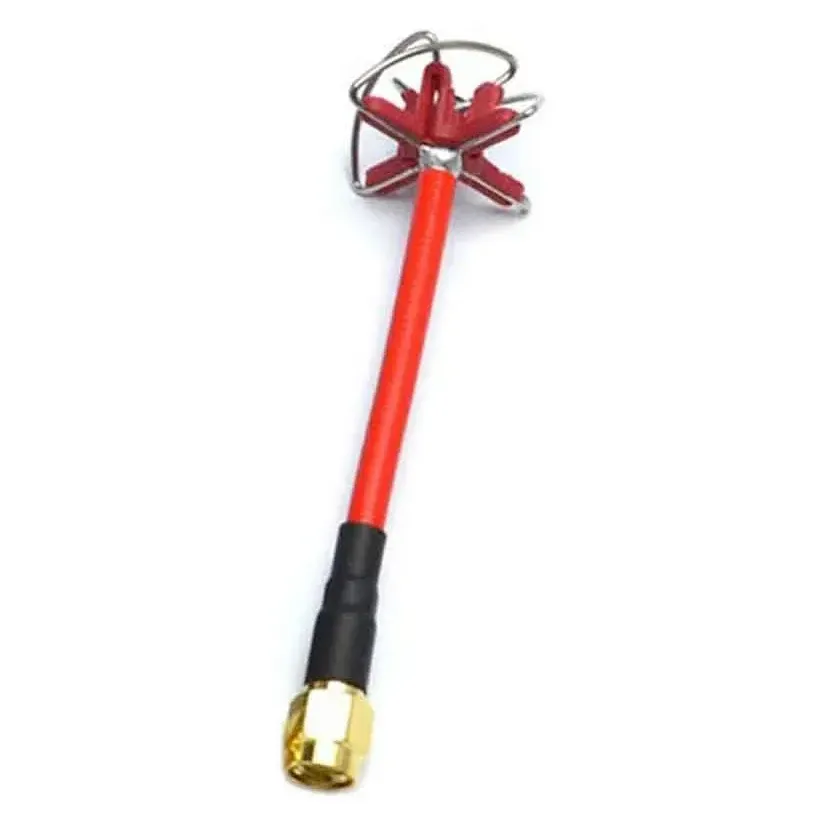

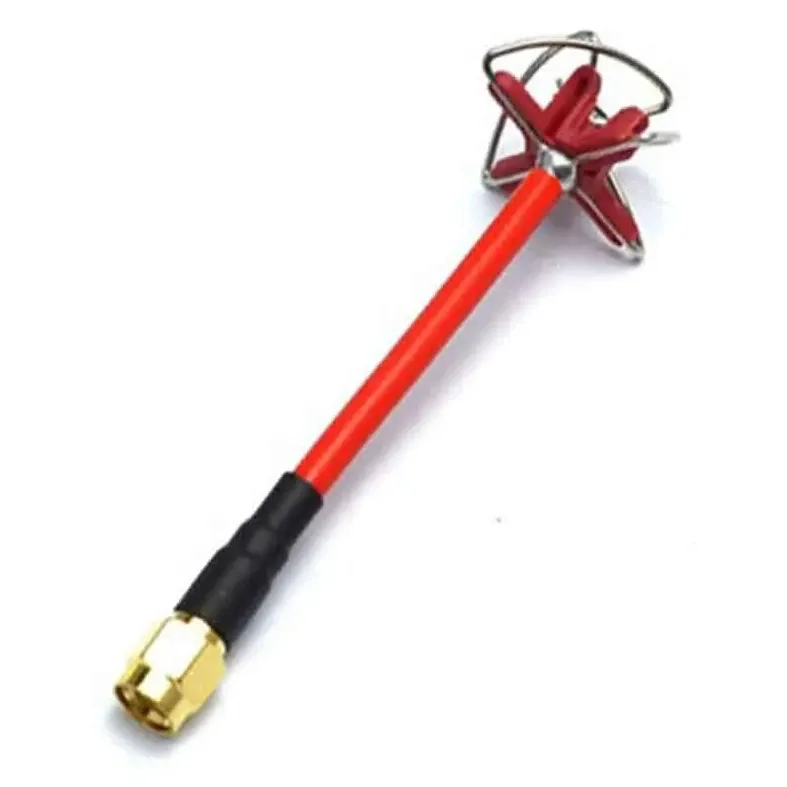

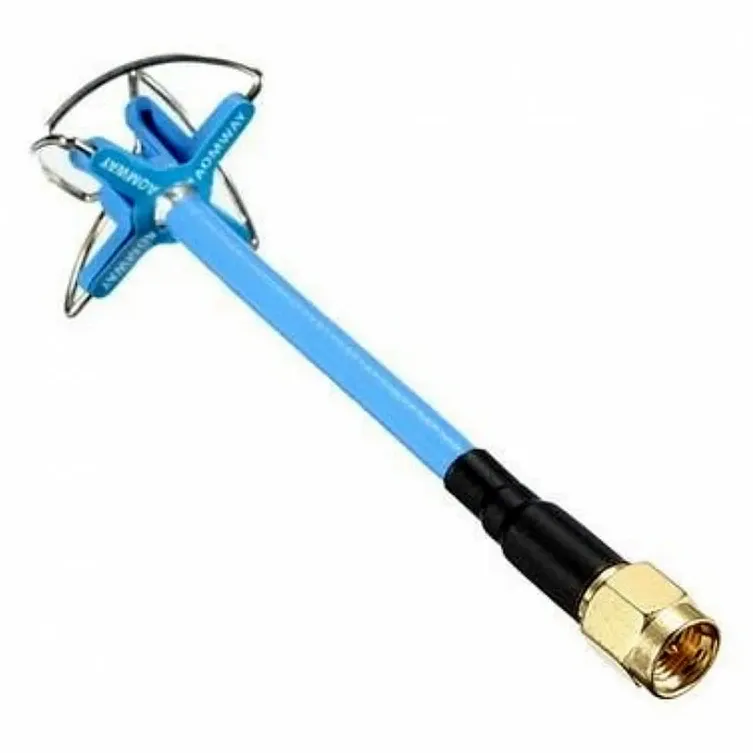

A four-leaf cloverleaf antenna for 5.8 GHz FPV video, right-hand circularly polarised and omnidirectional, with a reinforced base. It comes with either an SMA male or an RP-SMA male plug, so you can match the jack on your video transmitter, goggles or receiver.
Key features
- 5.725–5.875 GHz band, 3 dBi gain and 50 Ω impedance
- RHCP polarisation rejects much of the reflected signal behind multipath breakup; pair it with RHCP antennas at the other end of the link
- Omnidirectional pattern for all-round coverage on a quad or a goggle receiver
- Two plug options: SMA male for SMA female jacks, RP-SMA male for RP-SMA female jacks
Specifications
- Frequency: 5.725–5.875 GHz
- Gain: 3 dBi
- Impedance: 50 Ω
- Polarisation: RHCP
- Connector options: SMA male, RP-SMA male

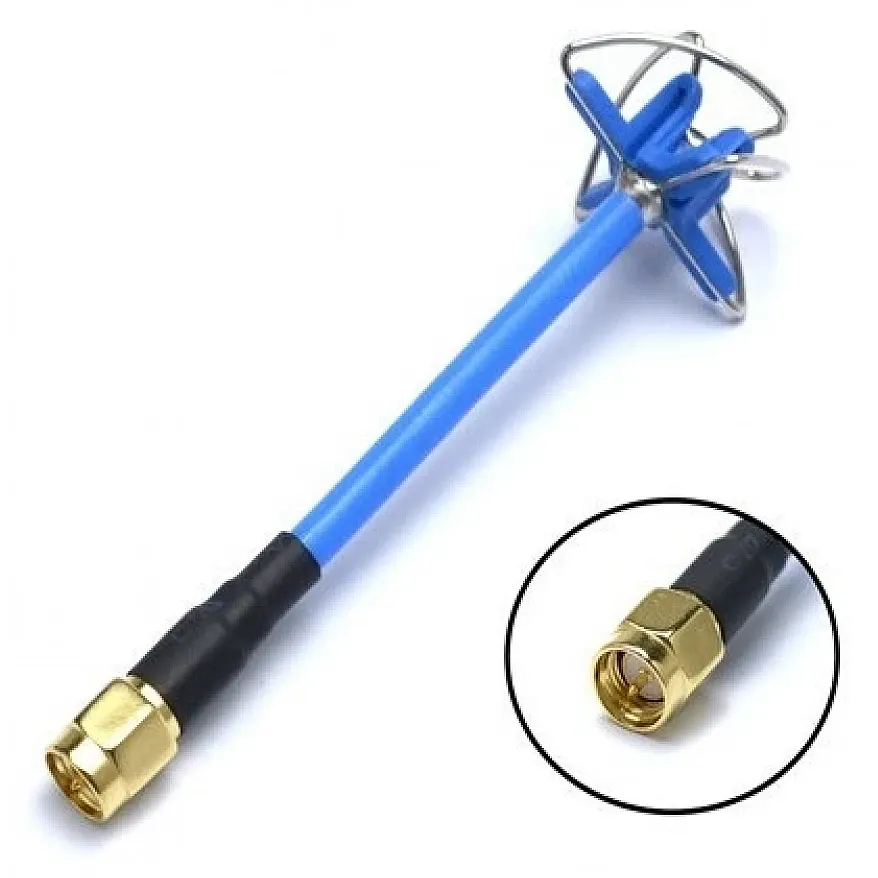

SMA and RP-SMA look almost identical but do not mate: an SMA male has a centre pin, an RP-SMA male a centre socket. Check the jack on your VTX or goggles before choosing.
| Polarization | RHCP |
|---|---|
| Antenna Connector | SMA, RP-SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | Generic |
| Gain | 3 dBi |
| Antenna Type | Omni |
